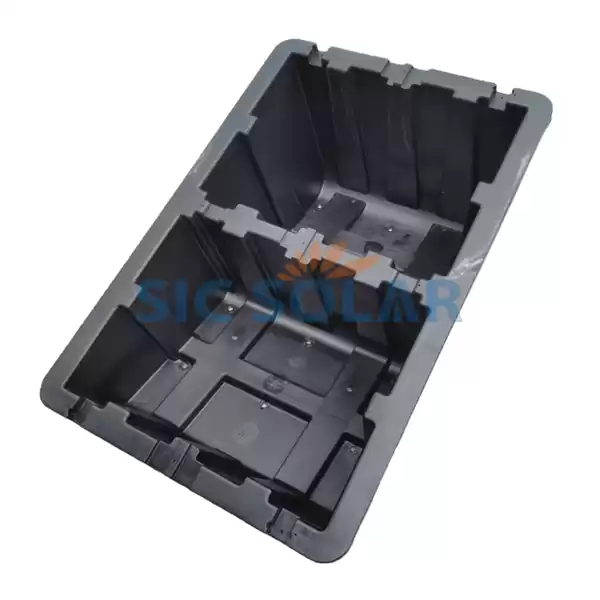

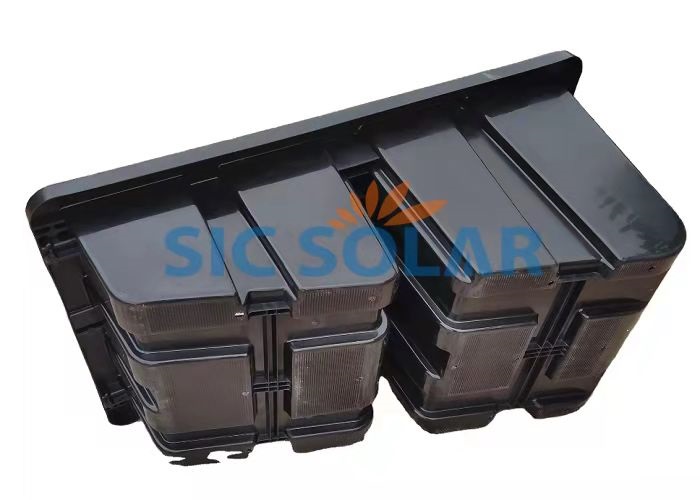

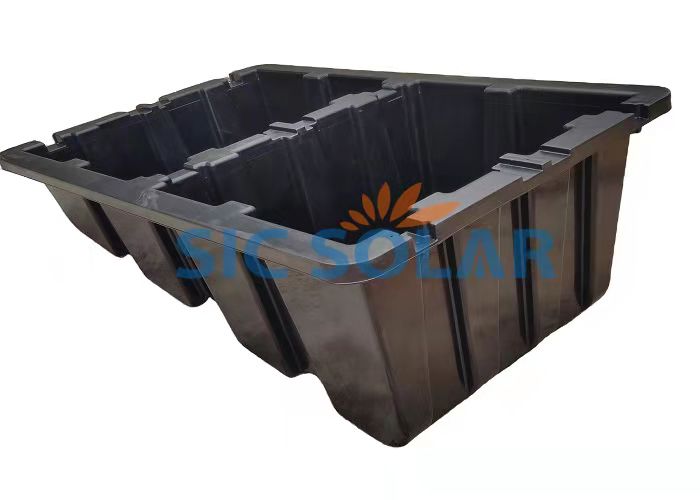

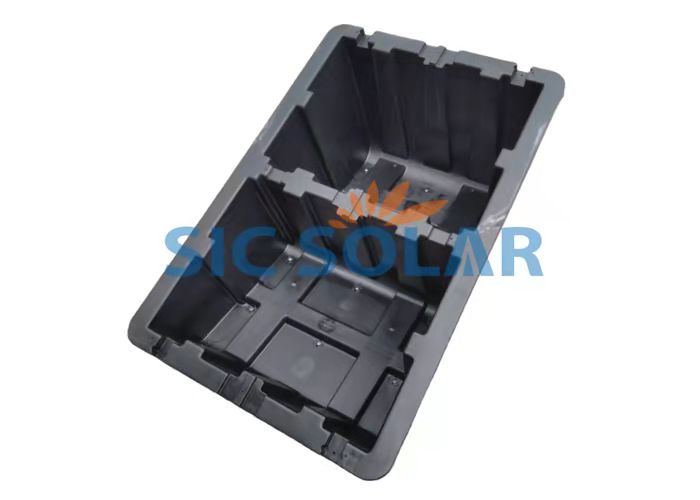

Solar PP Plastic ballast mounting system

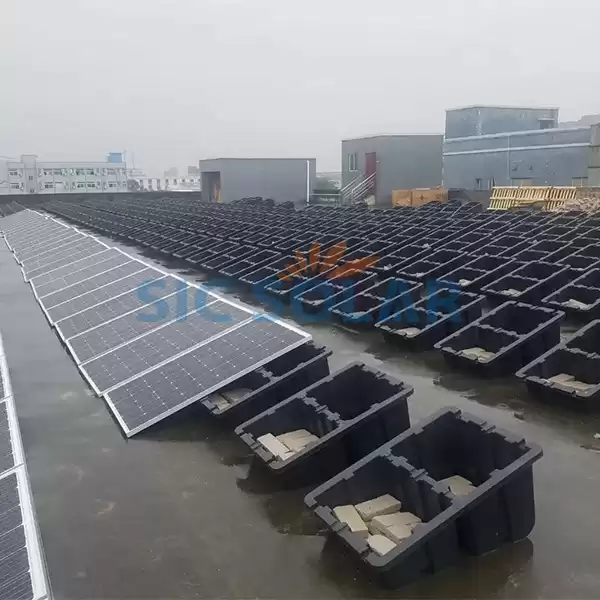

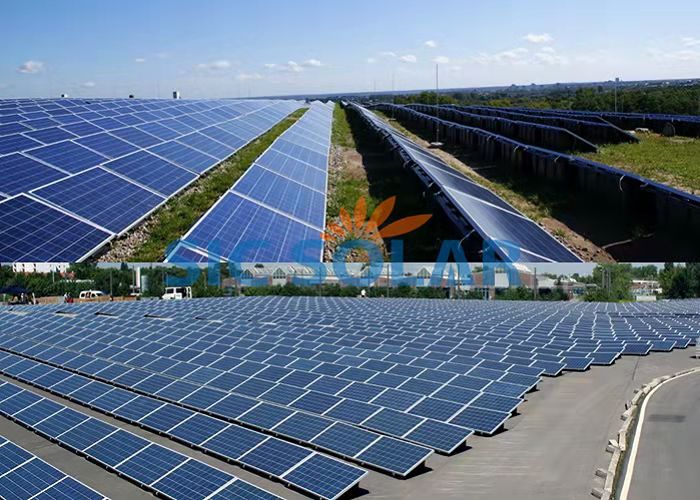

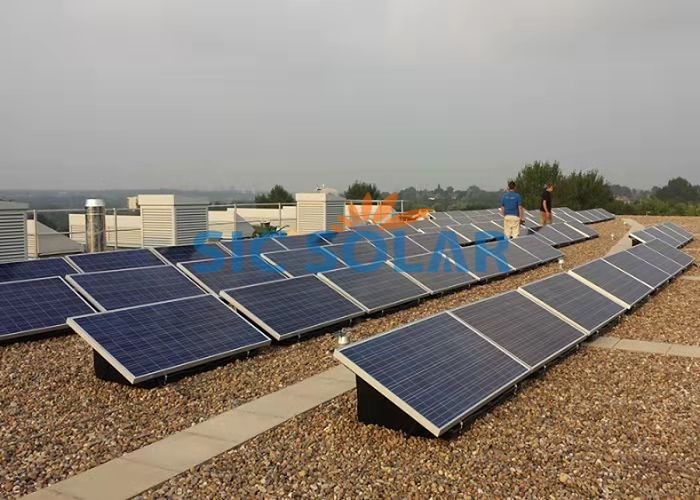

PV HDPE plastic ballast rack is designed for flat surface like flat roof, solar farm or garden etc. It's a great strategy to install it on the ground. HDPE ballasted ground mount installations provide the lower cost and quicker installation. It can be put on various of ground foundation.
Category : Ground mounting system
|
Name
|
Solar panel plastic ballast mounting system
|
|
Installation Site
|
Flat surface
|
|
Material
|
HDPE
|
Filler
|
Gravel, stone
|
Weight of filler
|
120 KGS
|
Content
|
Plastic pan*1, end clamp*4, screw*4
|
Angle of installation
|
18°
|
|
Life time
|
25 years
|
|
Dimension
|
1017-695-507 mm
|
|
Net weight
|
7.5 KGS
|
☆ Easy installation- Plastic Ballast pan and end clamps.
☆ Flexible position planning - Plastic ballast frame could be extended according to your installation site.
☆ Ballast design- Suit for any flat surface without damaging any surface
Q1: Could the tilt angle be changed? Like reduced to 15°?
The mold is fixed 18°.
New mold need to be opened for other angle. The cost is too high to open for small qty.

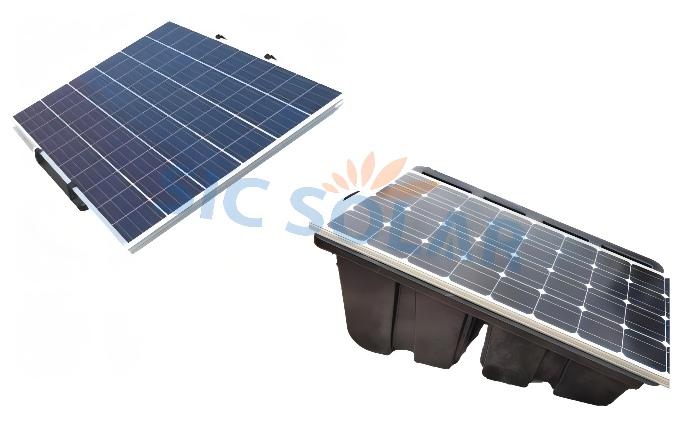

Q2: Is the HDPE mount have request on solar panel size?
For panel put in horizontal, the panel width should be 995-1010mm. Other panel width need to get a adapter.
For panel put in vertical, no request.
Q3: Does the price for the item comprehensive of clamps and any other material needed to mount the system?
Yes, The price included the clamps to mount panels, which is complete, except for the ballast gravel.
Q4: What will be excluded from the final DDU quotation (ex. customs clearance / european due taxes)?
With DDU terms, only the import taxes and VAT are not included, 6.5% for european countries.
