Solar PV Concrete Flat Roof Triangle Mounting Systems

Solar PV Concrete Flat Roof Triangle Mounting Systems is widely used in commercial roofs and flat roofs of public buildings.


  • Warranty10 years
  • Fastener MaterialStainless steel SUS304
  • Design standardAS/NZS1170,JIS C 8955-2017
  • Bracket materialAL6005-T5(Anodized Oxidation)
  • Module OrientationHorizontal, Vertical
  • Snow load1.4KN/m²
  • Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
  • Wind load60m/s(216kmh/133mph)
  • Installation angle0°-60°
  • Installation foundationConcrete foundation
  • Installation locationConcrete flat roof
  • BrandWintop
  • Service Lifemore than 20 years

Solar PV Concrete Flat Roof Triangle Mounting Systems

solar tin roof mount


Product Description

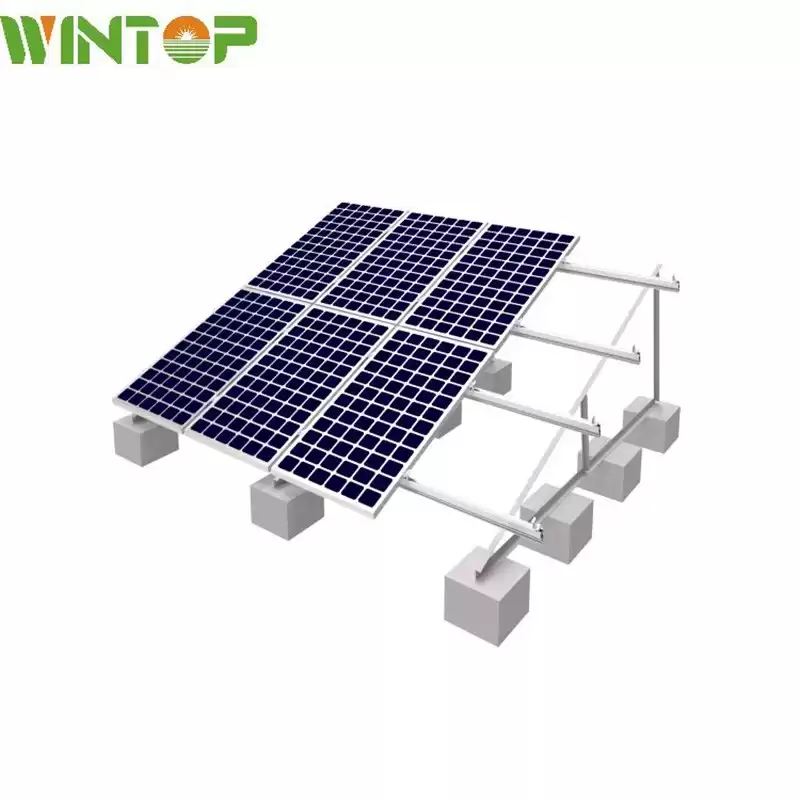

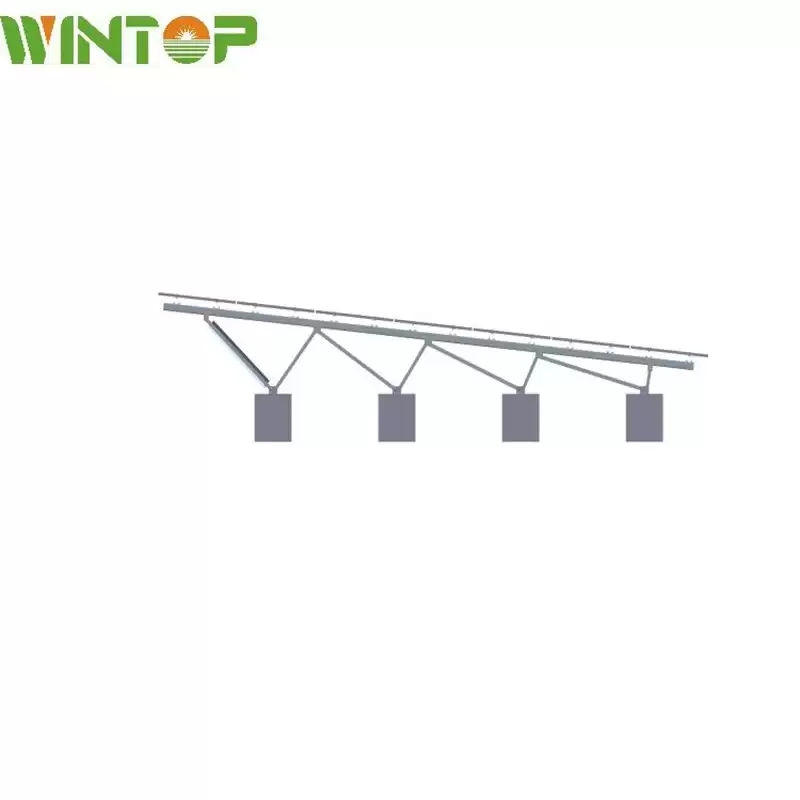

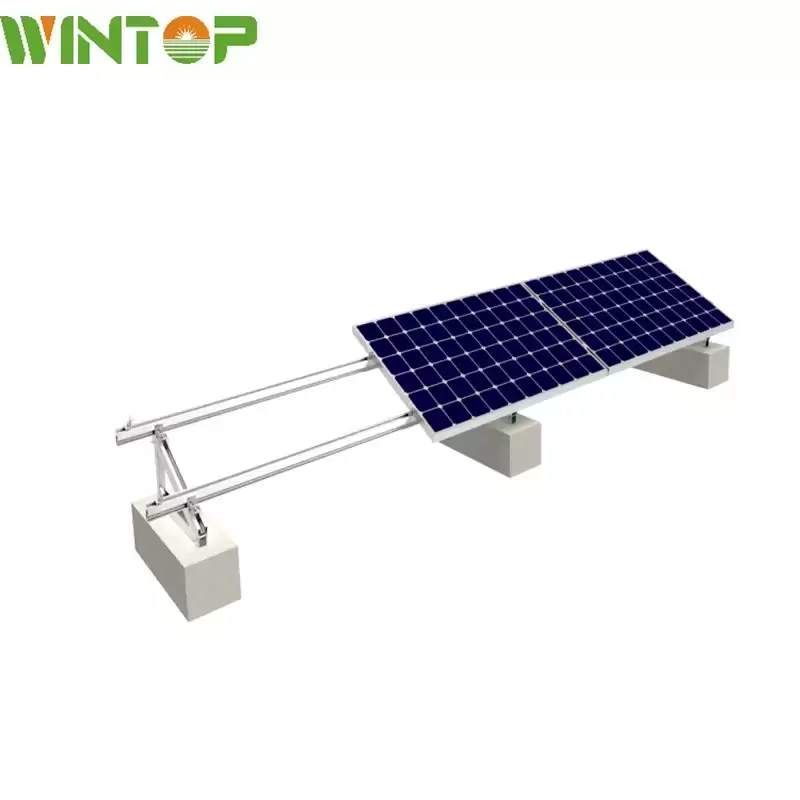

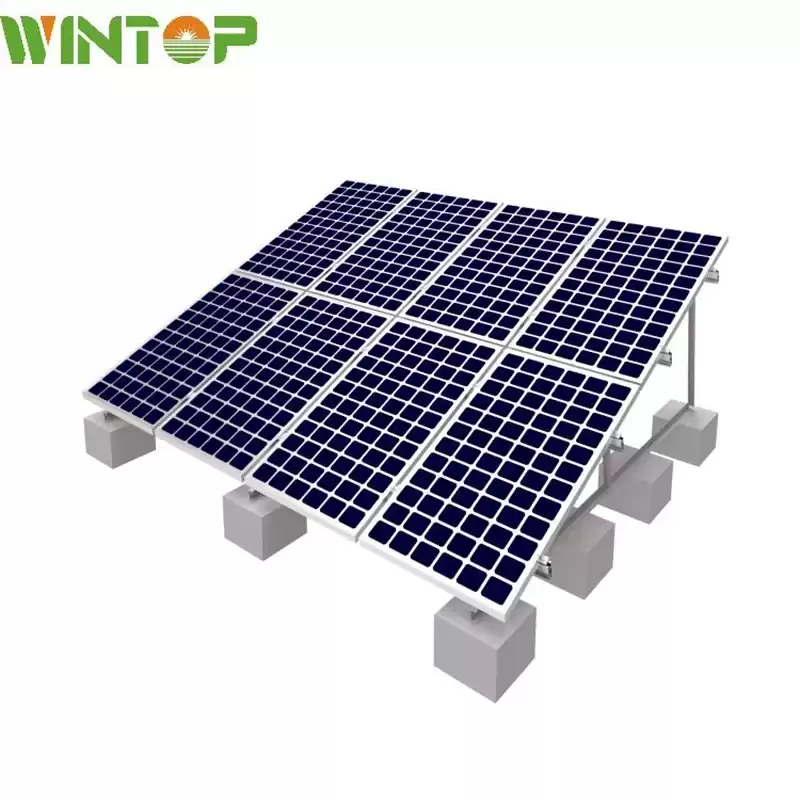

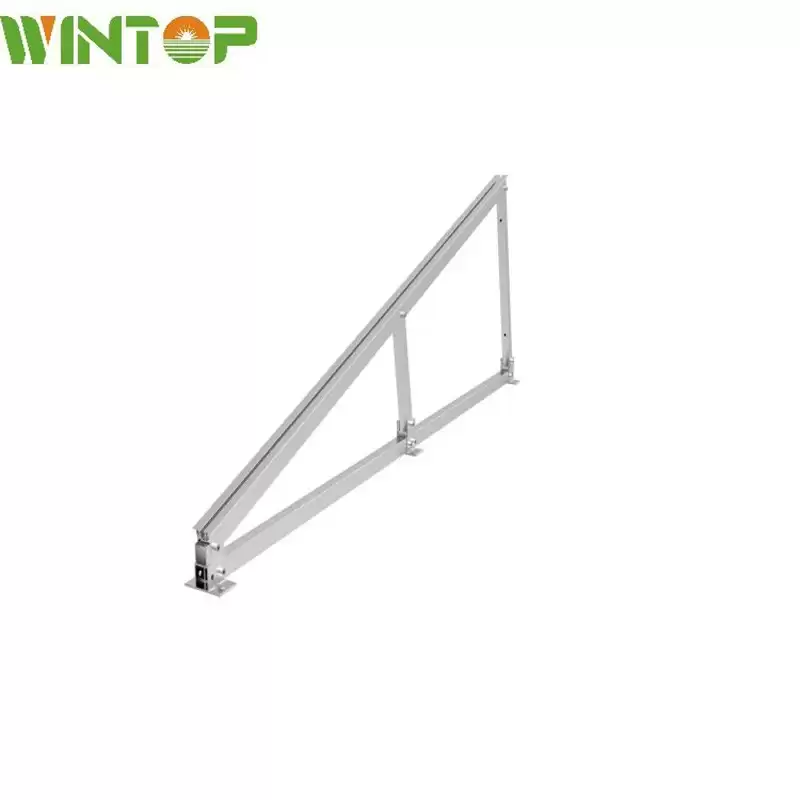

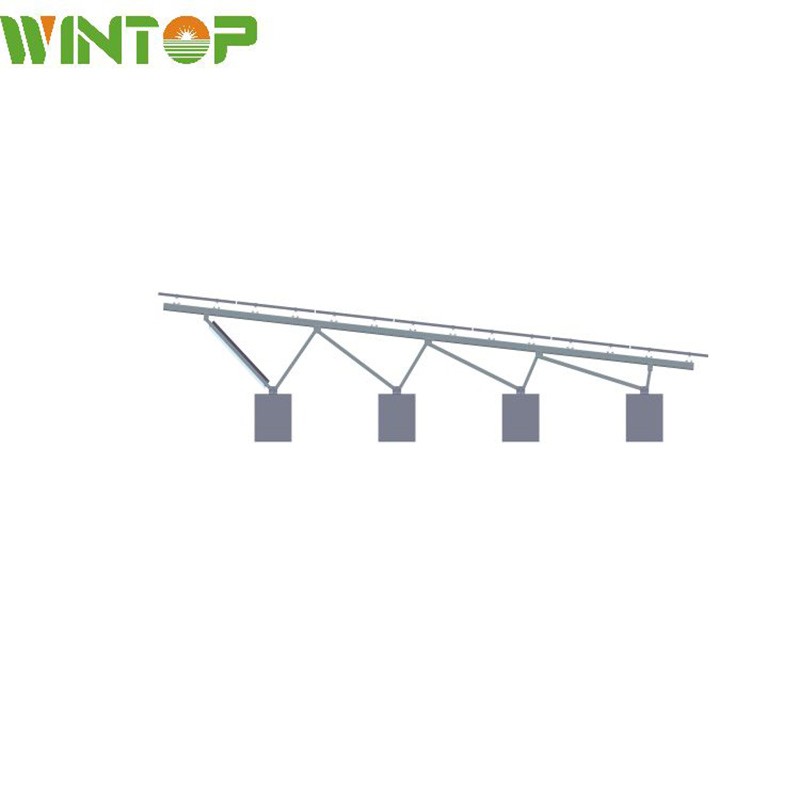

Concrete flat roof triangle system, it concrete foundation fixed angle aluminum bracket does not need to penetrate the roof and does not damage the roof waterproof structure. Cross-type support structure, the whole support is sturdy and durable, with excellent anti-corrosion performance and long service life. Uniquely designed aluminum alloy triangular pre-assembled support, light weight, convenient transportation and quick installation.


Technical Parameters

Installation location Low angle rooftop or outdoor
Installation foundation Concrete foundation
Installation angle 0°-60°
Wind load 60m/s(216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits


  • High corrosion resistance and salt tolerance;
  • Fixed with concrete ballast to achieve strong wind resistance;
  • Specific bottom rail design;
  • Flexible installation;
  • Horizontal and vertical. Structure can be adjusted according to demand;
  • High corrosion resistance and salt tolerance;
  • Good wind resistance, strong reliability, and no damage to the roof waterproof structure;
  • The construction method is simple, and the bracket can be installed at the same time when making the counterweight, saving construction time.

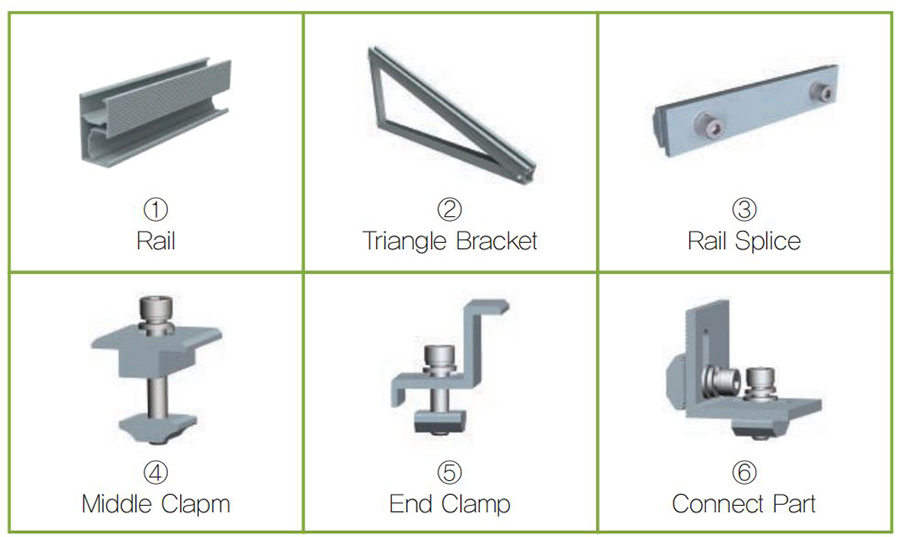

Components


Certificate







QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
