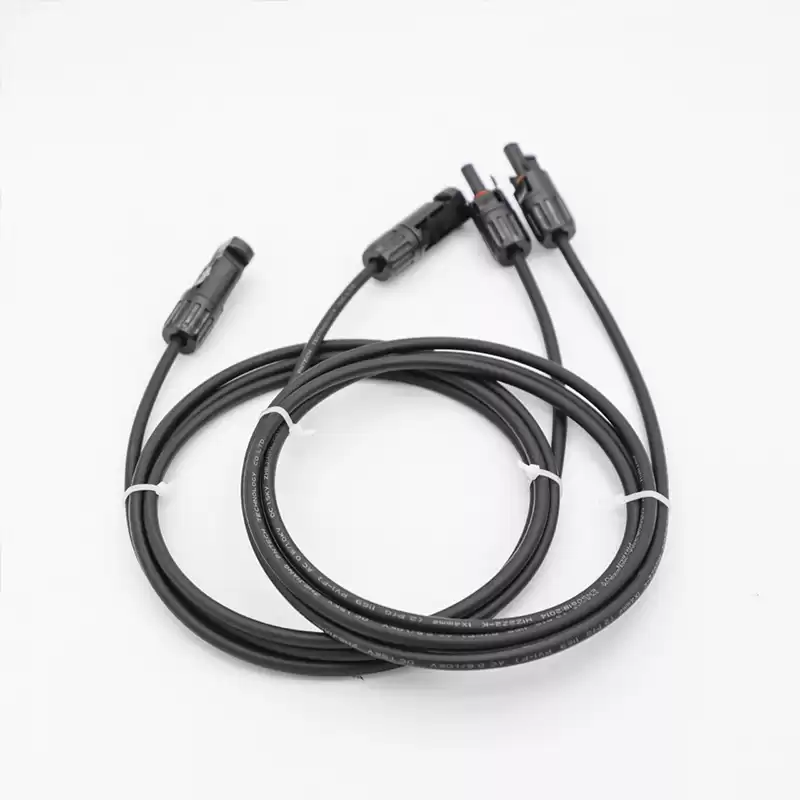

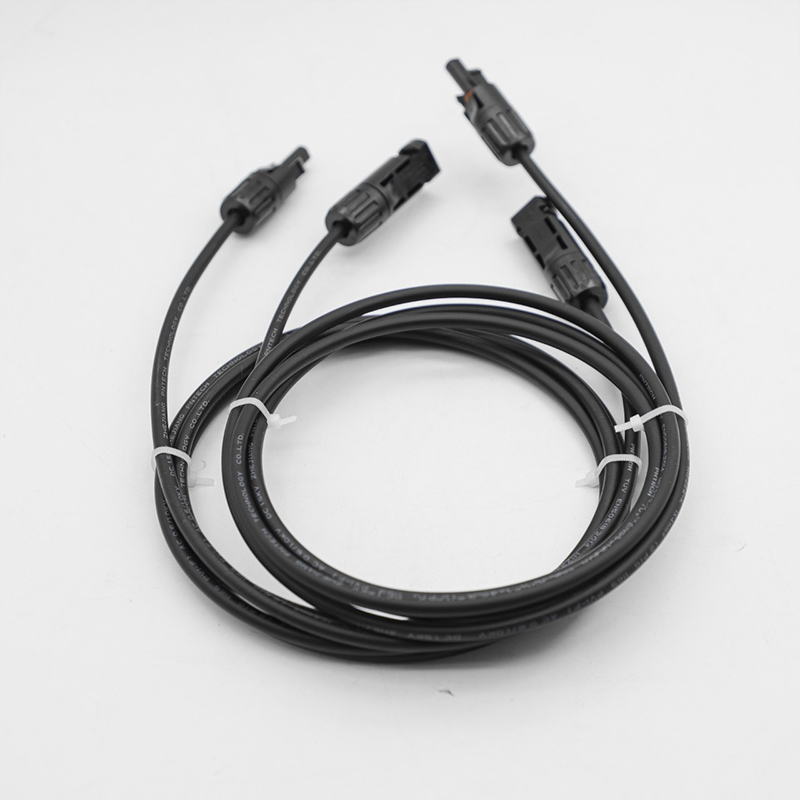

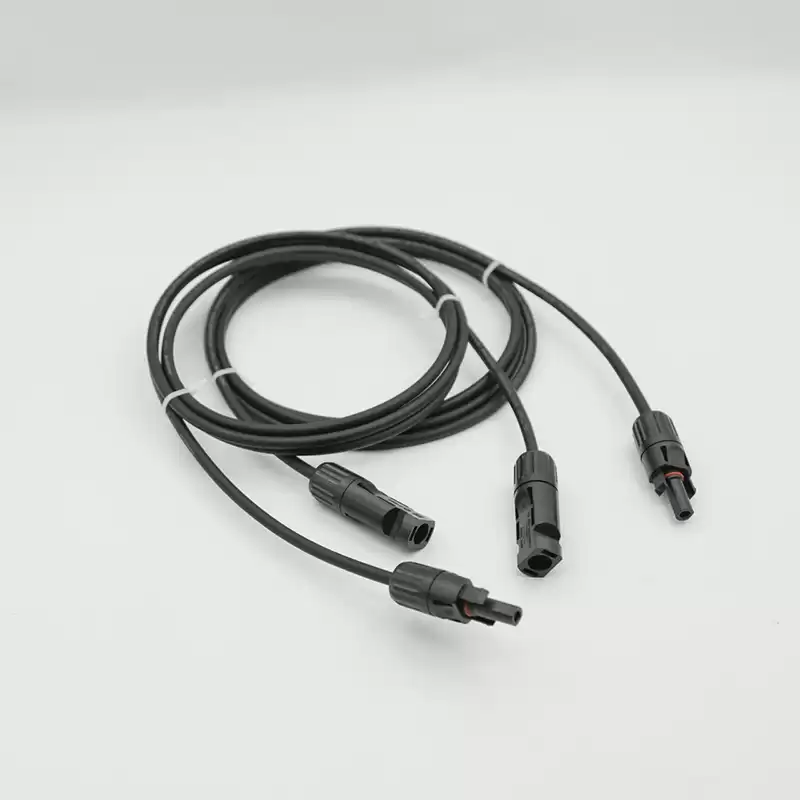

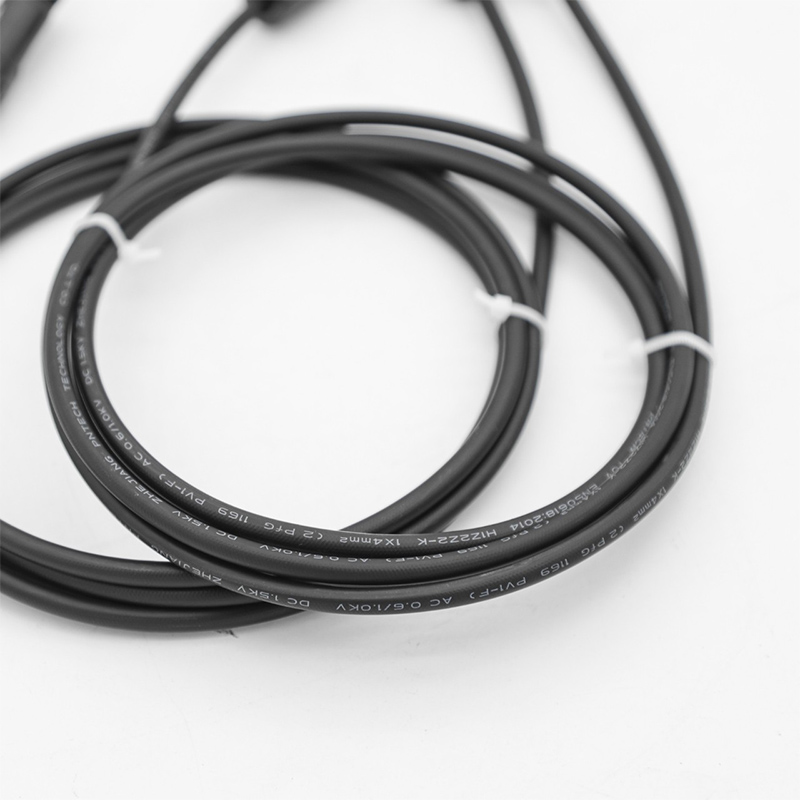

Solar PV Extension Cable Connector

Connector

Electrical Characteristics

Type

—

PV004-EN

Rated Voltage： 1000V/ 1500V DC

Insulation Materical

—

PC EXL9330

Rated Current：30A

Contact materials

Tin plated copper

Protection Degree：IP67

Number

Pair

2

Contact Resistance：≤0.5mΩ

Type of termination

Crimping

Ambient Temperature：-40℃~+90℃

Inspection items

Flame Class：UL94V-O

Facade

Surface should be clean and

smooth,without scratchs, burr and

deformation.

Product features

Conduction

Whether the connection between the  positive and negative terminals of the connector is conduction.

1 、Excellent anti-aging and uv-resistant, to meet the using under the outdoor harsh environmental conditions require.

Assembly

When assembling, both sides of the buckle can be stuck in place, insertion force ≤50N, pulling force ≥50N

2 、Snap-in Lock, easy to assemble,unbreakable

3 、 MC4 Connector

Packing specification

4 、Apply to high current, high votltage, with low contact resistance, waterproof and dustproof design

Packaging as required
