Solar PV Gounding Lugs For Solar Mounting System

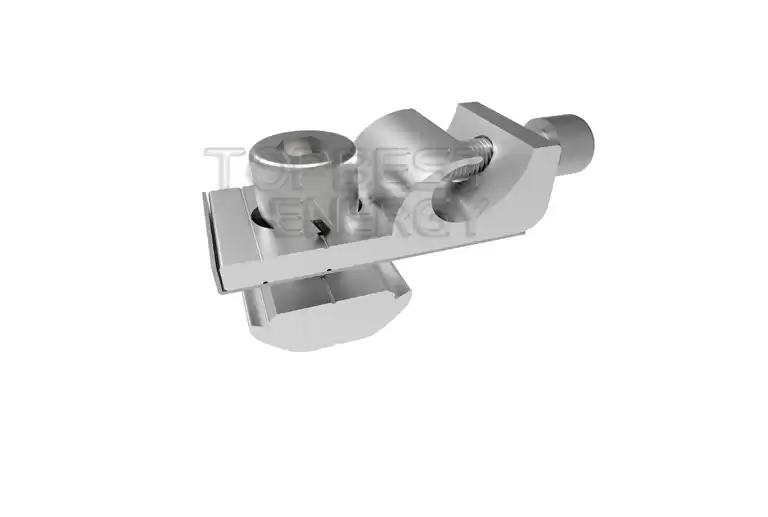

PV gounding lug is designed to fit alum rail perfectly , it’s a common component for bonding and earthing system. Solar ground lugs can be made of aluminium in material, located for side of alum rails



Solar Gounding Lug

Product Description

Solar Gounding Lug conducting electric  perfectly by fixing on the solar panel rails , it’s a security components for  solar system earthing solution.

Solar ground lugs is made of aluminium or copper.Copper grounding lugs with better electric conductive .PV grounding clamps is a essential parts for grounding solar panels.

solar Earthing Ground Lug

Features:

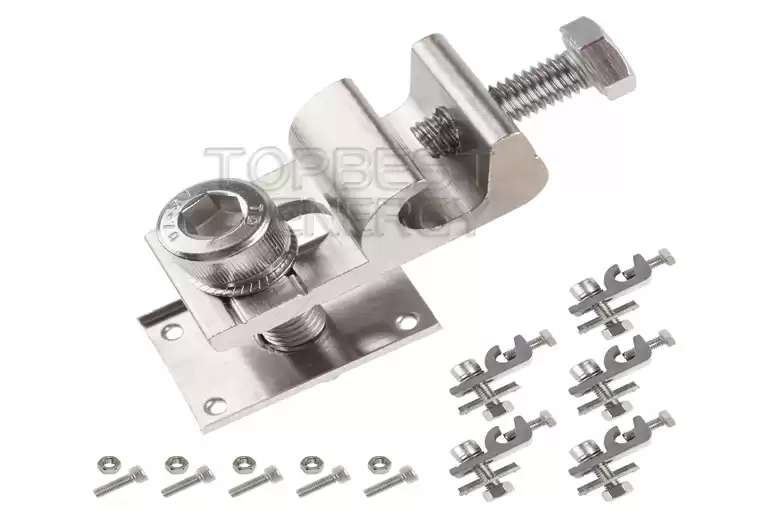

Earthing Ground Lug assembled by aluminum nickel plated grounding lug,stainless steel barbed shim,aluminum sliding nut,stainless steel screws/bolts/nuts.Package contains 5 Sets Cable Clamps/Grounding Lugs with M6*20 Hexagonal bolts & M8*25 Hexagon socket bolts and 5 Pcs M6*20 Hexagon socket bolts & Nuts for spare use.
Solar photovoltaic lightning proof grounding lug components collect the static electricity on the photovoltaic module and mounting support,and lead it to the lightning proof grounding parts through the grounding copper wire.

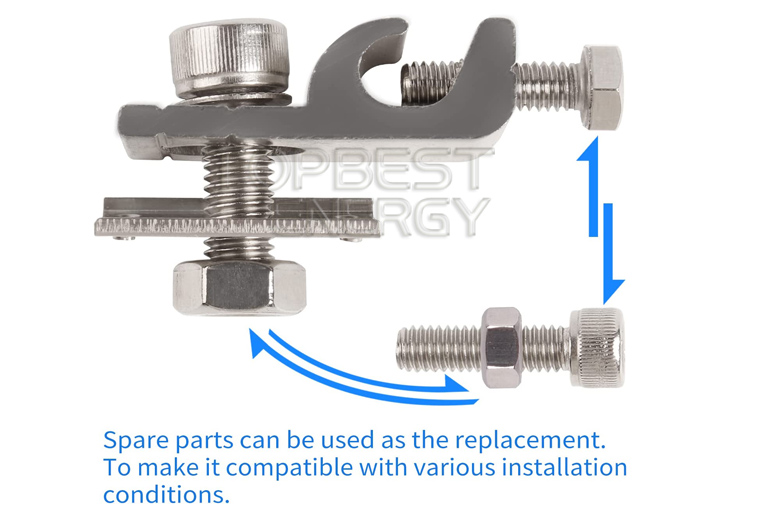

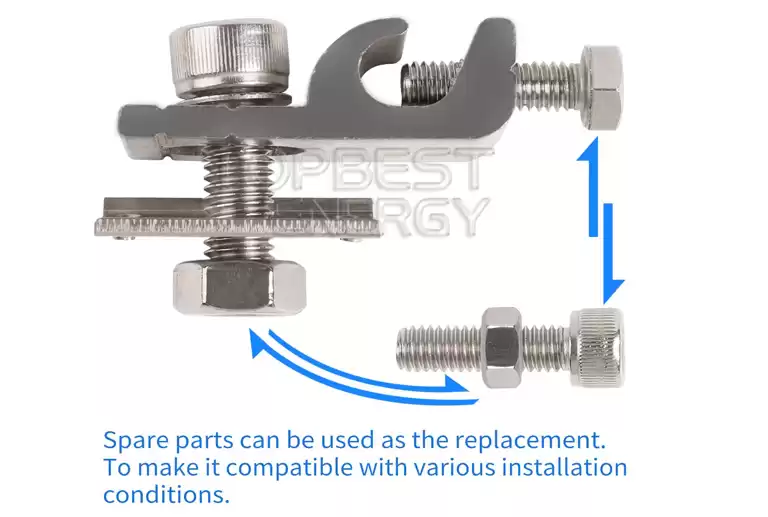

Updated grounding lug with spare parts will compatible with more installation scenarios, and allows a variety of grounding conduction installation methods.

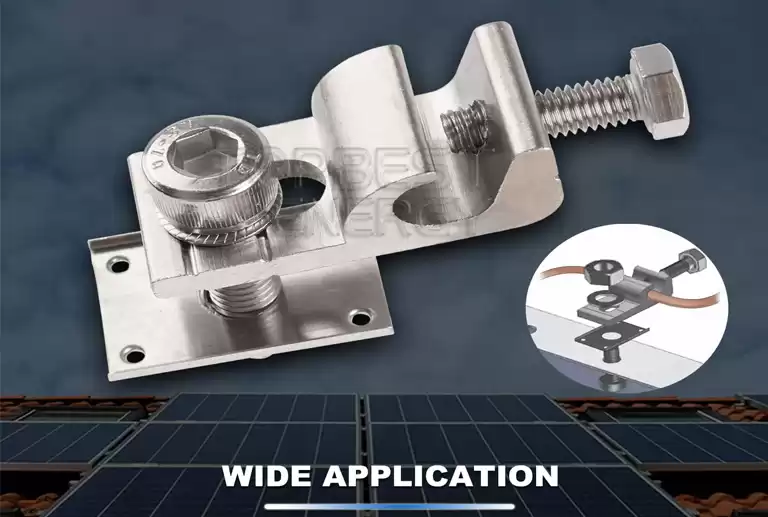

Strong durability and corrosion resistance, Suitable for lightning proof and grounding applications of solar photovoltaic systems, Compatible with various aluminum photovoltaic guide rails (roof / ground / shed ), C-steel /u-steel, H-channel and other mounting supports.
When the screw is locked, the sharp thorn on the grounding barbed shim will pierce the anodized layer of aluminum alloy guide rail or any other conductive metal structure surface, make the metal structures an electrostatic connection, and conduct the static electricity on the photovoltaic module and mounting supports to the grounding copper wire and lead it to the earth


Product Tags solar grounding kit          grounding lug          grounding lug for solar Mounting System          solar grounding lug          Earthing Ground Lug          pv grounding lug
