Solar pv ground mount systems

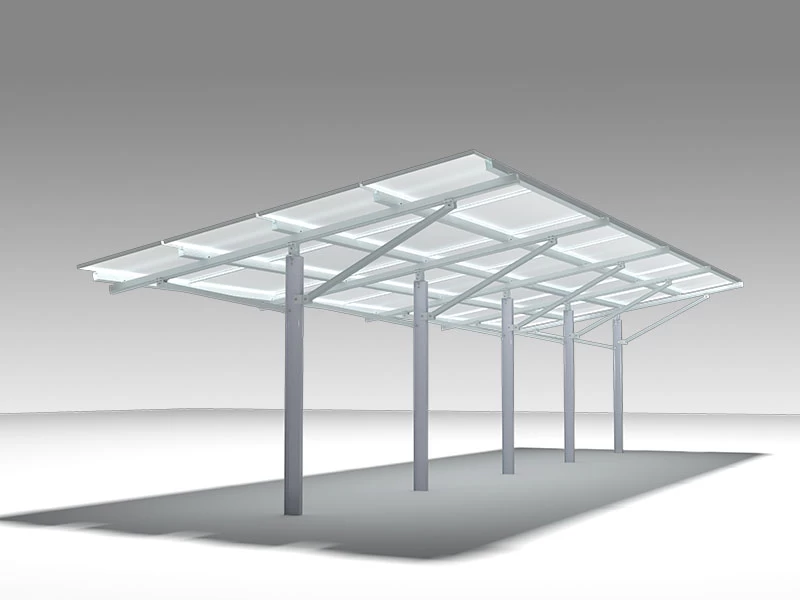

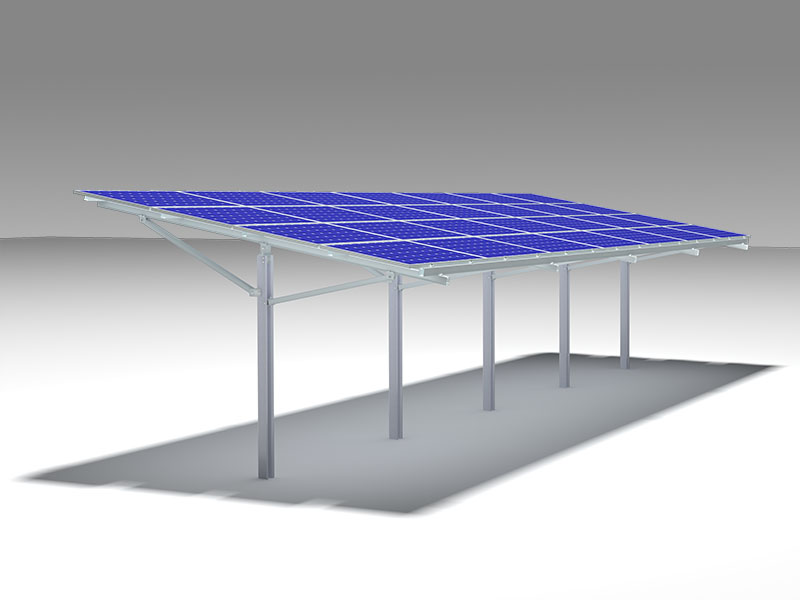

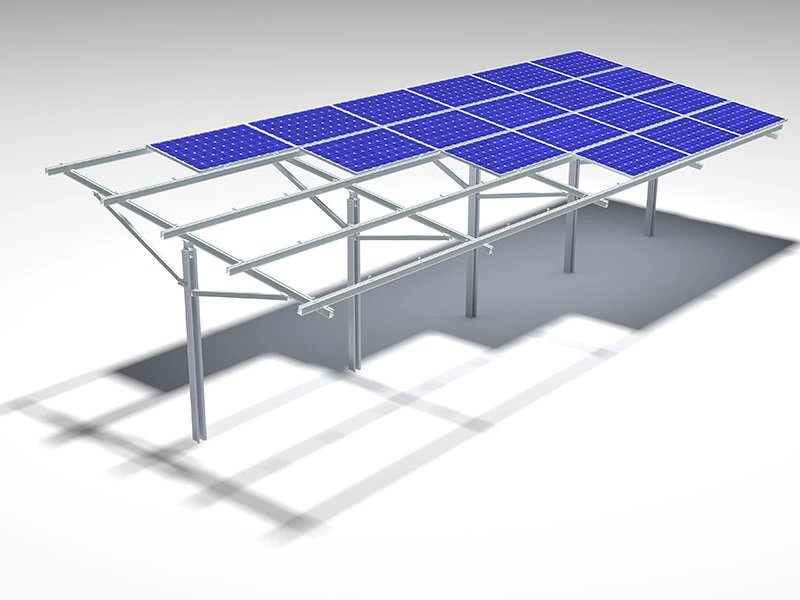

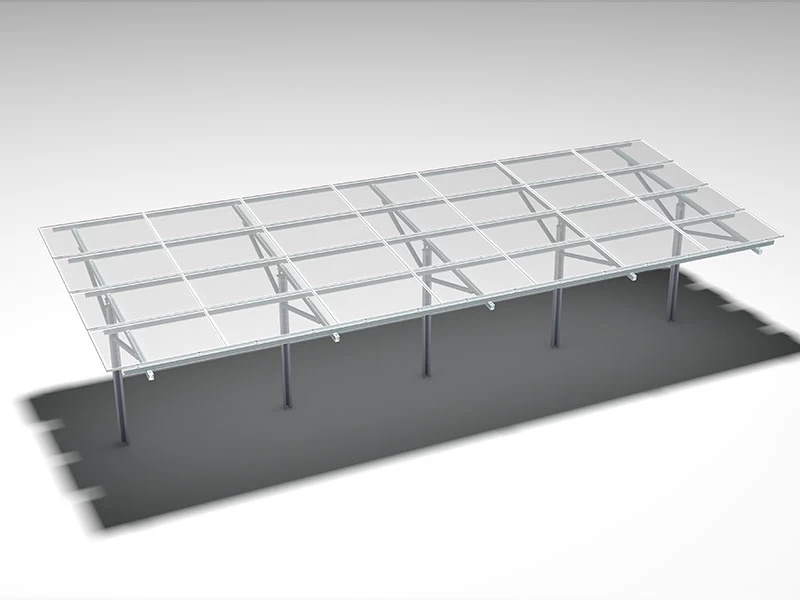

MRac Ground Terrace GT2 is a highly pre-assembled ground mounting system



Overview

MRac Ground Terrace GT2 is a highly pre-assembled ground mounting system, which can be applied to the installation of large commercial and utility scale solar PV projects. Made of high quality aluminum material, GT2 has excellent corrosion resistance performance. The single-pile patented structure design saves installation time and cost, with good compatibility to varied solar modules.

Technical Parameter

Installation Site

  Ground

Foundation

  U Post

Tilt Angle

  0-60°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

Ground Clearance

  500-2000mm

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Steel Q235B(Hot-Dip Galvanized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty


solar ground screws

Features

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

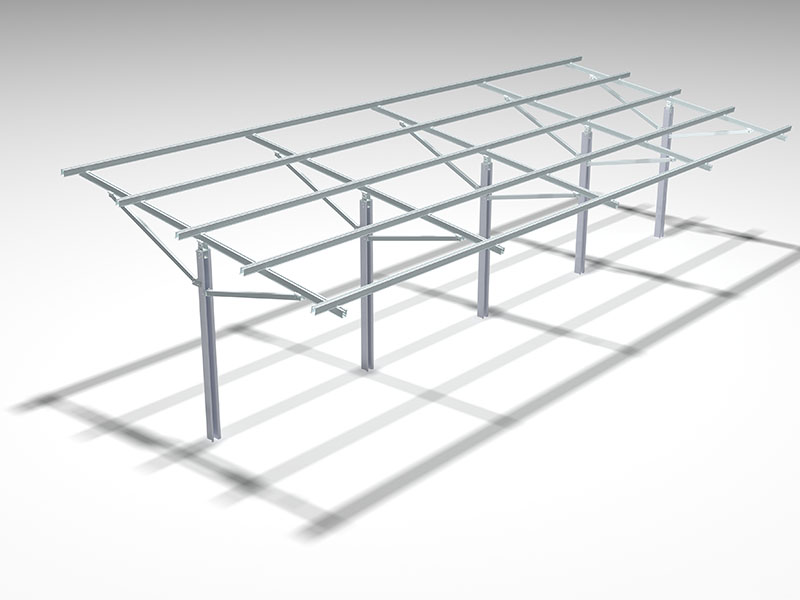

Single-Pile Design

Single-pile design reduce half of the ramming time, saving the construction cost.


Structure Configuration Multi-Options

Single or double embrace bars structure configuration available to meet varied projects requests.



Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.



The PV Ground Mount System is the fastest mounting system in the world. The system is less expensive than traditional designs, requires less material and performs faster. Pv Ground Mount Systems greatly increase efficiency.




Technology Certification
