Solar PV Racking Shingle Roof Mount Flashing Kits

Flashing mount kit is the best solution for composition shingle roof.

Features

1. Our lightweight anodized aluminum is made of high-quality extruded aluminum, which has a lightweight appearance and can withstand long-term waterproofing.
2. Our design is novel and easy to install, and is equipped with all stainless-steel hardware, including square head bolts.
3. 100% waterproof system is the fastest system to use. This product is the most cost-effective on the market.
4. The flashing prevents rainwater from penetrating into penetrations and fasteners.The water baffle made of aluminum alloy and EPDM washer help to maintain water resistance during the life of the PV system and most roofs.

Dimension:

(1) L: 300mm [11.82″] × W: 205mm [8.8″] × T: 1.0mm [0.04″]
(2) Penetration hole size: Φ8.5mm [Φ0.33″]

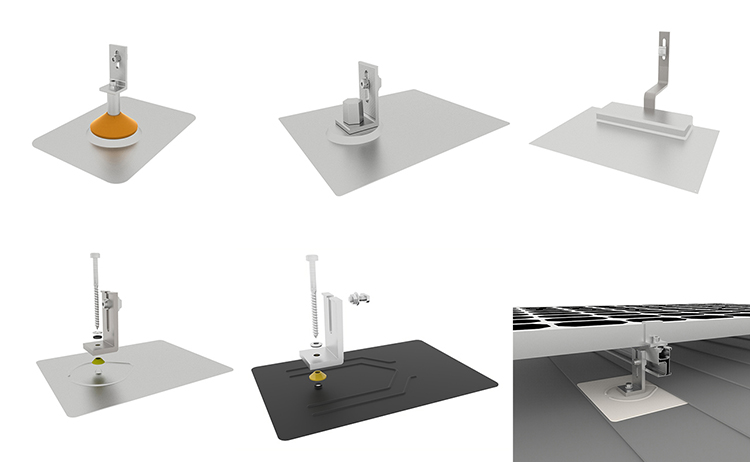

Parts and Components for this solar flashing plate :

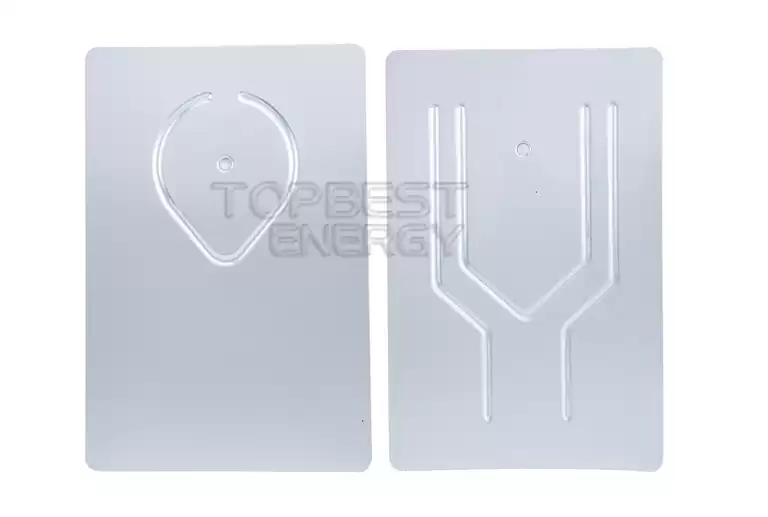

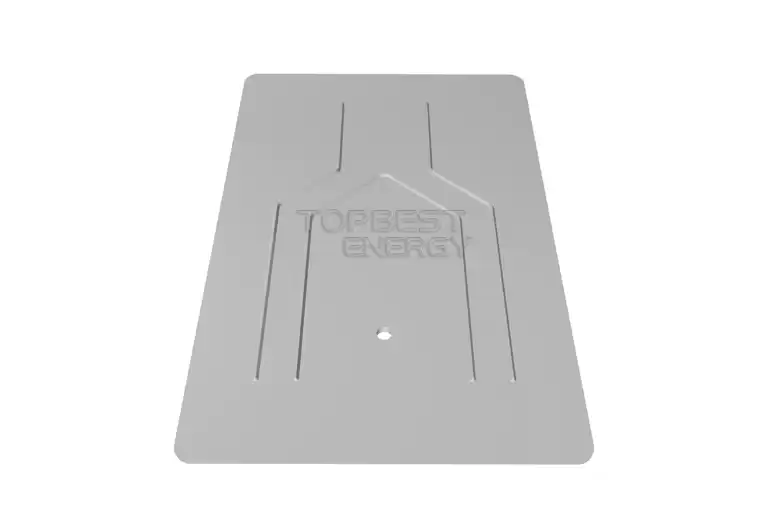

(1) Aluminum flashing
(2) L-foot with EPDM washer
(3) screws
(4) sus304 Bolts & nuts
