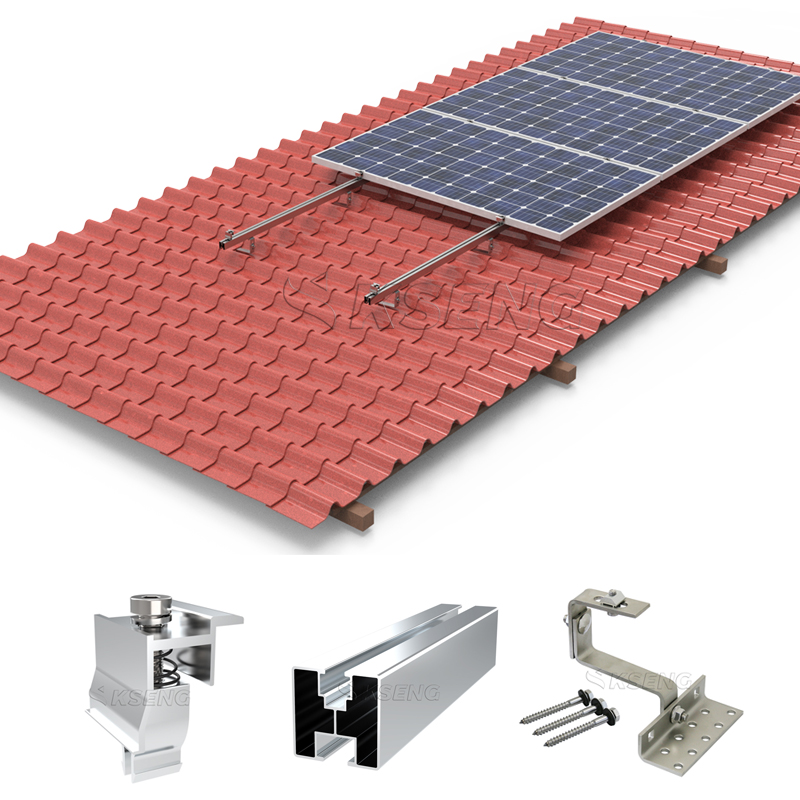

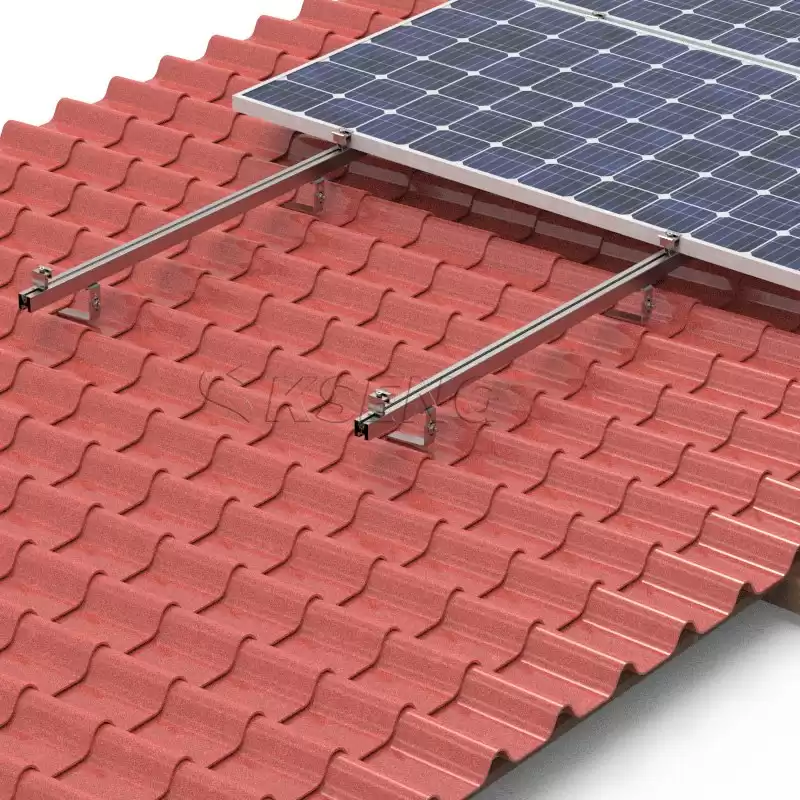

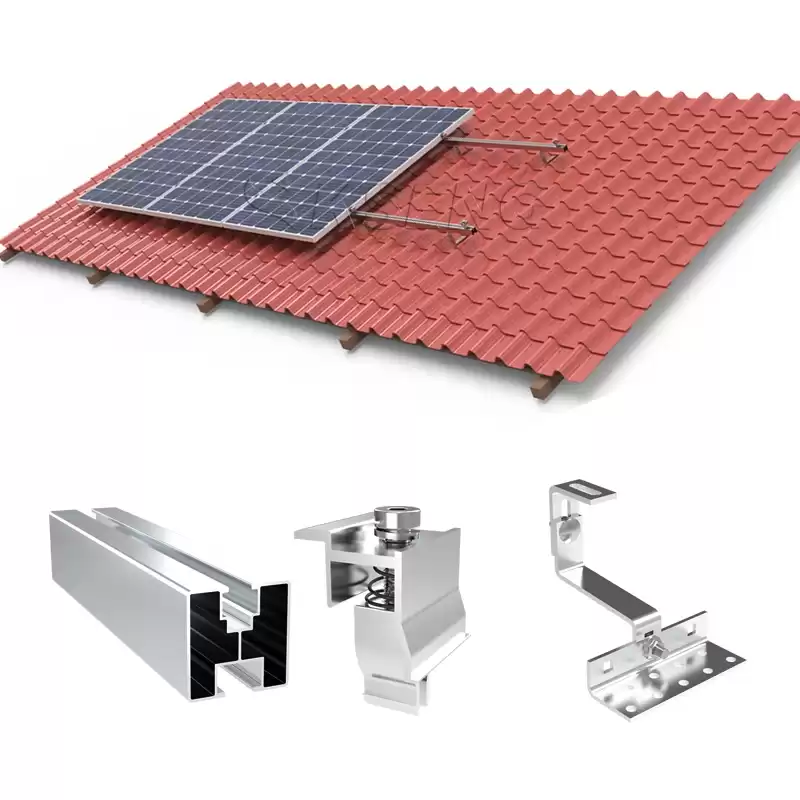

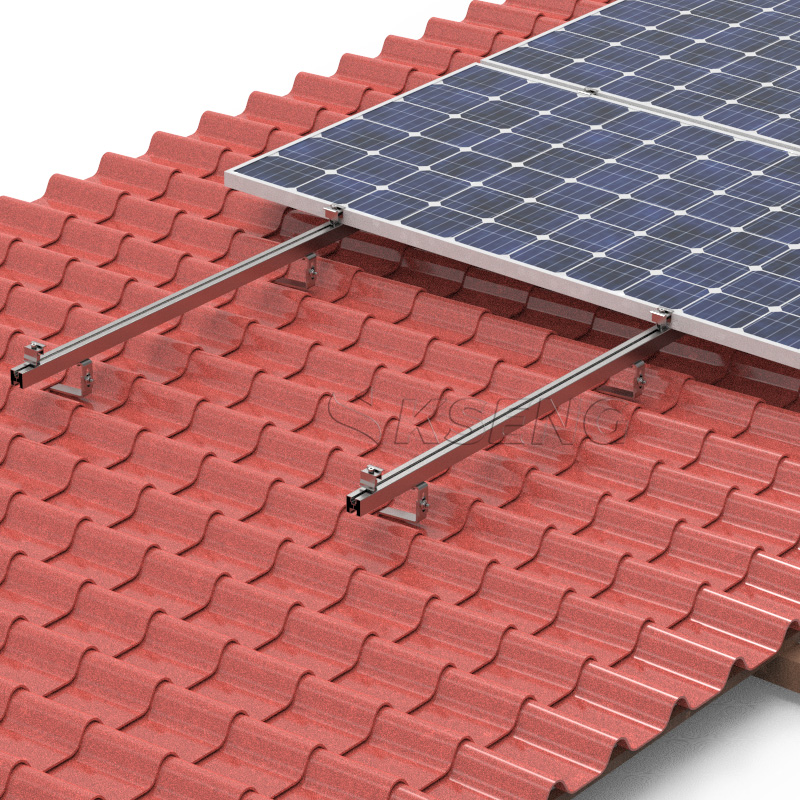

Solar racking system tile roof mounting bracket PV roof structure system

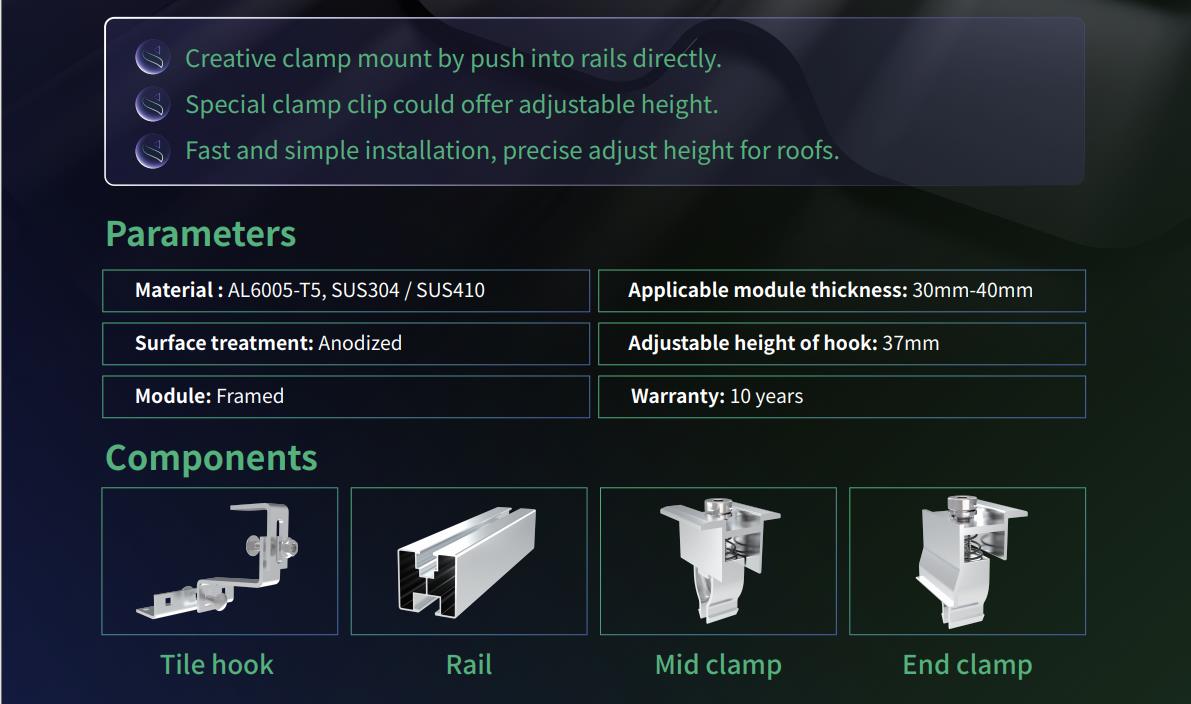

1Creative clamp mount by push into rails directly

2:Special clamp clip could offer adjustable height

3:Fast and simple installation, precise adjust height for roofs


  • Delivery5-7days
  • Snow Load1.4 kn/m2
  • Wind Load216km/h=60m/s
  • Certification CE/ISO9001
  • Service Life20 years
  • Warranty10 years
  • MaterialAluminum & Stainless Steel


Specification
Wind Load
60M/S
Snow Load
1.4KN/M2
Warranty
10 years warranty, 20 years service life
Product name
Solar Roof Mounting System
Application
Roof
Material
Aluminum & Stainless Steel
Certificate
CE/ISO9001
Standard
AS/NZA 1170
Surface Treatment
Andoized
Max Snow Load
1.4 kn/m2
Max Wind Speed
216km/h=60m/s
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
