United Energy founded in 2009, National high-tech enterprise,focus on solar panel and solar system R&D obtained more than 100 patents.
Quality is the Company Culture of UNITED ENERGY!

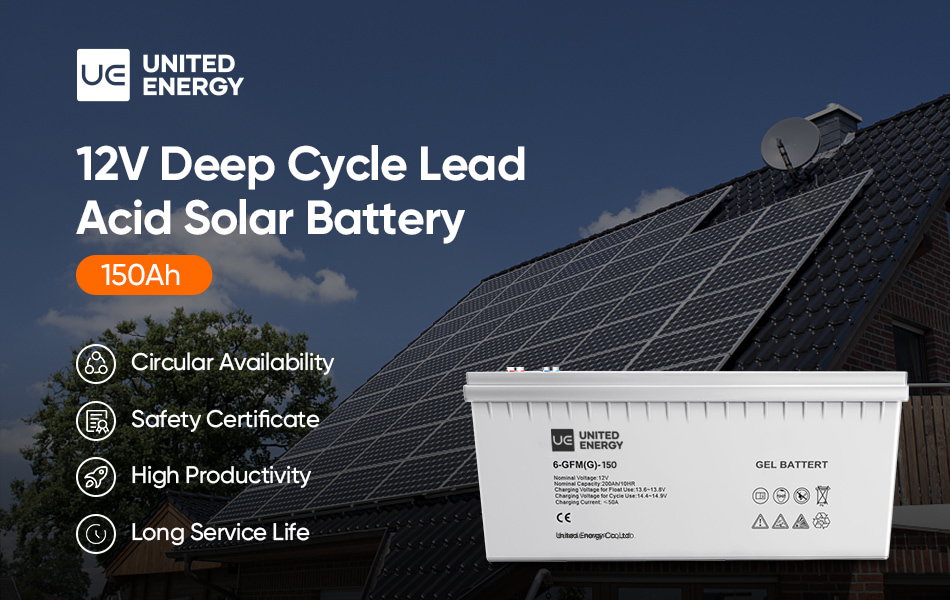

Lead acid is dependable and inexpensive on a cost-per-watt base.Lead acid has a moderate life span, but it is not subject to memory as nickel-based systems are, and the charge retention is best among rechargeable batteries. The lead acid battery works well at cold temperatures and is superior to lithium-ion when operating in subzero conditions.
Electric Parameters:
| Cells Per Unit |
6 Cells |
| Voltage Per Unit |
12V |
| Capacity |
150Ah@10hr-rate to 1.8V per cell @25°C |
| Weight |
47.0 Kg (Tolerancet ±1.5%) |
| Internal Resistance |
Approx. 4 mΩ |
| Terminal |
F1 / F2 |
| Max. Discharge Current |
2250A(5s) |
| Design Life |
10~15 years |
| Maximum Charging Current |
37.5A |
| Reference Capacity |
C1 82.4AH
C3 108.7AH
C10 150.0AH
|
| Float Charging Voltage |
13.6 V~13.8 V @ 25°℃
Temperature Compensation: -3mV/C/Cell |
| Cycle Use Voltage |
14.2 V~14.9 V @ 25°
Temperature Compensation: -4mV/C/Cell |
| Operating Temperature Range |
Discharge: -20°C~60℃
Charge: 0℃~50℃
Storage: -20C~60℃ |
| Normal Operating Temperature Range |
25°℃±5℃ |
| Self Discharge |
Less than 3% at 25°C per month |
| Container Material |
A.B.S. UL94-HB, UL94-VO Optional. |
Product Advantage:
1, International Certifications, guarantee quality;
2, High Safety: Overvoltage protection; Overcurrent protection; Temperature protection; Short-circuit protection;
3, Higher stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
4, Long service life：10+ years designed lifespan.
5, Full set of certifications.
FAQ: What's the difference between deep cycle battery and lithium battery?
United Energy storage batteries such as AGM, GEL, OPZV, OPZS, Lithium Battery etc, deep cycle battery can be divided into 2V battery and 12V battery by voltage.
AGM and GEL batteries are maintenance free, long cycle life and cost effective per wh.
OPZV and OPZS batteries are usually available in 2V series and has design life span of 15 to 20 years.
Lithium batteries has the longest warranty period, longer design life and lighter weight compared with lead acid batteries, but disadvantage is higher initial investment.

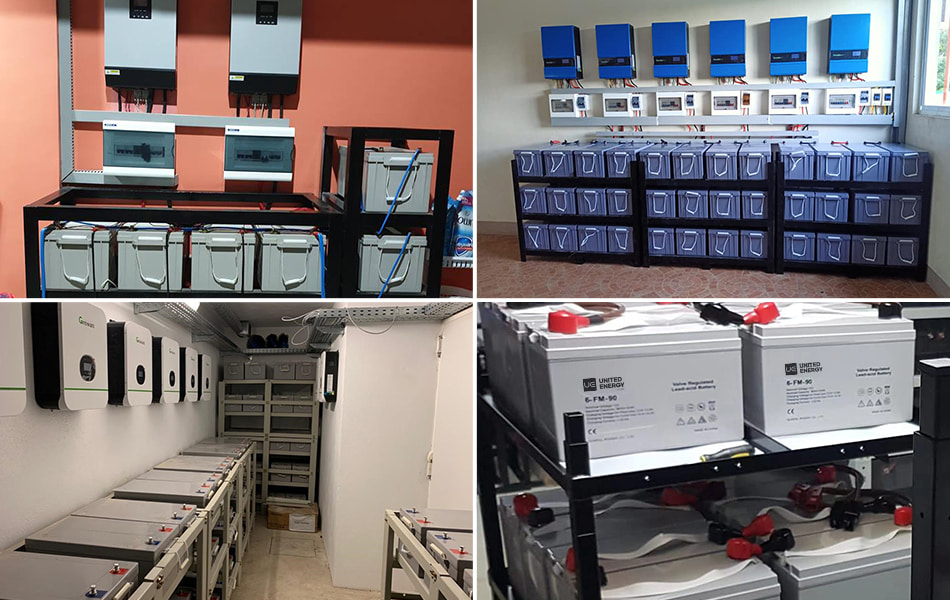

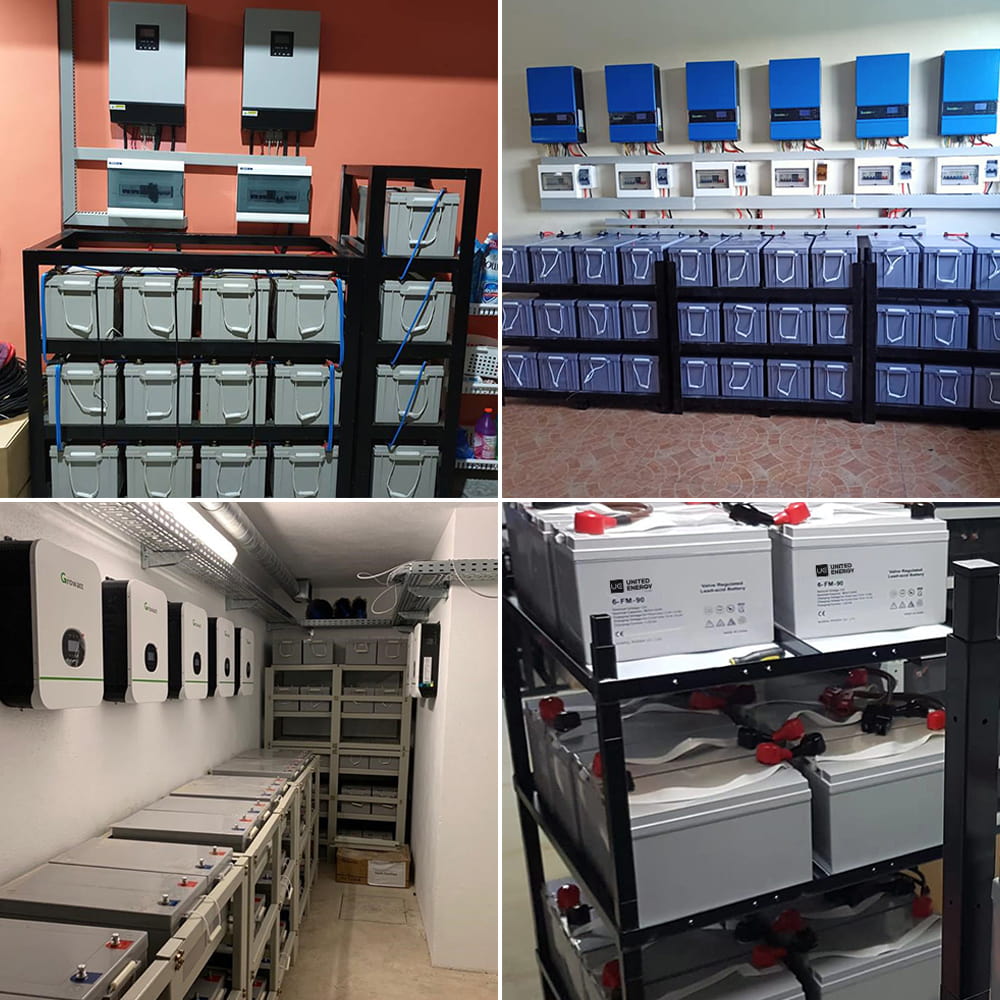

Above batteries are widely used in Solar Power Systems, Wind Energy Systems, UPS System(Uninterrupted Power Supply), Telecom Systems, Railway Systems, Switches and Control systems, Emergency Lighting Systems, , and Radio and Broadcasting Stations.
