solar residential carport with galvanized steel

HQ Mount can provide design both commercial and residential solar carport mounting system.Aluminium structure and steel are available. The carport capacity can be customized as each client’s requirements.


  • MaterialSteel &AL6005
  • CertificationIso, SGS
  • Model No.HQ-SC
  • BrandHQ MOUNT

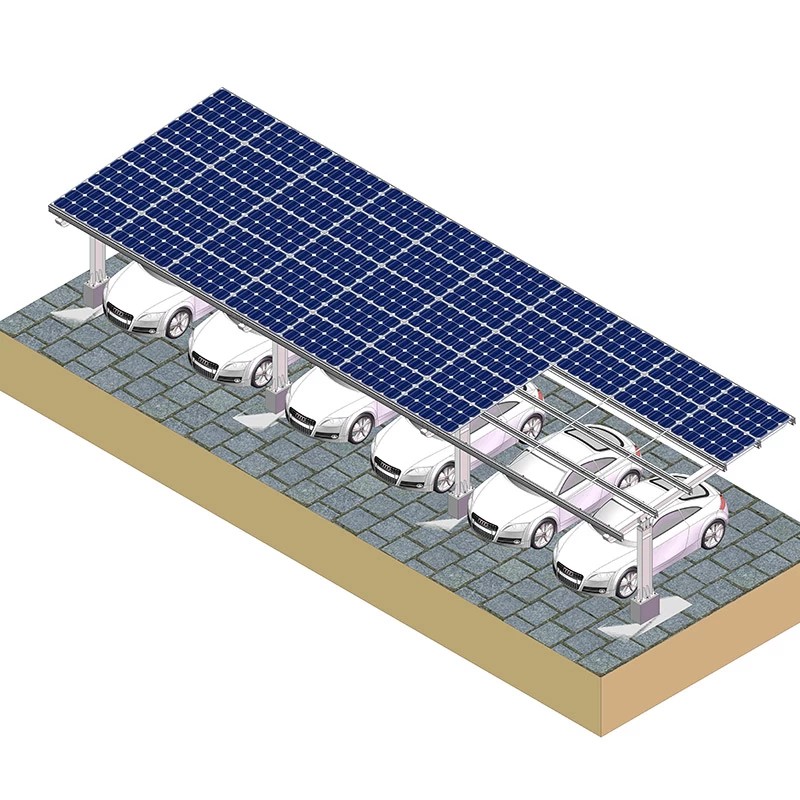

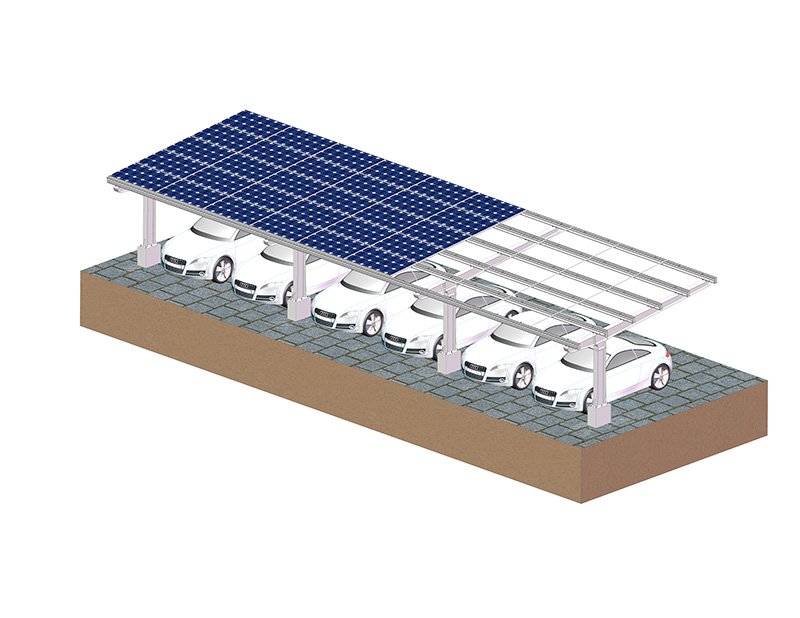

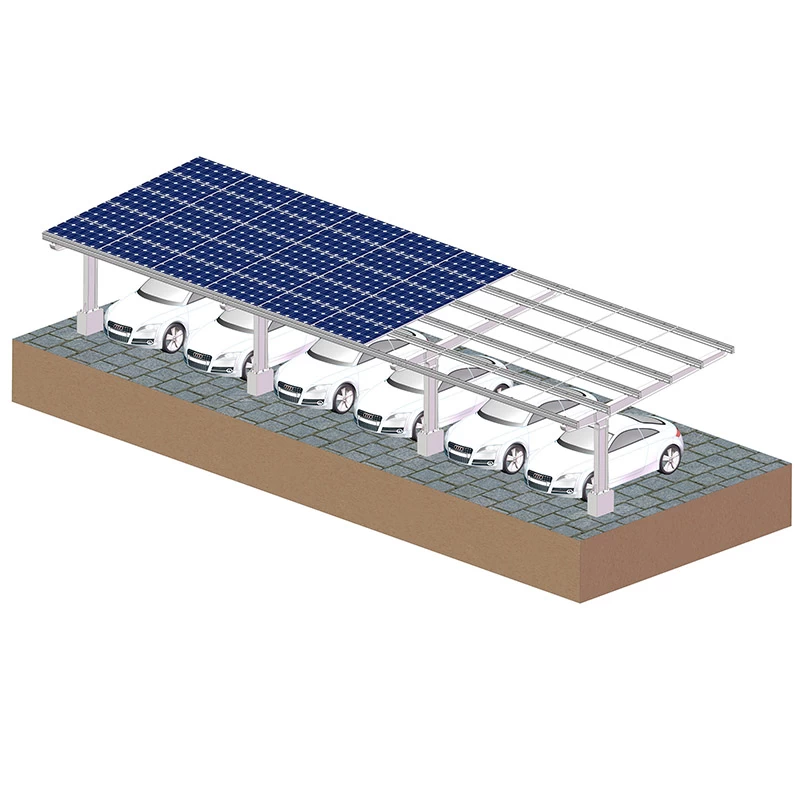

HQ MOUNT designs residential and commercial Solar Carport Mounting Structure. Our clients can have different options for both single row and double rows of parking. Hot-dipped galvanized or power coating surface treatment are available. . Our engineer with IWE Certification (International Welding Engineer) can satisfied with any of your needs.


The whole structure is mainly fixed by the foundation bolt assembly in cement block, then reinforced by cement irrigation.  The design looks simple, generous and beautiful. Not only can meet the parking demand, and produce grid power, but also recover costs and make a profit.The frame is composed of foundation bolt, post, beam, rail, rail splice kit, high strength bolt. Main materials used: national standard Q235B high strength H structural steel(column, beam), AL 6005-T5 aluminum alloy(rail), SUS 304 stainless steel(bolts) and so on. The surface of steel is treated by hot galvanizing and aluminum alloy by anodic oxidation. All components and accessories are rust proof.


Features as below:

1.Hot galvanized steel material protect the structure anti-corrosion.

2.Highly pre-assembled before shipping, save time ans labour cost.

3.Technical support.

4.12 years warranty,25 years life time.



Material

AL 6005-T5/SUS304/Q235B

Surface Treatment

Average Anodizing Coating Thickness≥ 10μm Average

Hot-galvanized Coating Thickness≥ 80μm

Power Coating Thickness ≥ 250μm

Panel Type

Framed & Frameless

Wind Load

≤60m/s

Snow Load

1.4KN/m2

Panel Orientation

Landscape/Portrait

Tilt Angle

5-10 Degree

Standards

JIS C 8955 : 2017, AS/NZS 1170

Warranty

12 years quality warranty, 25 years life span

commercial Solar Carport Mounting Structure



Product Tags carport mounted solar system          carport solar mounting system          solar carport mounting systems          carport solar mounting systems          solar carport mounting system          Solar Mounted Carport          solar carport mounting          carport solar mount          carport solar mounting
