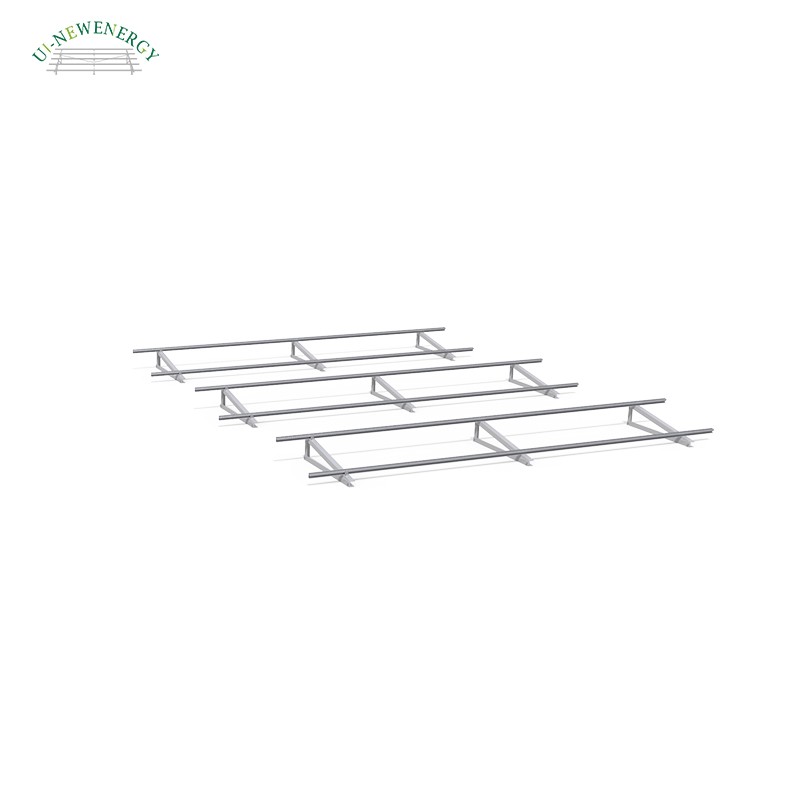

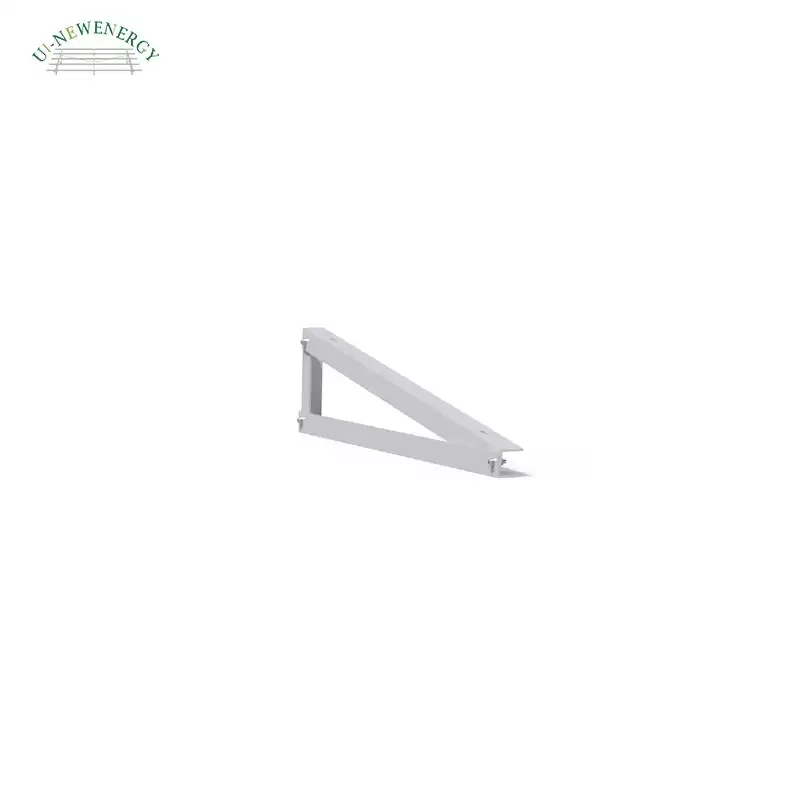

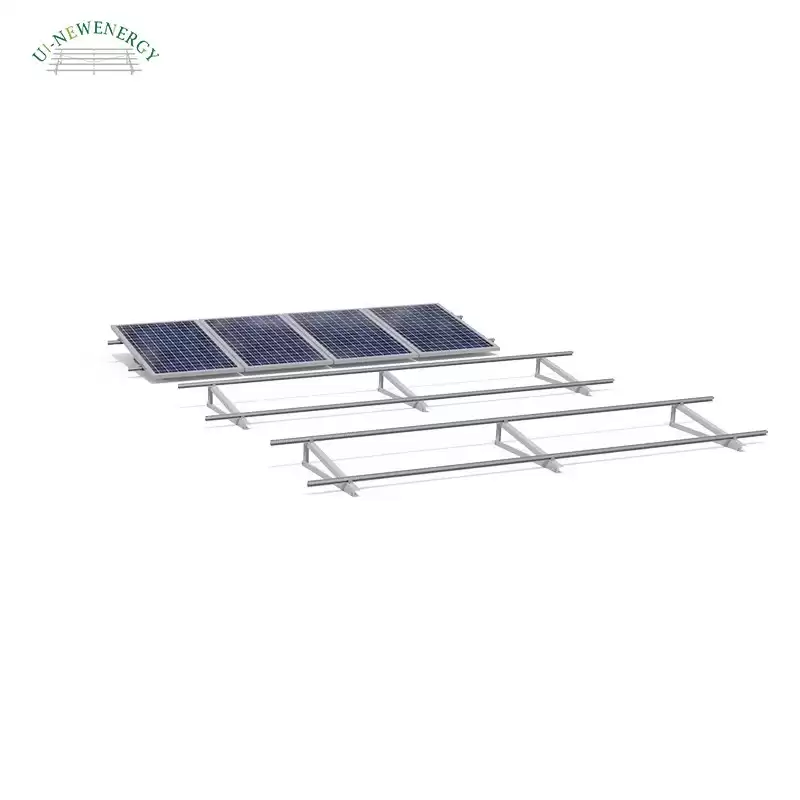

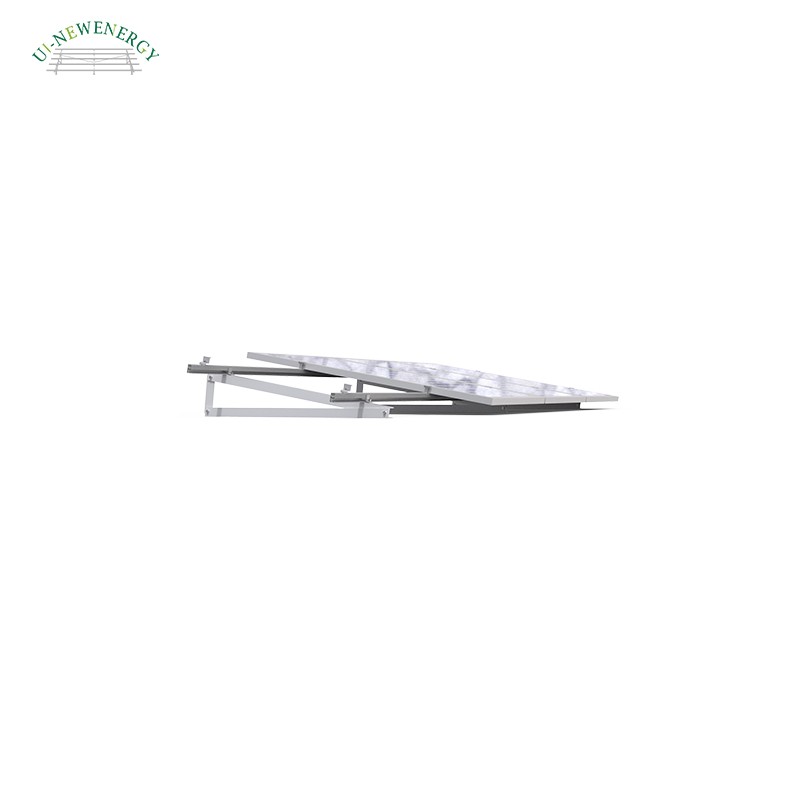

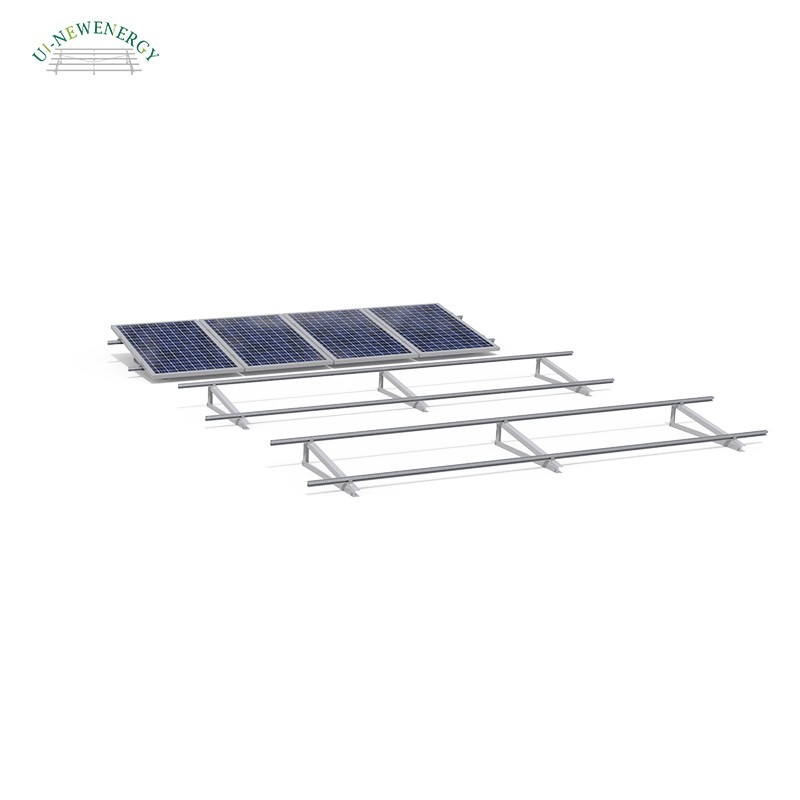

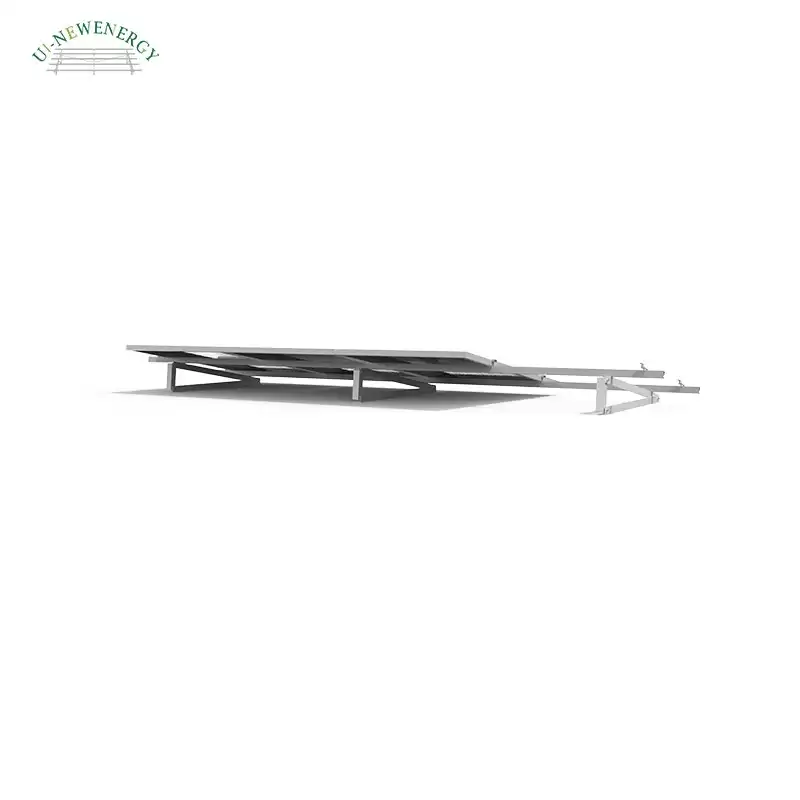

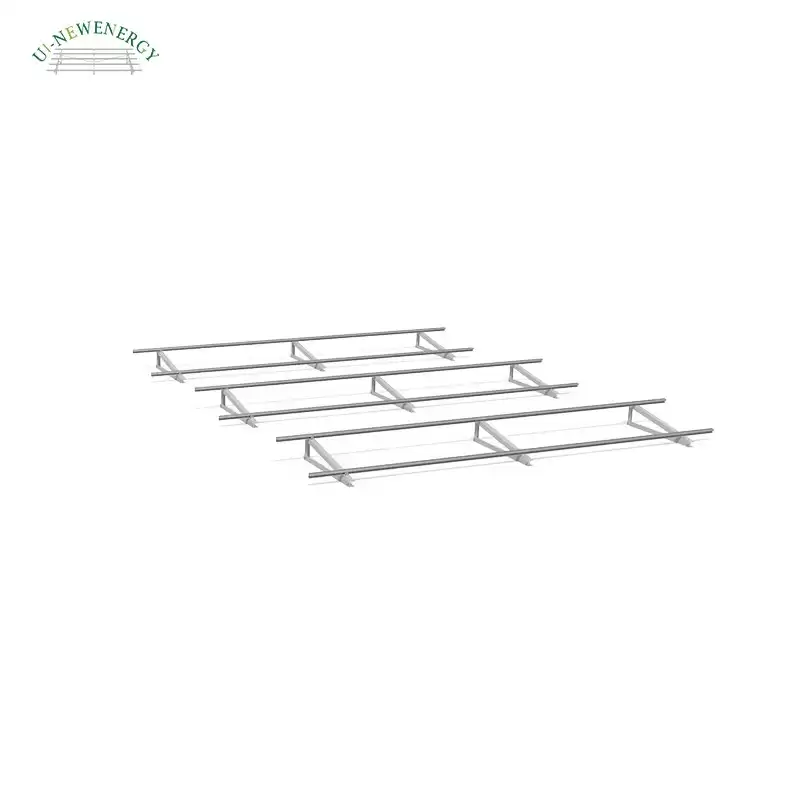

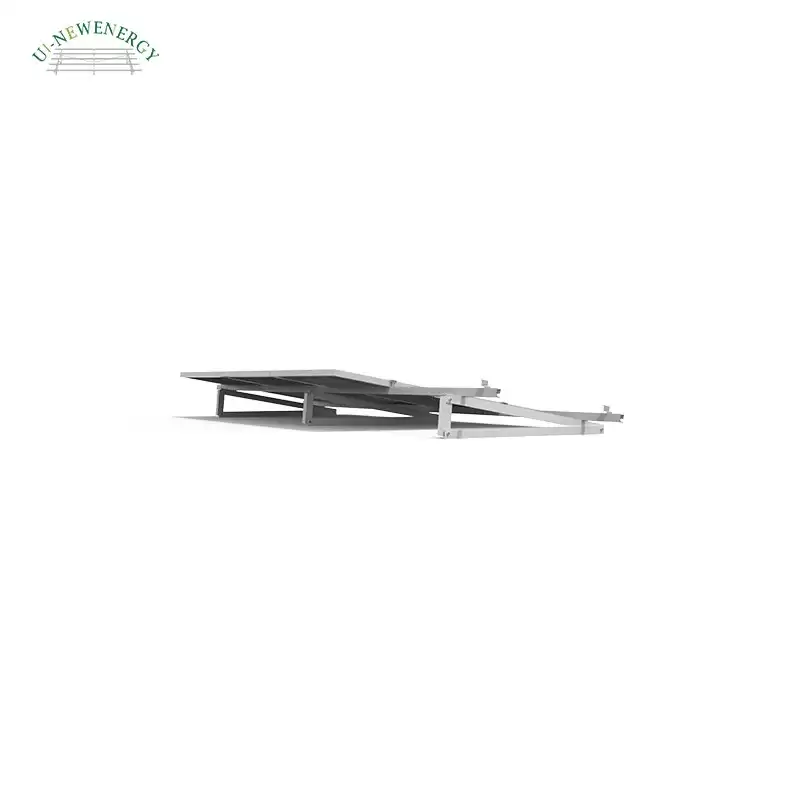

Solar Roof Aluminum Fixed Triangle Rack

The Fixed Triangle Mounting is designed with great flexibility for both commercial and residential areas.The Fixed Triangle Rack is Light Weight and Low Cost.


  • Panel OrientationPortrait、Landscape
  • Roof TypesFlat metal rooftop
  • Panel FramingFramed、Frameless
  • Moudle Angle10-60 Degrees
  • Snow Load1.4kN/m2
  • Roof TypesFlat concrete rooftop
  • Wind Load60m/s

Solar Roof Aluminum Fixed Triangle Rack SR-FT


The triangle racking system is mainly designed for distributed power stations or small household systems, and is usually suitable for cement roofs, mud green roofs, etc. The aluminum bracket is light, highly pre-assembled, and easy to install.


Flat Rooftop Fixed Triangle Rack Features:

1.Flexible rooftop mount system.

2.Significant savings.

3.High module compatibility.

4.Static reliability.

5.Maximum service life.

6.Lower and Competitive price.

7.High strength and rust-resistance.

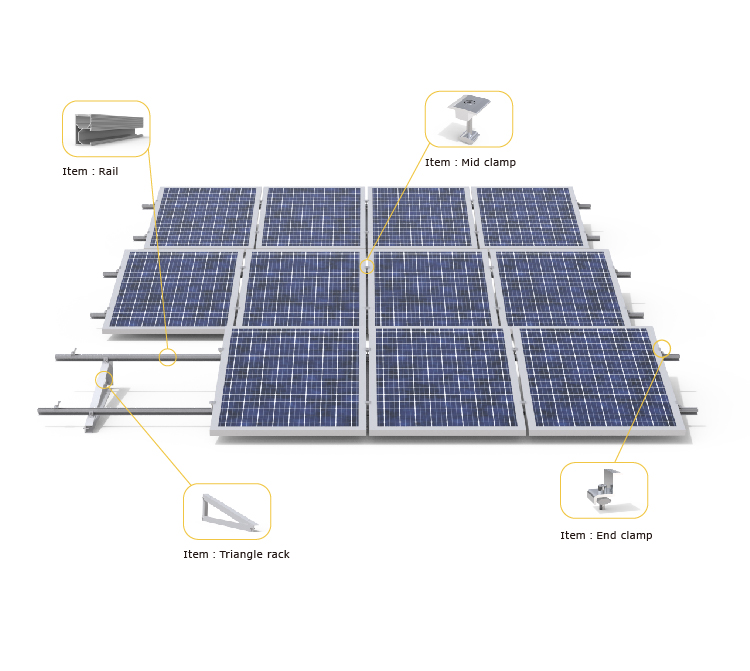

solar roof mounting systems

Product Parameter
Product Name Solar Fixed Triangle Mounting System
Installation Site Flat Concrete Roof, Mud Green Roofs
Material Aluminum 6005-T5 & Stainless Steel 304 Bolt Sets
Surface Anodized
Color Silver or Customized
Module Angle 10-60 Degrees
Wind Speed 60m/s
Snow Load 1.4kN/m2
Standard AS/NZS 1170; JIS C8955:2017
Warranty 10 Years
Service Life 25 Years
Advantages Easy Installation; Safety And Reliability; 10-Year Warranty

photovoltaic mounting systems



  F A Q

Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.

Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.


Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.


Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.


Q4: How can I get some samples?

A4:We are honored to offer samples according to your inquiry.


Q5:What necessary info. for us to design and quote?
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
