Product Name
Solar Street Light LiFePO4 Battery 12V 80Ah with Solar Panel
Highlight
Easy to monitor system status
Efficient MPPT algorithm, tracking efficiency over 99.5%.
High definition LCD display
Remote monitoring
Prolonged cycle life of LiFePO4 battery up to 6,000 times.
With solar panels, LED lamps and high efficiency solar integrated controller
Made of lithium iron phosphate cells 80Ah
Technical Specification
|
MODEL
|
OSN-SSL-1280L
|
|
PERFORMANCE
|
|
Rated Capacity
|
80 Ah
|
|
Nominal Voltage
|
12 V
|
|
Discharge Ending Voltage
|
10 V
|
|
Charging Limited Voltage
|
14.6V
|
|
Recommend Charging Current
|
16A
|
|
Max. Charging Current
|
80 A
|
|
Max. Continuous Discharging Current
|
80 A
|
|
Max. Discharging Current
|
160 A
|
|
Containing Cell
|
3.2V 80Ah
|
|
Cycle Life
|
1000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
1C
|
|
Response Time
|
> 1ms
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
260(L)*185(W)*95(H)
|
|
Weight
|
3.4 Kg
|
|
Enclosure
|
Plastic Case
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
3 years
|
Application
As the leading manufacturer of deep-cycle batteries, OSN POWER provides reliable Renewable Energy Batteries. With 10 years experience, we devote to manufacture the highest quality, deep-cycle batteries available in the industry with deep-cycle technology.
Any interests,please contact us at service@osnpower.com or tel +86-18575517952

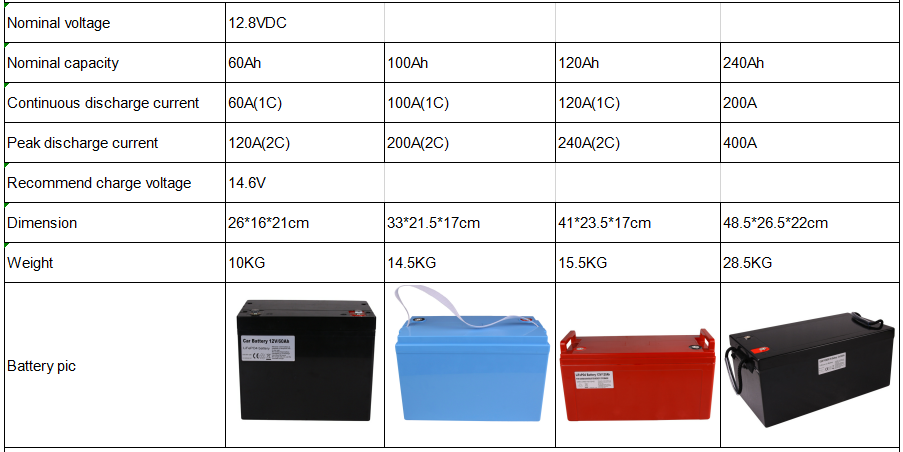

12V related LiFePO4 battery packs
