Introduction:
The SunRack 90° cable clips are made of corrosion resistant 304 stainless steel, which makes for a durable, long lasting and reliable solution in all environments. The coined edges are designed to help protect cable insulation from damage. The SunRack module wire management clips are easy to install and fits onto a wide range of module frames. Clips can be installed perpendicular on the module frame/rail edge.
Suitable range for cables: 4x4mm2/4x6mm2/2x10mm2/2x4mm2+2x6mmx/2x4mm2+2x10mm2
Diameter of cables:5.6mm-8.3mm
Compatible on modules with a flange thickness range: 1 to 3 mm, best adopted for 1.5mm-2mm
Merits:
1, High quality, long-lasting, labor savings, wire management solution.
2, Superior corrosion resistant 304 stainless steel
3, Coined edges to help protect cable insulation from damage
4, Installed onto the module frame flange/rail edge

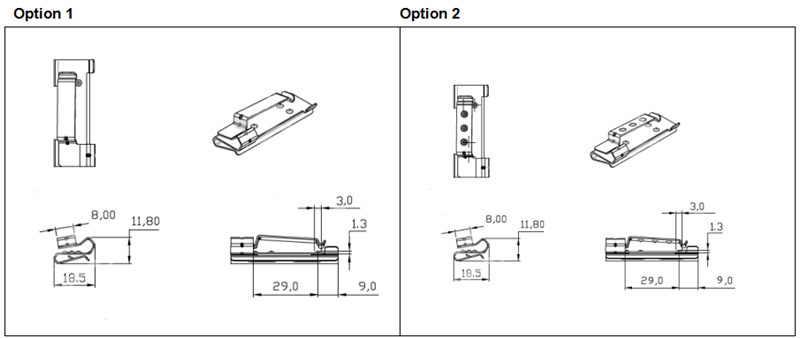

Solar clip drawings:

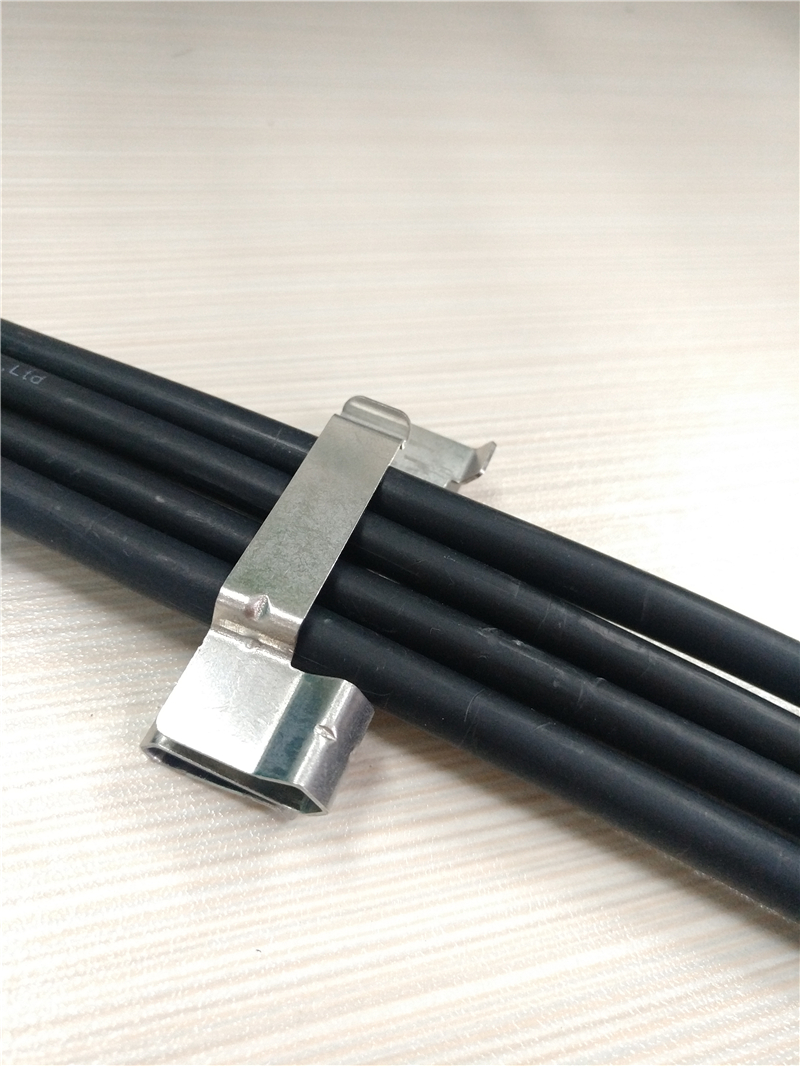

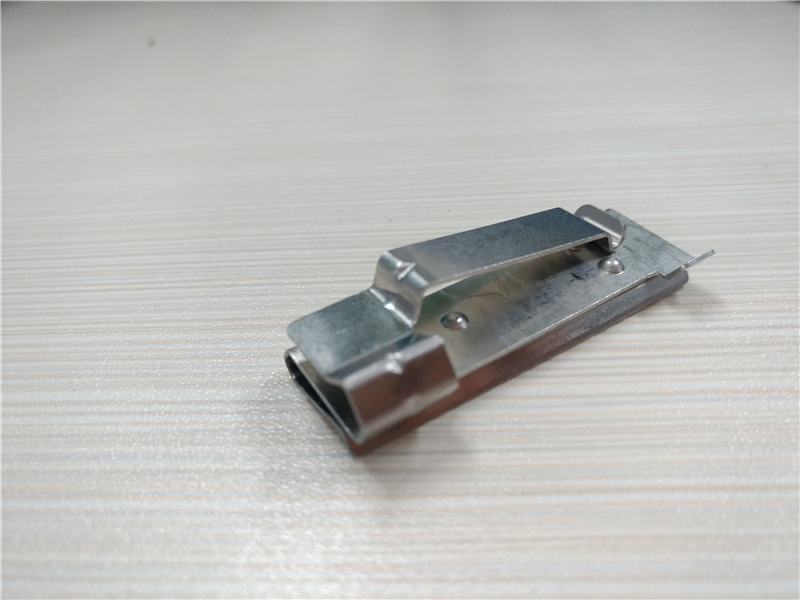

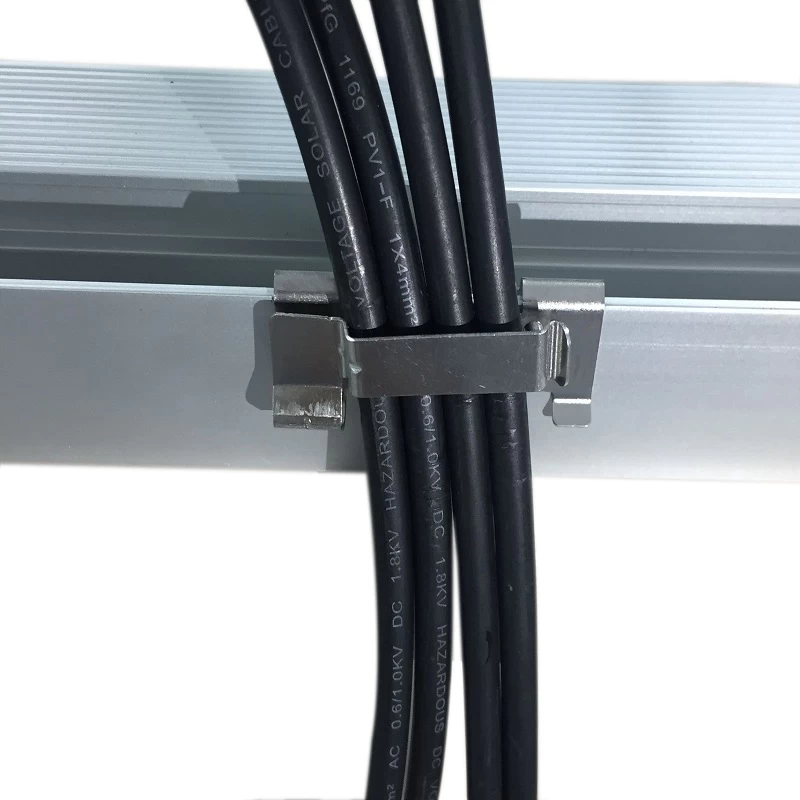

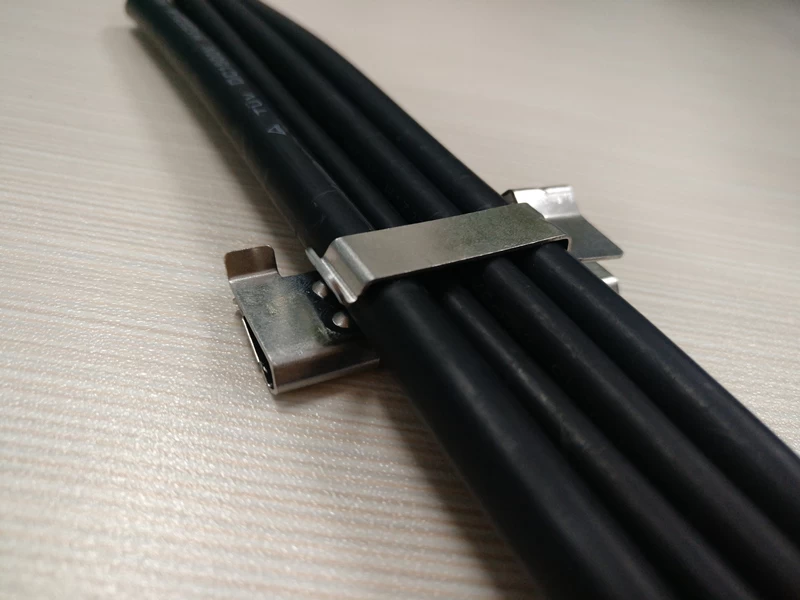

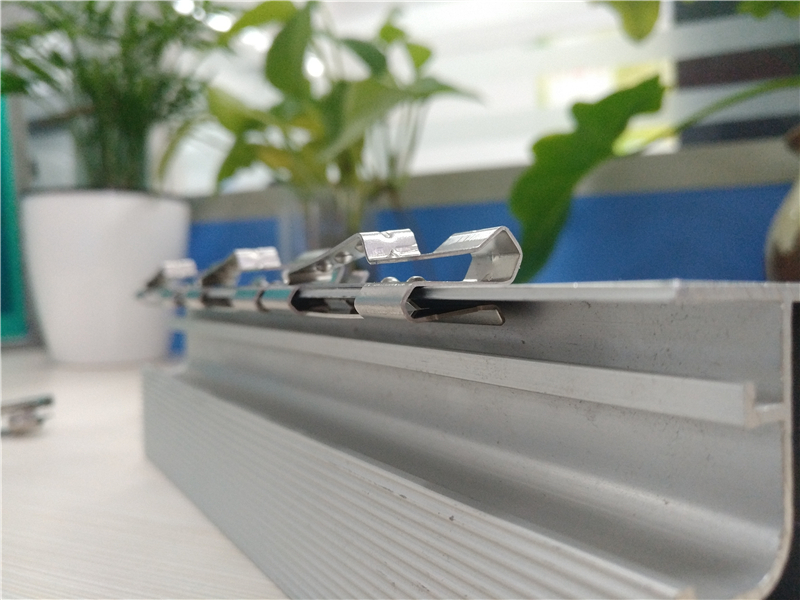

Product deatails show:
