Solar System Tile Rooftop Brackets

Solar System Tile Rooftop Brackets are specially developed for both residential and commercial rooftop solar installations.

Solar System Tile Rooftop Brackets are specially developed for both residential and commercial rooftop solar installations.

Solar Panel System Rooftop

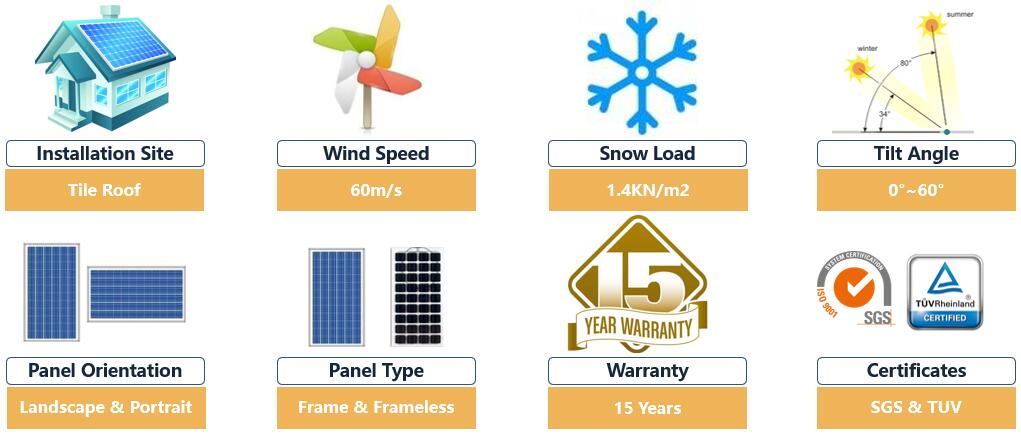

Material	AL 6005-T5/SUS304
Surface Treatment	Average Anodizing Coating Thickness≥ 12μm Average
Panel Type	Framed & Frameless
Wind Load	≤60m/s
Snow Load	1.4KN/m2
Panel Orientation	Landscape/Portrait
Tilt Angle	0°~60°
Seismic Load	Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
Standards	JIS C 8955 : 2017 AS/NZS 1170 DIN1055 ASCE/SEI 7-05 International Building Code: IBC 2009
Warranty	15years quality warranty, 25years life span warranty

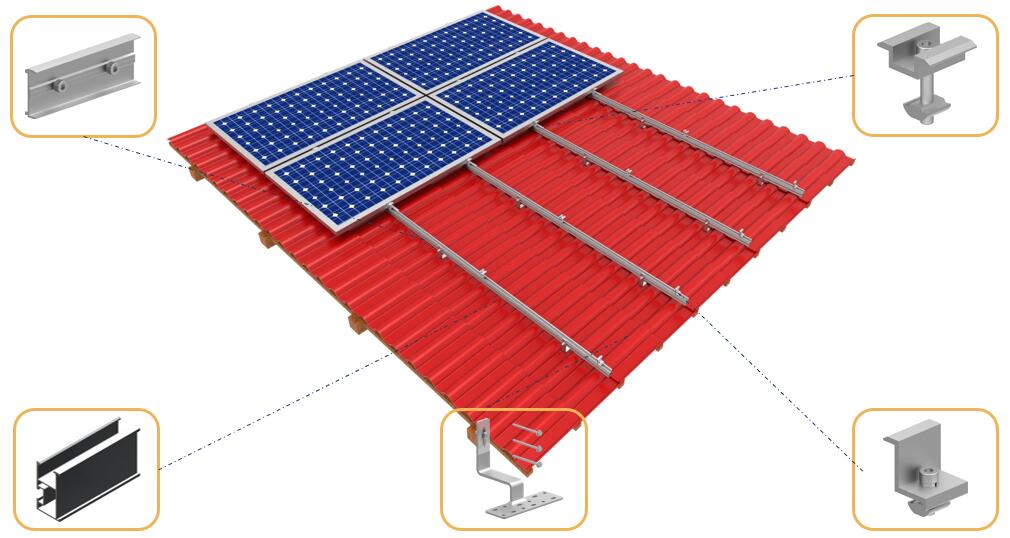

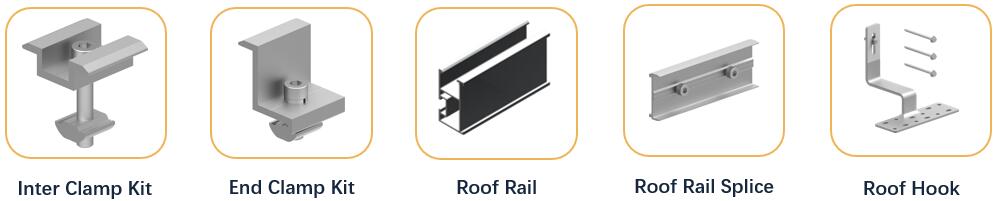

System Overview

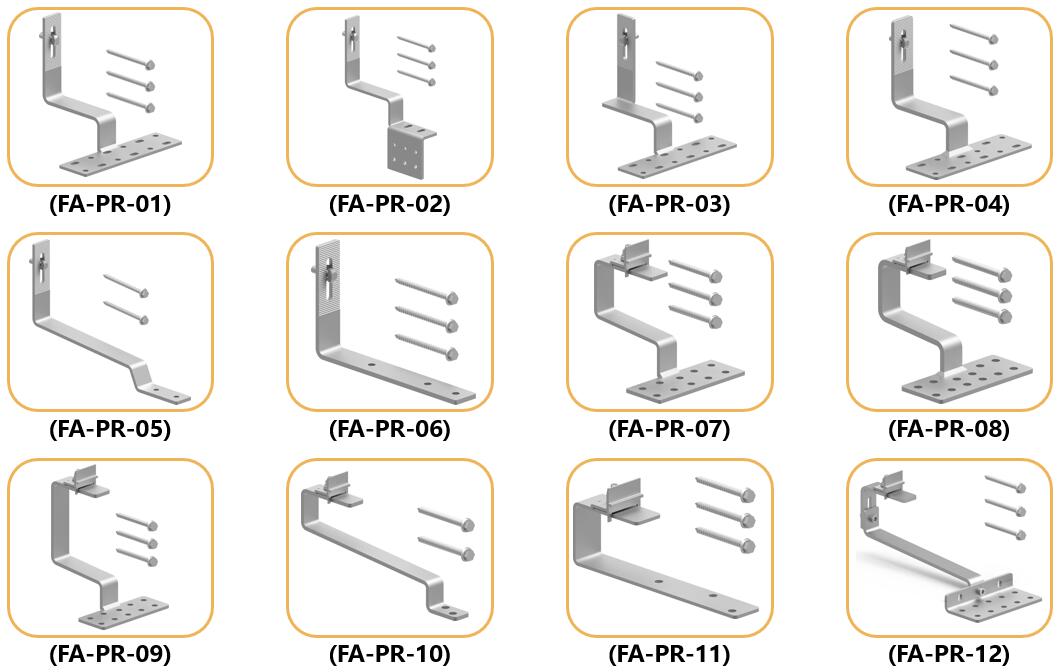

various tile roof hooks

Highly pre-assembled before shipment ensure an quicker installation work

Check and test Structure strictly for the use in extreme weather condition

Simpler design and less components make the solution more competitive

15 years' warranty, 25 years' life span

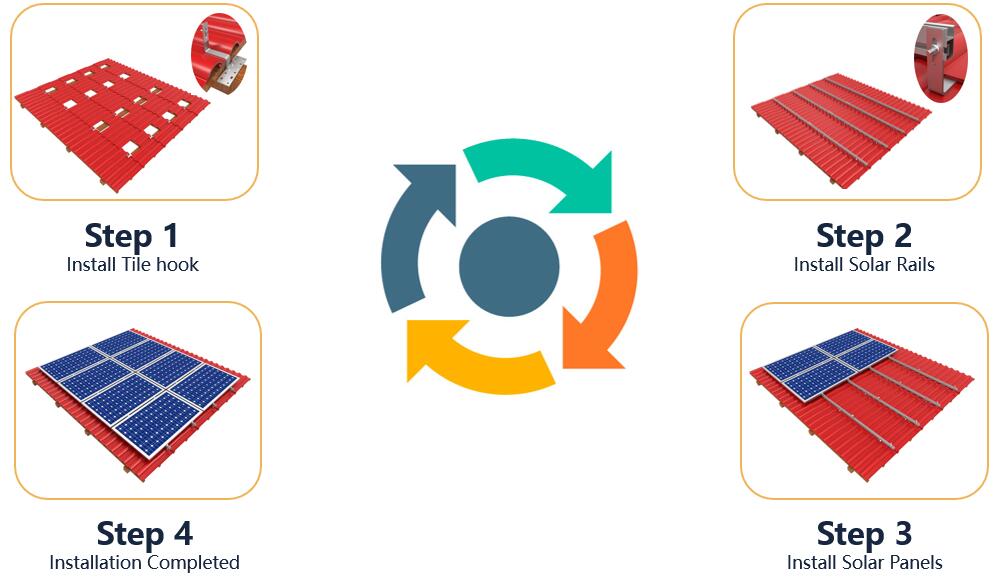

roof installation process
