Solar Tile Roof Clamp (CPR-F Series)

As a result of many years of research and practical application experience, the rapid installation and reliable safety of CORIGY SOLAR's solar racking systems have been widely recognized by the solar power market. A variety of solar mounting solutions can meet different types of tile roofs.

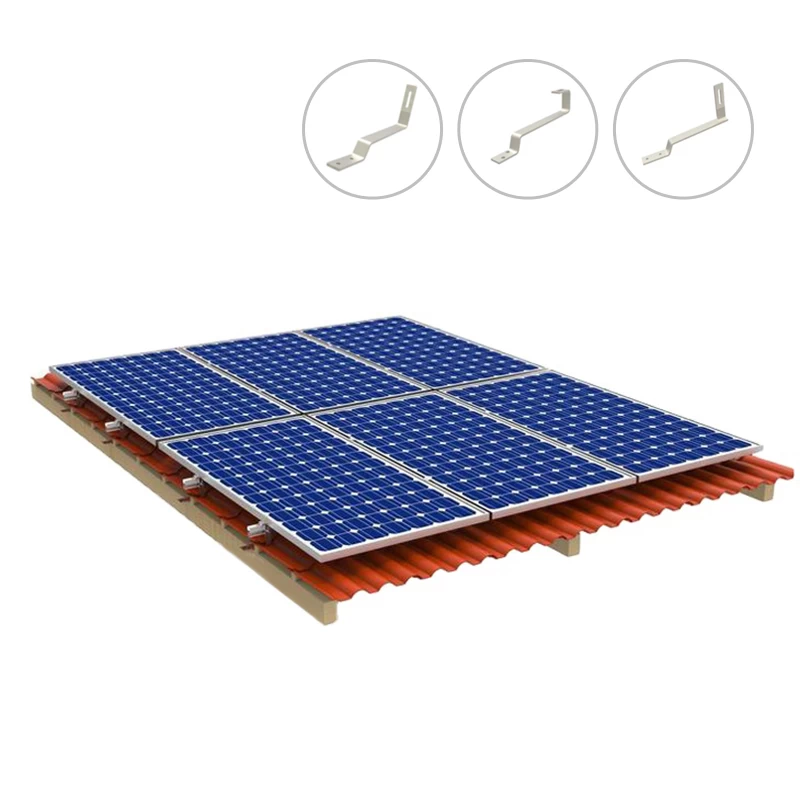

Tile Roof Solar Mounting Brackets (CPR-F series)

Tile Roof Solar Mounting Brackets


Product NameStai

Arched ceramic tile roof solar mounting bracket fixture (CPR-C series)

Mount Location

Sloped Roof

Mount Base

Arched ceramic tile roof

Mount Angle

0-15°

Wind Load

60m/s

Snow Load

1.6KN/m2

Applicable Solar Panels

Framed Panels & Frameless Panels

Solar Panel Layout

Horizontal Panel Installation & Vertical Panel Installation

Design Standard

AS/NZS 1170 , DIN 1055 ,JIS C8955 2017

Rack Material

Al6005-T5 (Surface Anodic Oxidation

Fastener Material

SUS304/SUS410

Mounting Accessories Material

Al6005-T5 (Surface Anodic Oxidation

Column color

Natural Silver or According to Customer

Warranty Period

10 years

Service Life

25 years

Loading Port

Xiamen Port,China


Advantages:

1. Allow installation at any point on the seam.

2. Can be adjusted even after accessories have been installed.

3. There are many kinds of tile roof bracket fixtures, suitable for various tile roof types

4. The fixture structure is simple and easy to install.

5. High-quality after-sales service to solve your worries.

6. CORIGY SOLAR Solar Kit is fully assembled ready to be installed.

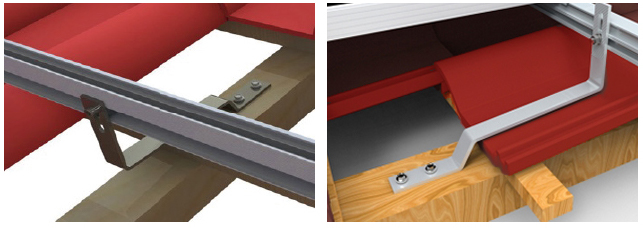

First fix the fixing device on the corresponding tile roof,and then lock the track

Roof Clamp with Bolts

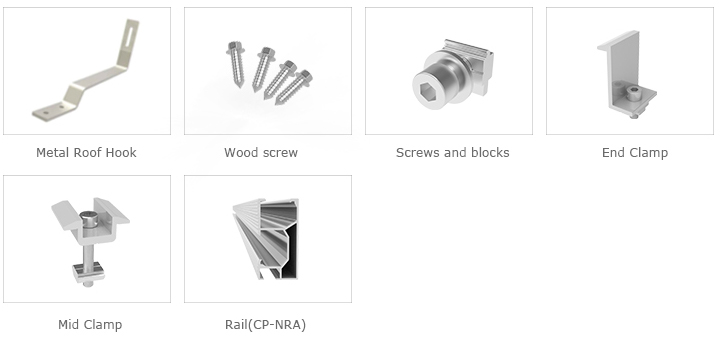

Racking Accessories

Roof Clamp with Bolts,Washers

Rails

Hook up

End Clamp with Hex Socket Head Bolts M8,Toggles

Mid Clamp with Hex Socket Head Bolts M8,Toggles

Roof Clamp with Bolts


More Similar Products:

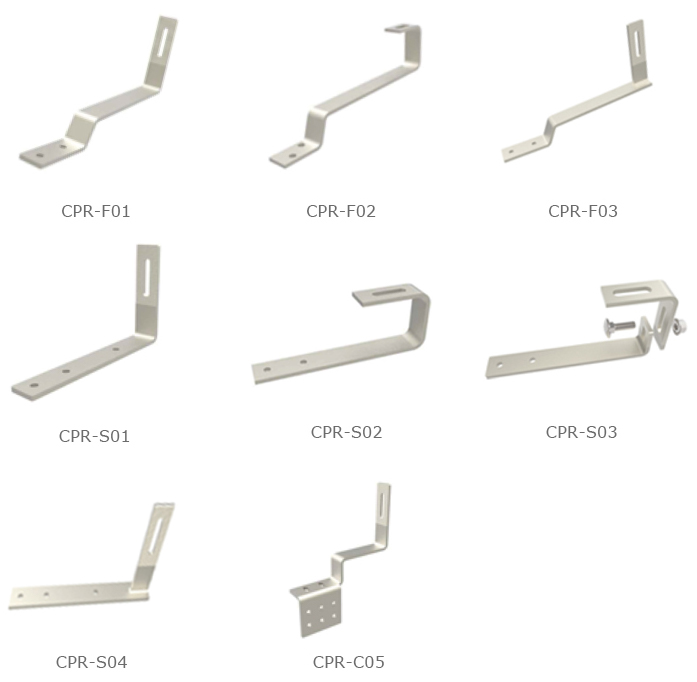

According to different roof shapes, choose the matching photovoltaic tile roof hook.

photovoltaic tile roof hook
