Solar Tin Roof Mount System for Rooftop

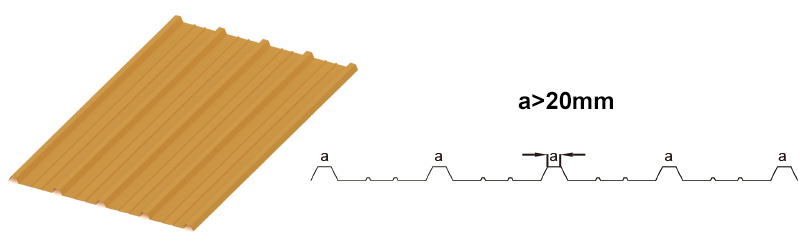

The metal roof sheet should in trapezoidal shape and its rib sholud more than 20mm.
|
Item No
|
UI-SS04
|
Installation
Site
|
Flat /
SlopeTin Roof
|
|
Material
|
Aluminum
6005 T5
|
Max Wind
Speed
|
60 m/s
|
|
Warranty
|
10 Years
|
Max Sonw
Load
|
1.4 KN/M2
|
|
Service
Life
|
25 Years
|
Max Building
Height
|
65 ft (20m)
|
1. No Rail

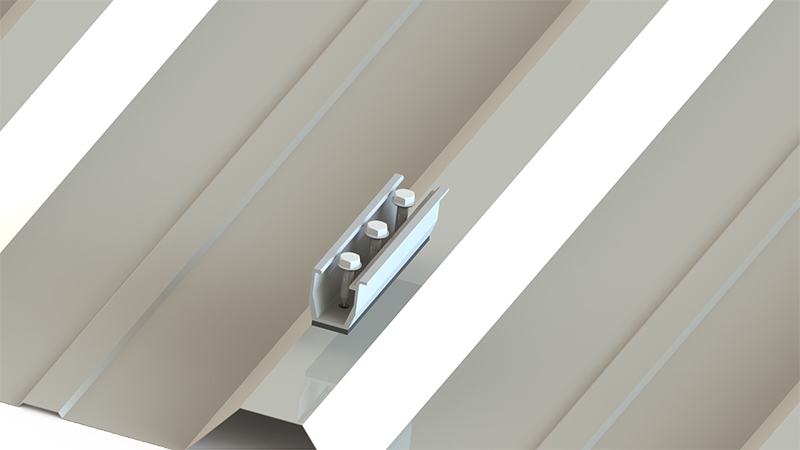

Using UI-SS04 hook to fix the panel instead of rail to save the cost of product and shipping.
2.Lightweight
The solution without rails can reduce the weight on your roof and increase the safety when some accidents happened.
3. Easy Installation

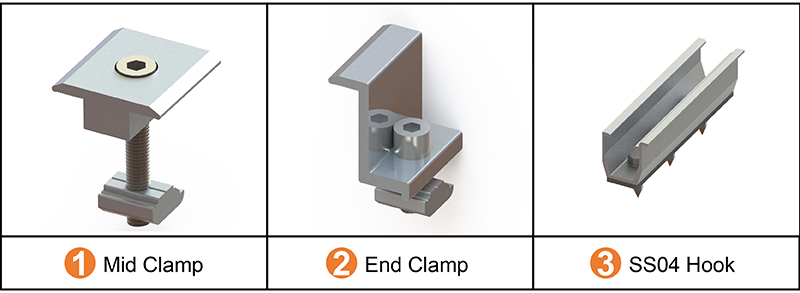

Only three components to finish the installation, save time and labor cost.
