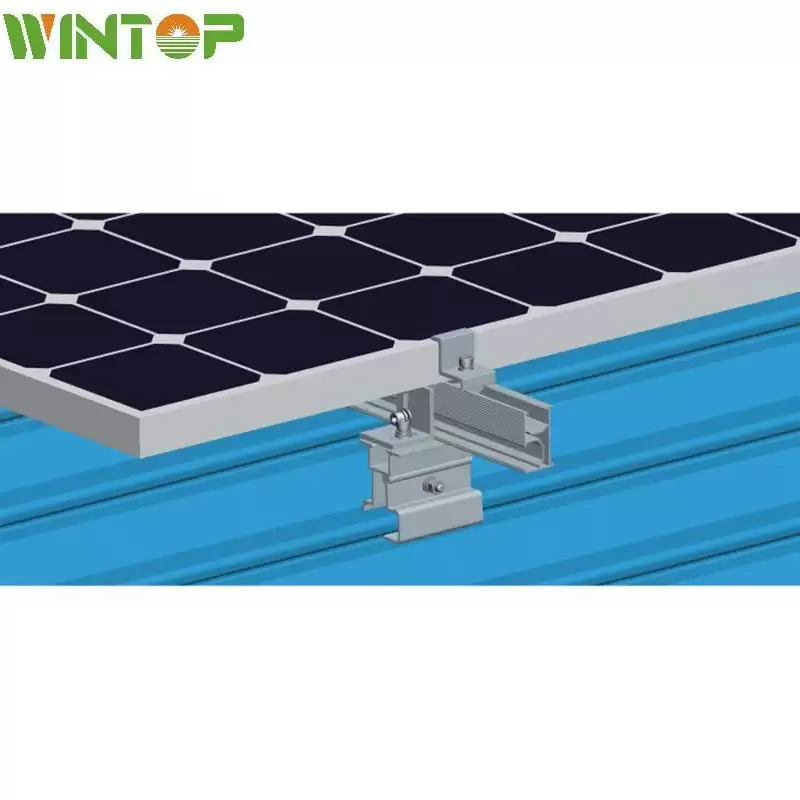

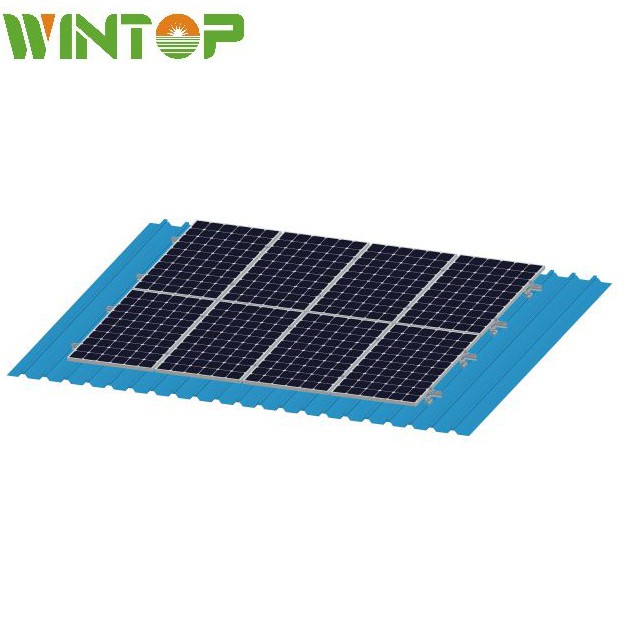

Solar Tin Roof Mounting System with Clamp
Product Description
Solar tin roof clamp mounting system can be fastened to almost any type of tin roofing substrate. Panels are mounted to either rails or baskets using roof clamps. The mounting system is typically either ballasted or directly fastened to the roof deck using watertight flashings.
Technical Parameters
|
Installation location
|
Roof
|
|
Installation foundation
|
Tin roof
|
|
Installation angle
|
0°
|
|
Wind load
|
60m/s（216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Roof height
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Professional structural design to ensure the strength of the bracket system;
-
Lightweight stand, good flexibility and strength;
-
Flexible and easy component installation, saving labor cost and installation time;
-
Various installation methods, suitable for tin roof;
-
For commercial or residential use.

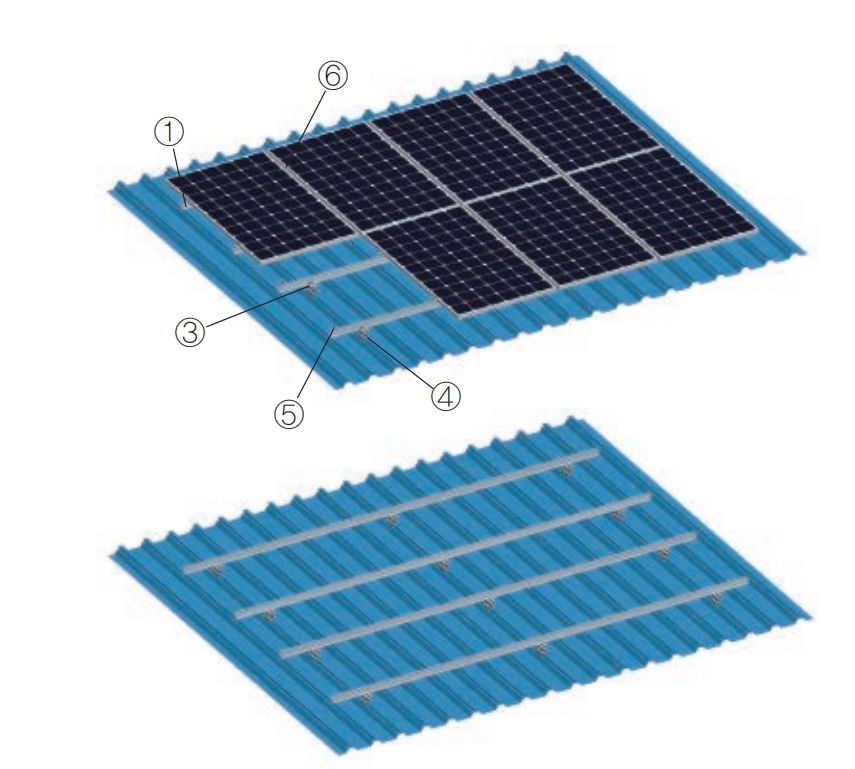

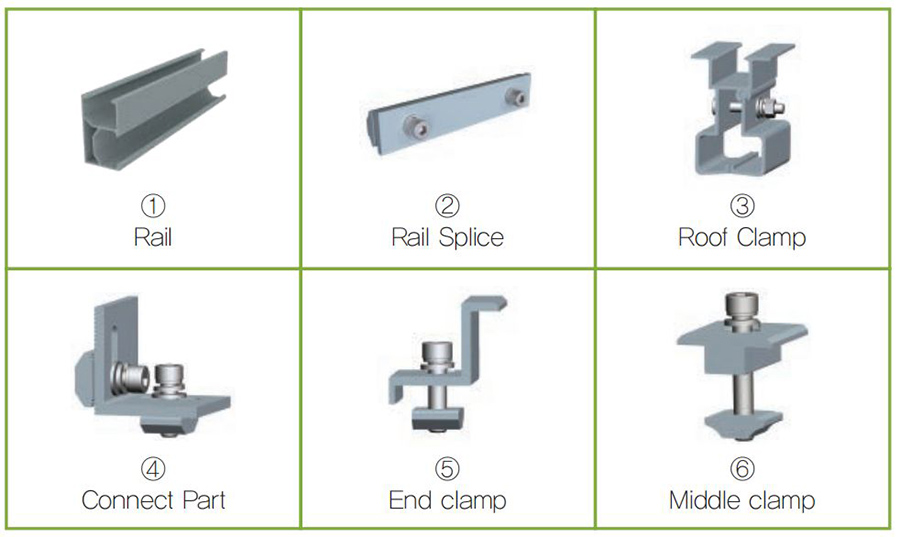

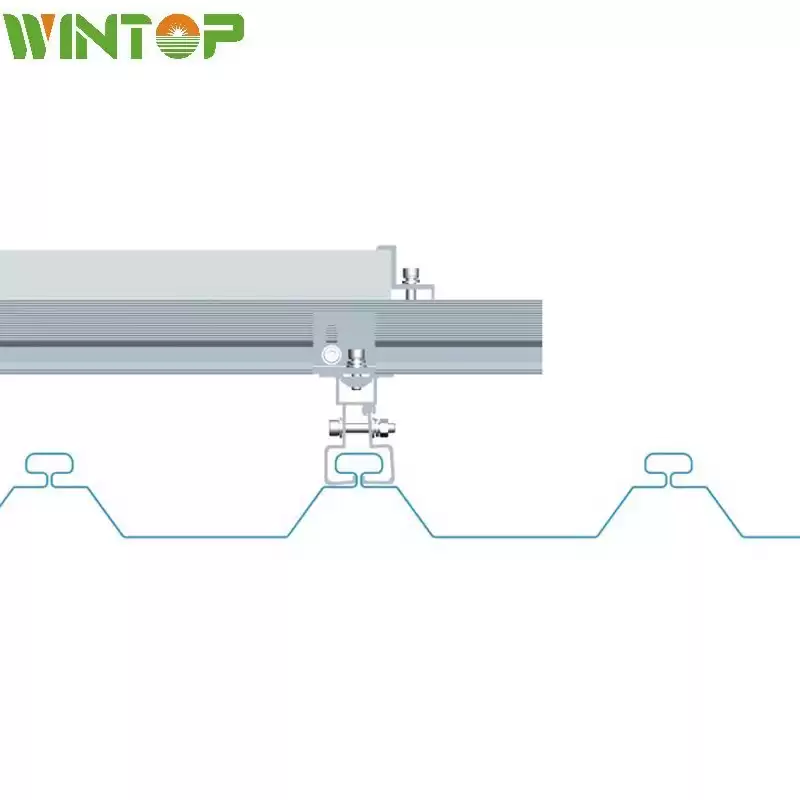

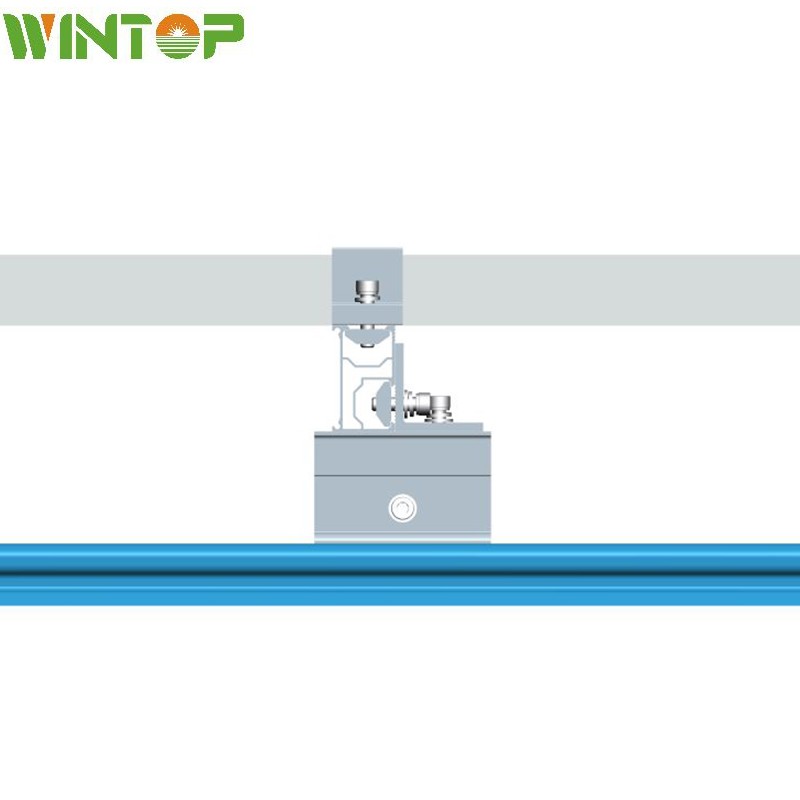

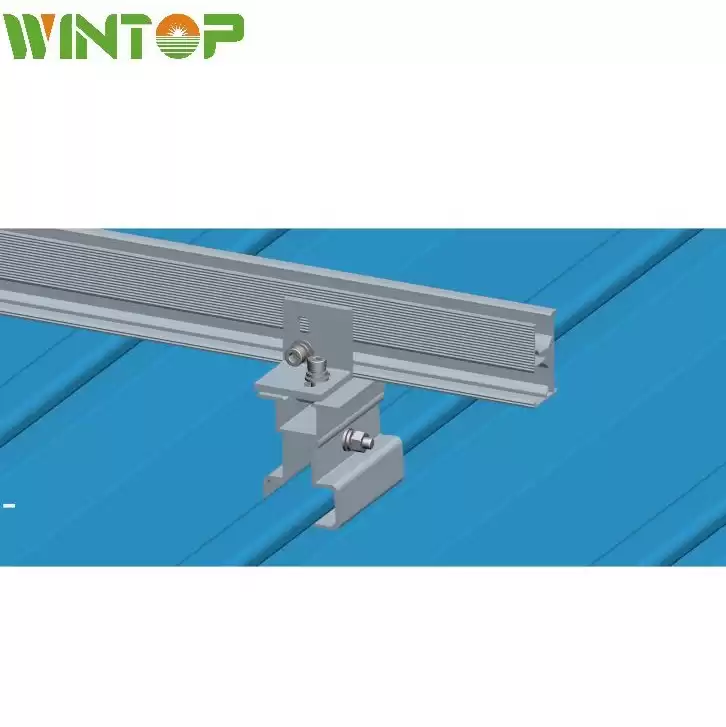

Components

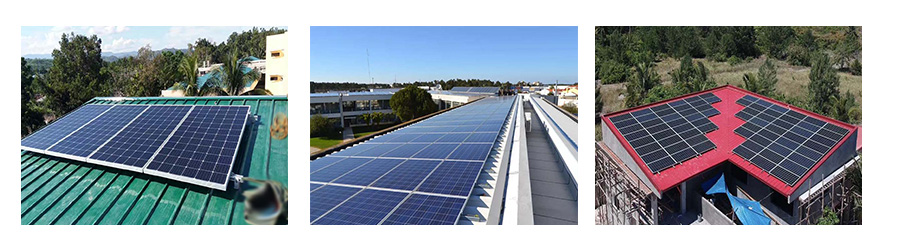

Project

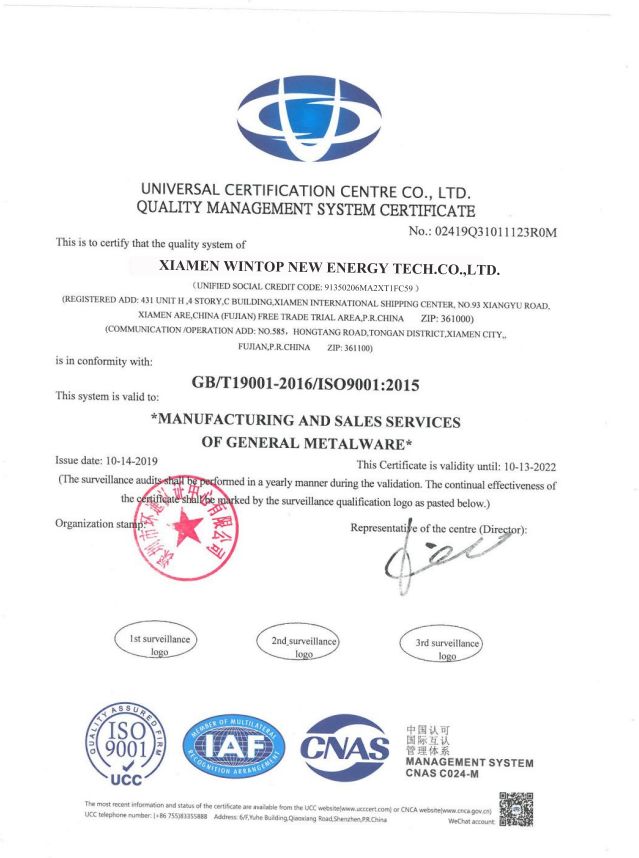

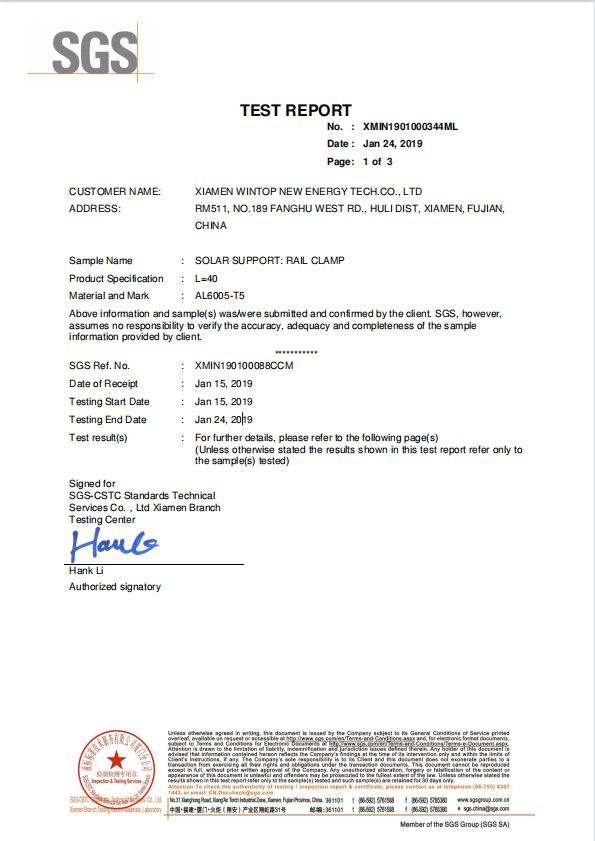

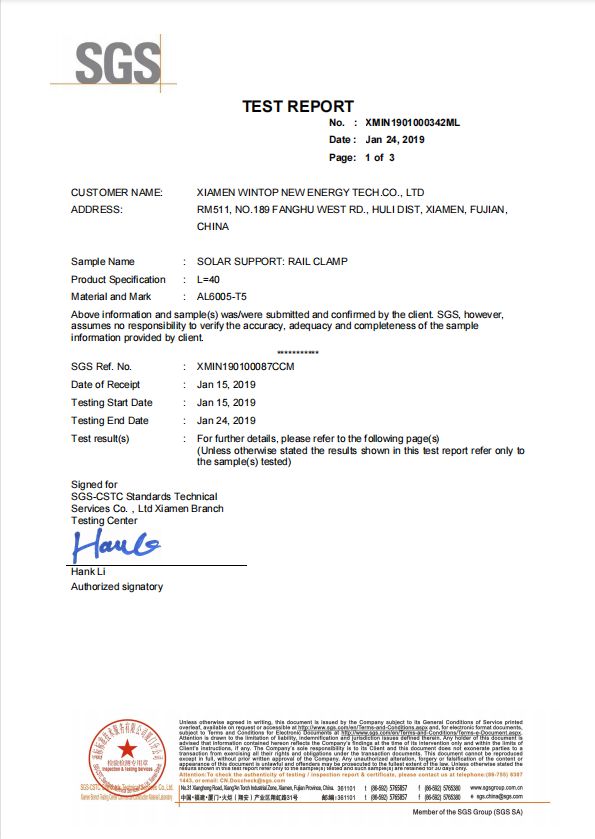

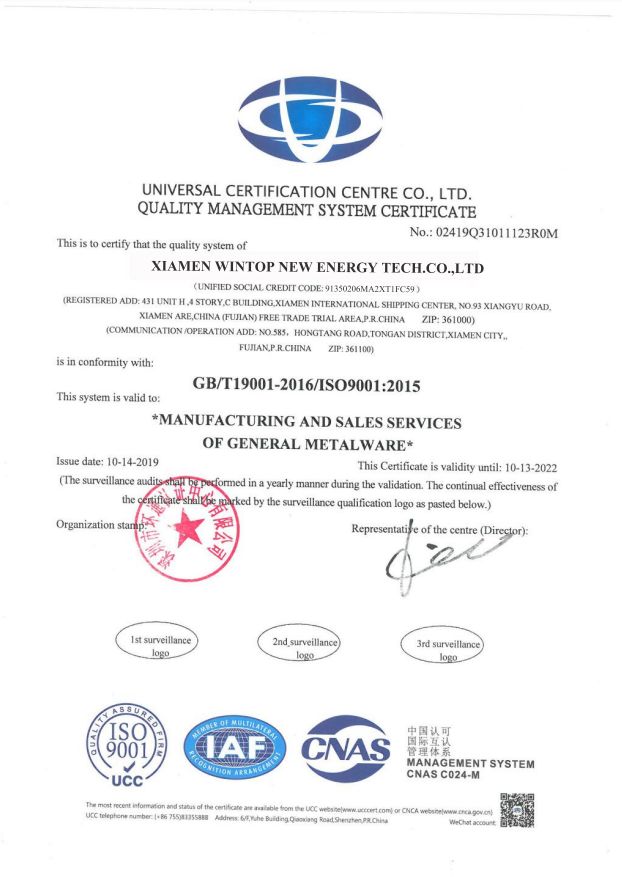

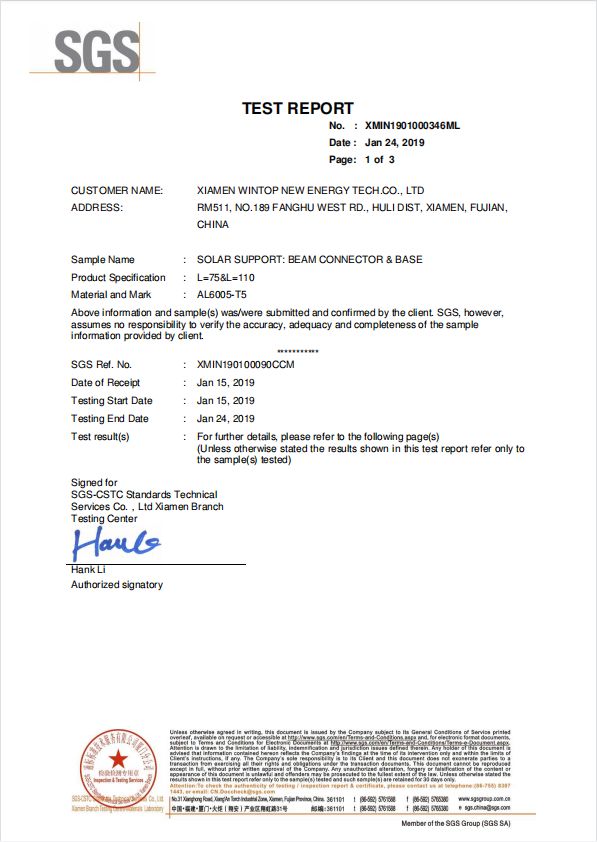

Certificate
QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Will the solar panels cause my roof to leak?
No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
