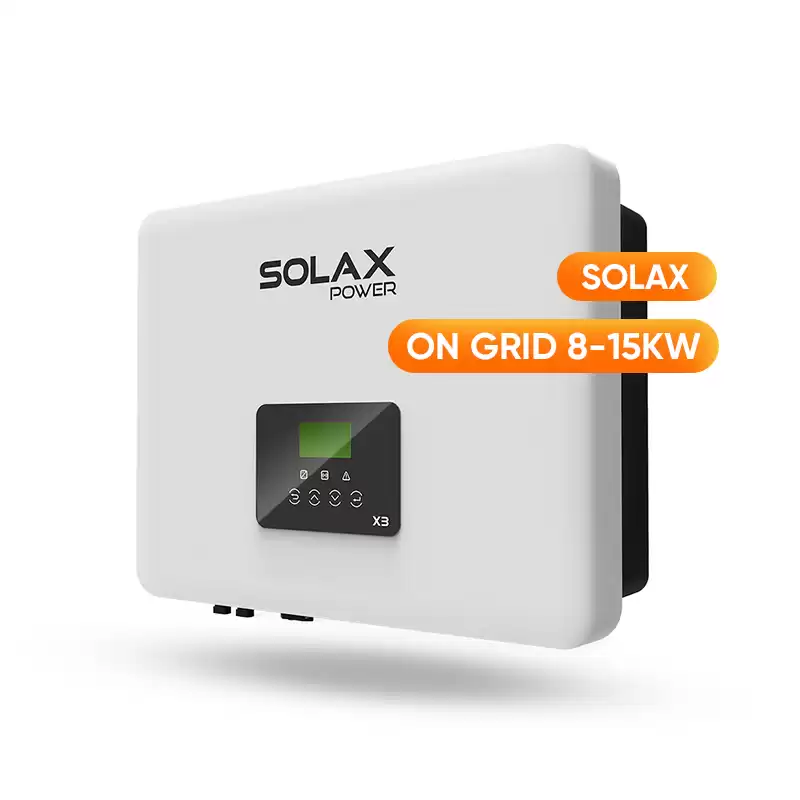

SOLAX X3-PRO 380V AC Inverter 8KW 10KW12KW Commercial Use

SolaX have developed a range of three phase inverters unrivalled in the industry for their quality, reliability and efficiency.

X3-PRO : 8.0KW | 10.0KW | 12.0KW | 15.0KW



The SolaX three phase inverters boast a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 1100V, with a maximum efficiency of 98.5%.

In addition, SolaX three phase inverters are IP66 rated, have no internal fan and come with optional ‘plug & play’ WIFI.

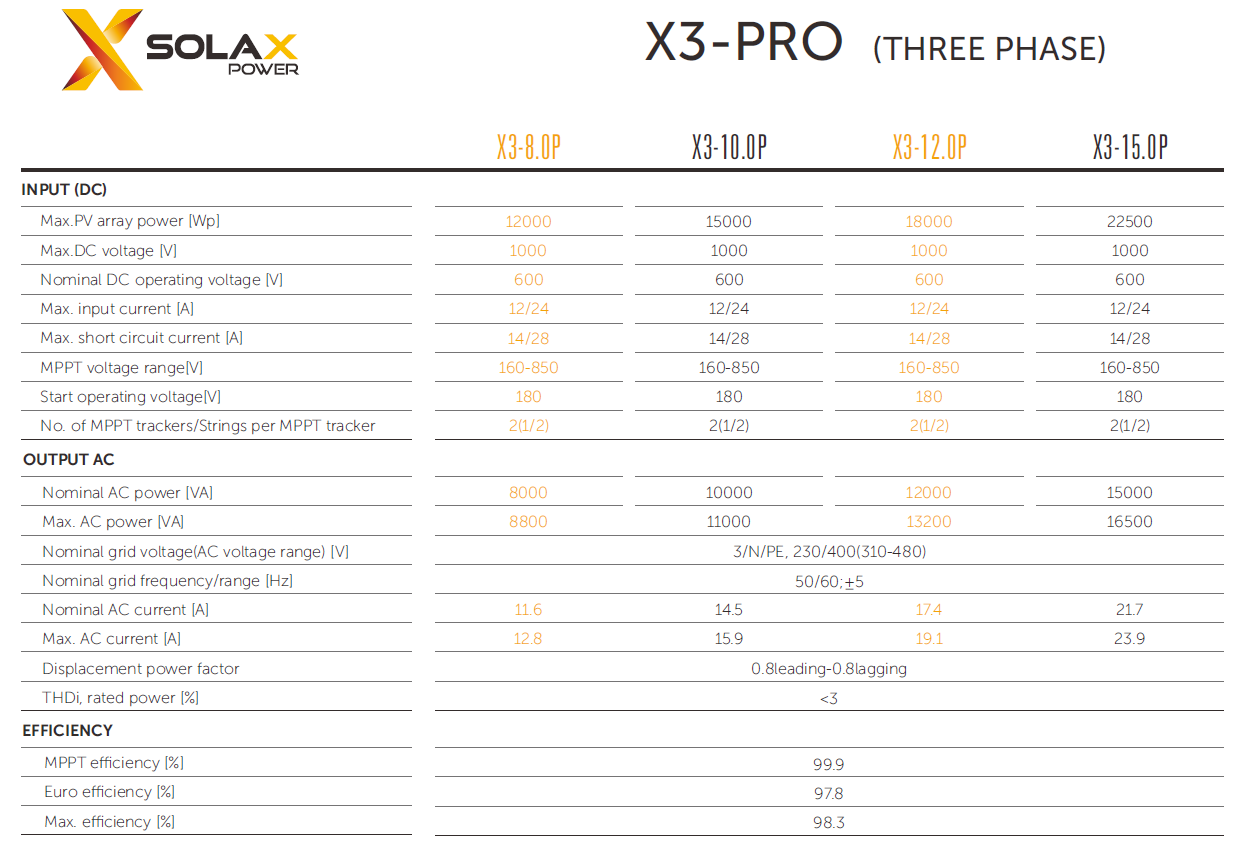

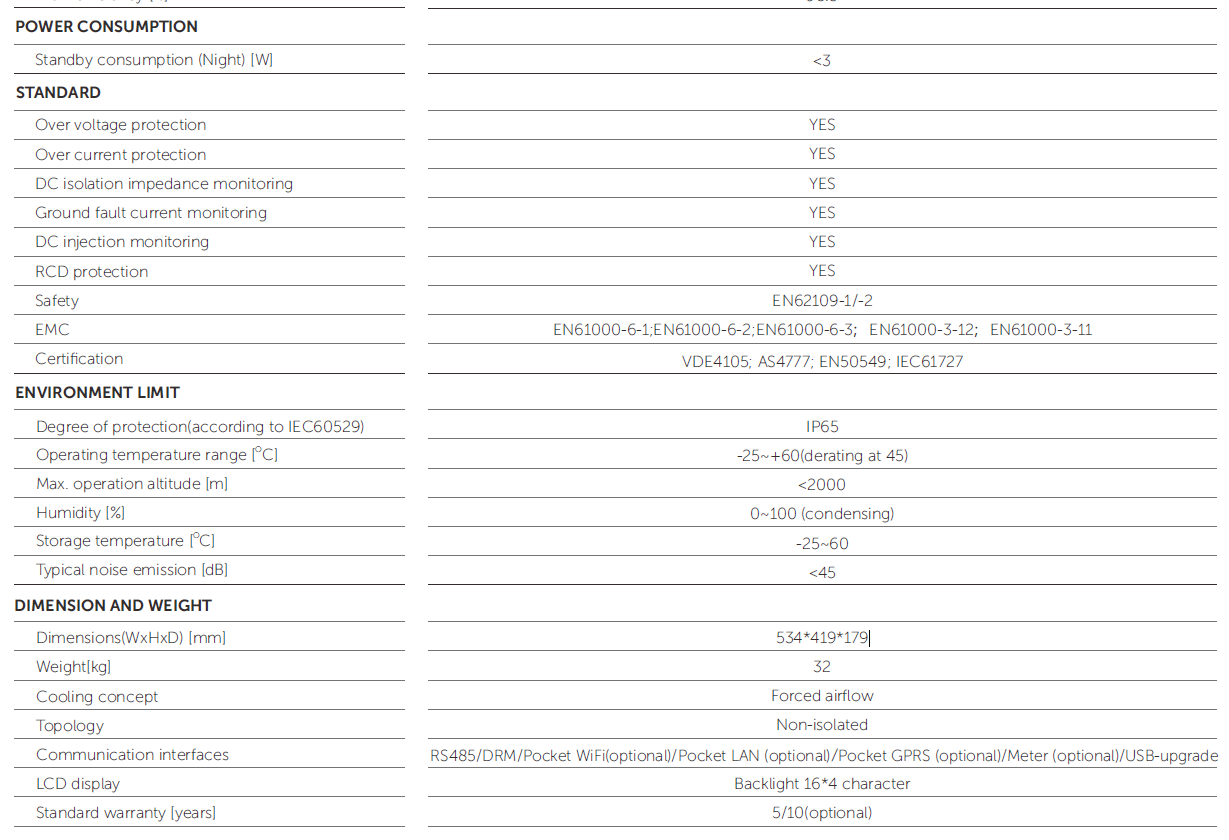

Technical Data:

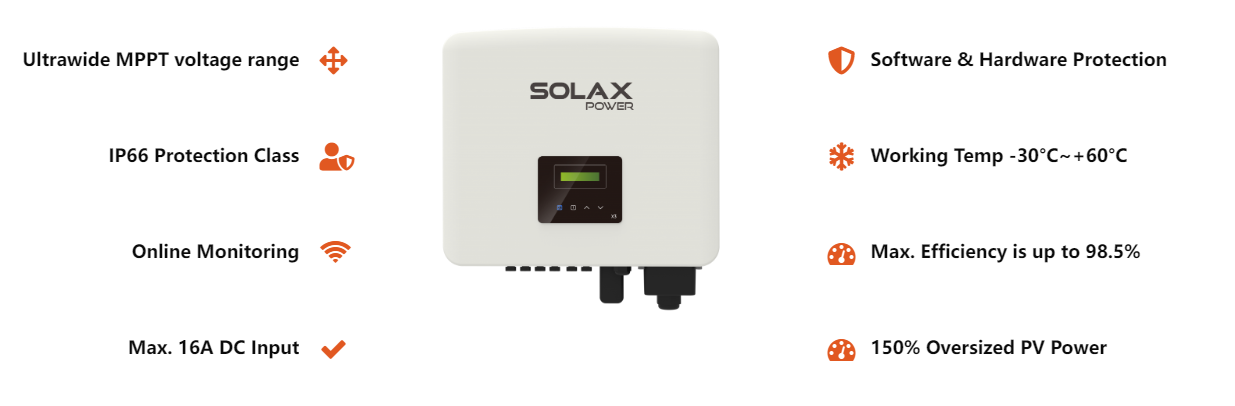

Key Features / Advantages:

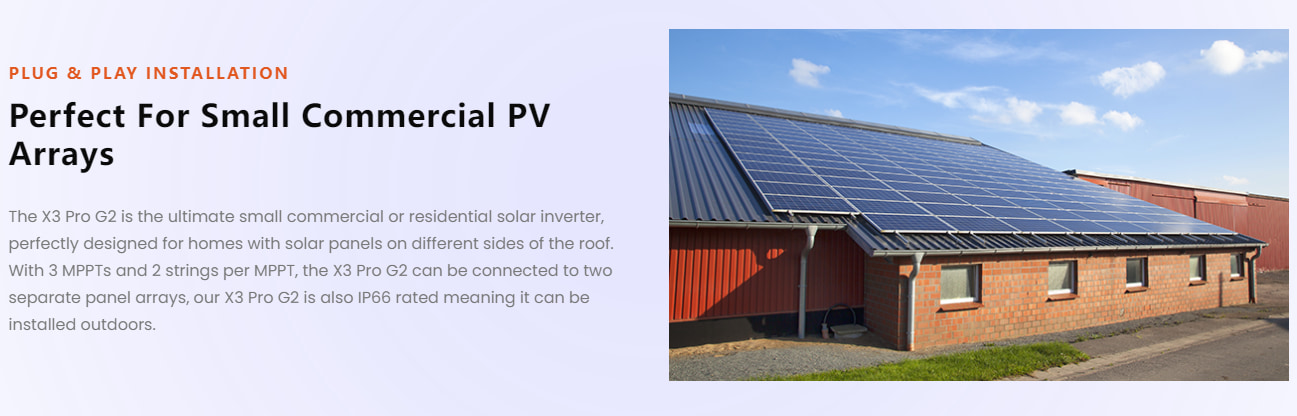

PLUG & PLAY INSTALLATION  - Perfect For Small Commercial PV Arrays

The X3 Pro is the ultimate small commercial or residential solar inverter, perfectly designed for homes with solar panels on different sides of the roof. With 3 MPPTs and 2 strings per MPPT, the X3 Pro can be connected to two separate panel arrays, our X3 Pro is also IP66 rated meaning it can be installed outdoors.



GET THE MOST OUT OF YOUR SOLAR  - Simple, Reliable, Efficient

The SolaX X3 Pro is amongst some of the most efficient residential & commercial string solar inverters available on the market today, boasting a massive 98.5% efficiency and with a maximum PV input voltage of 1100V, you can ensure that you are making the most out of your solar energy.



IP66 RATED PROTECTION  - Install Indoors Or Outdoors

The X3 Pro is IP66 rated meaning that it can be installed either inside or outside, giving you the flexibility to choose where to install the system.



FAQ:

Inverter Dimension:  534*419*179mm

Certificate: EN62109-1/-2, EN61000-6-1;EN61000-6-2;EN61000-6-3;EN61000-3-12;EN61000-3-11, VDE4105; AS4777; EN50549; IEC61727



Our Sales Engineer is 7/24 Online, welcome your Inquiry to get further details:

Jason Wong

Mobile/Wechat/Whatsapp:  +86 137 2102 6403

Email: jason@ue-pv.com
