Advanced Equipment
ANCA &DECKEL for producing end mills
PG1000 & PARLEC for detecting
Super Raw Material
Kennametal Carbide from USA, Sandvik Carbide from Sweden, CB Carbide from Taiwan, Zhuzhou Carbide from Hunan province.
Carbide Rod Grade
|
Type
|
Material
|
Co
|
Grain size
|
Flexural Strength
|
|
HRC45
|
YG10X(Zhuzhou）
|
10%
|
0.7um
|
3320N/mm2
|
|
HRC55
|
YG10.2&WF25(Taiwan)
|
10%
|
0.6um
|
4000N/mm2
|
|
HRC65
|
H10F(Sweden)
|
10%
|
0.5um
|
4300N/mm2
|
Coating Grade
|
Type
|
Hardness(HV)
|
Thickness(UM)
|
Oxidation Temp
|
Friction Coefficient
|
Color
|
|
AITiN
|
3200
|
2.5-3
|
900
|
0.3
|
Black
|
|
TiSiN
|
3600
|
3
|
1000
|
0.45
|
Copper
|
|
nACo
|
42(GPA)
|
3
|
1200
|
0.4
|
Blue
|

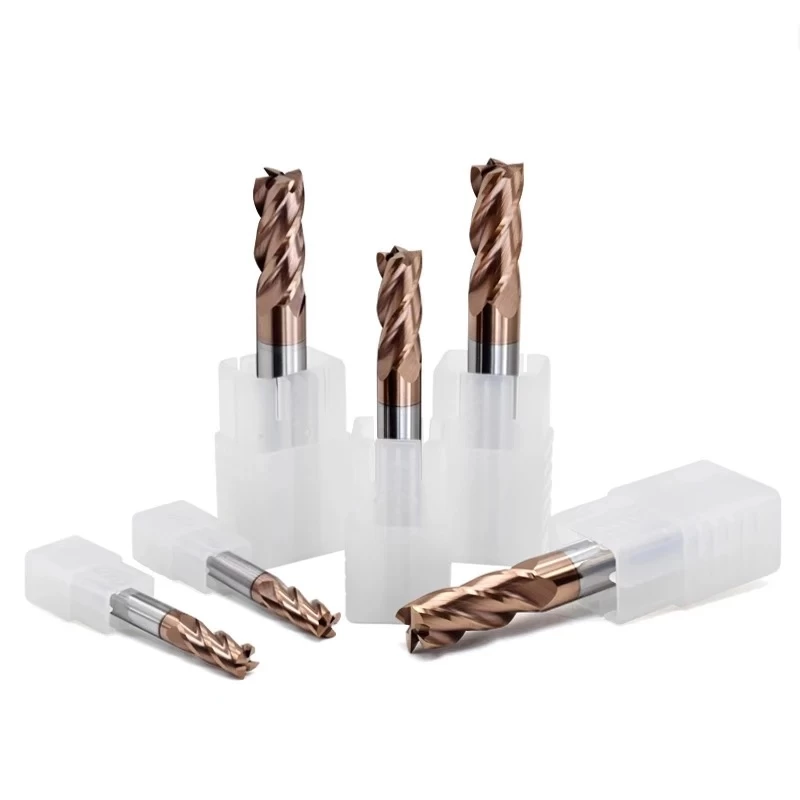

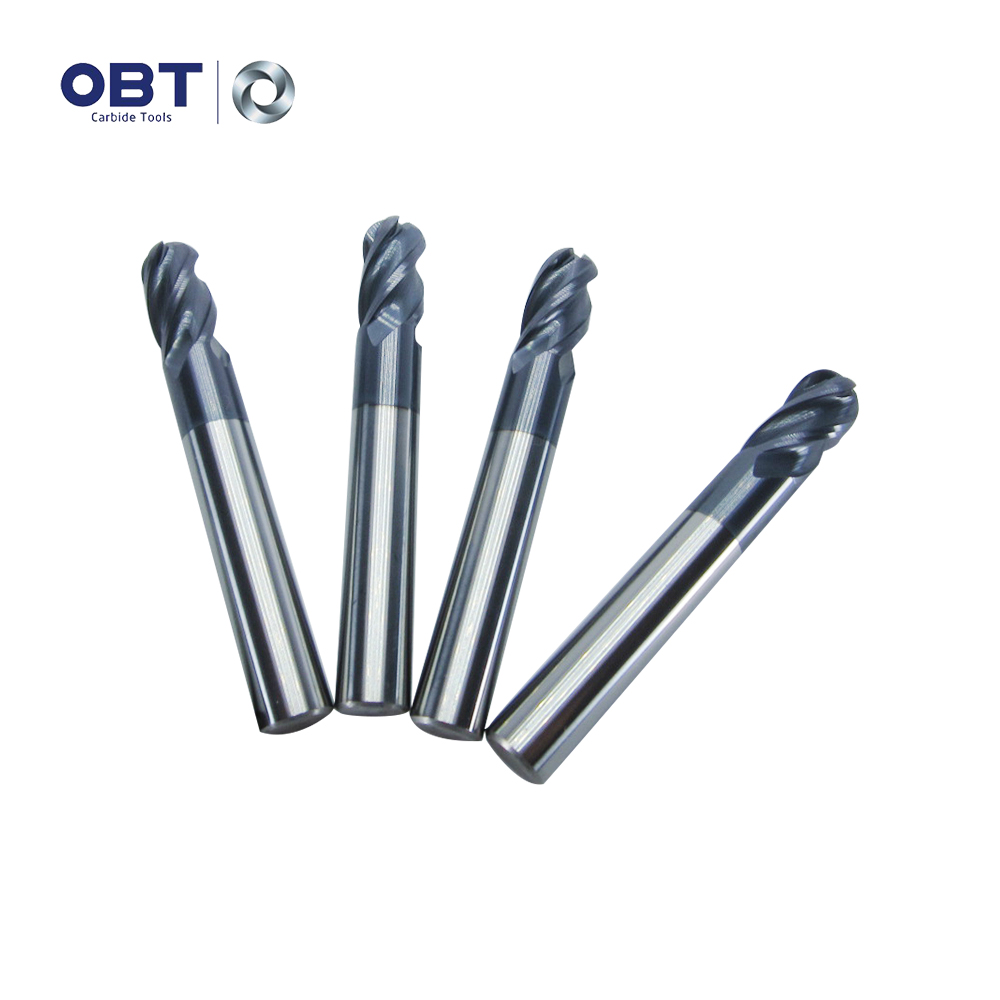

Product Description
HRC45 suitable for Iron, Cast Iron, Common Steel under hardness HRC45
HRC55 suitable for Iron, Cast Iron, Common Steel, Hardened Steel under hardness HRC55
HRC65 suitable for Hardened steel; Mold steel; Die steel; Alloy steel above HRC60
Name
|

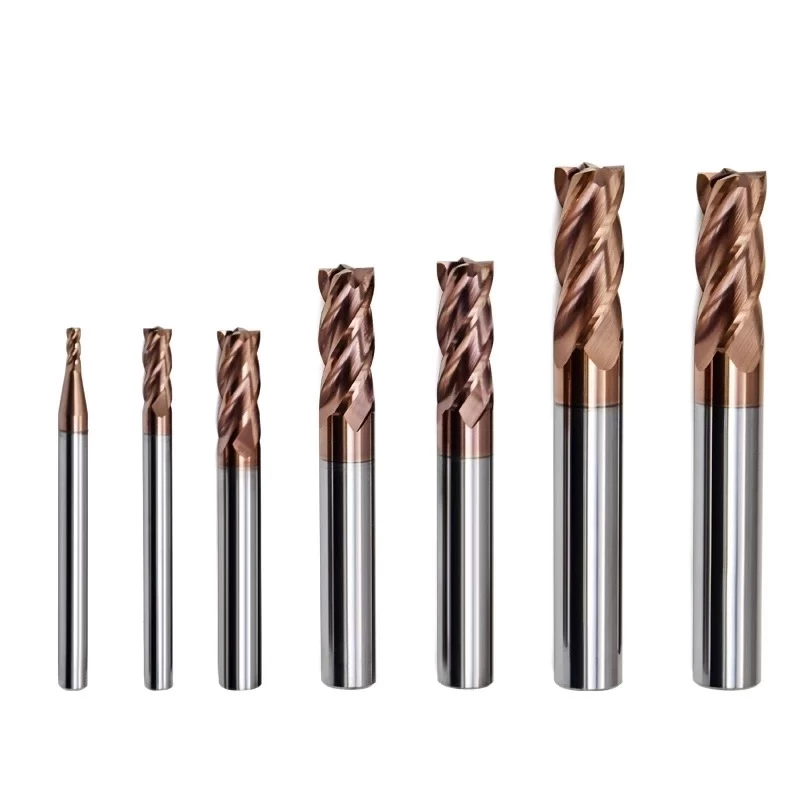

Solid Carbide End Mill
|
Material
|
Tungsten Carbide
|
Flutes
|
2/4/6 Flute
|
Hardness
|
HRC45, 55, 65
|
Helix Angle
|
30° 35° 45°30° 35° 45°AlTiN, NACO BLUE, NACO BLACK, TiN etc.
|
Coating
|
AlTiN, NACO BLUE, NACO BLACK, TiN etc.
|
HRC45, 55, 60, 65, 68
|

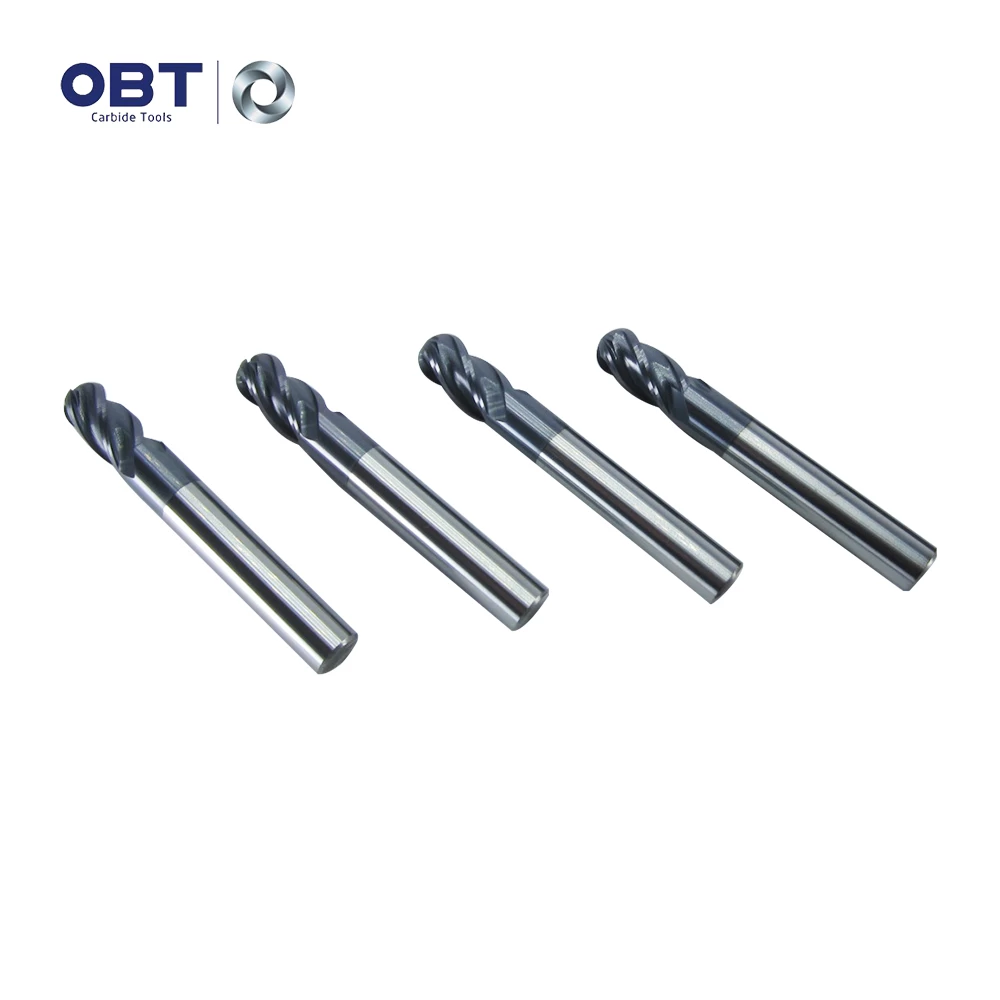

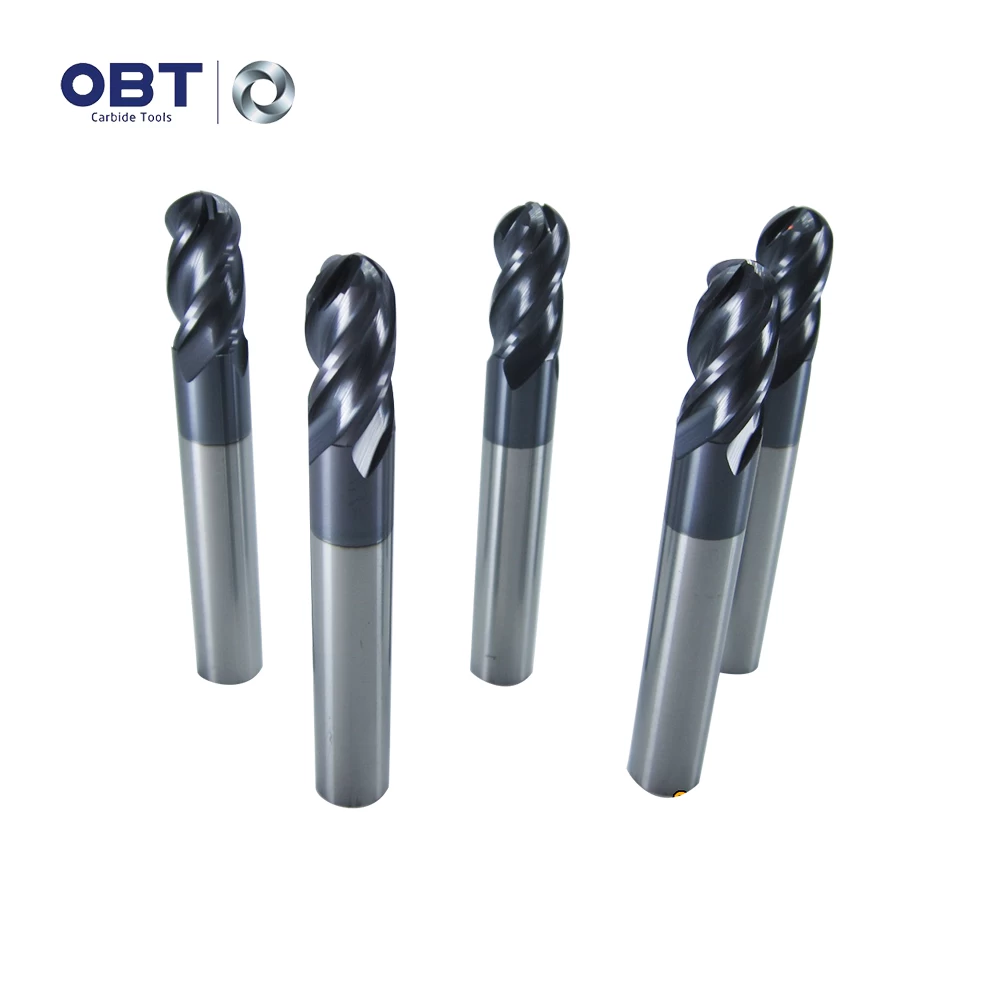

Flat end mill, ball nose end mill, corner radius end mill and aluminium processing end mill
|
Size
|
Dia: 1-20 mm, Overal Length:50-150mm
|
Smooth Finish
|
Highly Polished
|
Feature
|
Excellent chip evacuation
|
Our Service
1,OEM/ODM
2,Customized Cutting Tools Offered
3,Free Laser Engraving Offered
4,Buyer Label Offered
Packaging & Shipping

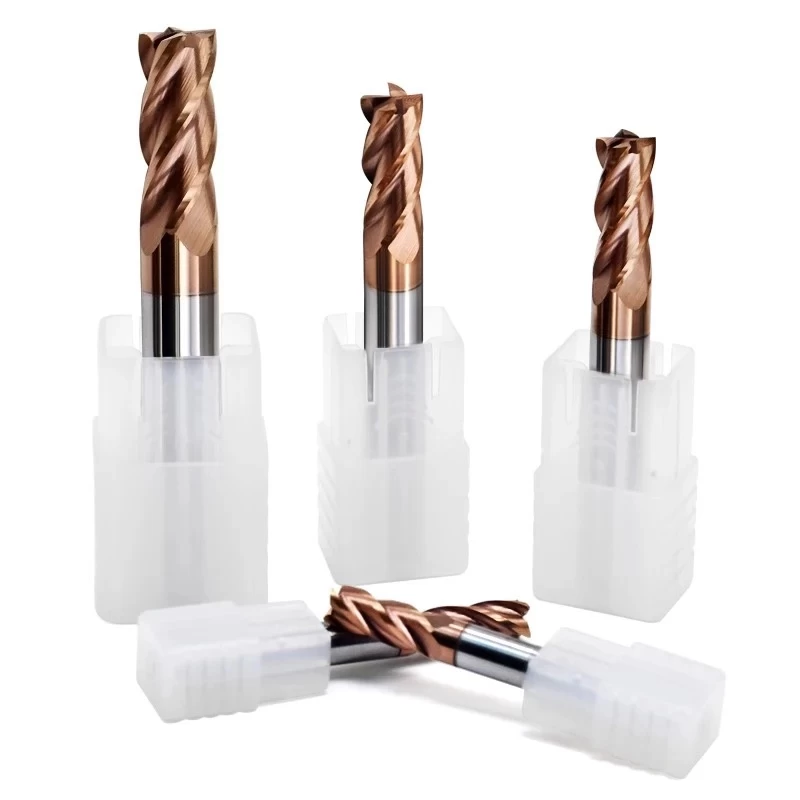

1.use plastic box to protect
2.use bubble wraps to fasten
3.use carton package with bubble wraps
Buyer Feedback
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are end mill factory.Our factory is located in zhuzhou City, Hunan Province. Welcome to visit our factory!
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we could not offer the sample for free, but we can give you a big discount for big order
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
