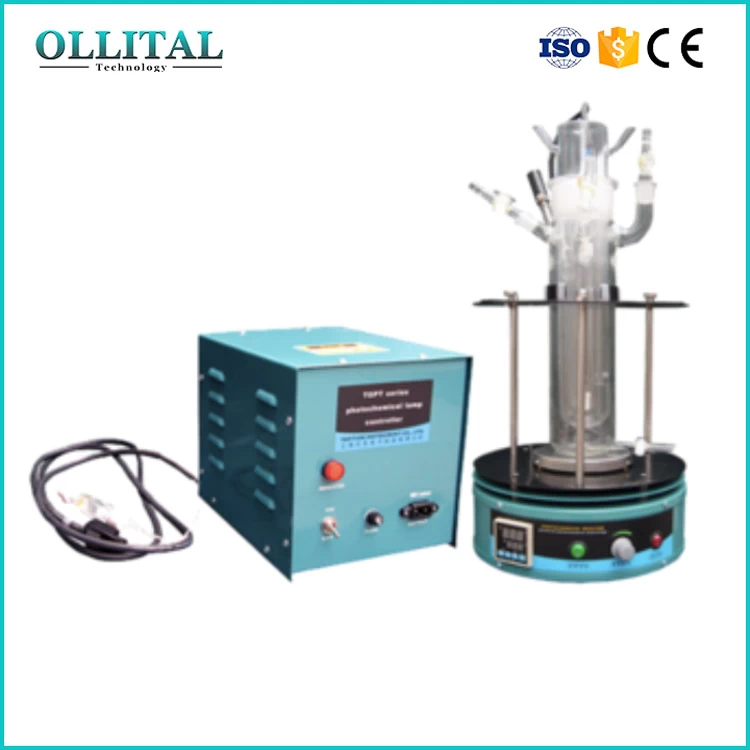

TOPT-II used as liquid photochemical reactor, have several volume to choose:250ml,500ml,1000ml,2000ml,3000ml,5000ml. there are three opening port: gas inlet, temperature measure,sample inlet.
OLLITAL as ISO & CE quality certification photochemical reaction equipment manufacturer, support other specifications photocatalysis reactor customize.
Basic configurations of TOPT-II photochemical reaction vessel:
|
No.
|
Equipment list
|
TOPT-II
|
TOPT-V
|
|
1
|
Protecting box(which can prevent ultraviolet ray, but have observation window)
|
1
|
1
|
|
2
|
UV Lamp control system (Xenon lamp,Metal halide lamp control system are optional)
|
1
|
1
|
|
3
|
UV Lamp ( xenon lamp, Metal halide lamp are optional)
|
1
|
1
|
|
4
|
Cold pit of quartz(which is used to reduce the heating of lamp)
|
1
|
1
|
|
5
|
Water shortage alarm(it will alarm when the water stop flowing, then you can shutoff the power )
|
1
|
1
|
|
6
|
Stainless steel working platform, bottom with wheels.
|
1
|
1
|
|
7
|
250ml glass reactor( there are 500ml,1000ml,2000ml,3000ml,5000ml are optional.)
|
1
|
0
|
|
8
|
30ml quartz test reactor(there are 10ml,50ml,100ml,150ml are optional)
|
0
|
8
|
|
9
|
Magnetic stirrer with one field
|
1
|
0
|
|
10
|
Magnetic stirrer with eight magnetic fields (which can do eight samples experiment at the same time)
|
0
|
1
|
|
Optional
|
|
A
|
Chiller for cooling
|
Yes
|
yes
|
|
B
|
Filter(there are UV cut 400nm type and UV through type)
|
No
|
yes
|
|
C
|
32 quartz test reactors and magnetic stirrer with 32 magnetic fields(can do 32 samples experiments at the same time)
|
No
|
yes
|
1.Liquid phase reaction, at the same time, can only make a sample.
2.Capacity: 250ml, 500ml, 1000ml, 2000ml, 3000ml, 5000ml.
3.Support "constant temperature", "take samples" , "air outlet" customize.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
