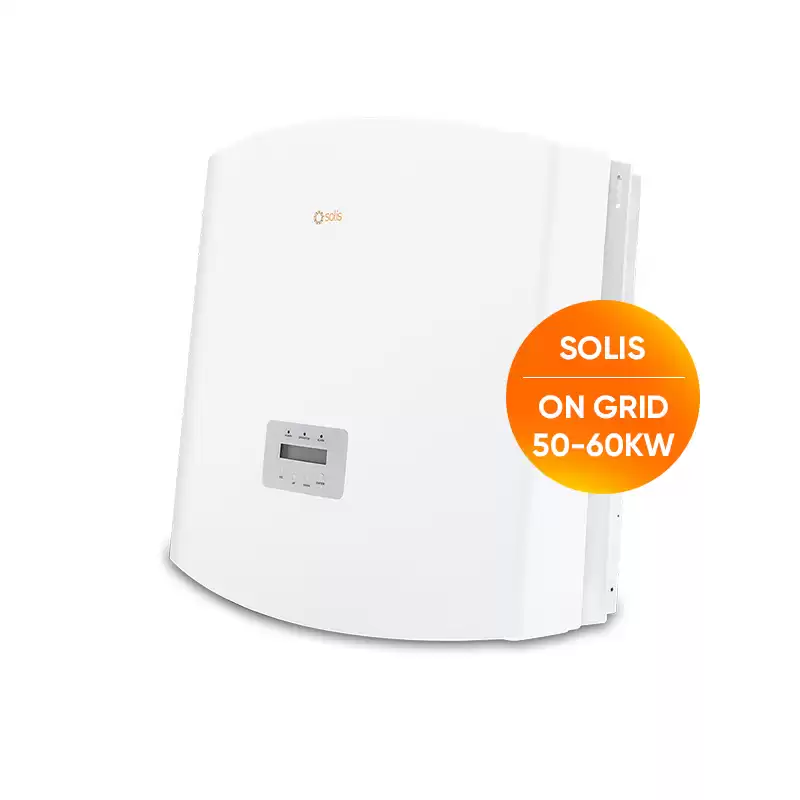

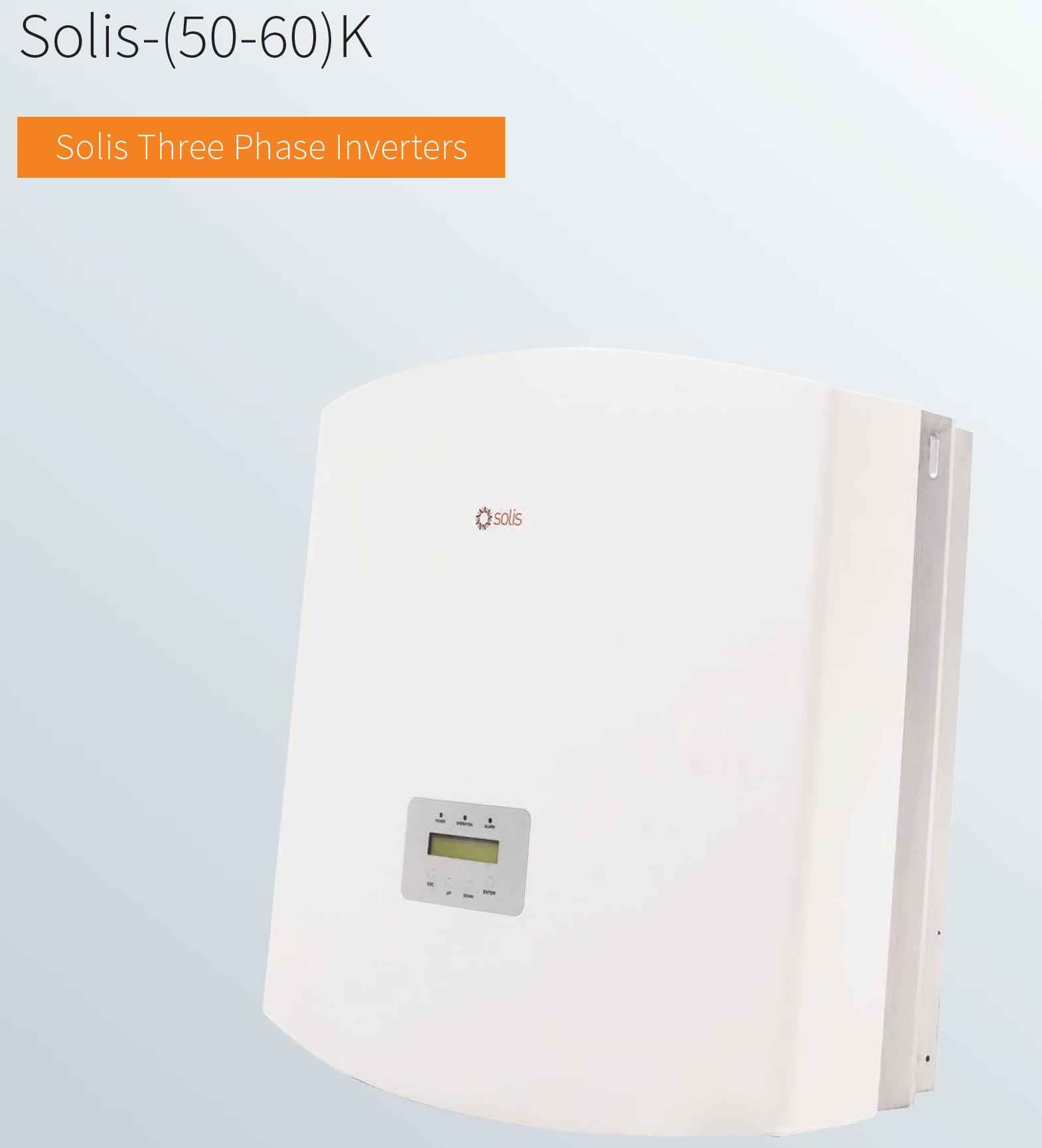

Solis three phase string inverter 50K 60K 4G Solis Inverter

Solis-(50-60)kW three phase series string inverter are suitable for the installation of three-phase input pv system of commercial and industrial PV plants.



Solis 4G inverter THDi<3, low harmonic distortion against grid. Adopt anti-resonance,signle transformer can connect 6M+ in parallel. Perfect commercial site monitoring solution, intelligent redundancy fan.

Availabe model power: 50K / 60K

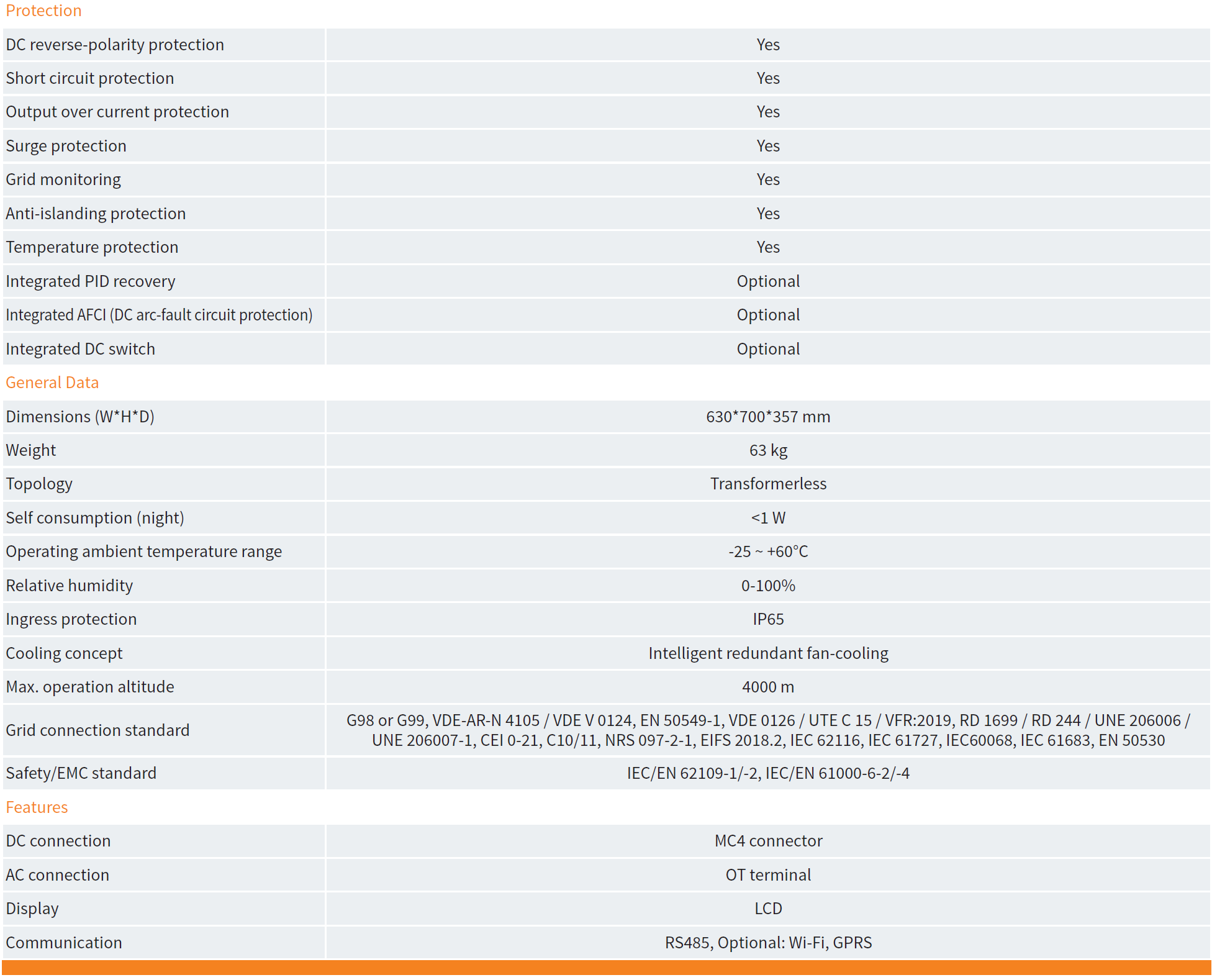

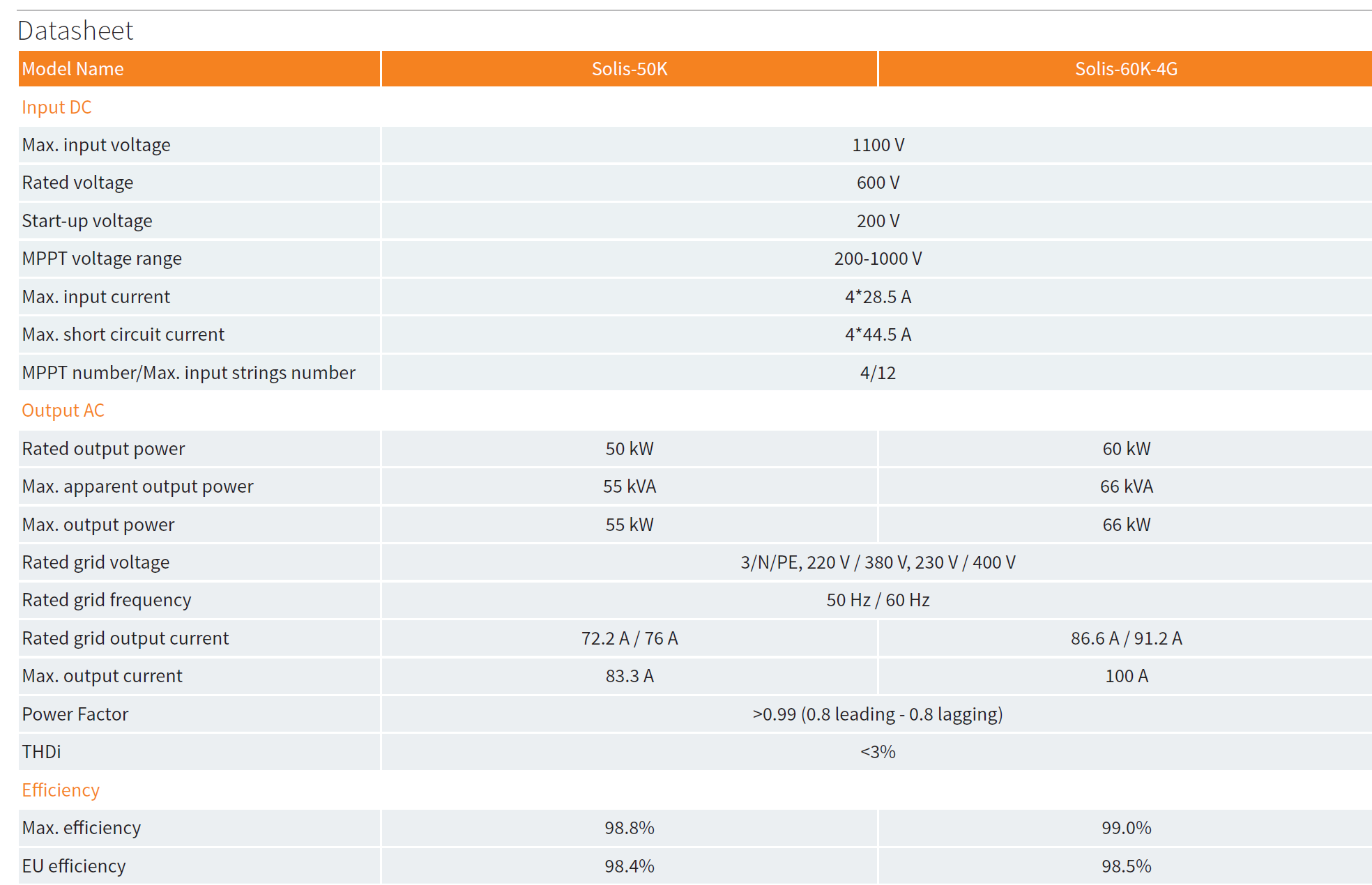

Technical Data:





Key Features / Advantages:

* Max. efficiency 99.0%

* Wide voltage range and low startup voltage

* 4 MPPT input, each rated current is 28.5A, compatible with high power module

* THDi<3%, low harmonic distortion against grid

* Anti-resonance, supporting over 6MW parallelled in one transformer

* Perfect commercial site monitoring solution

* Intelligent redundant fan-cooling



FAQ:

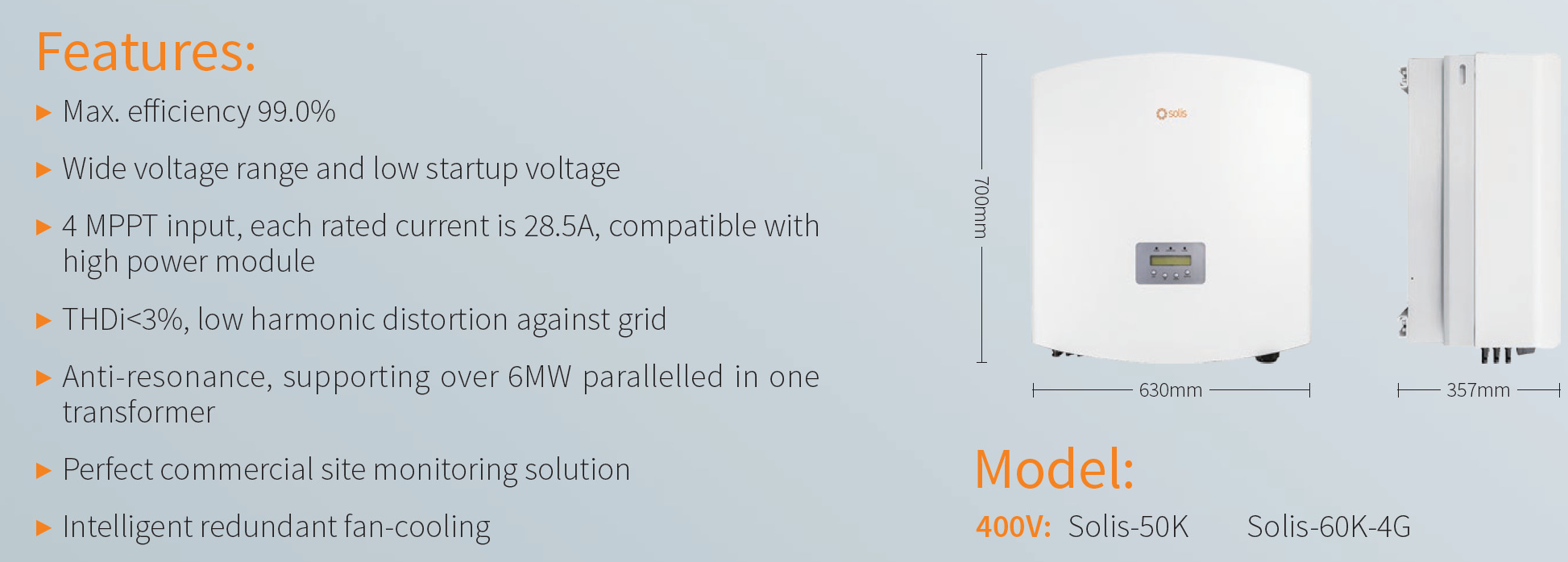

Inverter Dimension:  630*700*357mm

Available Certificate:

Grid connection standard : G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /

UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530

Safety/EMC standard:  IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
