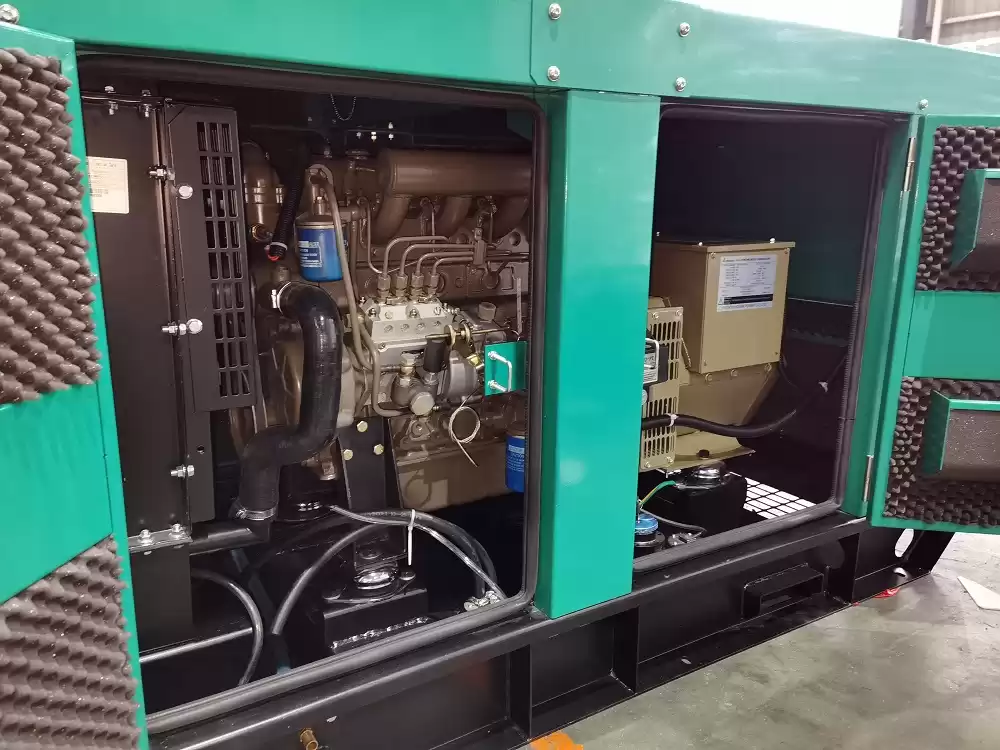

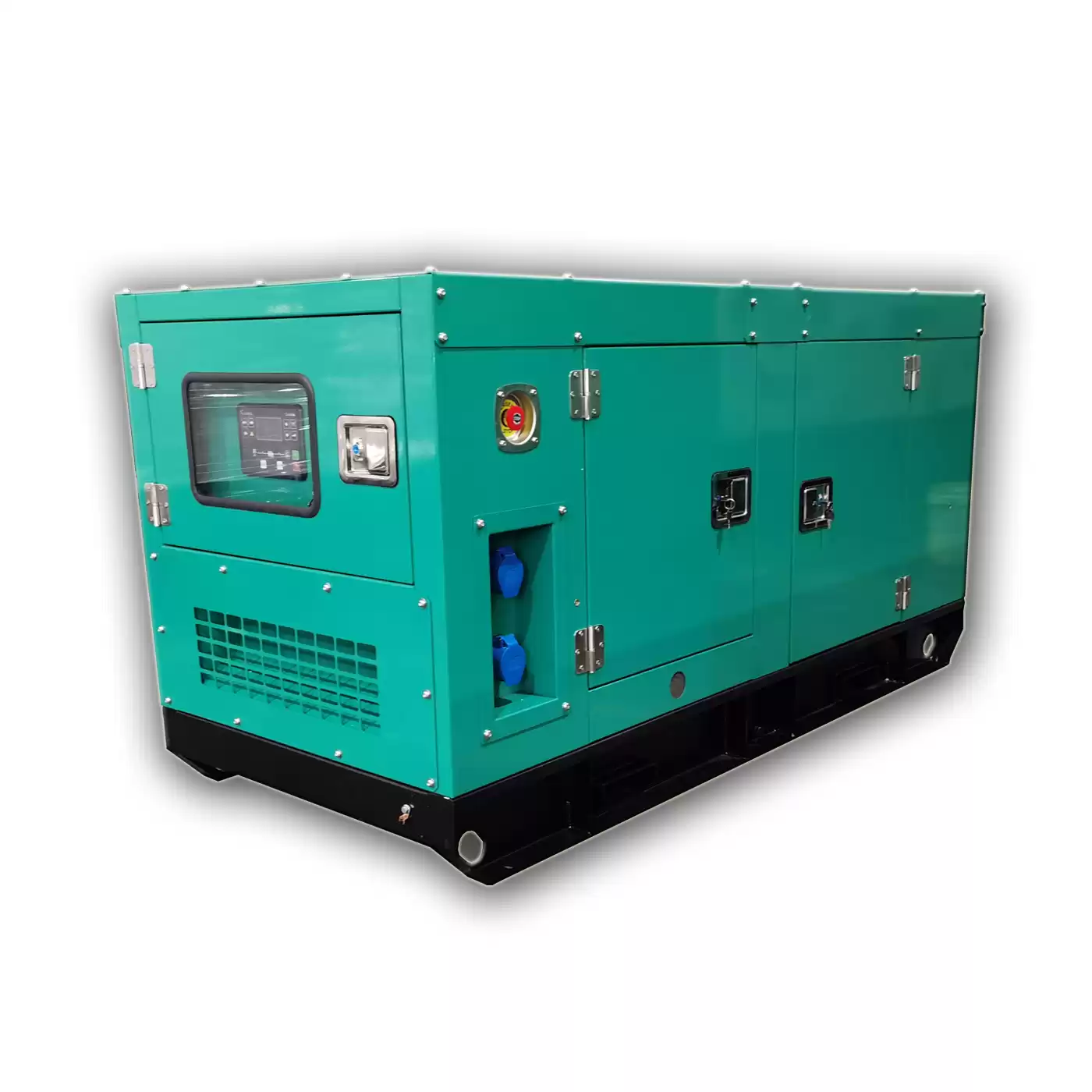

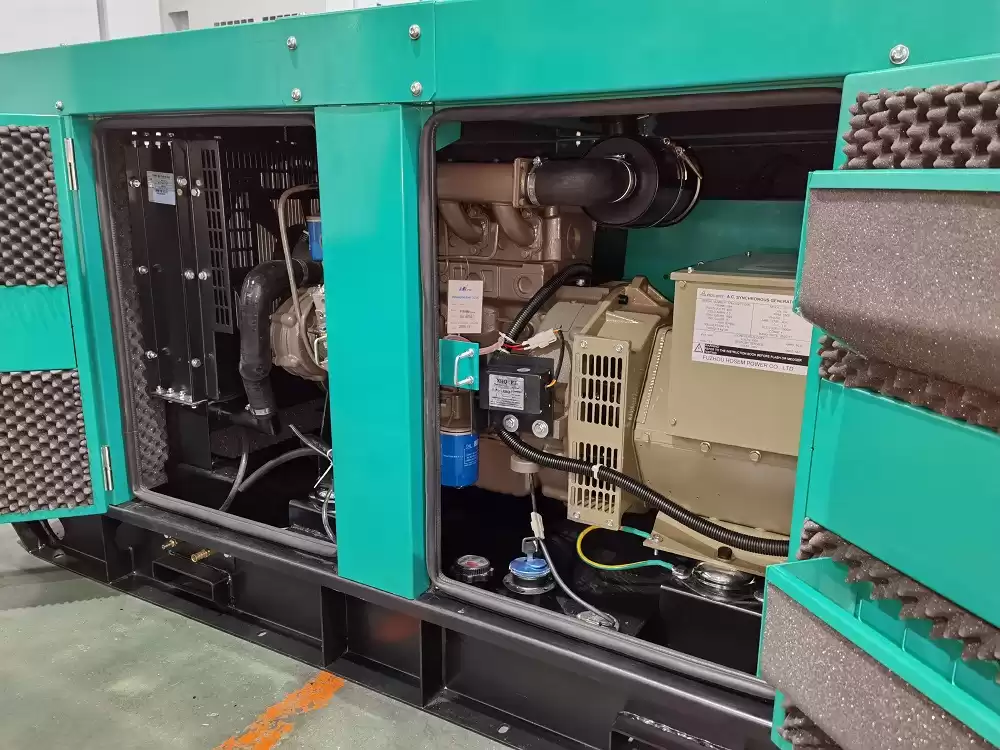

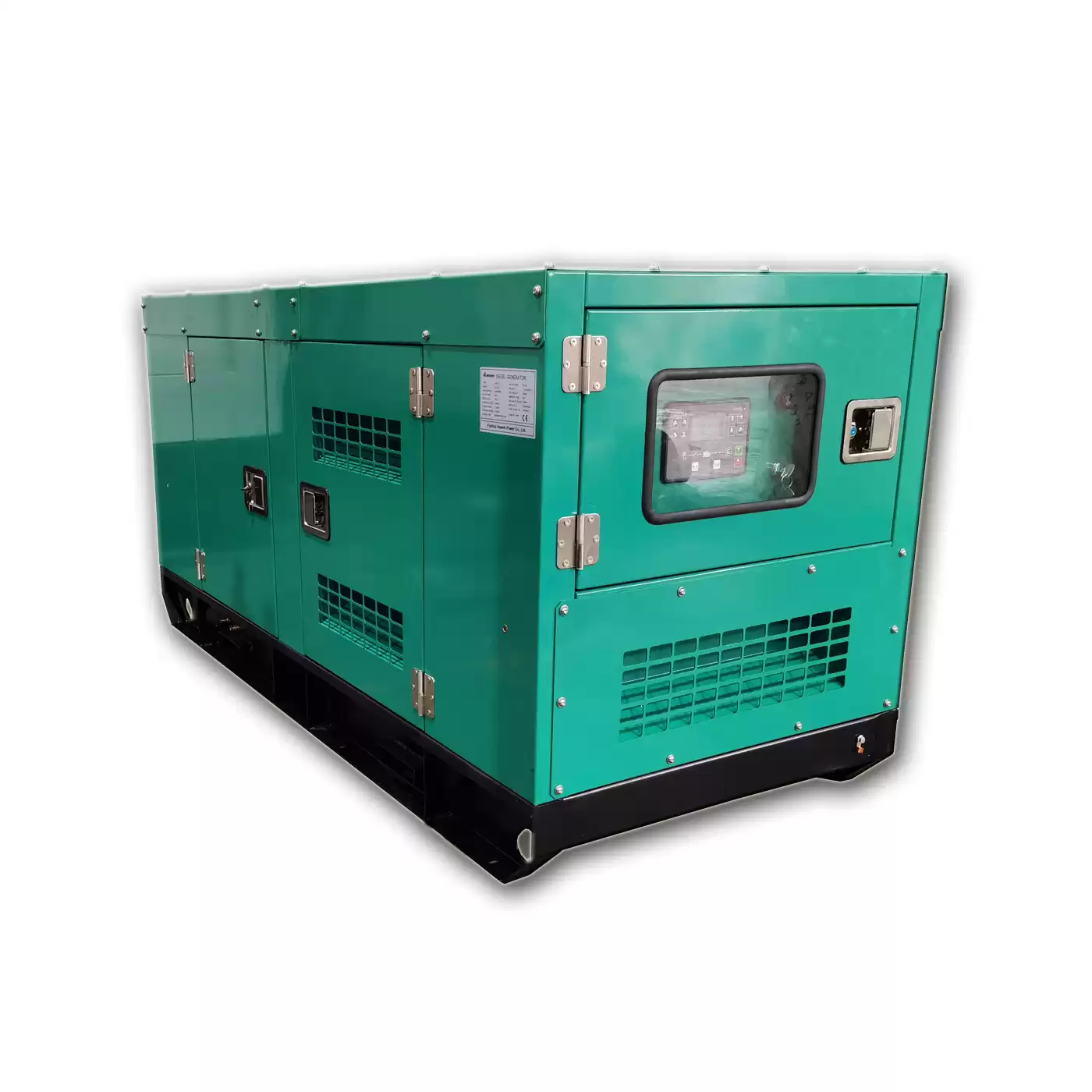

Soudproof Diesel Generator Powered by Ricardo

  1. Assembly by Ricardo brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
  2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.
  3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
  4. Vibration damper between engine/alternator and base frame
  5. 3-pole circuit breaker.
  6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
  7. Full range protect function and alarm shutdown feature
  8. Comply with ISO8528 national standard and ISO9001 quality standard.



Model Standby Power  Prime Power Engine Model Dimension (Silent Type ) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-KF22 22  18  20  16  4YT23-20D  2008x900x1130 780 Download
A-KF28-1 28  22  25  20  4YT23-30D  2188x900x1280 800 Download
A-KF28-2 28  22  25  20  K4100DS  2188x900x1280 800 Download
A-KF28-3 28  22  25  20  N4100DS-30  2188*900*1280 800 Download
A-KF33-1 33  26  30  24  N4100DS-30  2188*900*1280 850 Download
A-KF33-2 33  26  30  24  K4100DS  2188*900*1280 850 Download
A-KF41-1 41  33  38  30  K4100ZDS  2288*950*1280 980 Download
A-KF41-2 41  33  38  30  N4105DS-38  2288*950*1280 980 Download
A-KF47 47  37  43  34  K4100ZDS  2288*950*1280 1020 Download
A-KF55-1 55  44  50  40  N4105DS-42  2288*950*1280 1100 Download
A-KF55-2 55  44  50  40  N4105ZDS  2288*950*1280 1100 Download
A-KF55-3 55  44  50  40  R4105DS  2538*1000*1450 1100 Download
A-KF55-4 55  44  50  40  R4105ZDS  2538*1000*1450 1100 Download
A-KF69-1 69  55  63  50  N4105ZDS  2288*950*1280 1200 Download
A-KF69-2 69  55  63  50  N4105ZLD  2538*1000*1450 1200 Download
A-KF69-3 69  55  63  50  R4105ZDS  2538*1000*1450 1200 Download
A-KF69-4 69  55  63  50  R4105ZLDS  2538*1000*1450 1200 Download
A-KF83-1 83  66  75  60  R4105ZLDS  2538*1000*1450 1300 Download
A-KF83-2 83  66  75  60  R4105BZLDS  2538*1000*1450 1300 Download
A-KF83-3 83  66  75  60  N4105ZLD  2538*1000*1450 1300 Download
A-KF88 88  70  80  64  R6105ZDS  2938*1080*1690 1350 Download
A-KF103-1 103  83  94  75  R6105ZDS  2938*1080*1690 1450 Download
A-KF103-2 103  83  94  75  4RT55-88D  2538*1000*1450 1450 Download
A-KF110 110  88  100  80  4RT55-110D  2538*1000*1450 1550 Download
A-KF125 125  100  113  90  R6105ZLDS  2938*1080*1690 1750 Download
A-KF138-1 138  110  125  100  4RT55-110D  2538*1000*1450 1680 Download
A-KF138-2 138  110  125  100  R6105AZLDS  2938*1080*1690 1800 Download
A-KF165-1 165  132  150  120  R6105BZLDS  3288*1130*1850 1780 Download
A-KF165-2 165  132  150  120  6RT80-132D  3288*1130*1850 1780 Download
A-KF206-1 206  165  188  150  6RT80-176D  3288*1130*1850 1850 Download
A-KF206-2 206  165  188  150  R6110ZLDS  3288*1130*1850 1850 Download
A-KF220 220  176  200  160  6126-68DE  3888*1350*1950 2120 Download
A-KF248 248  198  225  180  6126-42DE  3888*1350*1950 2620 Download
A-KF275 275  220  250  200  6126A-260DE  3888*1350*1950 2950 Download
A-KF303 303  242  275  220  6127A-275DE  3888*1350*1950 3100 Download
A-KF385-1 358  286  325  260  WT12D-308E  4218*1400*2250 3250 Download
A-KF385-2 385  308  350  280  WT12D-330DE  4218*1400*2250 3250 Download
A-KF385-3 385  308  350  280  WT13D-330DE  4588*1600*2500 3250 Download
A-KF440 440  352  400  320  WT13-360DE  4588*1600*2500 3900 Download
A-KF500 500  400  450  360  WT13A-390DE  4588*1600*2500 4900 Download
