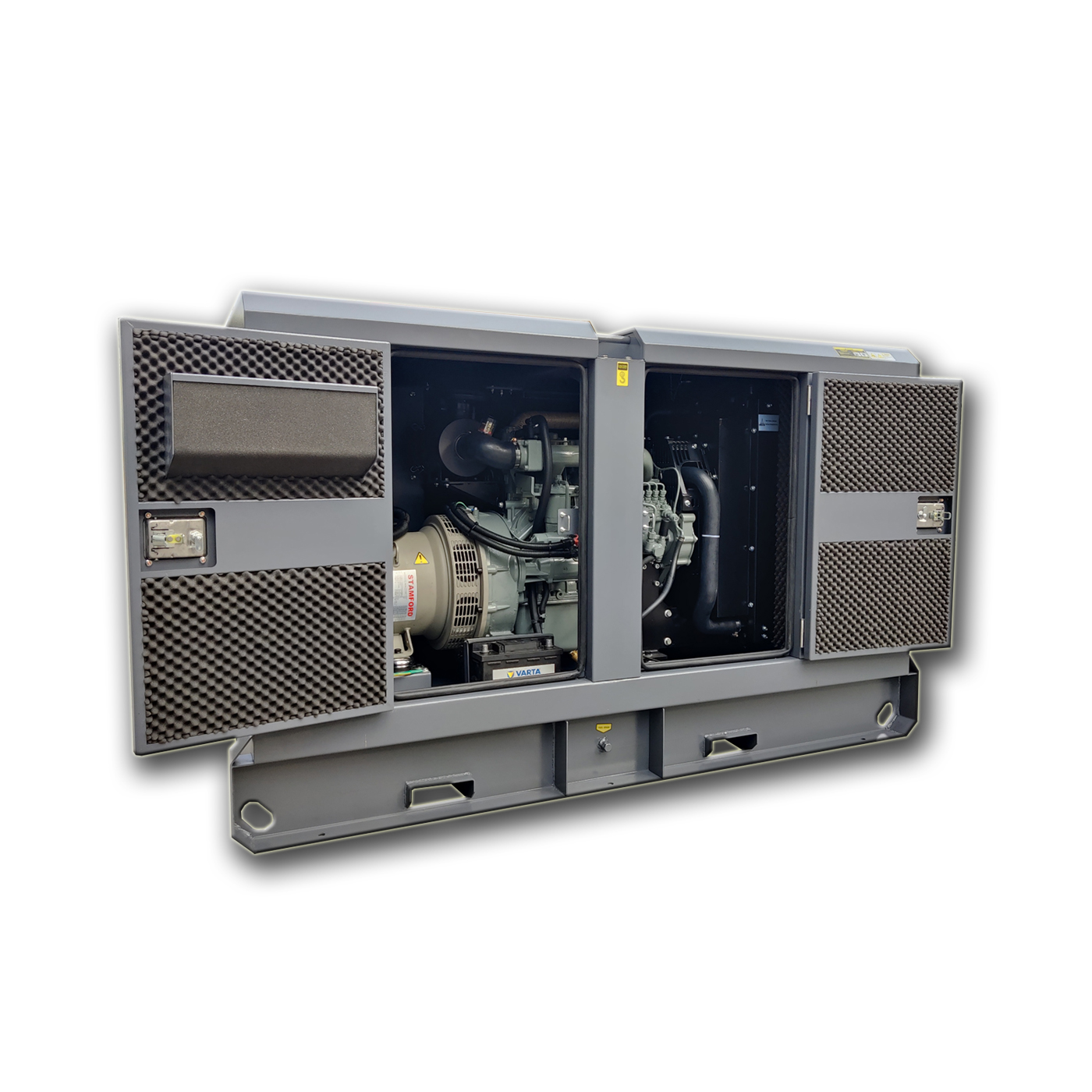

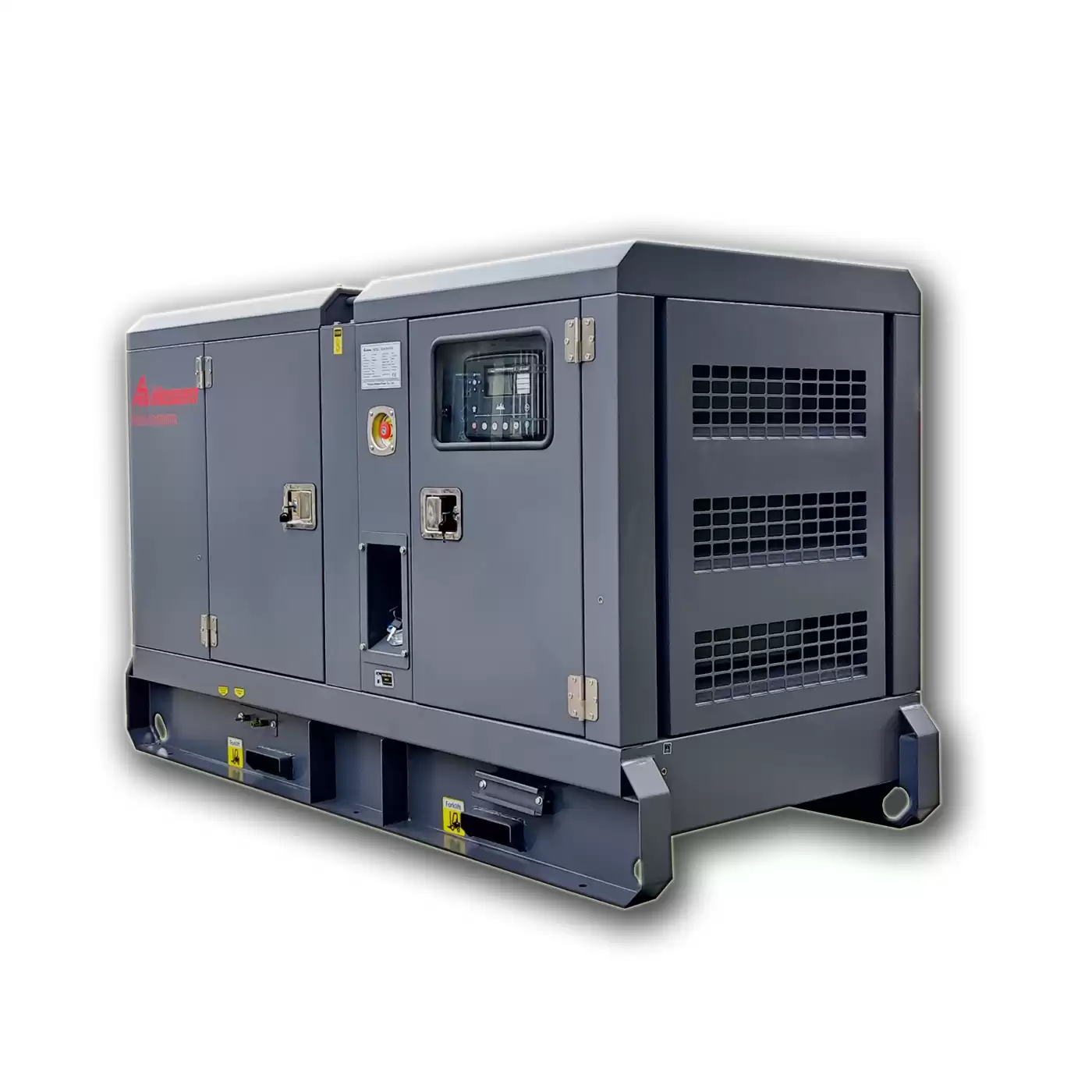

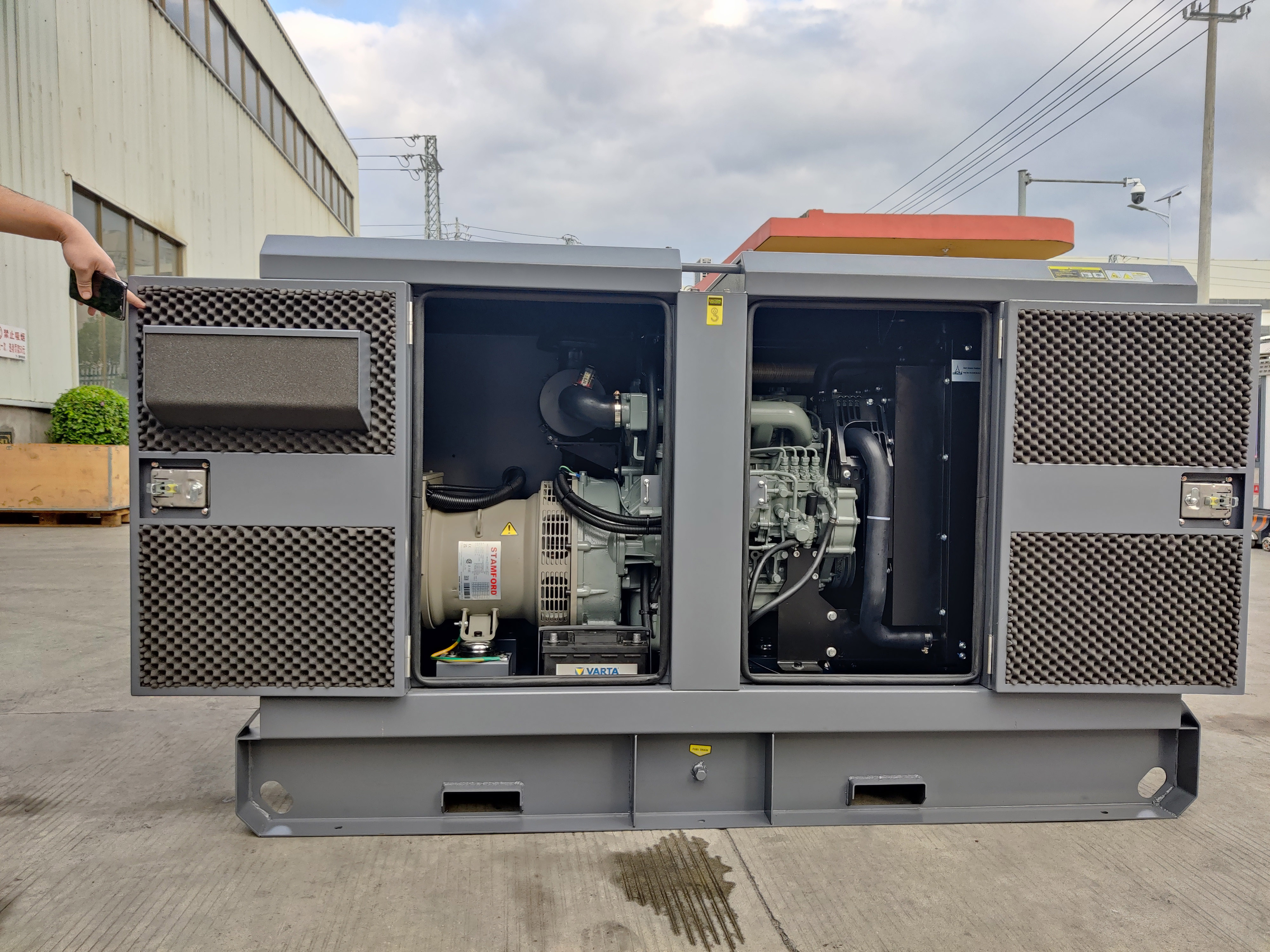

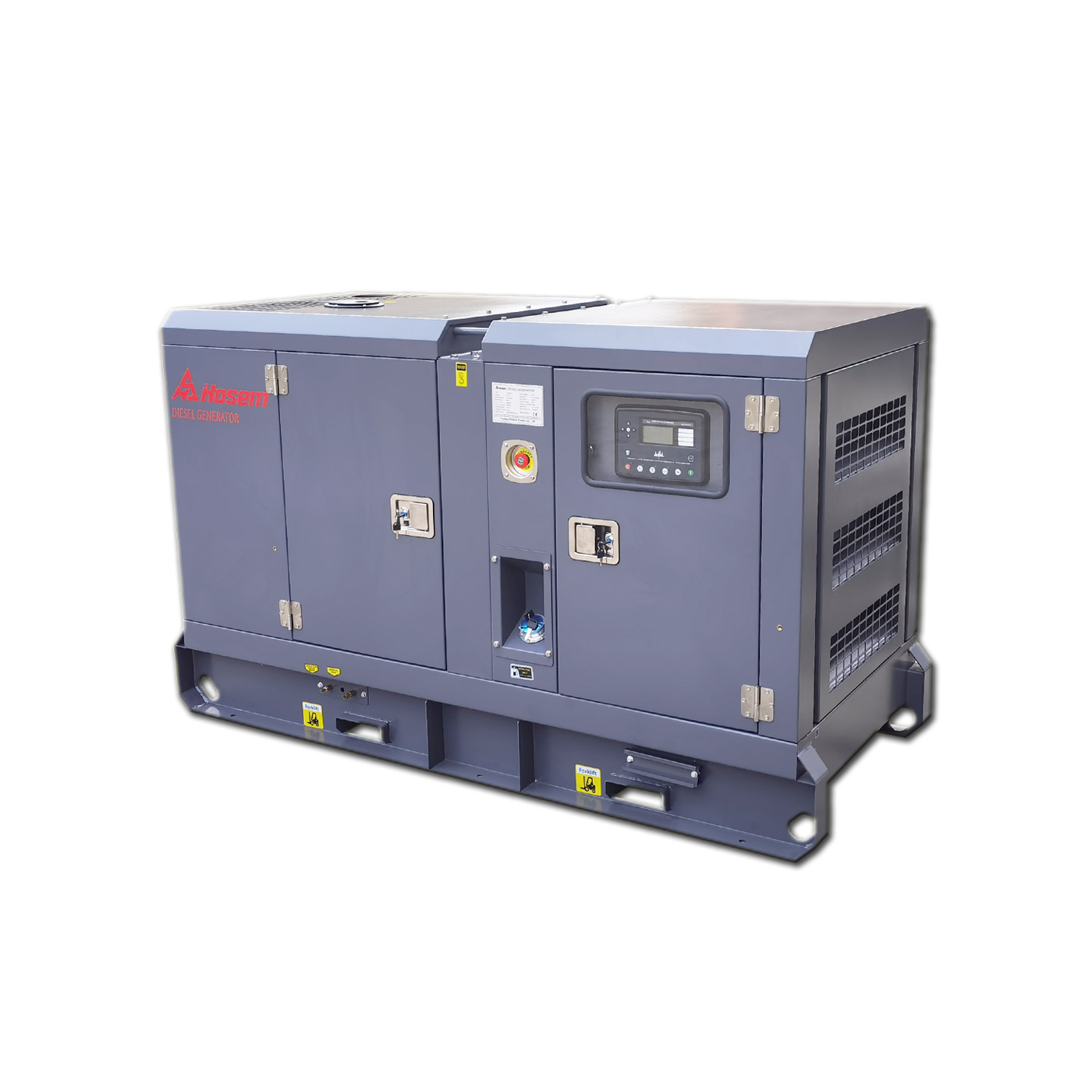

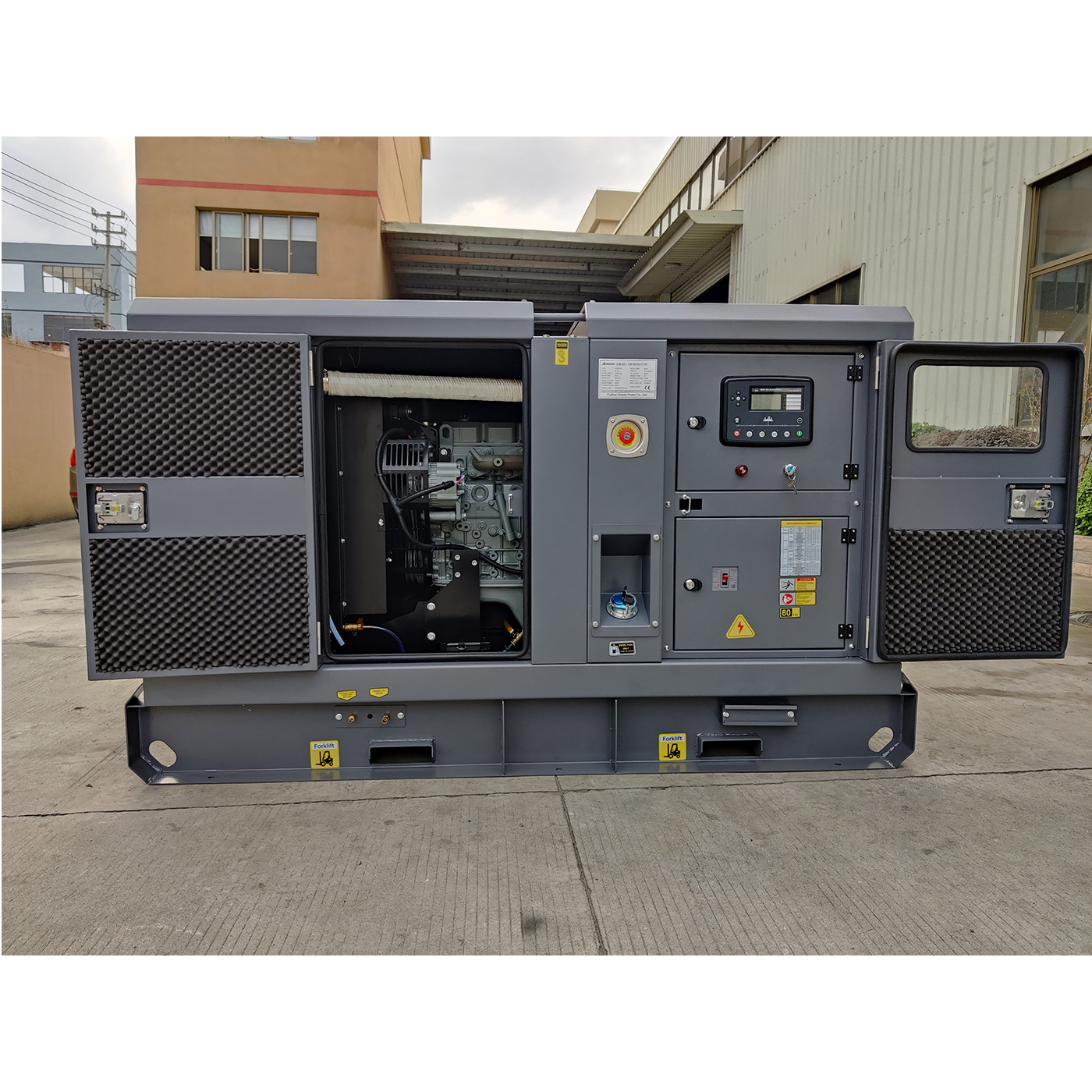

Sound Proof Diesel Generator Powered by Deutz
- Assembly by Deutz brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
- Heavy-duty steel as the base plate with 8 hours operation fuel tank.
- The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
- Vibration damper between engine/alternator and base frame
- 3-pole circuit breaker.

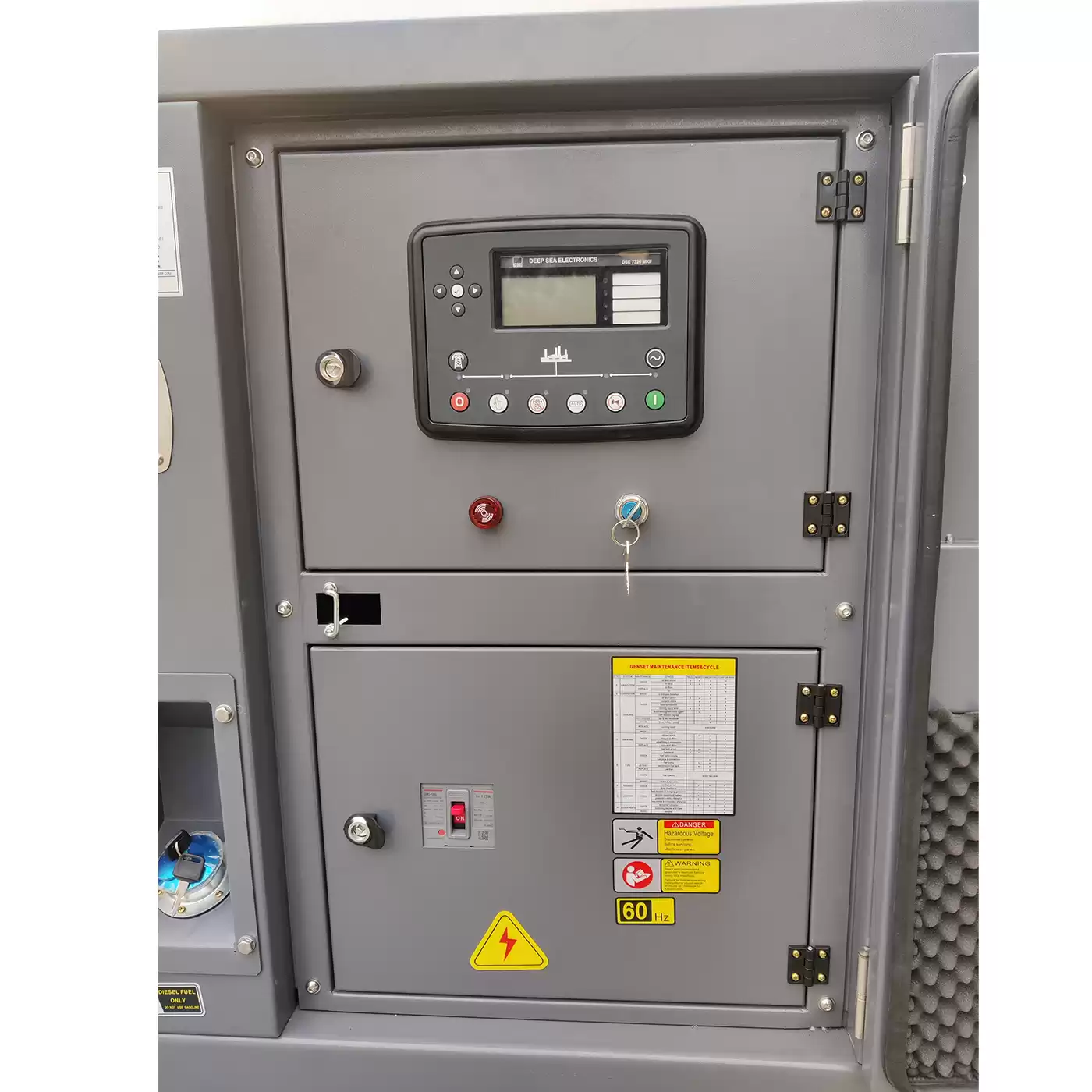

- Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
- Full range protect function and alarm shutdown feature
- Comply with ISO8528 national standard and ISO9001 quality standard.
Model | Standby Power | Prime Power | Engine Model | Dimension | Weight | Datasheet | ||
kVA | kW | kVA | kW | LXWXH(MM) | KG | |||
A-DE22 | 22 | 18 | 20 | 16 | BFM3 G1 | 2150×1000×1440 | 1050 | Download |
A-DE33 | 33 | 26 | 30 | 24 | BFM3 G2 | 2150×1000×1440 | 1120 | Download |
A-DE44 | 44 | 35 | 40 | 32 | BFM3T | 2500×1080×1560 | 1280 | Download |
A-DE55 | 55 | 44 | 50 | 40 | BFM3C | 2500×1080×1560 | 1360 | Download |
A-DE83 | 83 | 53 | 60 | 48 | BF4M2012 | 2800×1130×1600 | 1400 | Download |
A-DE87 | 87 | 66 | 75 | 60 | BF4M2012C G1 | 2800×1130×1600 | 1400 | Download |
A-DE100 | 100 | 80 | 91 | 73 | BF4M2012C G2 | 2800×1130×1600 | 1450 | Download |
A-DE110 | 110 | 88 | 100 | 80 | BF4M1013EC G1 | 3200×1130×1720 | 1720 | Download |
A-DE123 | 123 | 99 | 112 | 90 | BF4M1013EC G2 | 3200×1130×1720 | 1780 | Download |
A-DE143 | 143 | 114 | 130 | 104 | BF4M1013FC | 3200×1130×1720 | 1800 | Download |
A-DE176 | 176 | 140 | 160 | 128 | BF6M1013EC G1 | 3200×1130×1720 | 2200 | Download |
A-DE198 | 198 | 158 | 180 | 144 | BF6M1013EC G2 | 3600×1330×2190 | 2560 | Download |
A-DE207 | 207 | 165 | 188 | 150 | BF6M1013FC G2 | 3600×1330×2190 | 2560 | Download |
A-DE220 | 220 | 176 | 200 | 160 | BF6M1013FC G3 | 3600×1330×2190 | 2680 | Download |
A-DE275 | 275 | 220 | 250 | 200 | TCD8.0 | 3600×1330×2190 | 2960 | Download |
A-DE250 | 250 | 200 | 225 | 180 | BF6M1015C-LA GA | 3988x1400x2250 | 3800 | Download |
A-DE275 | 275 | 220 | 250 | 200 | BF6M1015C-LA G1A | 3988x1400x2250 | 3840 | Download |
A-DE300 | 300 | 240 | 275 | 220 | BF6M1015C-LA G2A | 3988x1400x2250 | 3880 | Download |
A-DE350 | 350 | 280 | 313 | 250 | BF6M1015C-LA G3A | 3988x1400x2250 | 3910 | Download |
A-DE375 | 375 | 300 | 344 | 280 | BF6M1015C-LA G4 | 4388*1650*2350 | 4150 | Download |
A-DE412 | 412 | 330 | 375 | 300 | BF6M1015CP-LA G | 4388*1650*2350 | 4180 | Download |
A-DE475 | 475 | 380 | 438 | 350 | BF8M1015C-LA G1A | 4588x1600x2500 | 4250 | Download |
A-DE500 | 500 | 400 | 450 | 360 | BF8M1015C-LA G2 | 4588x1600x2500 | 4300 | Download |
A-DE550 | 550 | 440 | 500 | 400 | BF8M1015CP-LA G2 | 4588x1600x2500 | 4350 | Download |
A-DE588 | 588 | 470 | 538 | 430 | BF8M1015CP-LA G4 | 4588x1600x2500 | 4300 | Download |
A-DE600 | 600 | 480 | 575 | 450 | BF8M1015CP-LA G5 | 4588x1600x2500 | 4400 | Download |
A-DE750 | 750 | 600 | 675 | 550 | HCI12V132ZL-LAG2 | 5280x2100x2500 | 6250 | Download |
A-DE825 | 825 | 660 | 750 | 600 | HCI12V132ZL-LAG2 | 5280x2100x2500 | 6310 | Download |
AIR COOLED | ||||||||
A-DE14A | 14 | 11 | 13 | 10 | F2L912 | AT2008*900*1130 | 550 | Download |
A-DE28A | 28 | 22 | 25 | 20 | F3L912 | AT2188*900*1280 | 630 | Download |
A-DE33A | 33 | 26 | 30 | 24 | F4L912 | AT2188*900*1280 | 700 | Download |
A-DE41A | 41 | 33 | 38 | 30 | F4L913 | AT2288*950*1280 | 830 | Download |
A-DE44A | 44 | 35 | 40 | 32 | F4L912T | AT2288*950*1280 | 840 | Download |
A-DE55A | 55 | 44 | 50 | 40 | F6L912 | AT2688*1080*1450 | 850 | Download |
A-DE63A | 63 | 50 | 56 | 45 | F6L913 | AT2688*1080*1450 | 1020 | Download |
A-DE70A | 70 | 55 | 63 | 50 | F6L912T | AT2688*1080*1450 | 1080 | Download |
A-DE70A | 70 | 55 | 63 | 50 | BF4L913 | AT2688*1080*1450 | 1080 | Download |
A-DE103A | 103 | 83 | 94 | 75 | BF6L913ADG | AT2938*1080*1690 | 1230 | Download |
A-DE132A | 132 | 106 | 120 | 96 | BF6L913CADG | AT2938*1080*1690 | 1300 | Download |
A-DE138A | 138 | 110 | 125 | 100 | F8L413F | AT3288*1130*1850 | 1520 | Download |
A-DE165A | 165 | 132 | 150 | 120 | BF8L513 | AT3288*1130*1850 | 1880 | Download |
A-DE206A | 206 | 165 | 188 | 150 | BF8L513C | AT3588*1180*2150 | 2300 | Download |
