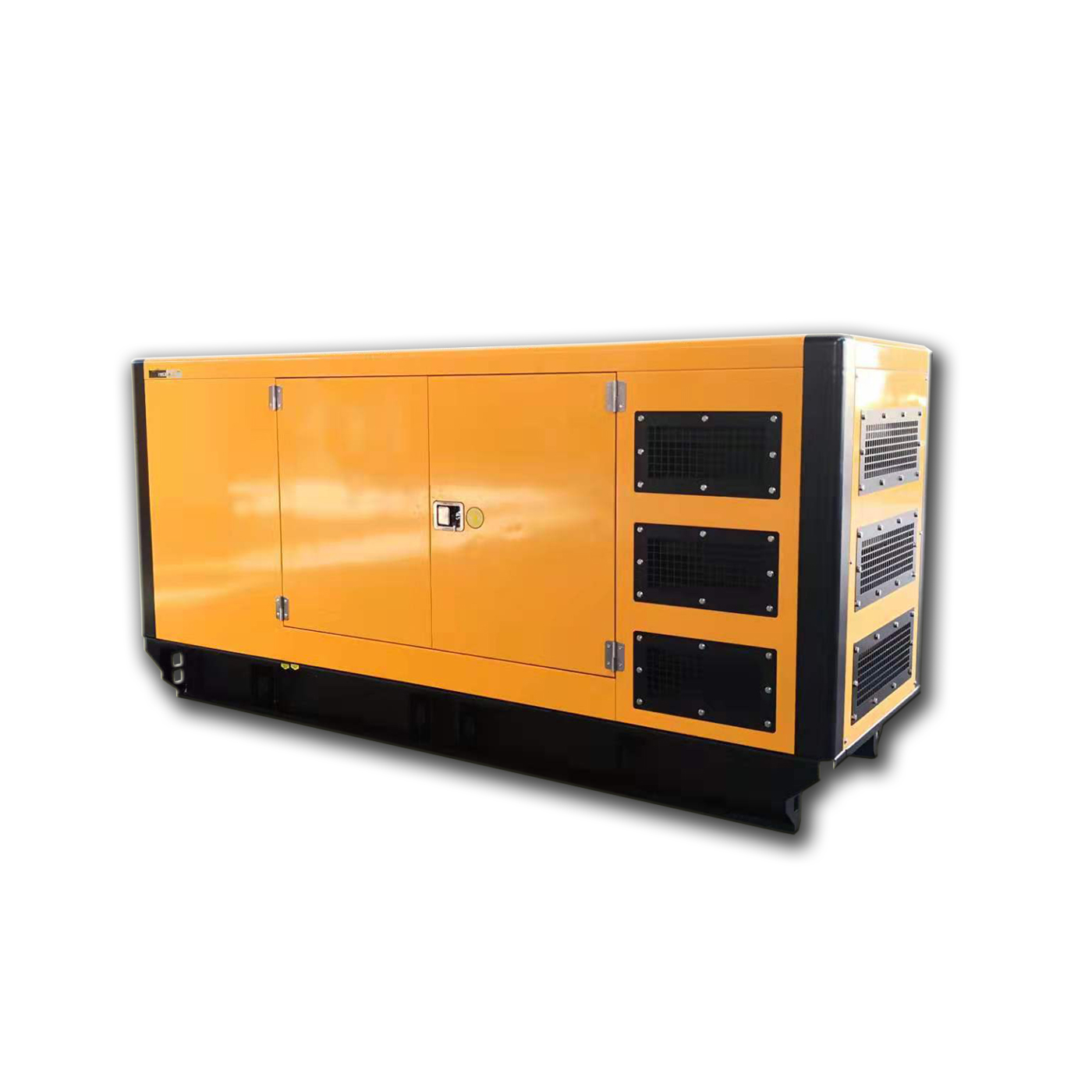

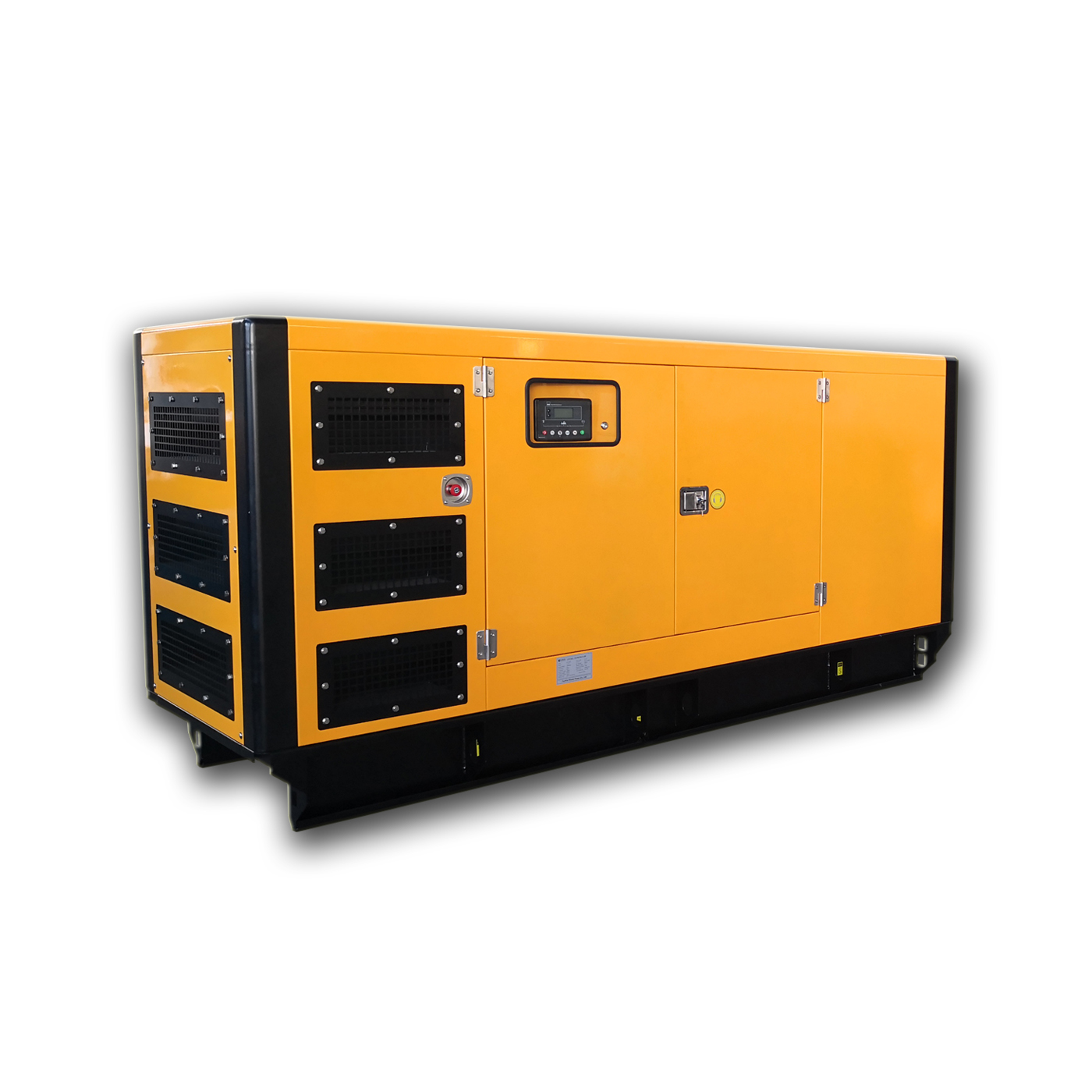

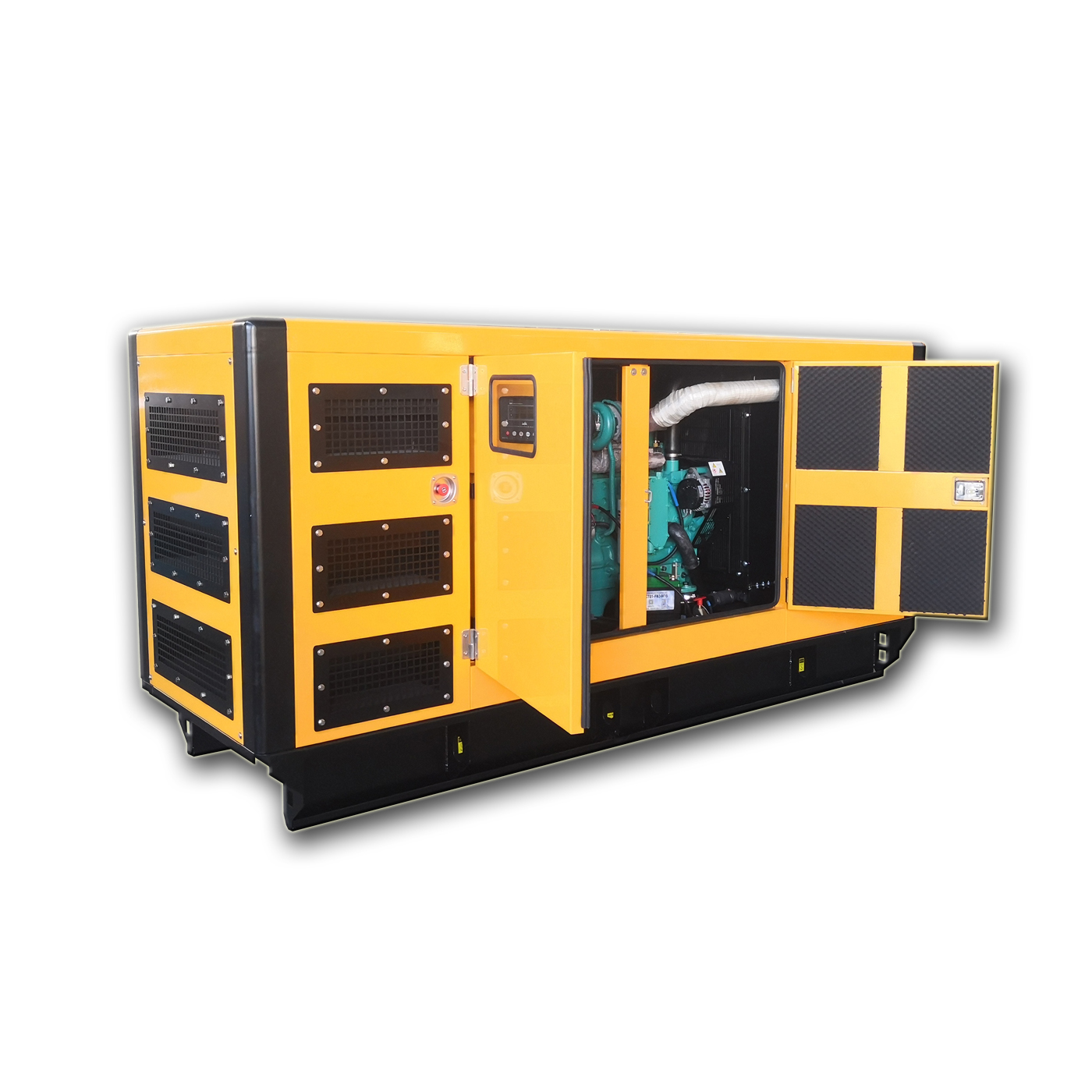

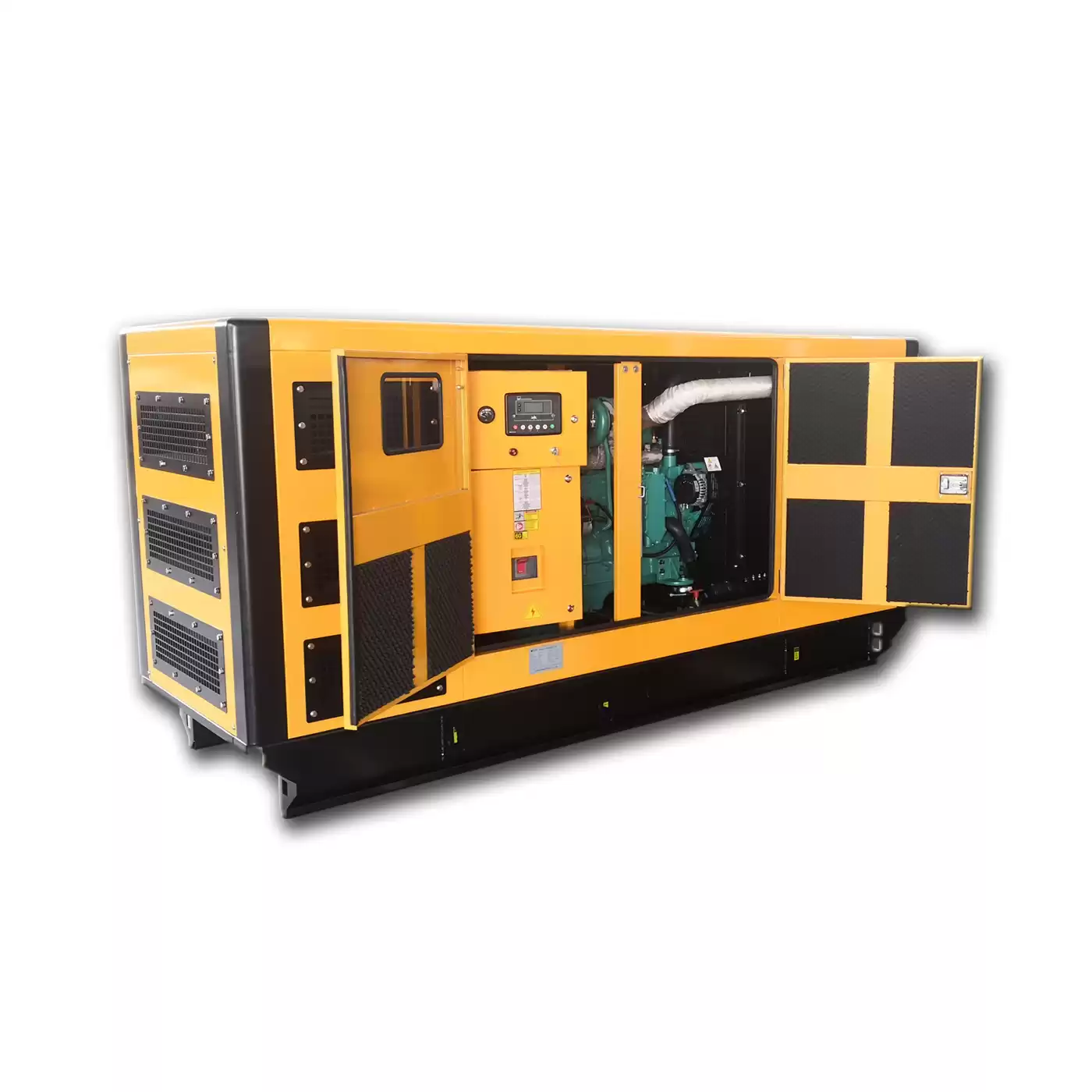

Soundproof Diesel Generator Powered by Cummins

  1. Assembly by Cummins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
  2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.
  3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
  4. Vibration damper between engine/alternator and base frame
  5. 3-pole circuit breaker.
  6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
  7. Full range protect function and alarm shutdown feature
  8. Comply with ISO8528 national standard and ISO9001 quality standard.



Model Standby Power  Prime Power Engine Model Dimension Silent Type Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-C22-1 22 18 20 16 4B3.9-G1 2300x 900x1250 765 Download
A-C22-2 22 18 20 16 4B3.9-G2 2300x 900x1250 765 Download
A-C28-1 28 22 25 20 4B3.9-G1 2300x 900x1250 765 Download
A-C28-2 28 22 25 20 4B3.9-G2 2300x 900x1250 765 Download
A-C44-1 44 35 40 32 4BT3.9-G1 2300x 900x1250 770 Download
A-C44-2 44 35 40 32 4BT3.9-G2 2300x 900x1250 770 Download
A-C55 50 40 55 50 4BT3.9-G2 2300x 900x1250 780 Download
A-C60 60 50 55 45 4BTA3.9-G2 2450x900x1250 824 Download
A-C72 72 57 65 52 4BTA3.9-G2 2450x900x1250 824 Download
A-C88 88 70 80 63 4BTA3.9-G11 2450x900x1250 980 Download
A-C100 100 77 90 70 QSB3.9-G3 2450x900x1250 980 Download
A-C110-1 110 88 100 80 6BT5.9-G1 2900×1080×1500 1150 Download
A-C110-2 110 88 100 80 6BT5.9-G2 2900×1080×1500 1185 Download
A-C121 121 96 110 87 6BT5.9-G2 2900×1080×1500 1185 Download
A-C138 138 110 125 100 6BTA5.9-G2 2900×1080×1500 1280 Download
A-C150-1 150 119 136 109 QSB5.9-G3 3200×1080×1500 1350 Download
A-C150-2 150 119 136 109 6BTAA5.9-G2 3200×1080×1500 1280 Download
A-C175 175 140 160 127 6BTAA5.9-G12 3200×1080×1500 1300 Download
A-C203-1 203 163 185 148 6CTA8.3-G1 3200×1080×1500 1600 Download
A-C203-2 203 163 185 148 6CTA8.3-G2 3200×1080×1500 1550 Download
A-C210 210 167 190 152 QSB6.7-G4 3500×1126×1700 1550 Download
A-C220 220 176 200 160 6CTAA8.3-G2 3500×1126×1700 1700 Download
A-C275-1 275 220 250 200 MTA11-G2A 3900×1300×1900 2750 Download
A-C275-2 275 220 250 200 MTA11-G2 3900×1300×1900 2750 Download
A-C275-3 275 220 250 200 NTA855-G1 3900×1300×1900 3010 Download
A-C275-4 275 220 250 200 6LTAA8.9-G2 3500×1126×1700 1900 Download
A-C286 286 229 260 208 6LTAA8.9-G3 3500×1126×1700 2500 Download
A-C290 290 232 260 208 QSL8.9-G4 3500×1126×1700 1900 Download
A-C300 300 240 275 220 NTA855-G1A 3900×1300×1900 3010 Download
A-C312 312 250 284 227 6LTAA9.5-G3 3500×1126×1700 2500 Download
A-C344-1 344 275 313 250 MTAA11-G3 3900×1300×1900 2750 Download
A-C344-2 344 275 313 250 NTA855-G1B 3900×1300×1900 2900 Download
A-C344-3 344 275 313 250 NTA855-G2 3900×1300×1900 2900 Download
A-C344-4 344 275 313 250 6LTAA9.5-G1 3500×1126×1700 2750 Download
A-C375 375 300 341 273 NTA855-G2A 3900×1300×1900 2950 Download
A-C385 385 308 350 280 NTA855-G4 3900×1300×1900 3000 Download
A-C408 408 326 370 296 QSZ13-G6 3420×1150×2190 3140 Download
A-C413-1 413 330 375 300 NTAA855-G7 3900×1300×1900 2800 Download
A-C413-2 413 330 375 300 KTA19-G2 3580×1277×2065 3950 Download
A-C424-1 424 340 385 310 6ZTAA13-G3 4350×1450×2180 3220 Download
A-C424-2 424 340 385 310 6ZTAA13-G3 4350×1450×2180 3220 Download
A-C450 450 360 N/A N/A NTAA855-G7A 3000×1050×1780 2900 Download
A-C456 456 365 415 332 QSZ13-G7 3420×1150×2190 3140 Download
A-C484 484 387 440 352 6ZTAA13-G2 4350×1450×2180 3220 Download
A-C495-1 495 396 450 360 KTA19-G3 4700×1800×2380 2900 Download
A-C495-2 495 396 450 360 6ZTAA13-G4 4350×1450×2180 3220 Download
A-C495-3 495 396 450 360 QSZ13-G2 4700×1800×2380 3220 Download
A-C511 511 409 465 372 QSZ13-G5 4700×1800×2380 3220 Download
A-C550-1 550 440 500 400 KTA19-G3A 4700×1800×2380 4250 Download
A-C550-2 550 440 500 400 KTA19-G4 4700×1800×2380 4300 Download
A-C560 560 448 510 408 QSZ13-G3 4700×1800×2380 3220 Download
A-C575 575 462 525 420 KTAA19-G5 4700×1800×2380 4550 Download
A-C633 633 506 575 460 KTAA19-G6 4700×1800×2380 4550 Download
A-C650 650 520 N/A N/A KTA19-G8 4700×1800×2380 4550 Download
A-C688-1 688 550 N/A N/A KTAA19-G6A 4700×1800×2380 4700 Download
A-C688-2 687 550 625 500 KT38-G 6050×2438×2591 6000 Download
A-C784 784 627 713 570 KTA38-G1 6050×2438×2591 6150 Download
A-C800 800 640 725 580 KT38-GA 6050×2438×2591 6400 Download
A-C825 825 660 750 600 KTA38-G2 6050×2438×2591 6600 Download
A-C880 880 704 800 640 KTA38-G2B 6050×2438×2591 6700 Download
A-C1000 1000 800 910 728 KTA38-G2A 6050×2438×2591 6850 Download
A-C1100 1100 880 1000 800 KTA38-G5 6050×2438×2591 7150 Download
A-C1250 1250 1000 N/A N/A KTA38-G9 6050×2438×2591 7250 Download
A-C1375 1375 1100 1250 1000 KTA50-G3 12192×2438×2591 9140 Download
A-C1513 1513 1210 1375 1100 KTA50-G8 12192×2438×2591 9400 Download
A-C1650 1650 1320 1500 1200 KTA50-GS8 12192×2438×2591 9600 Download
