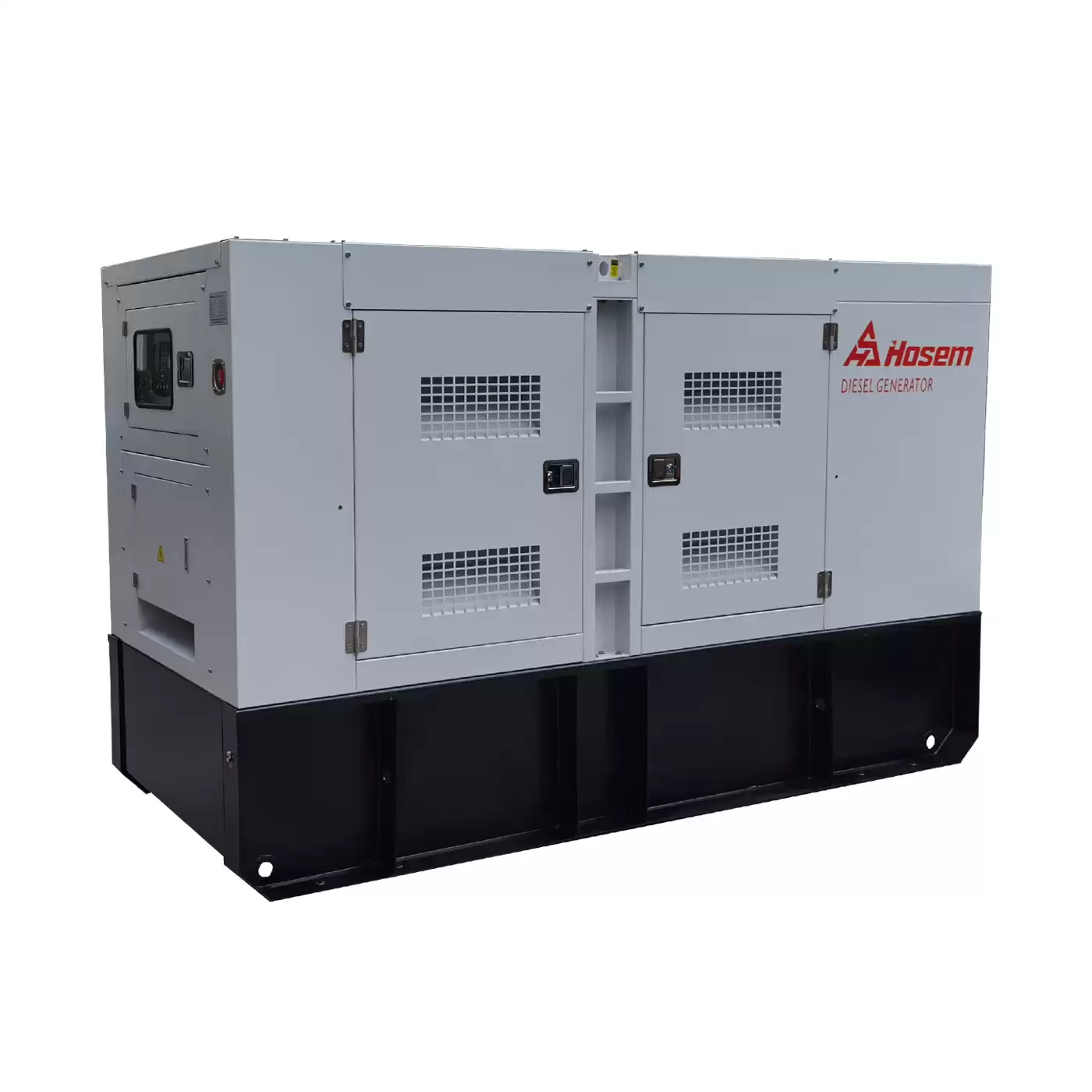

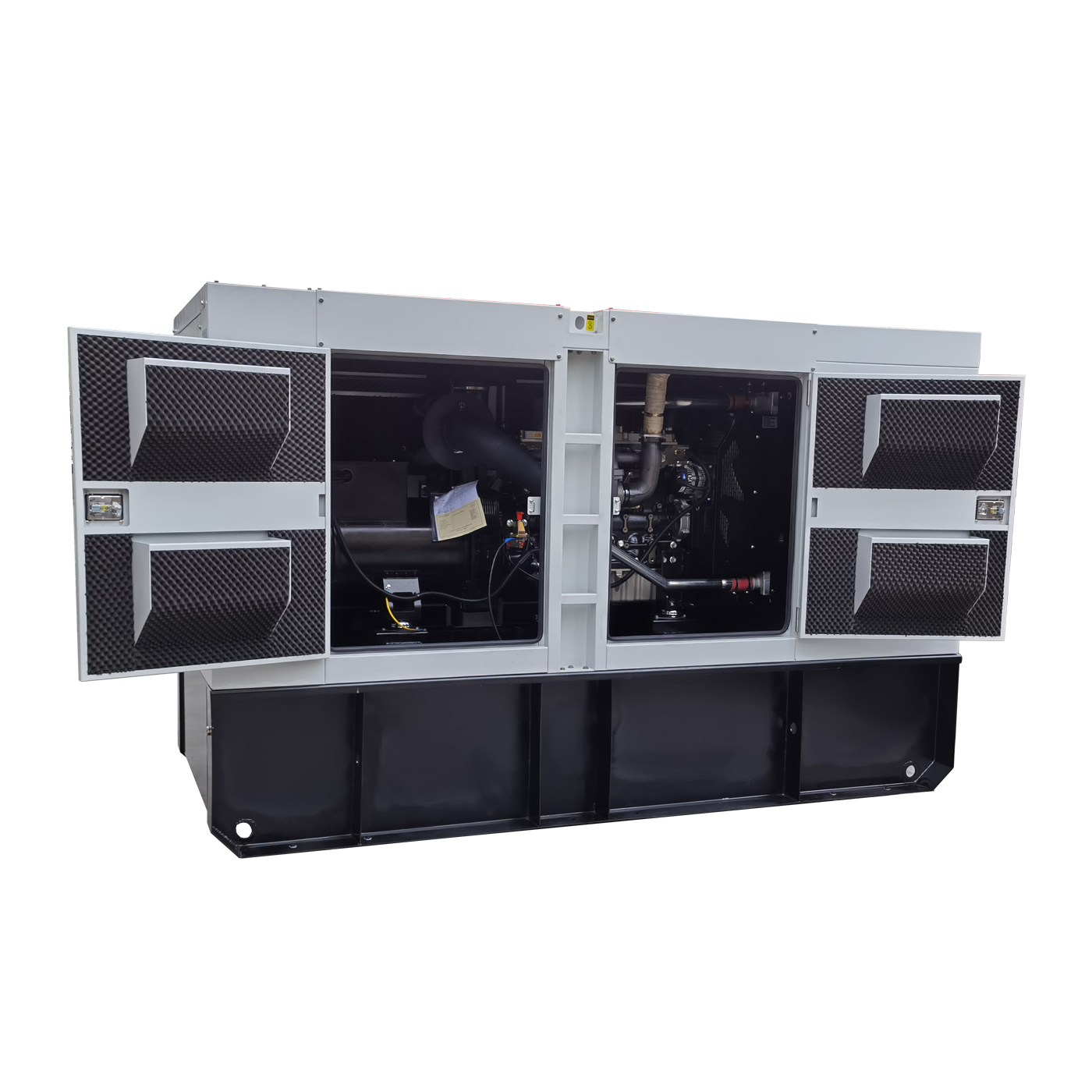

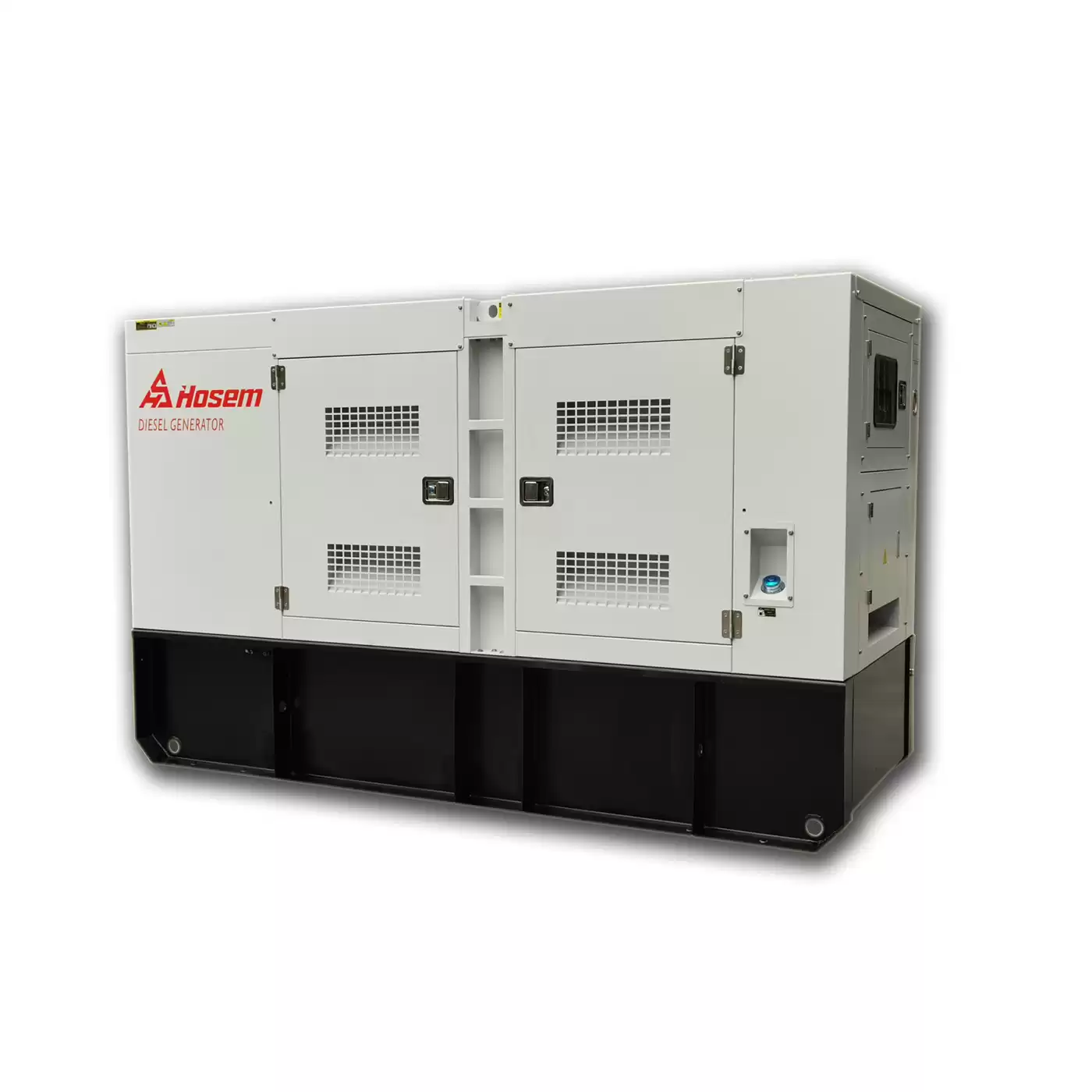

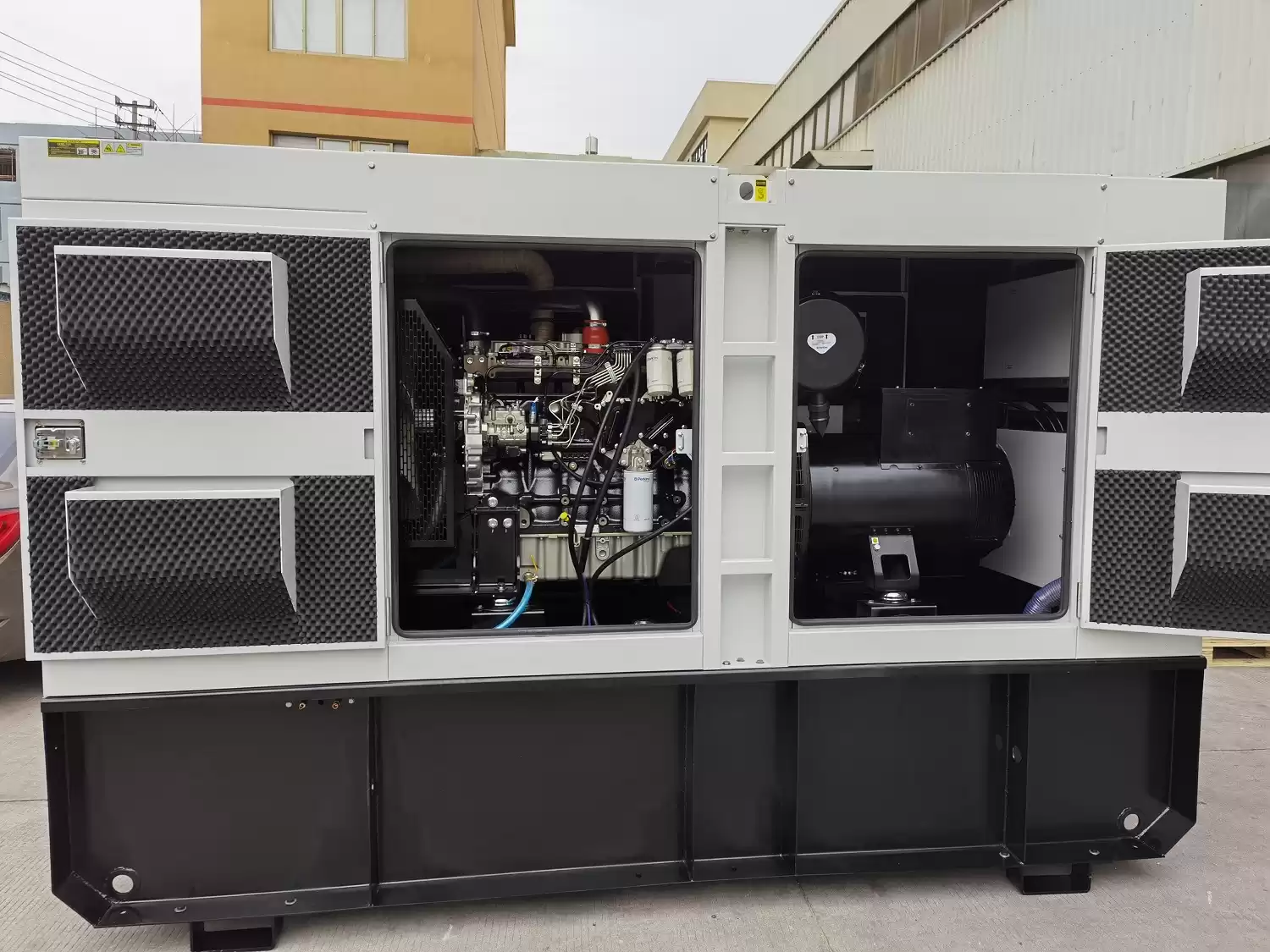

Soundproof Diesel Generator Powered by Perkins

  1. Assembly by Perkins brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
  2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.
  3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
  4. Vibration damper between engine/alternator and base frame
  5. 3-pole circuit breaker.
  6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
  7. Full range protect function and alarm shutdown feature
  8. Comply with ISO8528 national standard and ISO9001 quality standard.



Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-P10-1 10 8 9 7 403A-11 G1 1950×800×1115 560 Download
A-P10-2 10 8 9 7 403D-11G 1950×800×1115 560 Download
A-P14-1 14 11 13 10 403A-15G1 1950×800×1115 700 Download
A-P14-2 14 11 13 10 403D-15G 1950×800×1215 700 Download
A-P15 16 13 15 12 403A-15G2 1950×800×1215 760 Download
A-P22-1 22 18 20 16 404A-22G1 2100×740×1115 740 Download
A-P22-2 22 18 20 16 404D-22G 2100×740×1115 740 Download
A-P30 30 24 27 22 404D-22TG 2300×980×1270 780 Download
A-P32 32 26 30 24 1103A-33G 2300×980×1270 1250 Download
A-P50 50 40 45 36 1103A-33TG1 2600×1130×1540 1360 Download
A-P66 66 53 60 48 1103A-33TG2 2600×1130×1540 1580 Download
A-P72 72 57 65 52 1104A-44TG1 2800×1130×1560 1580 Download
A-P88-1 88 70 80 64 1104A-44TG2 2800×1130×1560 1580 Download
A-P88-2 88 70 80 64 1104C-44TAG1 2800×1130×1560 1600 Download
A-P110 110 88 100 80 1104C-44TAG2 2800×1130×1560 1720 Download
A-P150 150 120 135 108 1106A-70TG1 3200×1130×1715 2215 Download
A-P165 165 132 150 120 1106A-70TAG2 3600×1130×2105 2215 Download
A-P200 200 160 180 144 1106A-70TAG3 3600×1130×2105 2385 Download
A-P220 220 176 200 160 1106A-70TAG4 3600×1130×2105 2450 Download
A-P254 254 203 231 185 1506A-E88TAG2 4000×1422×2190 3485 Download
A-P283 283 226 257 206 1506A-E88TAG3 4000×1422×2190 3485 Download
A-P338 338 270 307 246 1506A-E88TAG5 4000×1422×2190 3625 Download
A-P400 400 320 350 280 2206C-E13TAG2 4400×1422×2450 4290 Download
A-P450 450 360 400 320 2206C-E13TAG3 4400×1422×2450 4290 Download
A-P500 500 400 455 364 2506C-E15TAG1 4600×1422×2530 5070 Download
A-P550 550 440 500 400 2506C-E 15TAG2 4600×1422×2530 5070 Download
A-P650 650 520 591 473 2806C-E 18TAG 1A 4800×1822×2522 6000 Download
A-P700 700 560 650 520 2806A-E18TAG2 4800×1822×2522 6050 Download
A-P820 820 656 746 597 4006-23TAG2A 6059×2438×2591 8250 Download
A-P880 880 704 800 640 4006-23TAG3A 6059×2438×2591 8250 Download
A-P1000 1000 800 910 728 4008TAG1A 6059×2438×2591 9820 Download
A-P1125-1 1125 900 1022 818 4008TAG2A 6059×2438×2591 9820 Download
A-P1125-2 1125 900 1022 818 4008TAG2 6059×2438×2591 9820 Download
A-P1250 1250 1000 1125 900 4008-30TAG3 6059×2438×2591 9820 Download
A-P1375-1 1375 1100 1250 1000 4012-46TWG2A 12192x2438x2896 12900 Download
A-P1375-2 1375 1100 1250 1000 4012-46TWG2 12192x2438x2896 12900 Download
A-P1500 1500 1200 1375 1100 4012-46TWG3A 12192x2438x2896 13000 Download
A-P1650 1650 1320 1500 1200 4012-46TAG2A 12192x2438x2896 13000 Download
A-P1850 1850 1480 1688 1350 4012-46TAG3A 12192x2438x2896 13000 Download
A-P2000 2000 1600 1850 1480 4016TAG1A 12192x2438x2896 16100 Download
A-P2200-1 2200 1760 2000 1600 4016TAG2A 12192x2438x2896 16100 Download
A-P2200-2 2200 1760 2000 1600 4016-61TRG2 12192x2438x2896 16100 Download
A-P2500 2500 2000 2250 1800 4016-61TRG3 12192x2438x2896 16200 Download
