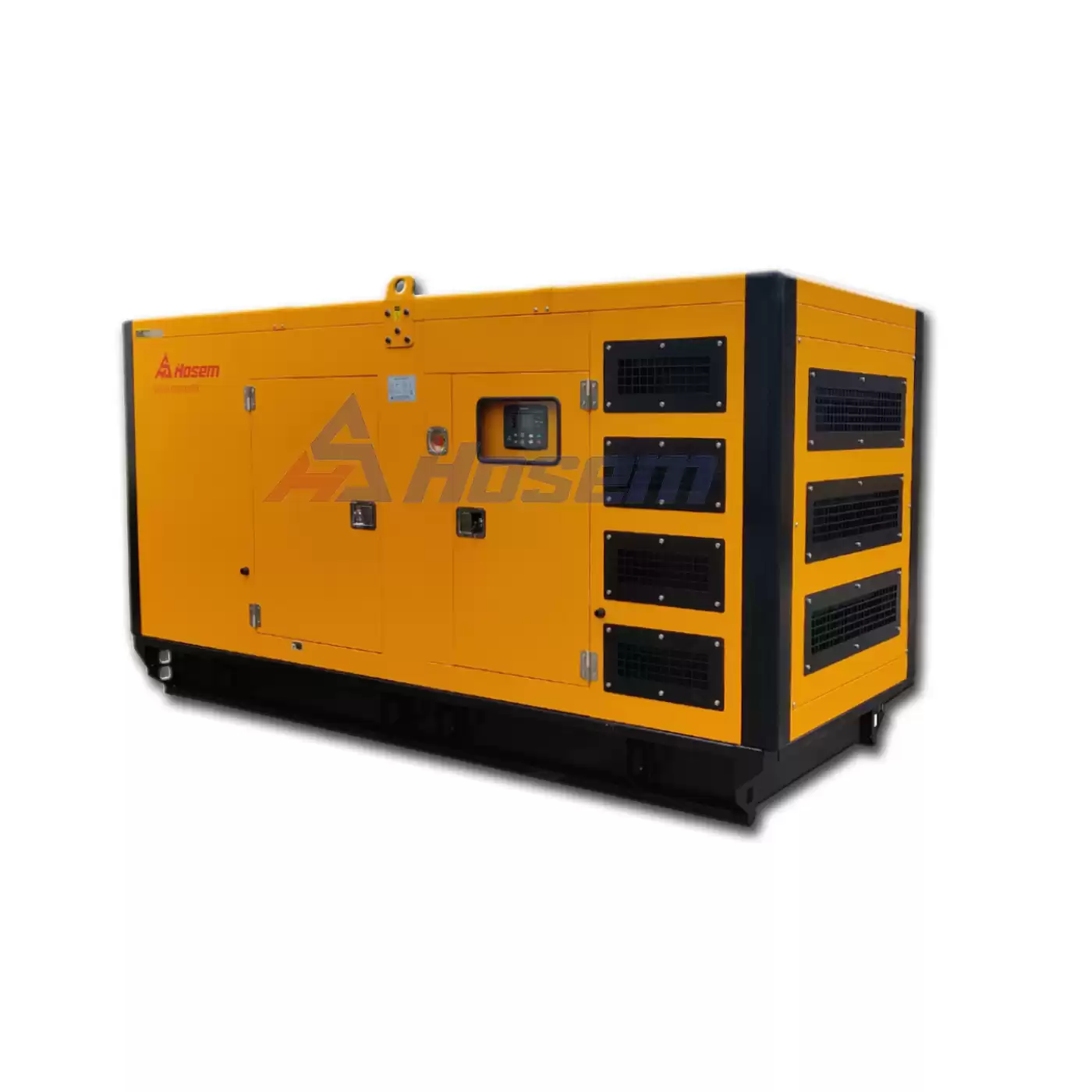

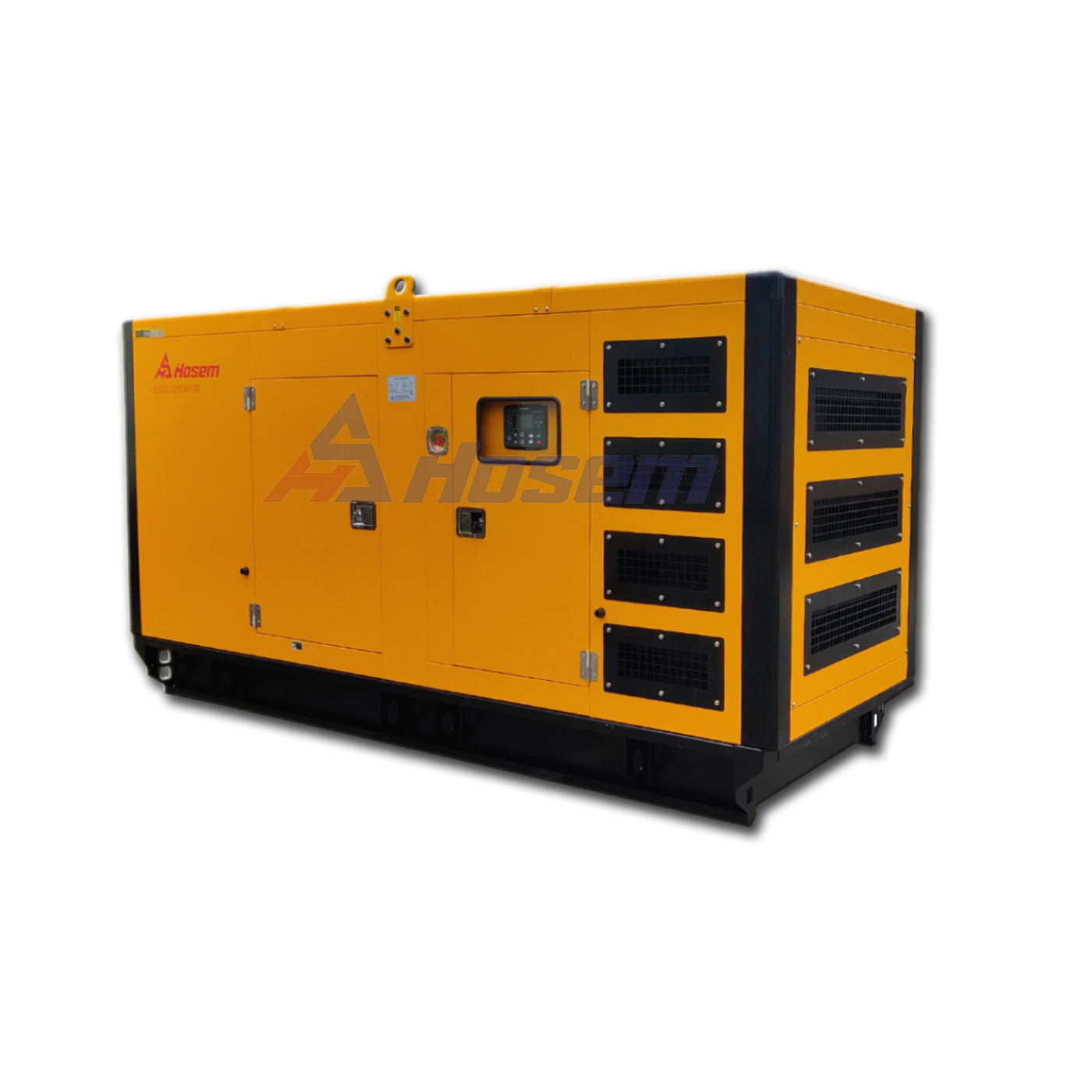

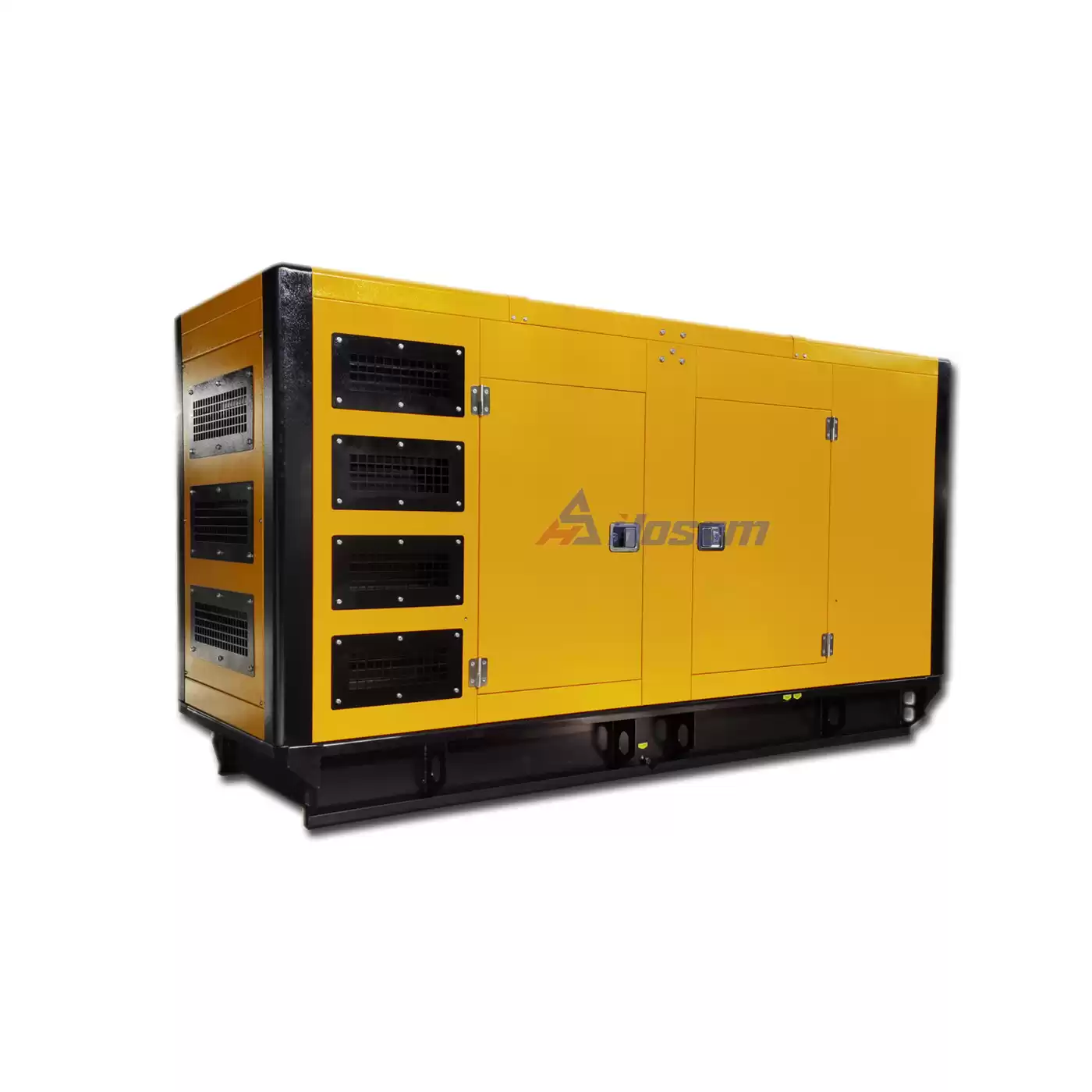

Soundproof Diesel Generator Powered by Weichai

  1. Assembly by Weichai brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Marathon, Mecc Alte, Hosem, etc.
  2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.
  3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
  4. Vibration damper between engine/alternator and base frame
  5. 3-pole circuit breaker.
  6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
  7. Full range protect function and alarm shutdown feature
  8. Comply with ISO8528 national standard and ISO9001 quality standard.



Model Standby Power  Prime Power Engine Model Dimension (Silent Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-WC25 25 20 23 18 WP2.3D25E200 2188x900x1280 580 Download
A-WC33 33 26 30 24 WP2.3D33E200 2188x900x1280 620 Download
A-WC41 41 33 38 30 WP2.3D40E200 2188x900x1280 730 Download
A-WC55 55 44 50 40 WP2.3D48E200 2288x950x1280 880 Download
A-WC70 70 55 63 50 WP4.1D66E200 2688x1080x1450 910 Download
A-WC83 83 66 75 60 WP4.1D80E200 2688x1080x1450 980 Download
A-WC103 103 83 94 75 WP4.1D100E200 2938x1080x1690 1100 Download
A-WC138 138 110 125 100 WP6D132E200 3288x1130x1850 1350 Download
A-WC165 165 132 150 120 WP6D152E200 3288x1130x1850 1550 Download
A-WC187 187 150 170 136 WP6D167E200 3888x1350x1950 1850 Download
A-WC220 220 176 200 160 WP10D200E200 3888x1350x1950 2250 Download
A-WC250 250 200 225 180 WP10D238E200 3888x1350x1950 2450 Download
A-WC275 275 220 250 200 WP10D264E200 3888x1350x1950 2550 Download
A-WC345-1 345 275 313 250 WP10D320E200 4218x1400x2250 2750 Download
A-WC345-2 345 275 313 250 WP12D317E200 4218x1400x2250 2750 Download
A-WC415 415 330 375 300 WP13D385E200 4218x1400x2250 3200 Download
A-WC440 440 352 400 320 WP13D405E200 4588x1600x2500 3400 Download
A-WC481 481 385 438 350 WP13D440E310 4588x1600x2500 3650 Download
A-WC550 550 440 500 400 WP13D490E310 4588x1600x2500 3800 Download
