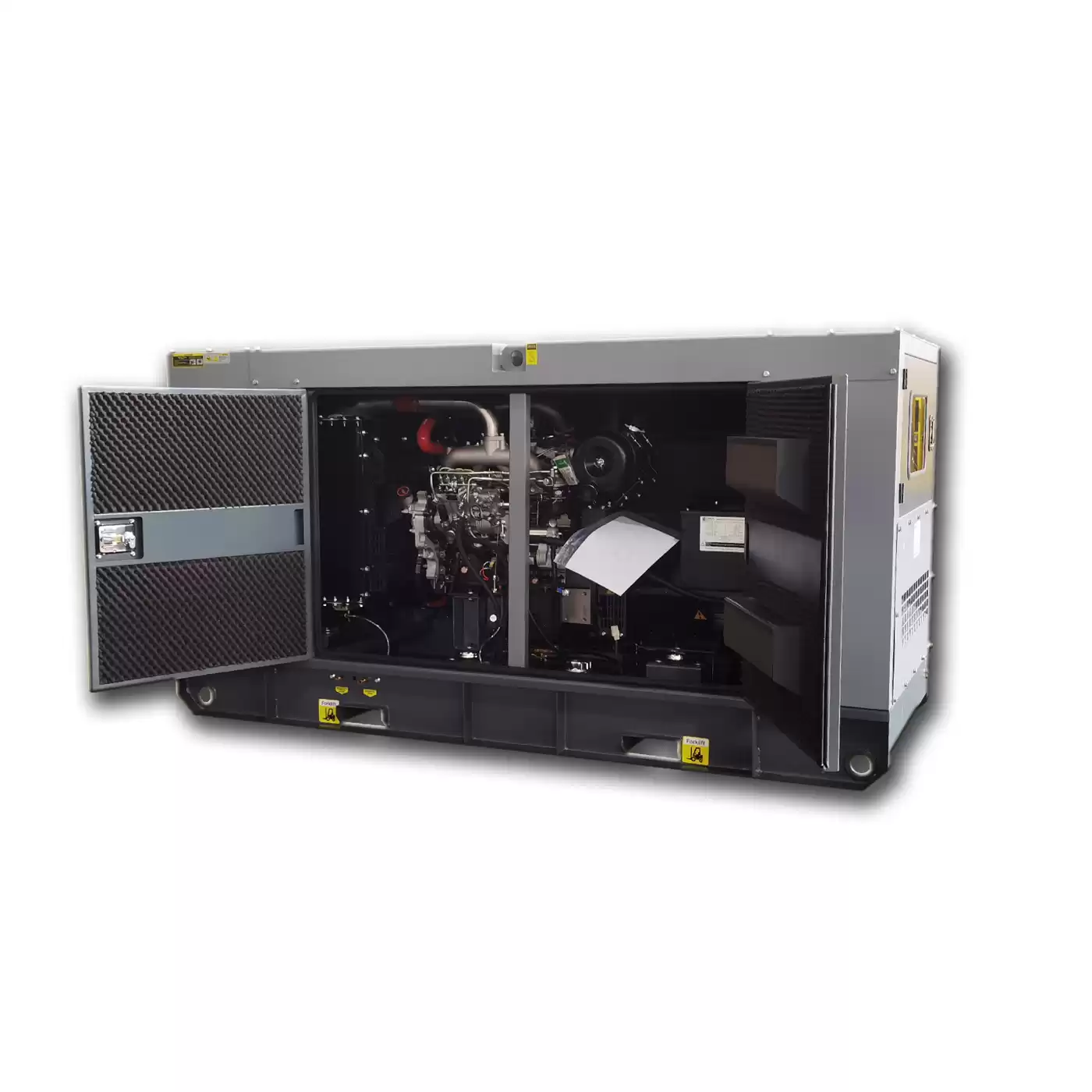

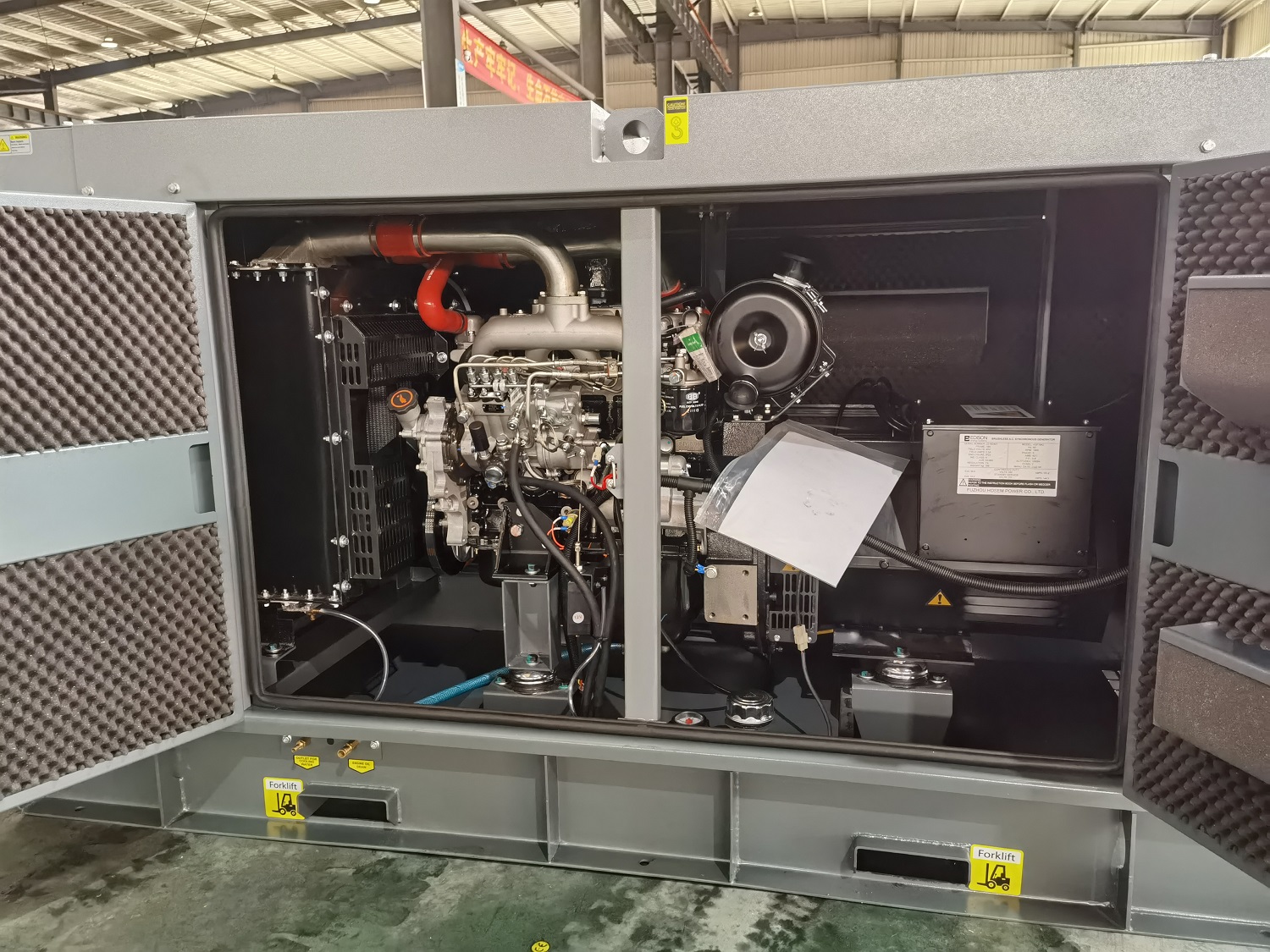

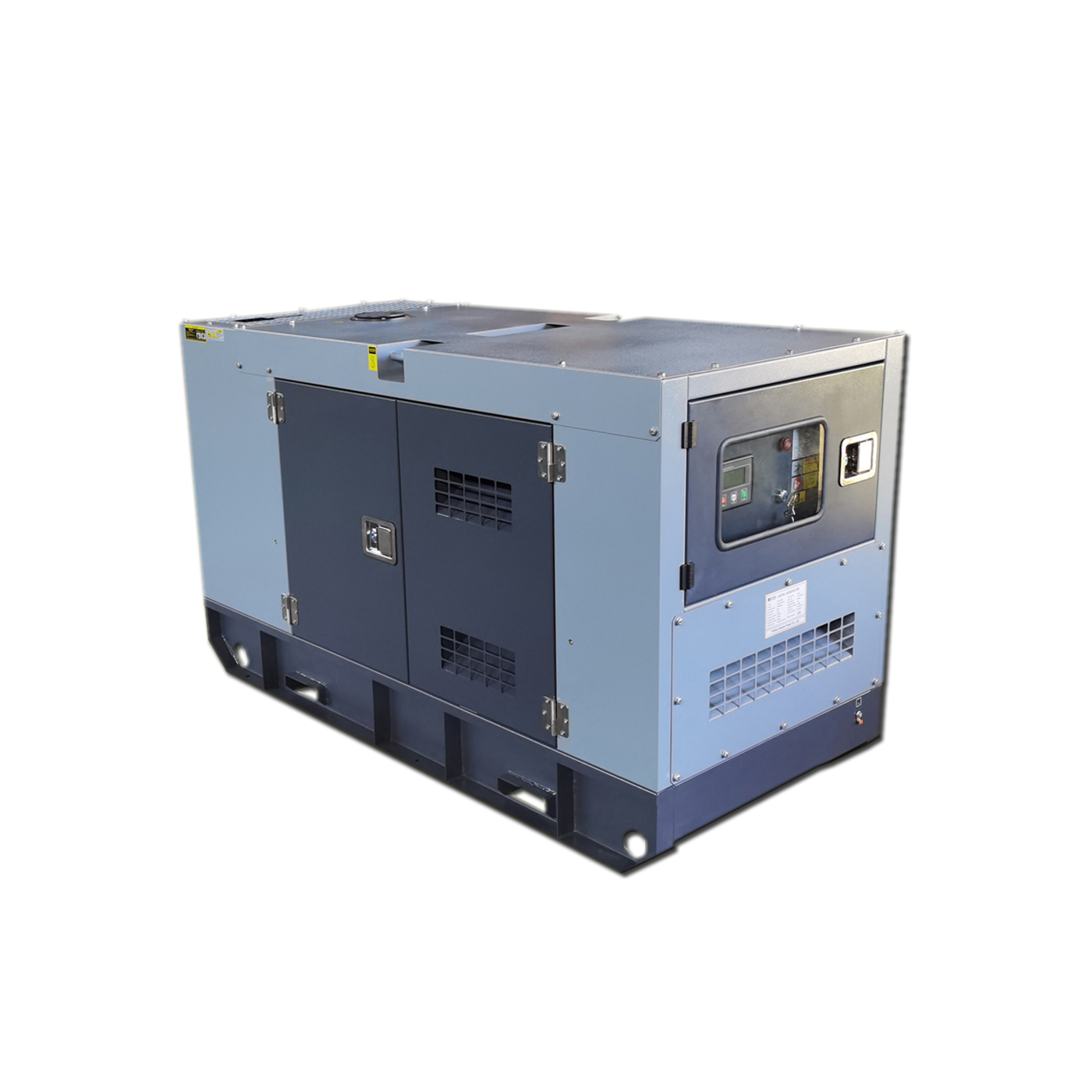

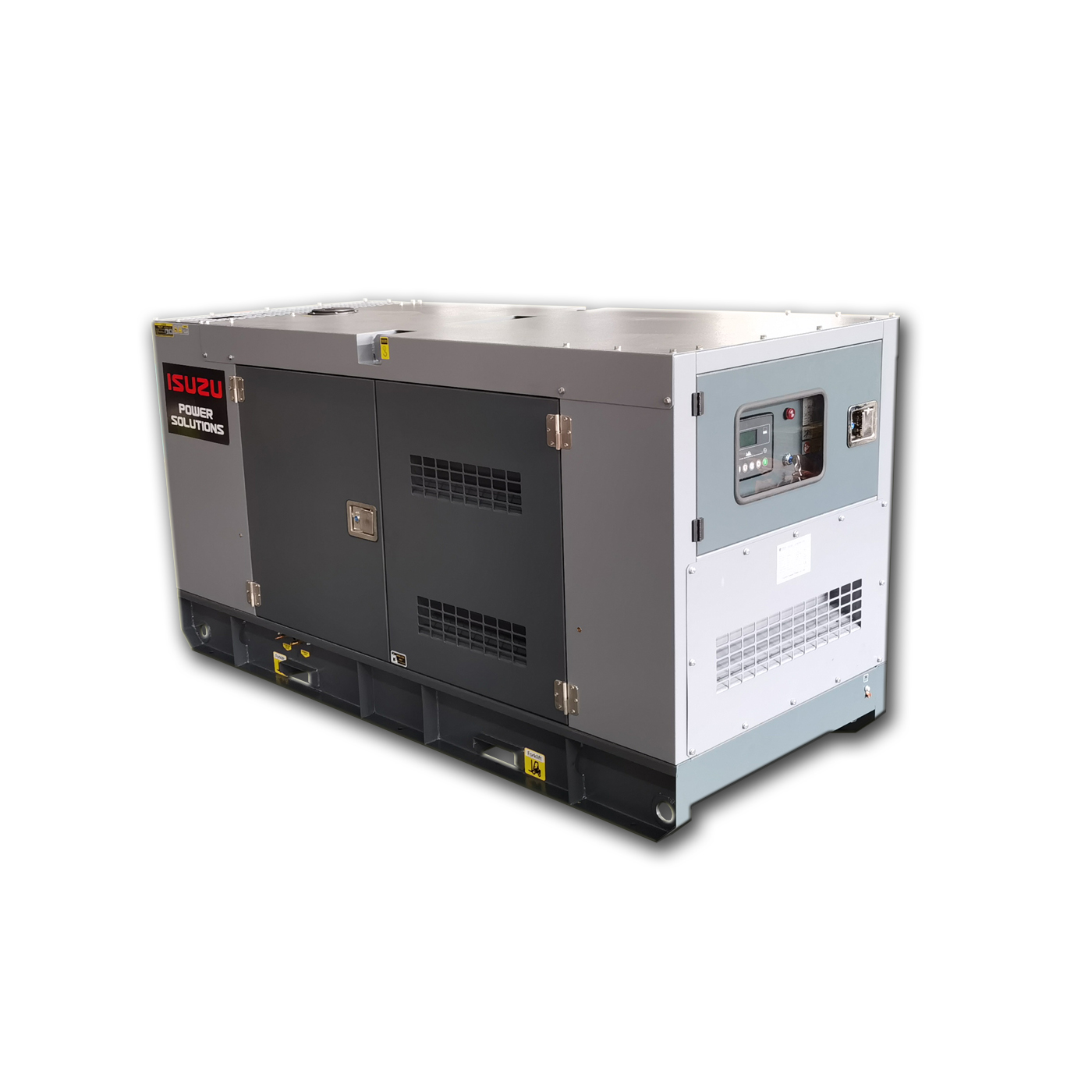

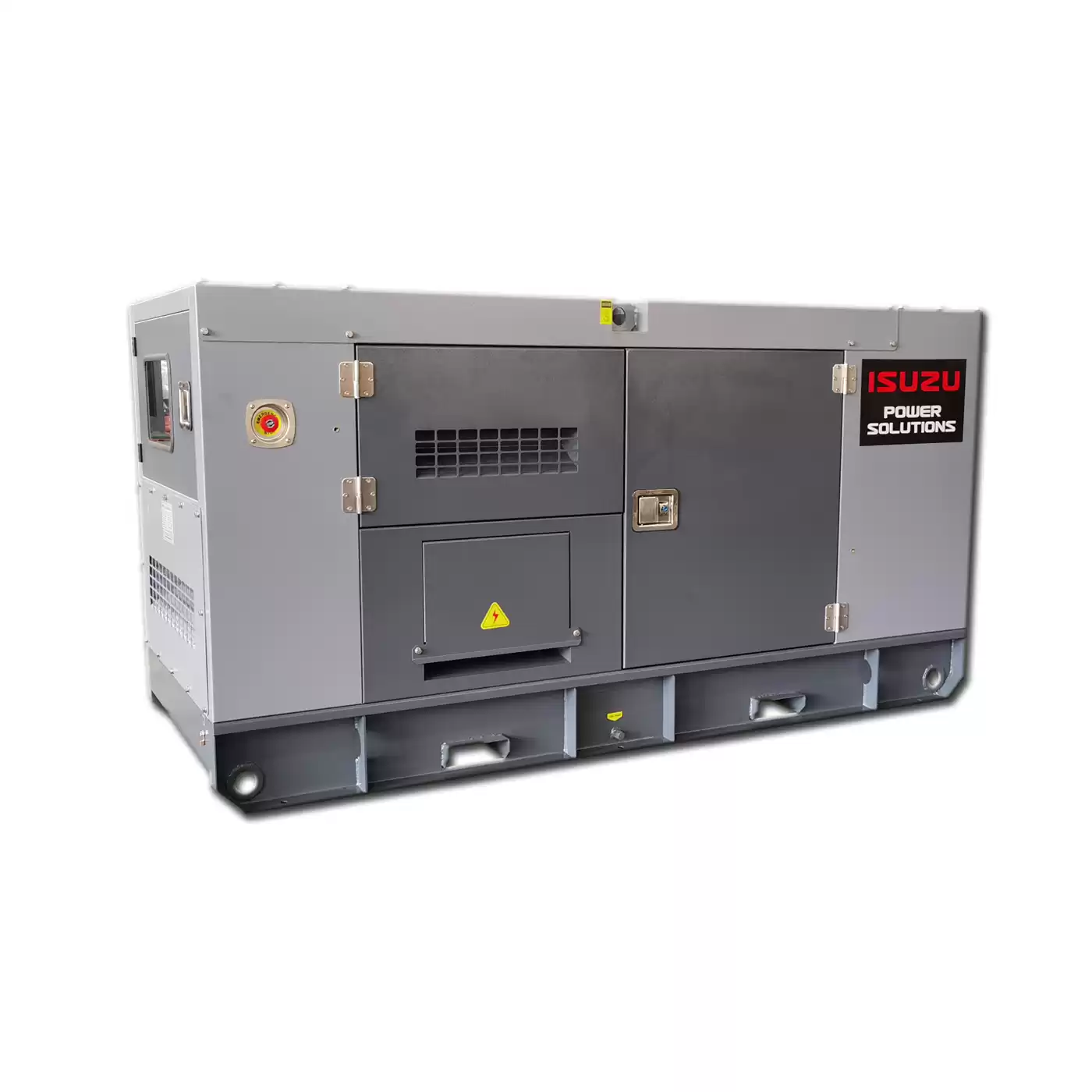

Soundproof Diesel Generator Set Powered by Isuzu

  1. Output range: from 15kVA up to 113kVA(50Hz), 20kVA up to 125kVA(60Hz)
  2. Engine models: JE493DB-03, JE493DB-01, JE493ZDB-03, JE493ZLDB-01.
  3.  Alternator: Stamford, Marathon, Leroy Somer, Mecc Alte, and Chinese brands with brushless and "H" Class Insulation.
  4. 8hrs operation base tank
  5. Key start (power switch) / autostart
  6. Open type / sound-proof / weather-proof canopy / mobile type are optional
  7. 50Hz / 60Hz, 0.8 PF 1-phase/ 3-phase



Model Standby Power  Prime Power Engine Model Dimension Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-I17 15 12 17 13 4JA1-D1 2008x900x1130 570 Download
A-I22 20 16 22 18 4JA1-F1 2008x900x1130 580 Download
A-I28 25 20 28 22 4JA1-Z1 2008x900x1130 630 Download
A-I28 25 20 28 22 4JB1 2188x900x1280 630 Download
A-I33 30 24 33 26 4JB1T 2188x900x1280 640 Download
A-I41 38 30 41 33 4JB1TA 2188x900x1280 640 Download
A-I41 38 30 41 33 4JB1TA 2188x900x1280 655 Download
A-I55 50 40 55 44 4JB1T-S 2188x900x1280 675 Download
A-I55 50 40 55 44 4BD1-Z 2388x1000x1450 700 Download
A-I69 63 50 69 55 4BG1-Z 2388x1000x1450 860 Download
A-I110 100 80 110 88 6BG1-Z1 3288x1130x1850 1250 Download
A-I125 113 90 125 100 6BG1-ZL1 3288x1130x1850 1340 Download

A-I22 22 18 20 16 JE493DB-04 2188x900x1280 620 Download
A-I28 28 22 25 20 JE493DB-02 2188x900x1280 640 Download
A-I33 33 26 30 24 JE493ZDB-04 2188x900x1280 670 Download
A-I44 44 35 40 32 JE493ZLDB-02 2188x900x1280 690 Download
