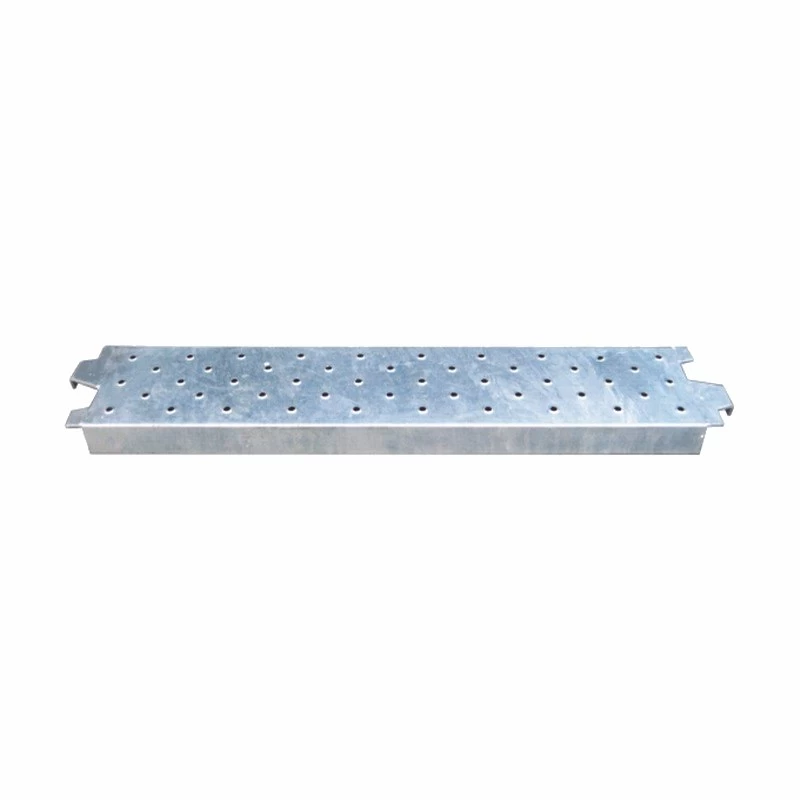

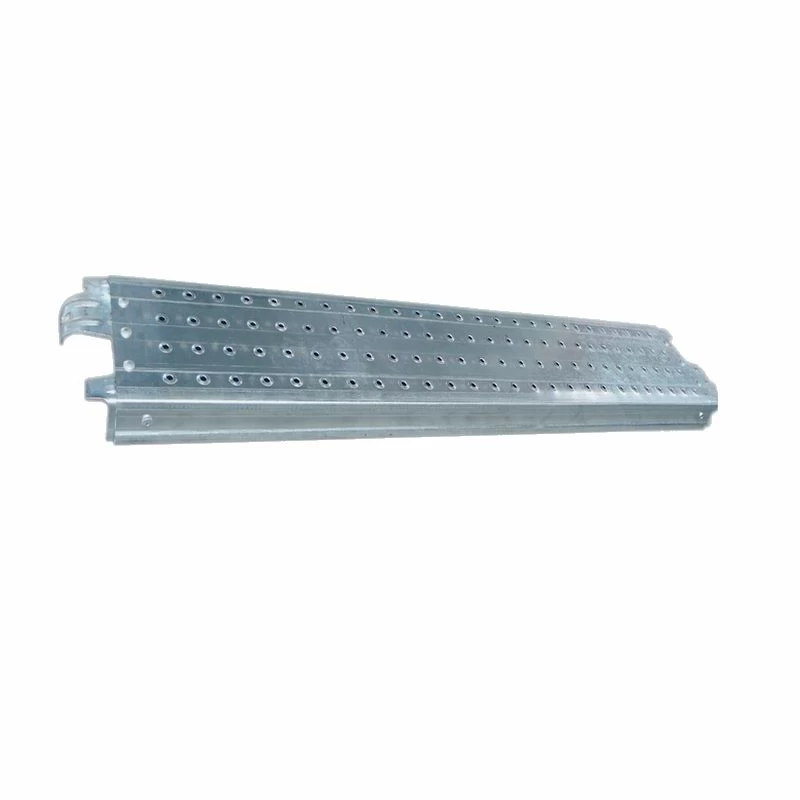

South Africa Type Hook on Board / Steel planks

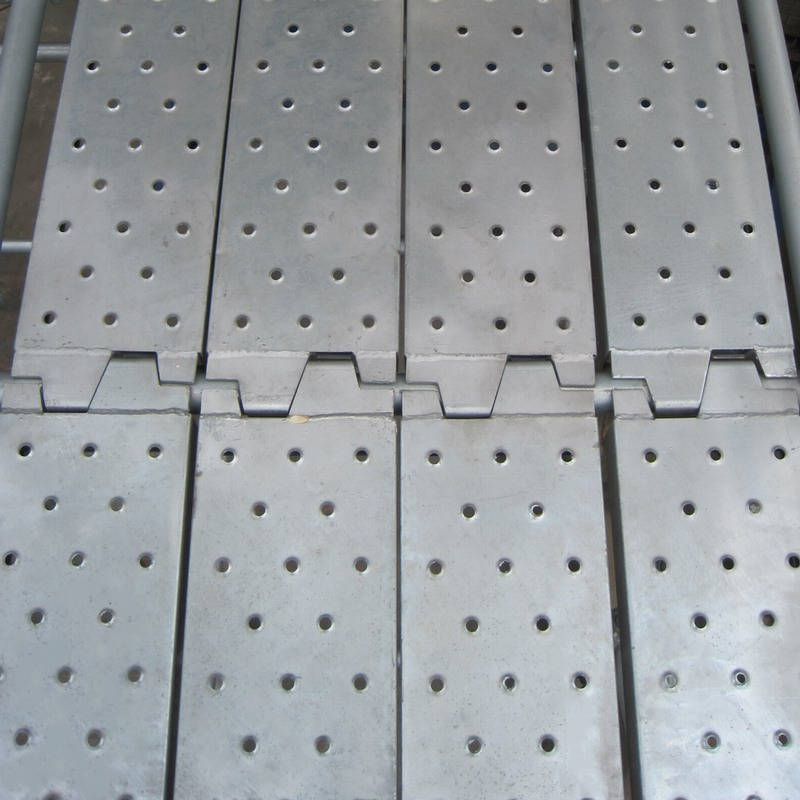

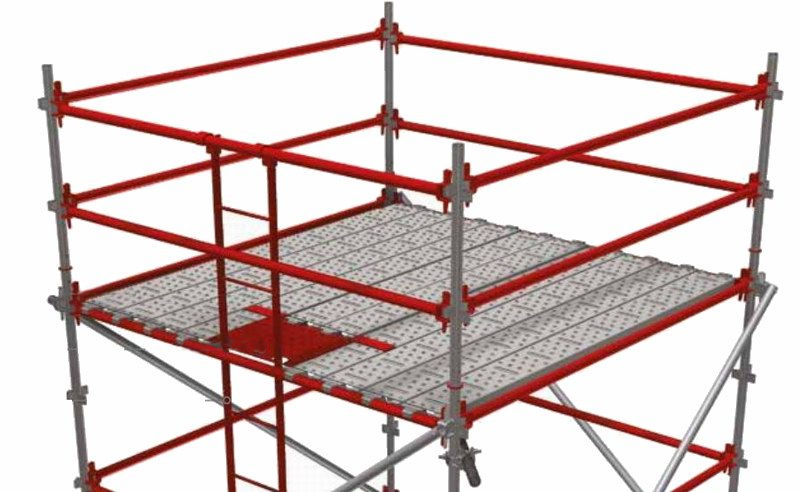

Steel plank is used as walkway plank in scaffolding system for construction safety. It is a fitting part of construction scaffolds. There are stamping holes on the scaffolding plank to resist skidding for workers. The galvanized surface and  rib reinforcement design makes scaffolding plank more stronger in the rainy days and moist environment.

Hook On Board is a popular and economical scaffolding plank in South Africa.

Facebook Twitter Pinterest LinkedIn 分享


South Africa Type Hook On Board / Steel Plank, 230mm (9") wide, t=1.8mm

Code Size (Metric) Size (Imperial) Weight(kg) Weight(lbs)
SP3.23305 230x3048mm 9" x 10' 19.22  42.38
SP3.23300 230x3000mm 9" x 9'-10 1/8" 18.95  41.78
SP3.23270 230x2700mm 9" x 8'-10 1/3" 17.27  38.08
SP3.23250 230x2500mm 9" x 8'-2 7/16" 16.01  35.30
SP3.23244 230x2438mm 9" x 8' 15.67  34.55
SP3.23230 230x2300mm 9" x 7-'6 9/16" 14.90  32.85
SP3.23213 230x2134mm 9" x 7' 13.97  30.80
SP3.23210 230x2100mm 9" x 6-'10 11/16" 13.64  30.08
SP3.23200 230x2000mm 9" x 6'-6 3/4" 13.08  28.84
SP3.23183 230x1829mm 9" x 6' 12.12  26.72
SP3.23180 230x1800mm 9" x 5'-10 7/8" 11.96  26.37
SP3.23160 230x1600mm 9" x 5'-3" 10.84  23.90
SP3.23152 230x1524mm 9" x 5' 10.41  22.95
SP3.23150 230x1500mm 9" x 4'-11 1/16" 10.28  22.67
SP3.23129 230x1295mm 9" x 4'-3" 8.99  19.82
SP3.23122 230x1219mm 9" x 4' 8.57  18.90
SP3.23120 230x1200mm 9" x 3'-11 1/4" 8.46  18.65
SP3.23100 230x1000mm 9" x 3'-3 3/8" 7.34  16.18
SP3.23090 230x900mm 9" x 2'-11 7/16" 6.78  14.95
SP3.23080 230x800mm 9" x 2'-7 1/2" 6.22  13.72
SP3.23060 230x600mm 9" x 1'-11 5/8" 5.10  11.25
* Material: Steel grade Q235. Plank thickness 1.8mm,width 230mm, height 63.5mm.

* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated or painted is also available.
