South Africa Type Kwikstage Scaffolding Ledger

South Africa Kwikstage Scaffolding is a kind of popular modular scaffolding in SA. The Ledger is made from O.D48.3mm x 2.5mm Scaffold Tube with C-pressing ends and wedge pins.


The main components of SA Kwikstage Scaffolding include: Standard, Ledger, Diagonal Brace, Hook-on Plank, Toe Board, Stair or Ladder, Cantilever Bracket, Strip Beam, decking Panel, and so on.

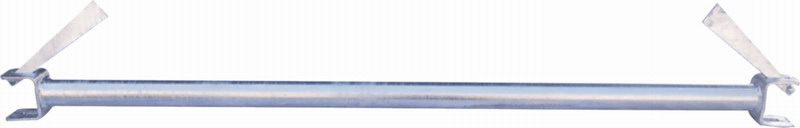

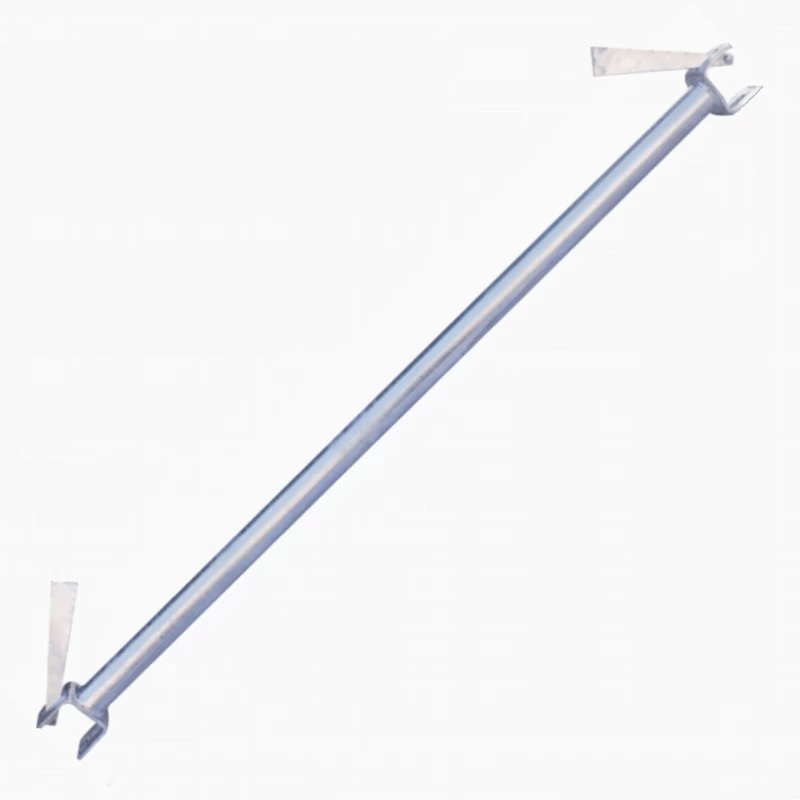

South Africa Type Kwikstage Scaffolding Ledger / Horizontal (C Pressing End)


Product Details:

Code Description Material Size Weight (kg) Weight (lbs)
KS.L.300C 3.00M C-Ledger Ø48x2.5; Q235-Q355 3000mm 9.21  20.31
KS.L.270C 2.70M C-Ledger 2700mm 8.37  18.46
KS.L.250C 2.50M C-Ledger 2500mm 7.81  17.22
KS.L.200C 2.00M C-Ledger 2000mm 6.41  14.13
KS.L.180C 1.80M C-Ledger 1800mm 5.85  12.90
KS.L.160C 1.60M C-Ledger 1600mm 5.29  11.66
KS.L.150C 1.50M C-Ledger 1500mm 5.01  11.05
KS.L.129C 1.29M C-Ledger 1295mm 4.43  9.77
KS.L.122C 1.22M C-Ledger 1219mm 4.22  9.31
KS.L.120C 1.20M C-Ledger 1200mm 4.16  9.17
KS.L.100C 1.00M C-Ledger 1000mm 3.60  7.94
KS.L.090C 0.90M C-Ledger 900mm 3.32  7.32
KS.L.080C 0.80M C-Ledger 800mm 3.04  6.70
KS.L.060C 0.60M C-Ledger 600mm 2.48  5.47



Features:


Tube Dimension: O.D 48.3x2.5mm. Other tube thickness 3.25mm/3.0mm2.75mm/2.3mm/2.0mm is also available by request.


Steel Tube Grade: Q235-Q355


C-Pressing Ends: t=6mm

Wedge Pins: t=6mm


Surface Finishing: Hot dip Galvanized; Powder Coated, Painted


Welding Process: CO2/Mixture Gas Shielding Welding
