A shaded pole induction motor is a simple single-phase induction motor, which is self-starting with one of the poles shaded by the copper ring. The other name of the copper ring is a shaded ring, where it acts as a secondary winding motor. It rotates only in one direction particularly and reverses moment is impossible.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.
-

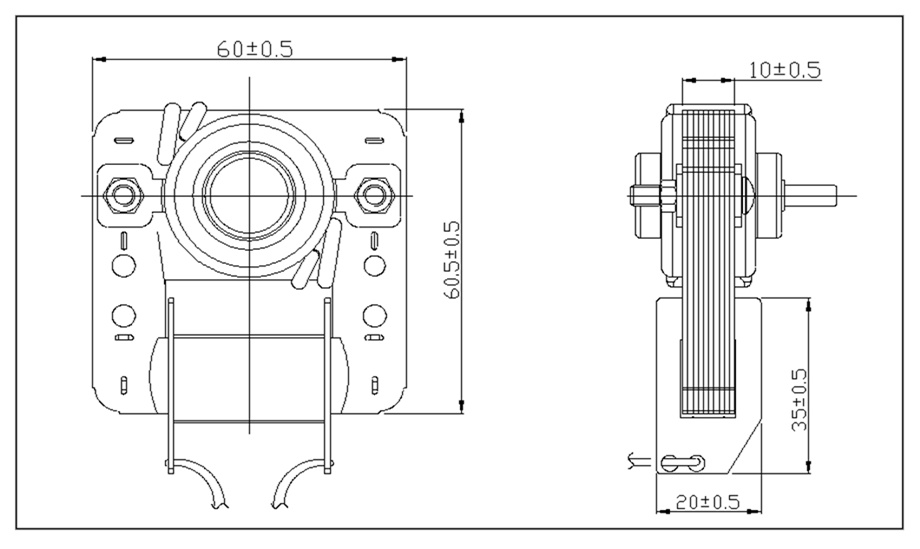

Dimension of the motor is 61 mm(L) x 10 mm(H) / The size of fan in inch is 2.40 in(L) x 0.39 in(H).
-
Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
-
Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
-
Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

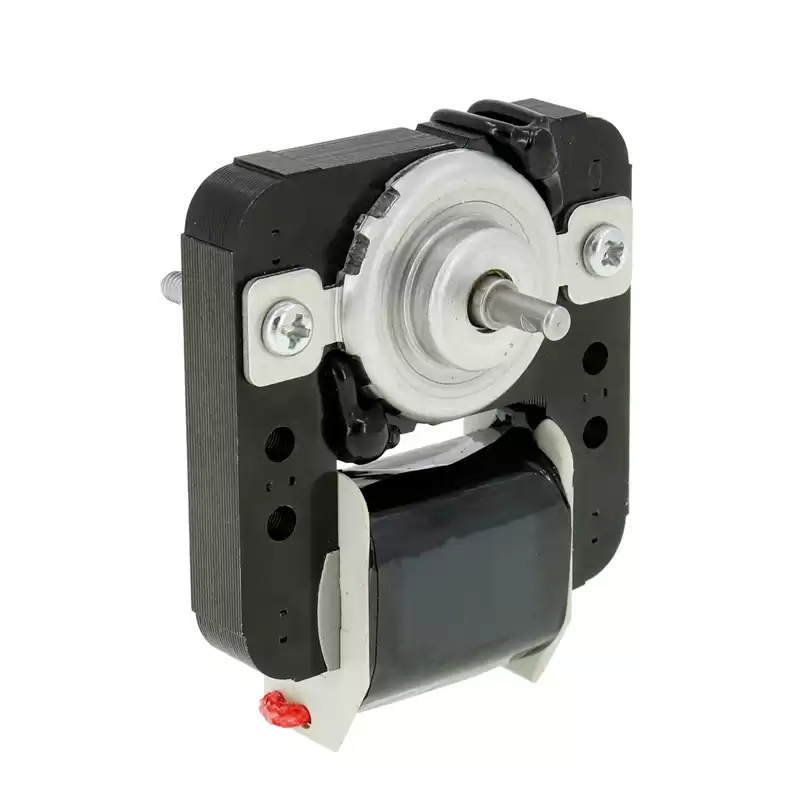

AC Shaded Pole Motor Z6110

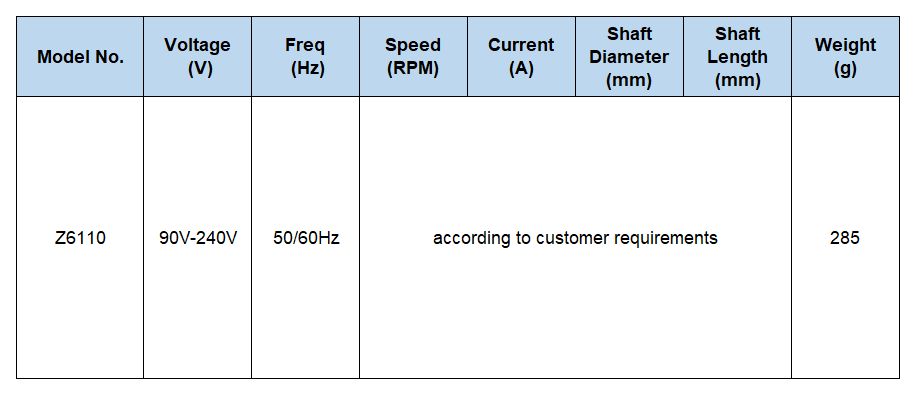

General Specification:
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
For longer service life and reliability;
-
State-of-the-art design with innovated cooling concept;
-
Best-in-class power density for more power and torque;
-
Highest degree of flexibility for a wide range of applications;
-
Our motors are lightweight, durable, and engineered to meet the highest standards in the industry.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
Application
AC shaded pole motors can be used in air conditioning and refrigeration equipment and cooling fans, phonograph, recorder, projector, copier and other equipment.
-
Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
-
Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
