Special truck Isuzu 4 Ton Hydraulic Boom Truck Crane

truck mounted crane /truck with crane FVR FVZ crane truck, Mini hydraulic telescipic kunckle boom truck mounted crane for sale,Special truck Isuzu 4 Ton Hydraulic Boom Truck Crane



Special truck Isuzu 4 Ton Hydraulic Boom Truck Crane

Special truck Isuzu 4 Ton Hydraulic Boom Truck Crane



Commercial isuzu 4 Ton Hydraulic Boom Truck Crane, 25 L/min



  1. Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 4 ton
  3. Max Lifting Moment: 8.40/10 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max.Lifting height:10meters
  6. Brand: XCMG
  7. Crane Weight: 1271 kg
  8. Oil Tank Capacity: 60 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.


Telescopic boom crane SQ4SK2Q is lifting capacity is 4tons, moment is 8.4T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.



Specifications:



Model

SQ4SK2Q

Unit

Max Lifting Capacity

4000

kg

Max Lifting Moment

8.40/10

T.M

Recommend Power

16

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

60

L

Rotation Angle

360° All Rotation

Crane Weight

1271

kg

Installation Space

850

mm

Choice of Chassis

EQ1092FJ;

EQ1092FJ1;

EQ1092F3GJ1;

EQ1081GJ12D5;

DFL1120B;

LZ1120LAPT;

HFC1132KR1K3;

EQ5121GFJ;

HFC1083K103R1D;

EQ1110GLJ3;

EQ1120GLJ;

EQ1168TLJ;

BJ1122V4PBB-A1;

BJ1158VKPFK-2



SQ4SK2Q Lifting capability diagram

Working radius (m)

2.1

2.5

3

7.93

Lifting capacity (kg)

4000

3120

2580

754



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

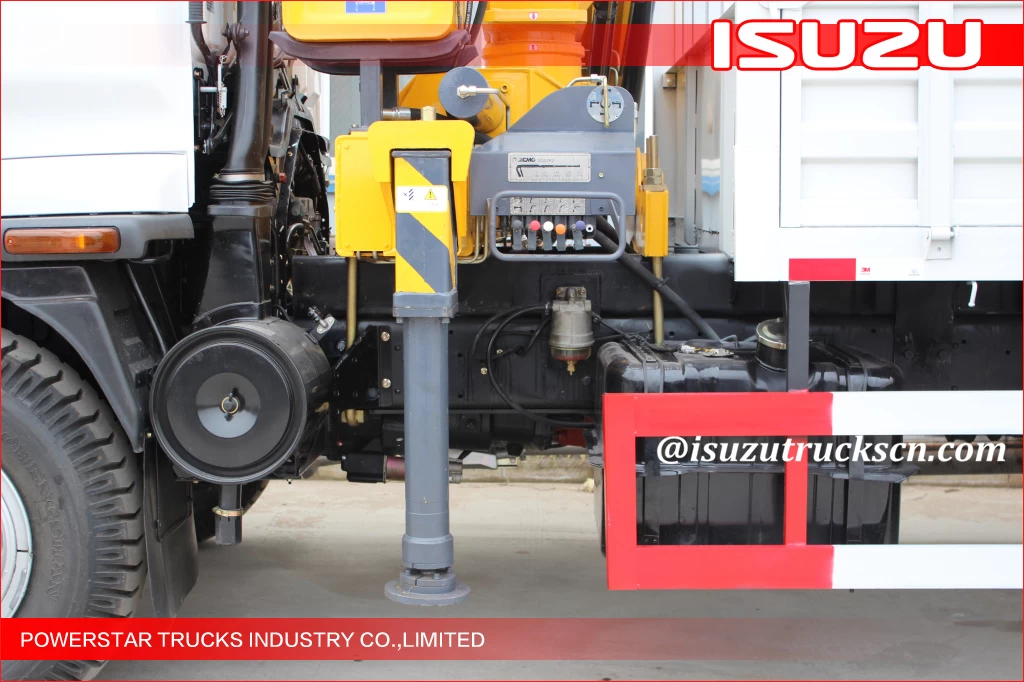

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
