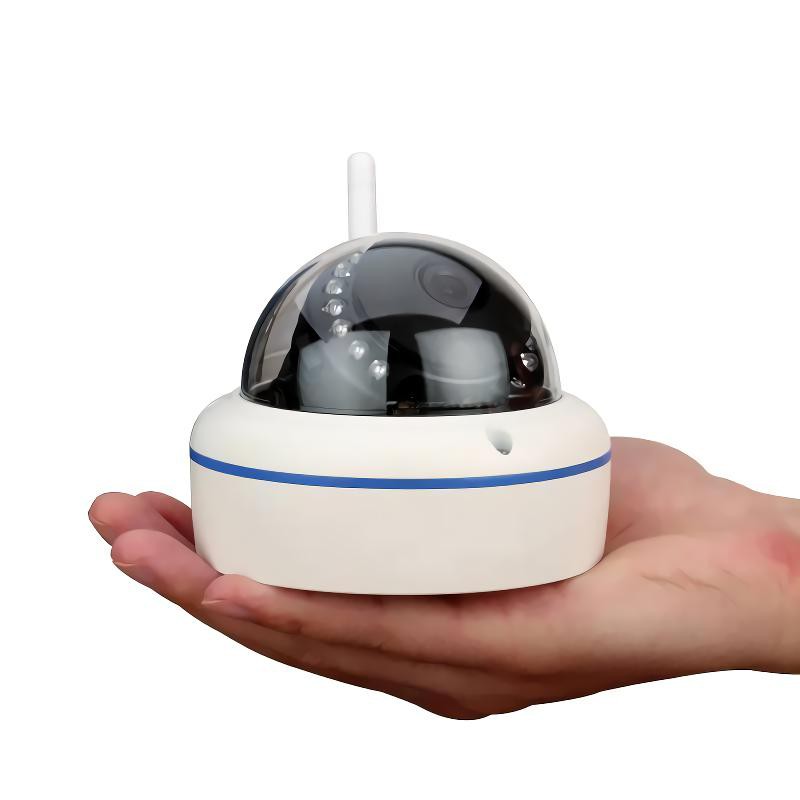

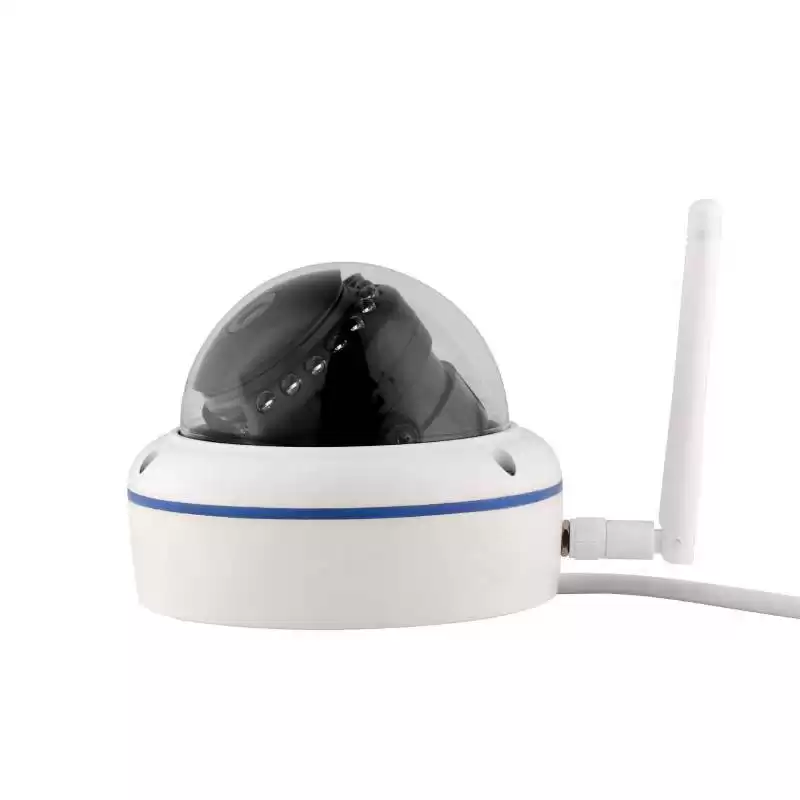

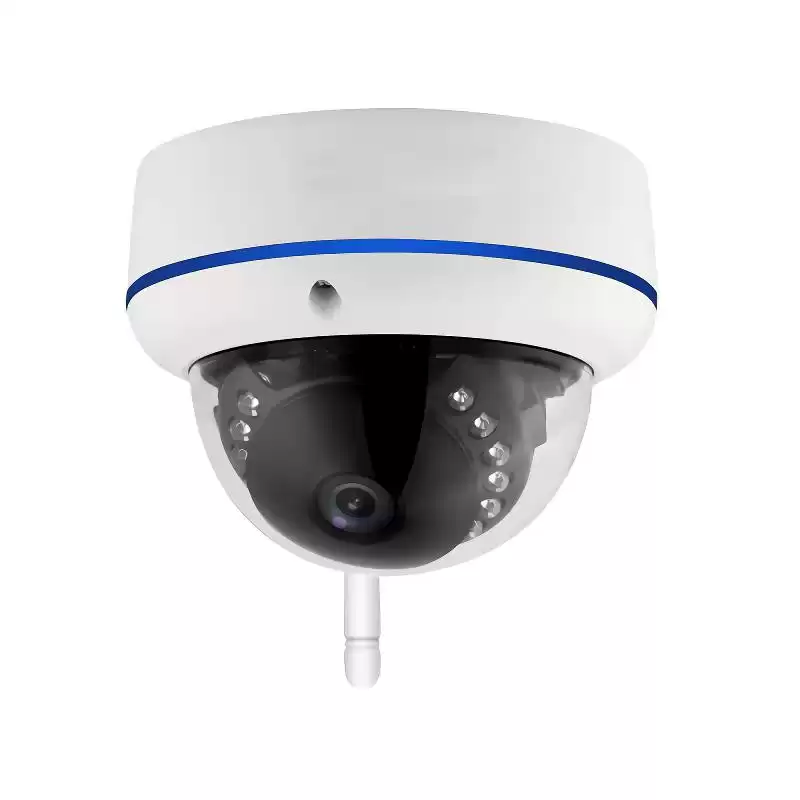

Product Name:Speed WiFi Full HD 108OP P2P Waterproof Night Vision Security IR Dome IP Camera
Feature
●H.264 Compression, ensured us more clear image quality but less bit rate, saved much transmit and storage cost.
●Speed WiFi Full HD 108OP up to 1920*1080 resolution, it can gains ultra clear quality image.
●Ultra Clear Night Time Image IR LED built in,it can capture ultra clear night time image.

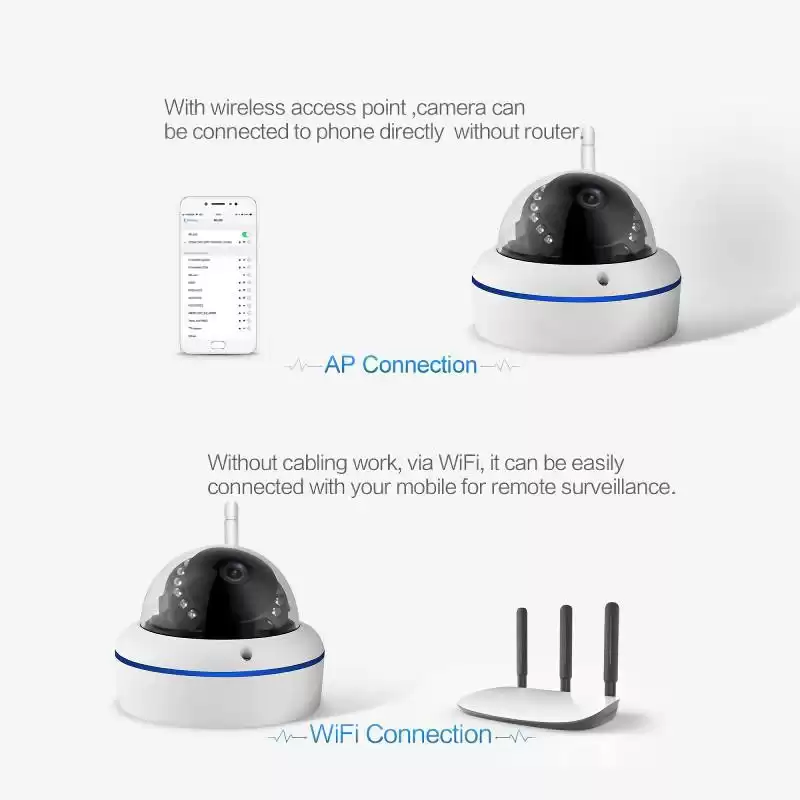

●Without cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
●64GB TF Card,There have TF Card slot on the motherboard, please open shell and plug TF card if you want to install TF card.
* TF card is not included in package.
●Support Motion Detection When motion objects detected, it will trigger alarm Email alert.
●IP66 Waterproof,Suitable for indoor and outdoor use, all-weather environment applications.
●Compliance with Standard ONVIF protocol, compatible with various brands NVR, fulfill the needs of rich security and surveillance.
●Scan the QR code to download the Application.Open APP and add Camera,then select video source to watch.
Specification
|
Model
|
ANSDEN YAC-QD008
|
|
Camera Parameter
|
|
Camera
|
|
Sensor
|
1/2.7” 2 Megapixel progressive can CMOS
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/25~1/10000s
|
|
Minimum illumination
|
Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2
|
|
Focal Length
|
3.6mm
|
|
Angle of View
|
75.7°
|
|
Functions
|
|
Day/night switch
|
IR distance 10m
|
|
White Balance
|
Auto white balance
|
|
BLC
|
Support BLC
|
|
Digital noise reduction
|
Support 3D noise reduction
|
|
WDR
|
Support D-WDR
|
|
Motion detection
|
Support motion detection
|
|
Privacy shelter
|
Support 4 zones
|
|
OSD
|
Support OSD setting
|
|
Sleeper
|
Support schedule reboot
|
|
Video
|
|
Compression
|
H.264
|
|
Resolution
|
Mainstream:1080P(1920*1080),960P(1280*960),720P(1280*720)
|
|
Substream：D1(704*576),360P(640*360),CIF(352*288)
|
|
Video frame rate
|
25fps(50HZ), 25fps(60HZ)
|
|
Bit rate
|
64Kbps~12Mbps CBR/VBR adjustable
|
|
Video adjustment
|
Brightness, saturation, chroma, sharpness, and contrast are adjustable
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Wireless
|
Support WIFI 802.11b/g/n,2.4G band ;AP mode
|
|
IP type
|
Dynamic IP and Static IP
|
|
Network agreement
|
HTTP,TCP/IP,UPNP,RTSP,SMTP,NTP,DHC,DNS,PPPOE,DDNS,FTP
|
|
Access protocol
|
Support ONVIF 2.4
|
|
Max user qty
|
6
|
|
Client
|
iPhone,iPad,Android,Windows PC
|
|
Audio
|
|
Audio
|
Not support
|
|
Interface
|
|
TF card
|
Support,max support 64GB TF card(micro SD)
|
|
General
|
|
Power supply
|
DC12V 1A
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-20°C~+60°C,10%~90%
|
|
Waterproof level
|
IP66
|
|
Dimension
|
104mm*104mm*85mm
|
|
Weight
|
0.36kg
|
|
Package Dimension
|
135mm*135mm*130mm
|
|
Package Weight
|
0.58kg
|
|
Accessories
|
IP Camera*1,Power adapter*1,Waterproof hat*1,Screws*1,Manual*1
|

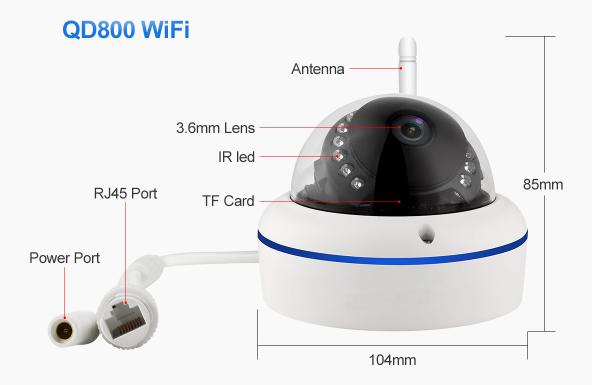

Dimension
Speed WiFi Full HD 108OP up to 1920*1080 resolution, it can gains ultra clear quality image.
Application
Compliance with Standard Onvif protocol, compatible with various brands NVR, fulfill the needs of rich security and surveillance.
