Spherical Ball For Rod Ends & Plain Bearings B-COM



Material:AISI 52100 bearing steel,Ball surface polished.With or without hard chrome plating are optional.

Heat treatment: HRC 58-64

Stainless steel 440c are optional.

Can custom made per customer's request.



Facebook Twitter Pinterest LinkedIn 分享

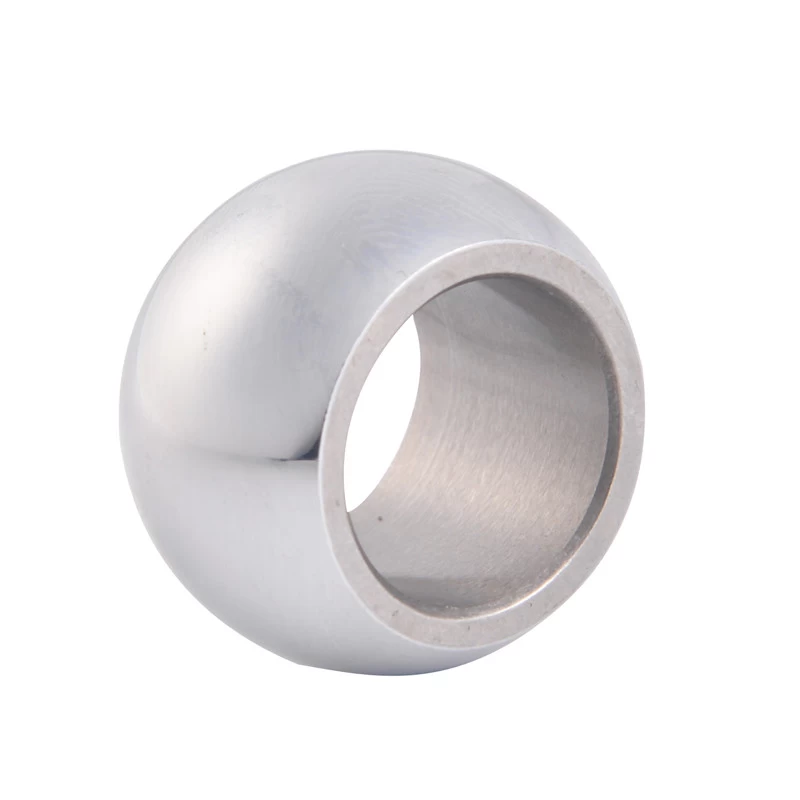

B-COM9 Stainless Steel Spherical Ball for plain Bearings

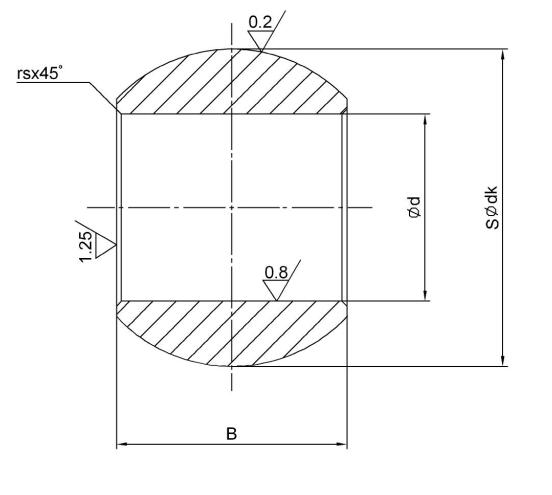

Item No d dk B rs
 +0.037 0 0.013
-0.013 -0.03 -0.013 min 
B-COM3 4.826 10.31 7.14 0.4
B-COM4 6.35 12.7 8.71 0.4
B-COM5 7.938 14.27 9.53 0.6
B-COM6 9.525 16.66 10.31 0.7
B-COM7 11.112 17.45 11.1 0.7
B-COM8 12.7 20.65 12.7 0.7
B-COM9 14.288 23.01 14.27 0.8
B-COM10 15.875 25.4 15.88 0.8
B-COM12 19.05 30.15 19.05 0.8
B-COM14 22.225 33.33 22.23 0.8
B-COM16 25.4 38.1 25.4 0.8

All dimensions are in MM.
