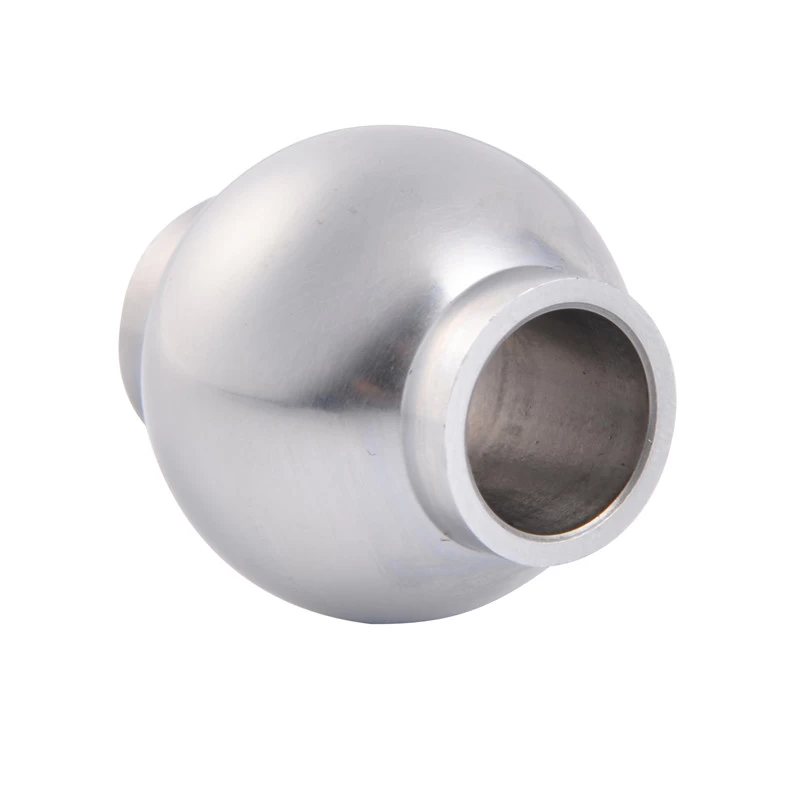

Spherical Ball For Rod Ends & Plain Bearings HJMX


Material:AISI 52100 bearing steel,Ball surface polished.With or without hard chrome plating are optional.

Heat treatment: HRC 58-64

Stainless steel 440c are optional.

Can custom made per customer's request.


Facebook Twitter Pinterest LinkedIn 分享

Stainless Steel ball HJMX10

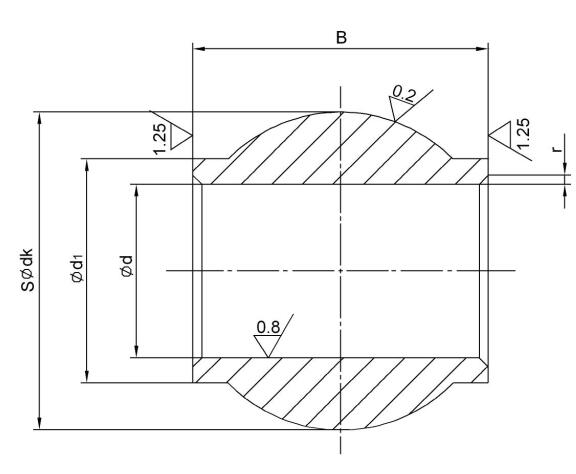

Item No d d1 dk B rs
0 0 0
-0.013 -0.03 -0.012 min 
HJMX6 9.525 13 19.84 20.65 0.7
HJMX7 11.11 15.7 22.23 22.23 0.7
HJMX8 12.7 18.54 25.4 23.8 0.7
HJMX10 15.875 21.74 31.75 30.48 0.8
HJMX12 19.05 24.64 34.93 32.51 0.8


All dimensions are in MM.
