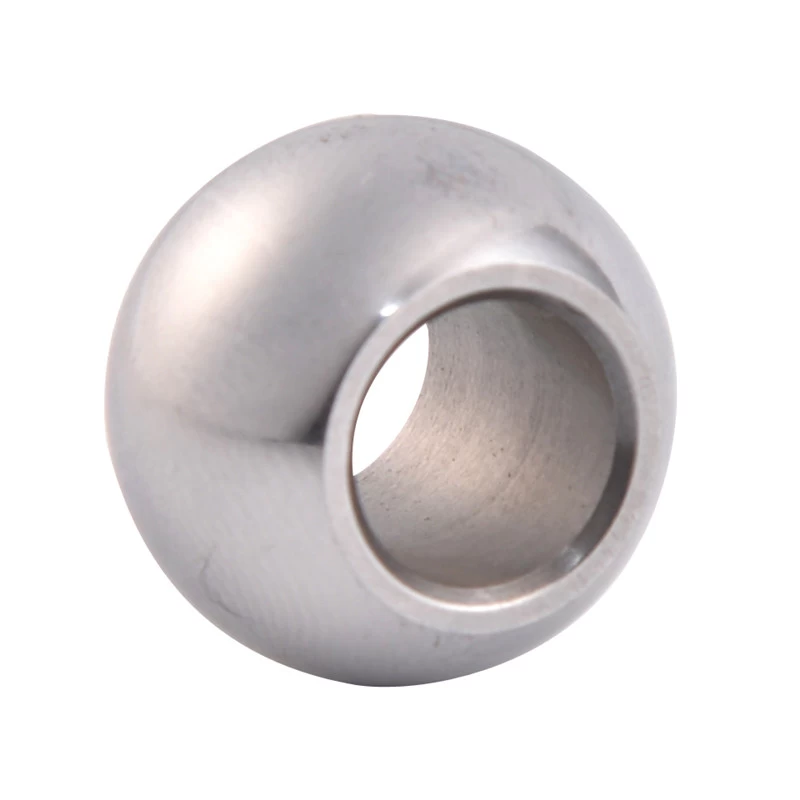

Spherical Ball For Rod Ends & Plain Bearings TK

Material:AISI 52100 bearing steel,,ball surface polished.with or without hard chrome plating are optional.
Heat treatment: HRC 58-64
Stainless steel 440c are optional.
Can custom made per customer's request.


Facebook Twitter Pinterest LinkedIn 分享

TK8

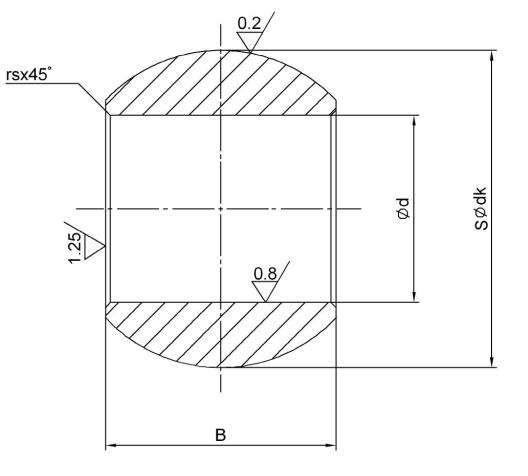

Item No d dk B rs
min
TK5 5 11.11 8 0.3
TK6 6 12.7 9 0.3
TK8 8 15.88 12 0.3
TK10 10 19.05 14 0.6
TK12 12 22.23 16 0.6
TK14 14 25.4 19 0.6
TK16 16 28.58 21 0.6
TK18 18 31.75 23 0.6
TK20 20 34.93 25 0.6
TK22 22 38.1 28 0.6
TK25 25 42.86 31 0.6
TK28 28 47.63 35 0.6
TK30 30 50.8 37 0.6


All dimensions are in MM.
