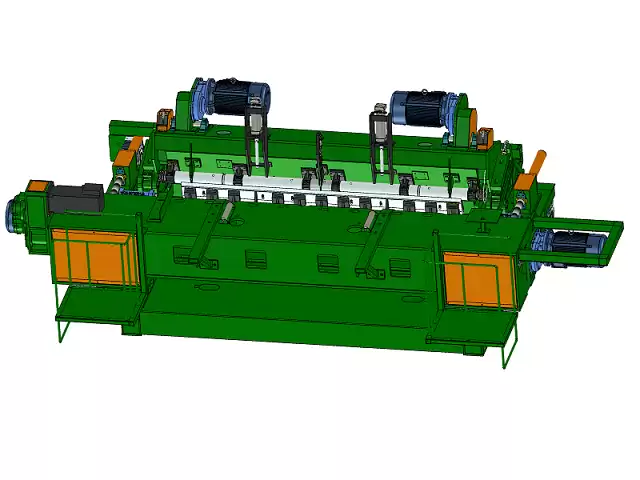

Product Name:Spindleless high speed Automatic wood core veneer peeling machine
Major Technical Parameters
|
DESCRIPTION
|
UNIT
|
BQ1826/G5GS-JD
|
|
Length
of log
|
mm
|
2000~2600
|
|
Diameter
of log
|
mm
|
32~550
|
|
Length
of blade
|
mm
|
2750
|
|
Thickness
of veneer
|
mm
|
0.3~3.6
|
|
Width
of cut veneer
|
mm
|
620~1300
|
|
Linear
speed of host machine
|
m/min
|
45m/min
83m/min
|
|
Diameter of driving roller
|
mm
|
115
|
|
Diameter of pressurebar roller
|
mm
|
116
|
|
Diameter of rubber roller
|
mm
|
342
|
|
Power ofpressurebar roller
|
KW
|
11*2
15*2
|
|
Power of doubleroller
|
KW
|
11*2
15*2
|
|
Power
of cutting feed
|
KW
|
15
|
|
Power of shear
|
KW
|
7.5
|
|
Power of PU roller/
output converyor
|
KW
|
7.5
|
|
Total power
|
KW
|
74
90
|
|
Total
weight
|
kg
|
13000
|
|
Overall dimensions
|
mm
|
6000*3050*7900
|
Main Features:
1. High performance CNC system control feeding. The board is smooth, with high productivity.
2. The feeding system adopts the screw and screw nuts. The screw nuts adopt the magnesium aluminum alloy, copper and other materials. So it is with long service life.
3. Automatic adjustment of cutting system, skin is much more uniform and smooth. Apply to woods with different diameters.
4. During the rotary cutting production, the machine can adjust the thickness of two kinds of veneer constantly and won't cause the crack of the veneers.
5. Block type screw and slider, high-precision and energy-saving.
6. The NC rotary and leather cutting are in one, so the machine is with high productivity and labor-saving.
