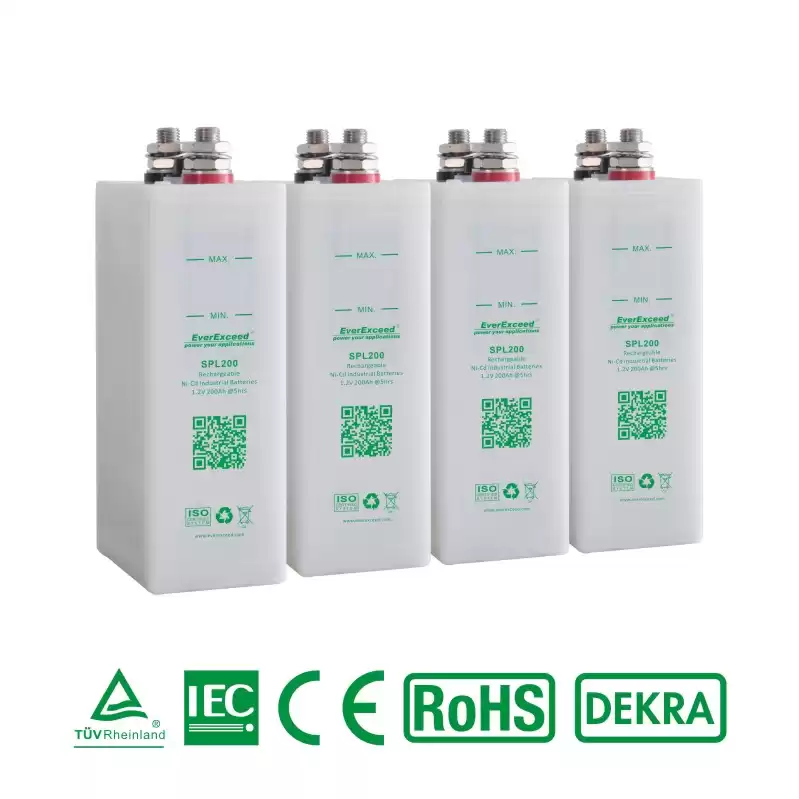

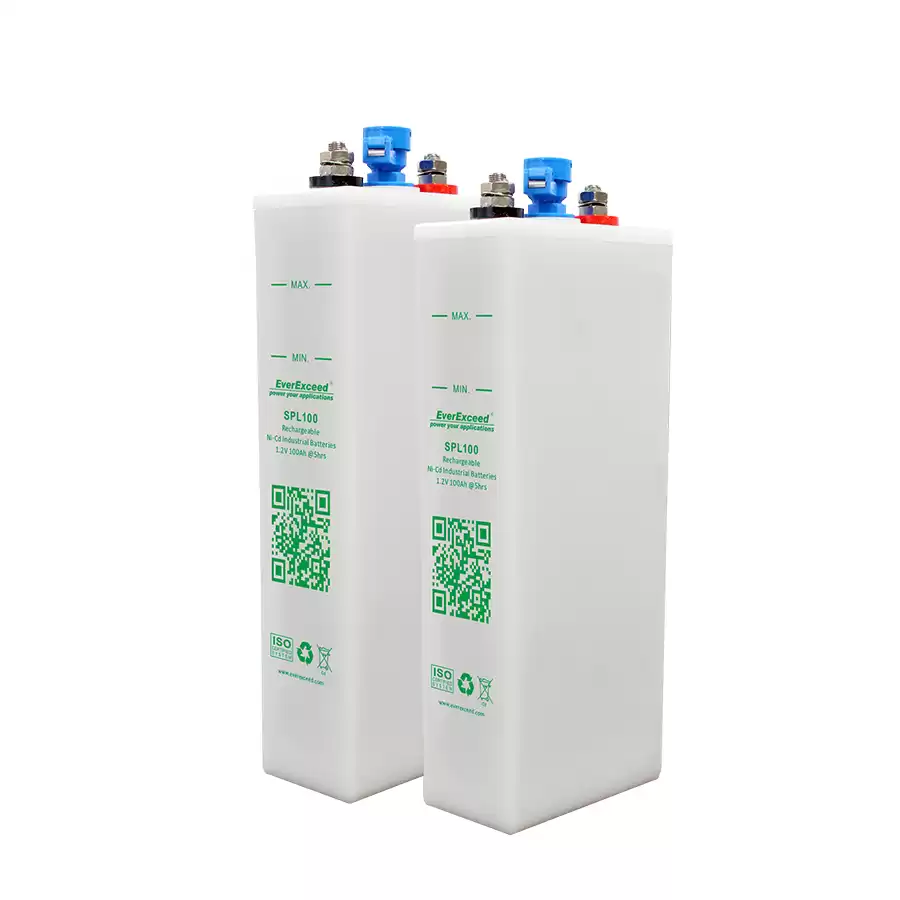

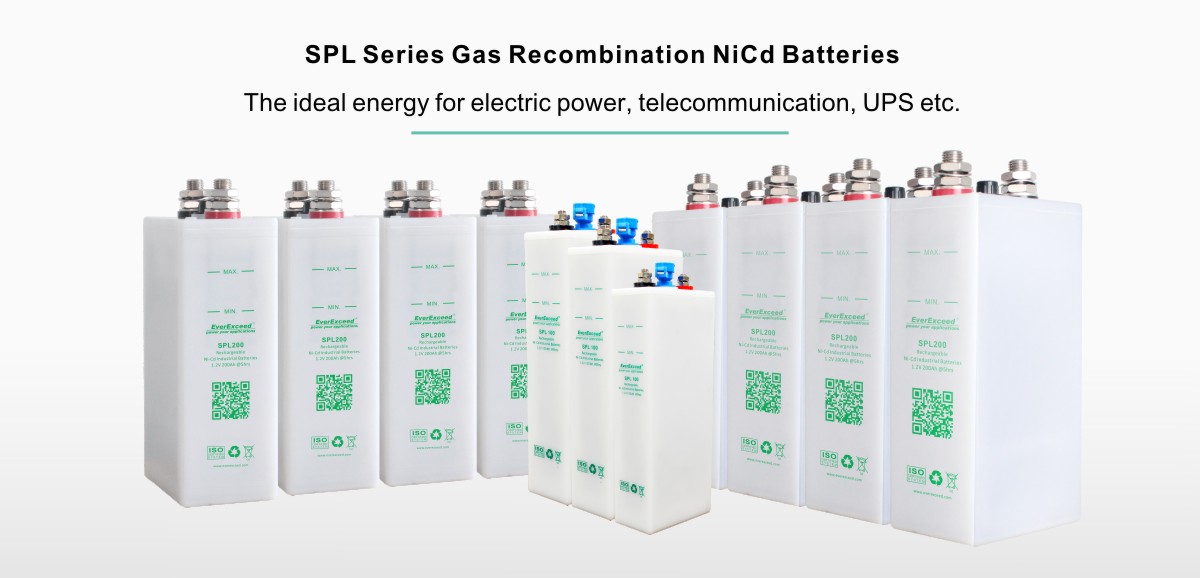

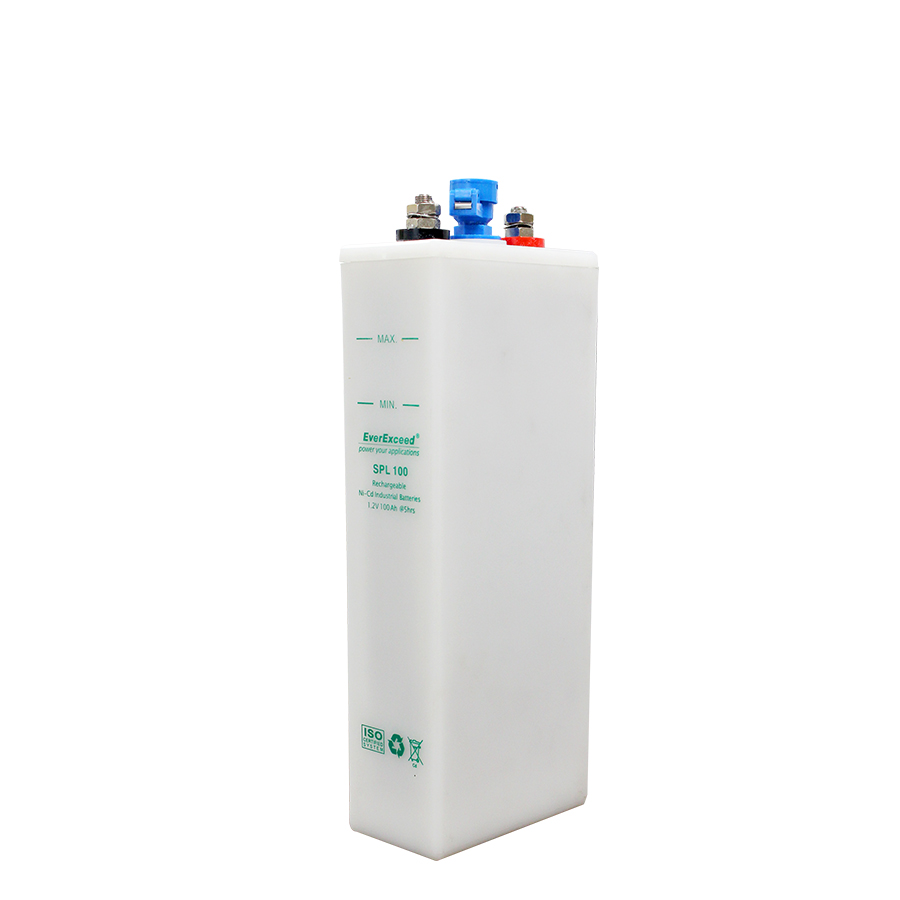

SPL Ultra-low Maintenance Gas Recombination Range NiCd Battery

EverExceed Gas recombination ultra-low maintenance Nickel cadmium battery adopts negative oxygen recombination technology and gas recombination vent plug technology, therefore, the water consumption inside the cell is ultra-low, which are widely applicable for electric power, telecommunication, mass transit, metallurgy, mining, lighting, UPS power supply and other devices as standby DC power supply, as well as energy storage power for solar and wind energy.

  • ModelSPL Series
  • UsageOffshore oil and gas； Emergency lighting； Fire and security；Telecoms； Utilities； Photovoltaics ；Other back-up power supply for infrastructure
  • CertificatesTUV;IEC;ROHS;DEKRA
  • Rated Voltage(V)1.2V
  • Rated Capacity(Ah)30Ah-1000Ah
  • OEM/ODM ServiceYes, customized
Facebook Twitter Pinterest LinkedIn 分享




Technical features:











More Environmentally Tolerant
More adaptable
Low TCO
SPL series performs in the most severe conditions and can operate over a temperature range from 0°C to +40°C. It can surive extremes of temperature from -50°C to +70°C

Evercxceed SPL senes has become the first choice worldwide for trouble-free standby power in the most demanding applications.Offshore oil and gas, emergency lighting, fire and security,telecoms, tilties, photovoltaics. You can depend upon SPL series for perfect peace of mind
Most cost effective solution for any application - onshore or offshore - where long battery life, low maintenance costs, resistance to corrosion and total reliability are prime operating requirements










Easy installation & storage
Pocket plate technology
Superior reliability

Compact and lightweight, SPL series is easy to transport and install. It can be stored for one year without need of refresher charges


EverExceed's tried and tested pocket-plate technology. No physical plate degradation and no sudden death with resulting costly downtime

Battery case is made of high strength, corrosion resistance, translucent engineering plastics to provide high reliabilty.










Maitenance free long life
Assured quality
High efficiency
Up to 20+ years completely faithful service. No replacement cost & no downtime
Authorative TUV, CE certificates and IEC62259 test report
Gas recombination efficiency can reach 85%~95%, which reduces 90% water consumption

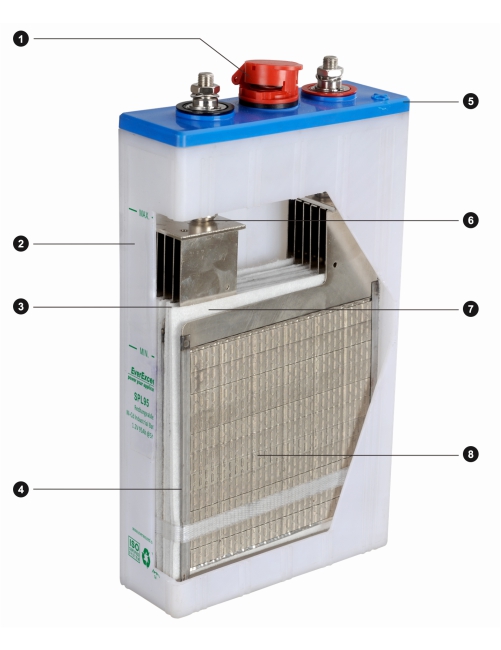

Nickel cadmium battery

① Low pressure flame-arresting vent


② Cell container Material: polypropylene


③ Plate group bus: Connects the plate tabs with the terminal post. Plate tabs and terminal post are projection welded to the plate group bus


④ Plate frame: Seals the place pocket and serves as a current collector


⑤ Cell cover Material: polypropylene


⑥ Terminal pole Material: nickel-pated steel bar


⑦ Separator Material: polypropylene fiber felt


⑧ Plate Horizontal pockets of double- perforated steel strips


Applications:

Offshore oil and gas； Emergency lighting； Fire and security；Telecoms； Utilities； Photovoltaics ；Other back-up power supply for infrastructure

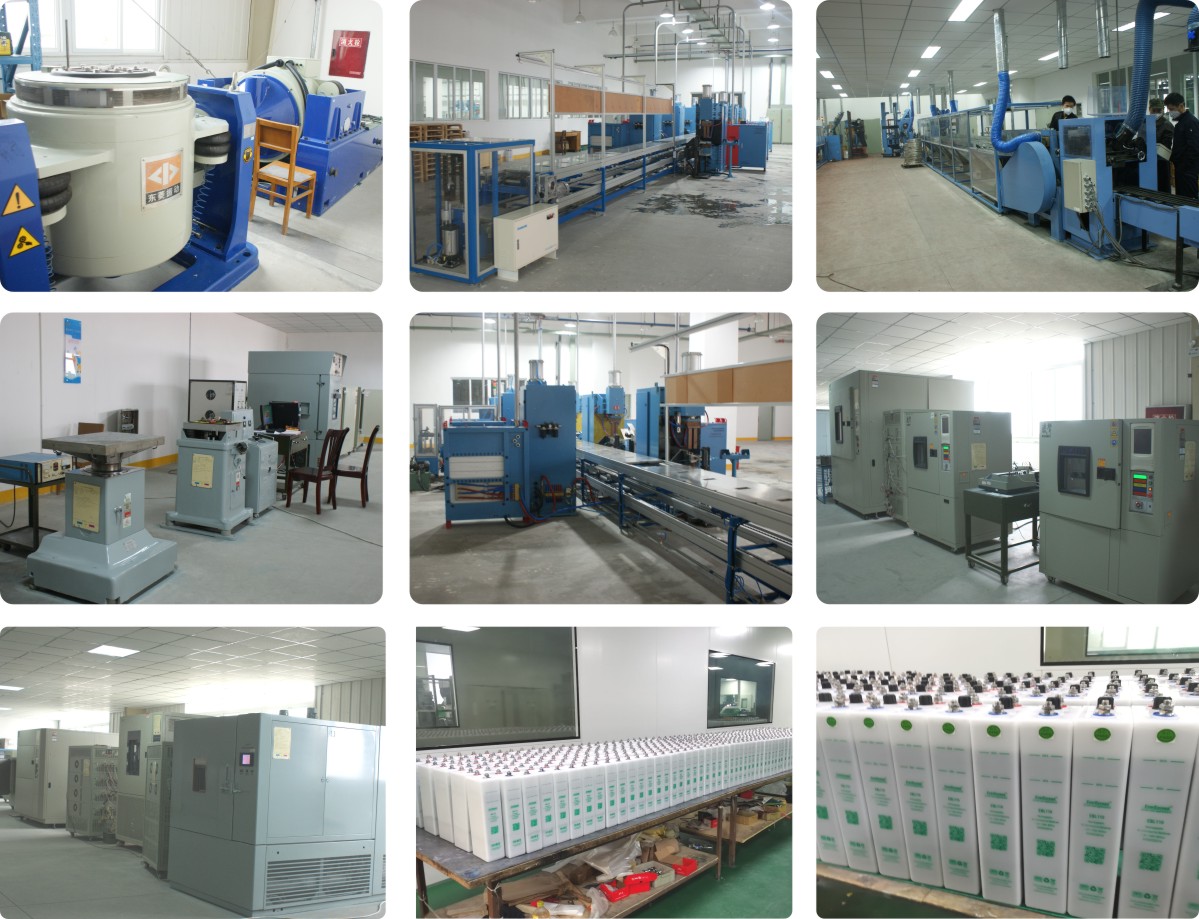

Factory:
