Split Test Cell for Lithium Air Battery Research
SPECIFICATIONS
The EQ-STC-LI-AIR is Split Test Cell for Lithium Air Battery Research. You can control air flow pressure and test various anode and cathode material at easy
|
Structure
|
1 Stainless Steel Structure with internal Silver- Clad surface treatment ensures high electrical conductivity and good
corrosion protection
2 Two electrodes design
3 Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings
4 Compact design fits in any benchtop glove boxes
|
|
Cell Thickness
|
1~3mm (cathode+separator+anode)
|
|
Bottom Recess Area
|
16mm Dia.
(The recess area can accommodate the electrodes with
size upto 16mm dia.)
|
|
Max. Working Temperature
|
250℃
|
|
Valves & Fittings
|
Two Stainless Steel needle valves and 1/16" tube connector is
installed on both gas inlet and outlet
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Dimensions
|
φ80*62mm
|

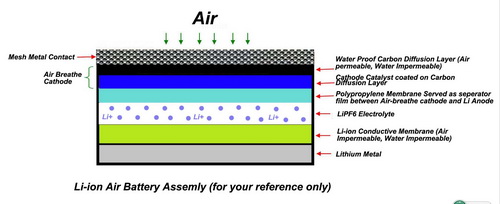

Lithium air battery structure

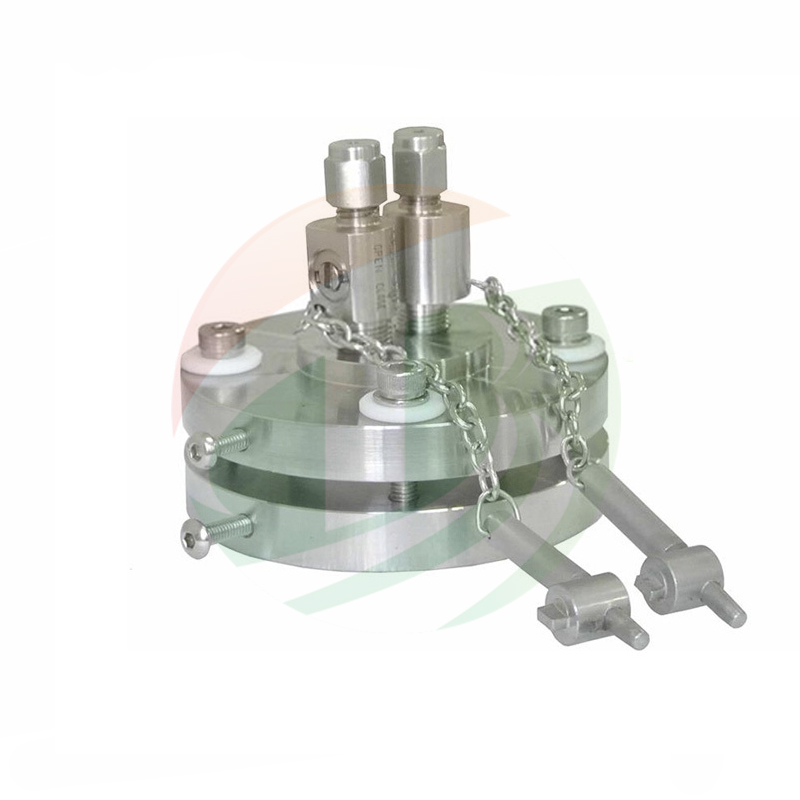

Product Display
