Spray Rating Tester AG20

Spray Rating Tester is used to determine the water resistance of any fabrics, which may or may not have been given a water-repellent finish, to surface wetting by water.

Facebook Twitter Pinterest LinkedIn 分享

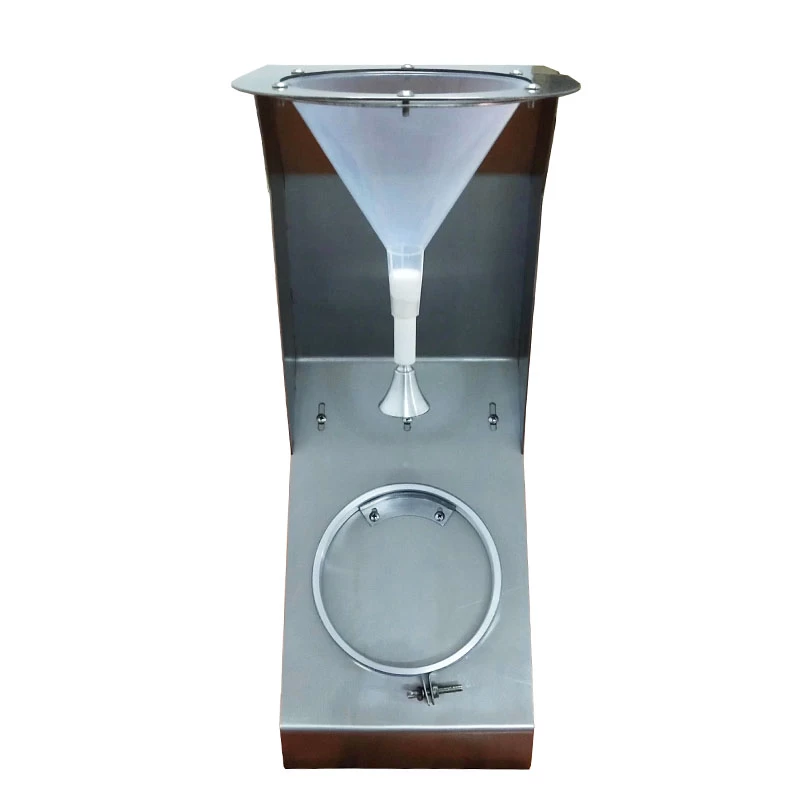

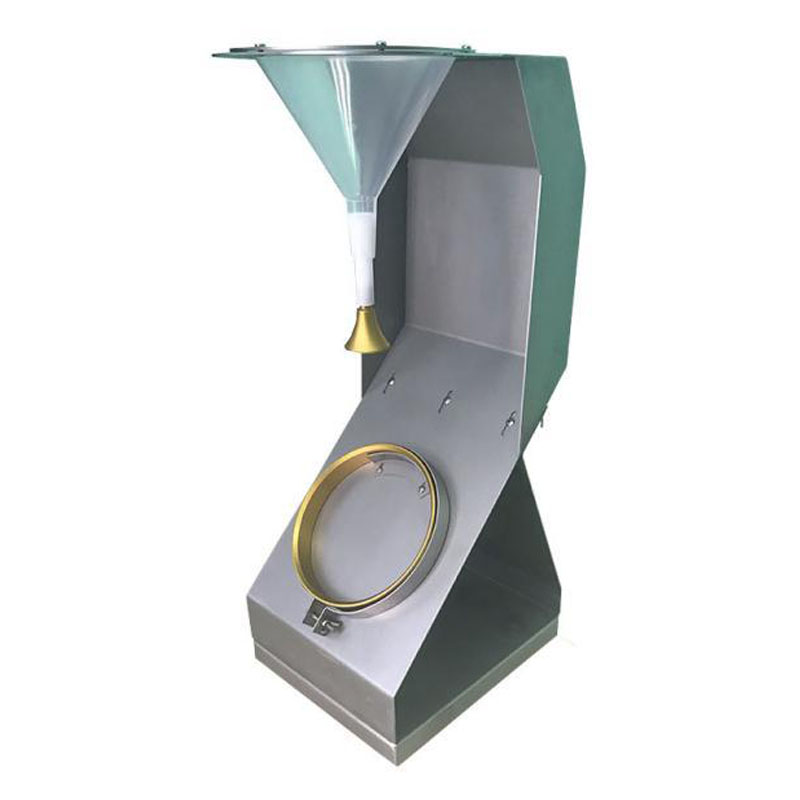

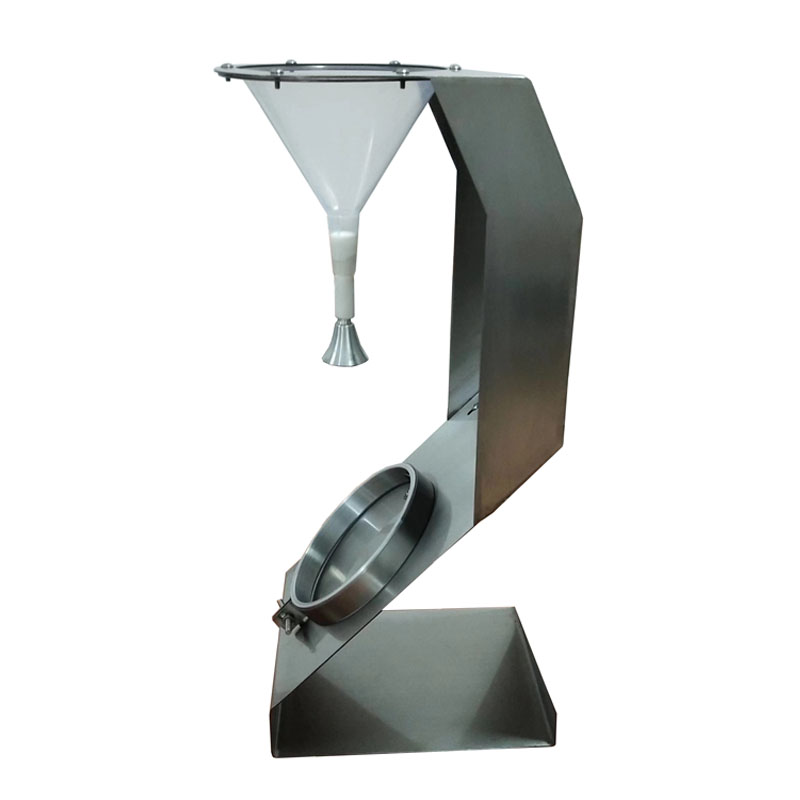

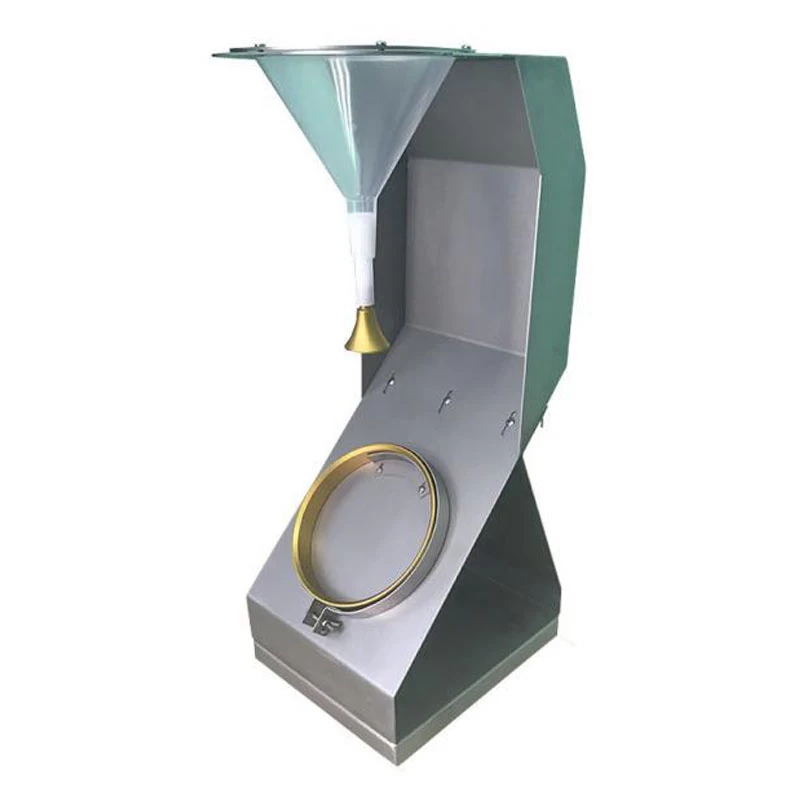

AG20-Spray Rating Tester


Application Of Spray Rating Tester

Spray Rating Tester is used to determine the water resistance of any fabrics, which may or may not have been given a water-repellent finish, to surface wetting by water. It is not intended to predict waterproofness, since it does not measure the penetration of water through fabric.


Standards Of Spray Rating Tester

AATCC 22, ISO 4920, JIS L1092, GB/T 4745.


Key Specification Of Spray Rating Tester

Model

AG20 Spray Rating Tester

Glass funnel

150×150 (V=500mL)

Laying angle of specimen

45degree

The distance between nozzle and center of specimen

150mm

Sample rack diameter

150mm

Matching measuring cup

250ml

Dimensions

50×40×50cm

Weight

5kg


Accessories Of Spray Rating Tester

Standard Accessories

Drip tray

1pc

Measuring glass

1pc

Nozzle

1pc

Sample fixture

1pc

Related products

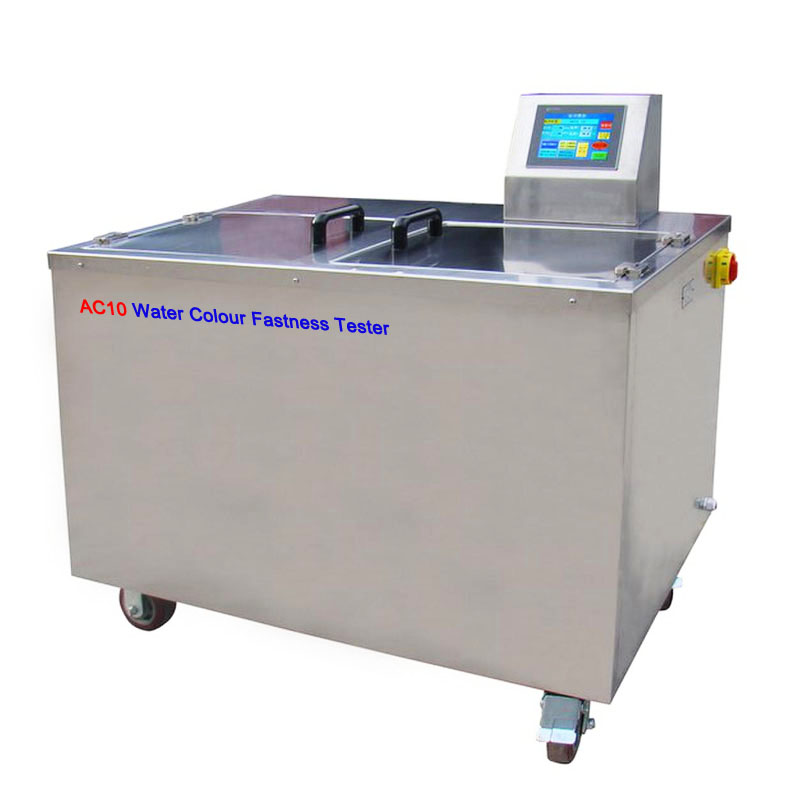

             Rain Tester                                      Ozone Test Chamber                             Water Colour Fastness Tester
