SQ16SK4Q IsuzuTruck loader crane Cargo crane truck

SQ16SK4Q IsuzuTruck loader crane Cargo crane truck

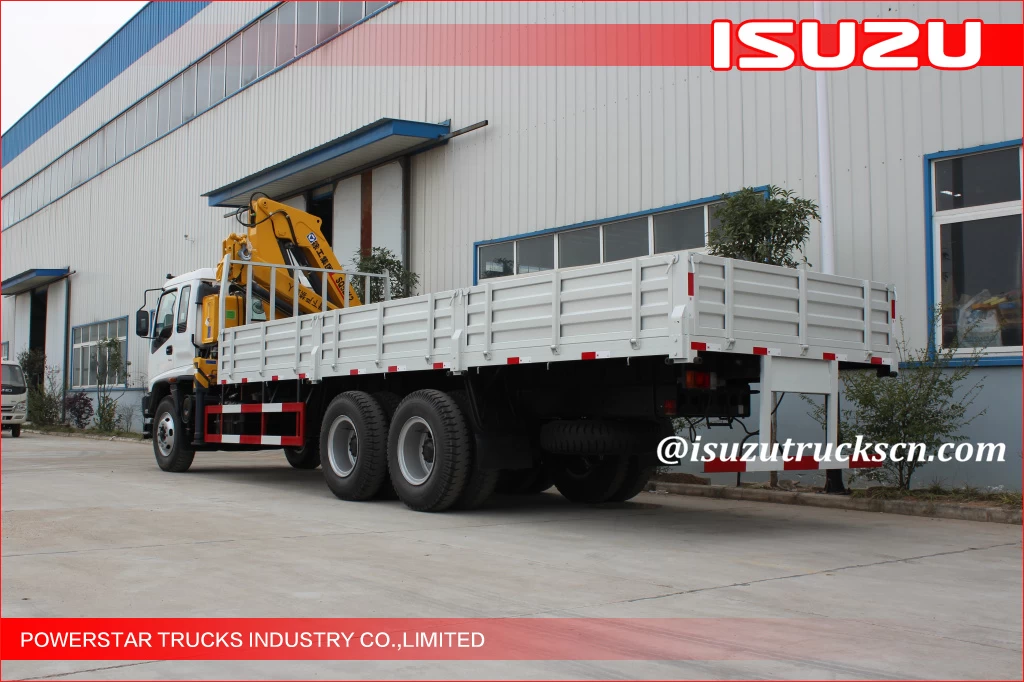

ISUZU Mobile Telescoping Boom Truck Crane, 16T 80 L/min Oil Flow

1. Name: Telescoping boom crane, ISUZU Lorry mounted crane, ISUZU Cargo crane truck, Truck loader crane, Hydraulic truck crane
2. Max. Lifting Capacity: 16 ton
3. Max. Lifting Moment: 40 T.M
4. Max. Oil Flow of Hydraulic System: 80 L/min
5. Max. Lifting Height: 20meters
6. Brand: XCMG
7. Crane Weight: 6020 kg
8. Oil Tank Capacity: 260 L
9. Feature: safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
10. Application: used in commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arms are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

Telescopic boom crane SQ16SK4Q is lifting capacity is 14tons moment is 40 T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Optional parts:

1, Moment limited device

2, Remote control equipment

3, Anti-overwind magnet valve

4, High seat on column

5, Work light

6, Assistant stabilizer leg
