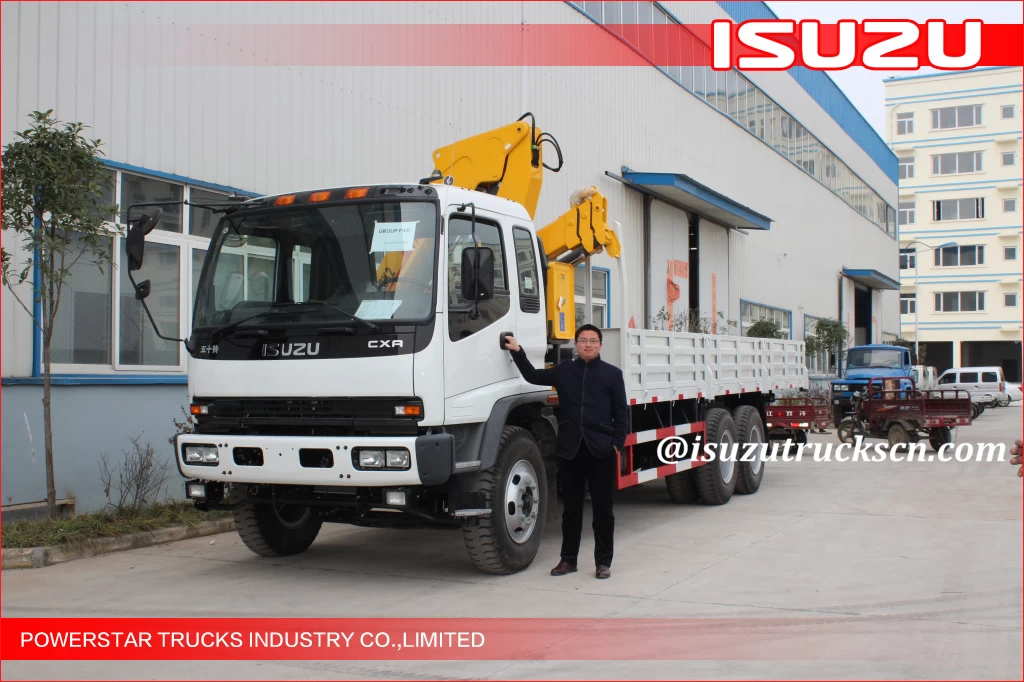

SQS300 V ISUZU Telescopic Boom Truck Crane Mounted With12000 kg Crane
SQS300 ISUZU Telescopic Boom Truck Crane Mounted With12000 kg Crane
General Advantages
1. Single cable and synchronic extension can make the work more efficient.
2. Advanced techniques can promise designs more reliable.
3. Crane boom is pentagon or hexagon, which makes anti-mending capacity much better.
4. Hinge points are compact, which takes up less space.
5. It is more safe to operate due to the overwind device.
6. The integral winch improves the work efficiency and prolongs the life of hydraulic.
7. The unique design of float three-point bridge can reducestress on the chassis during travel.
8. The rotation mechanism is self developed with powerful drive to meet different requirements of work.
9. Anti-slewing device makes driving more safe.
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescopic boom crane SQS300 V is lifting capacity is 12tons, moment is 30T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Technical Parameters:
Model
|
SQS300 V
|
Unit
|
Max Lifting Capacity
|
12000
|
kg
|
Max Lifting Moment
|
30
|
T.M
|
Recommend Power
|
30
|
kw
|
Max Oil Flow of Hydraulic System
|
80+32
|
L/min
|
Max Pressure of Hydraulic System
|
26
|
MPa
|
Oil Tank Capacity
|
200
|
L
|
Rotation Angle
|
360°All Rotation
|
Crane Weight
|
4385(4450)
|
kg
|
Installation Space
|
1300
|
mm
|
Choice for Chassis
|
ISUZU ,UD, HINO, IVECO
|
SQS300 V Lifting capability diagram
|
Working radius (m)
|
2.5
|
5.0(5.15)
|
8.0
|
10.5(10.8)
|
13.5
|
16.5(16.3)
|
20
|
Lifting capacity (kg)
|
12000
|
6000
|
3800
|
2500
|
1700
|
1300
|
700
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
