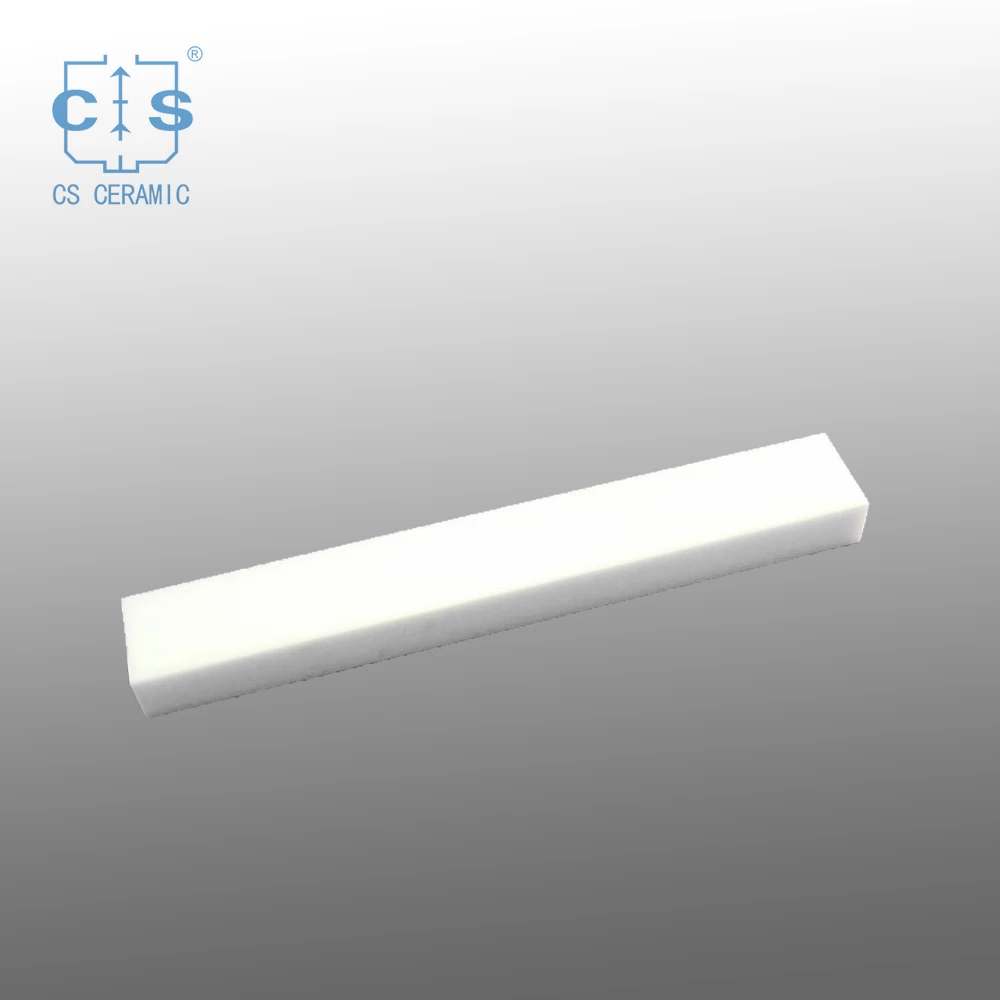

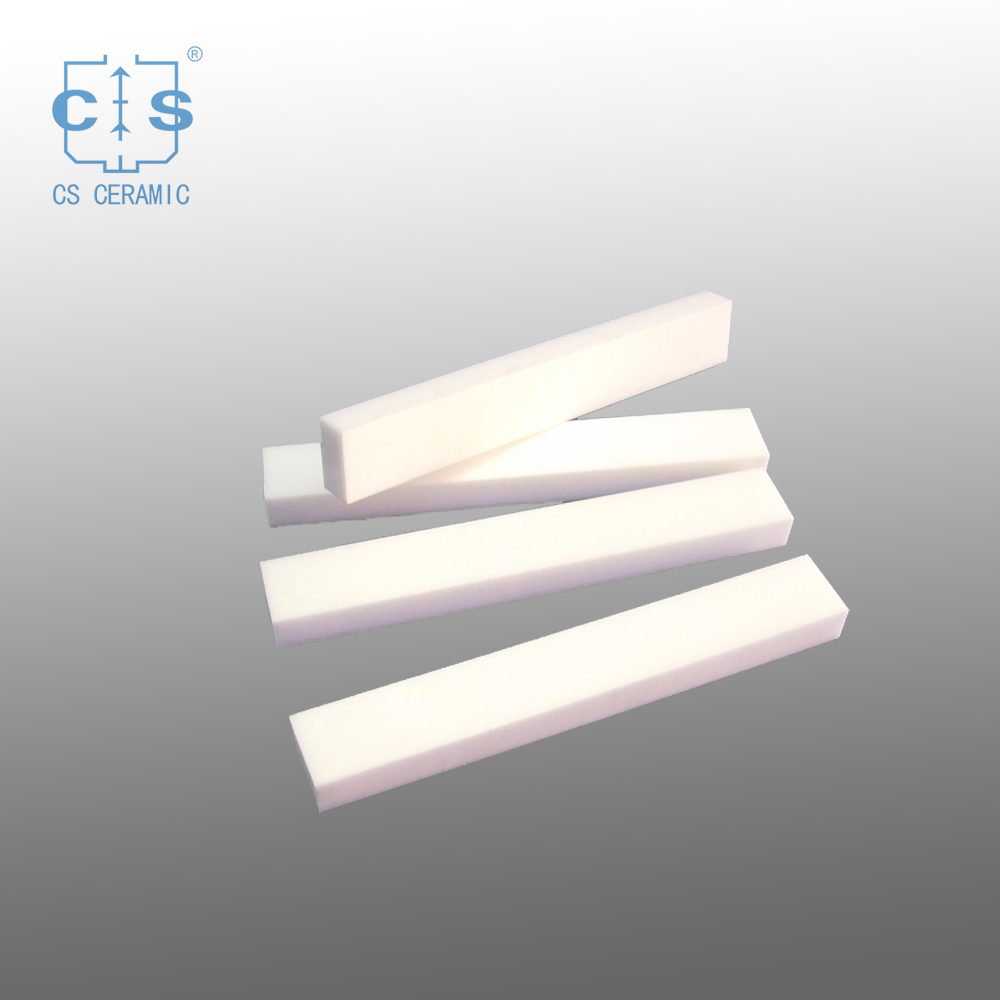

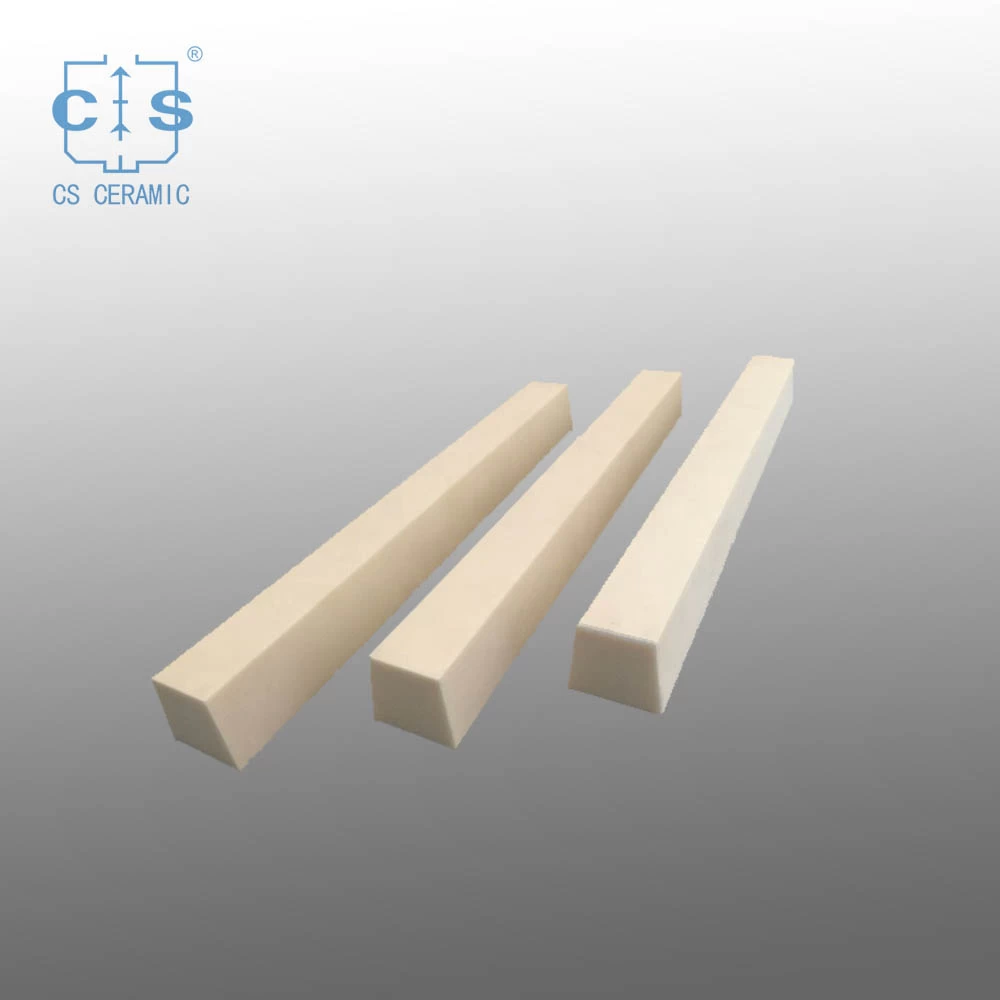

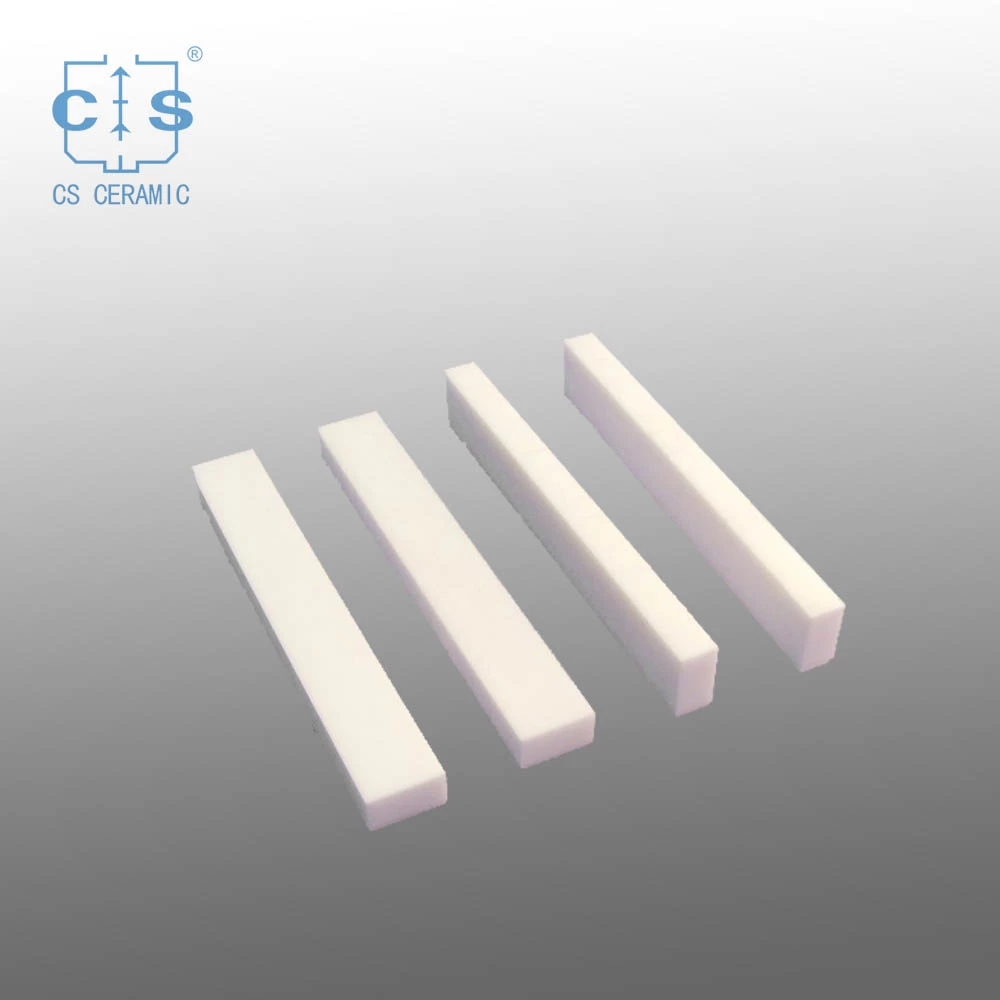

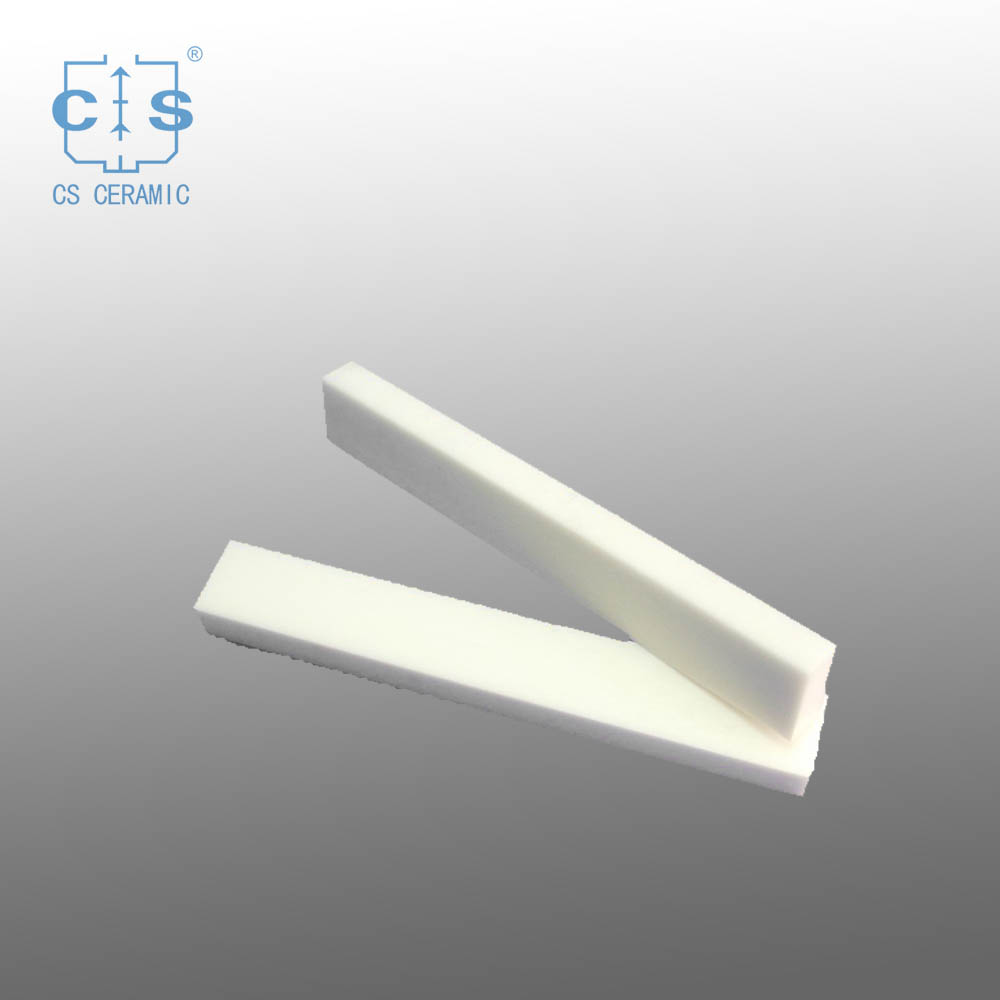

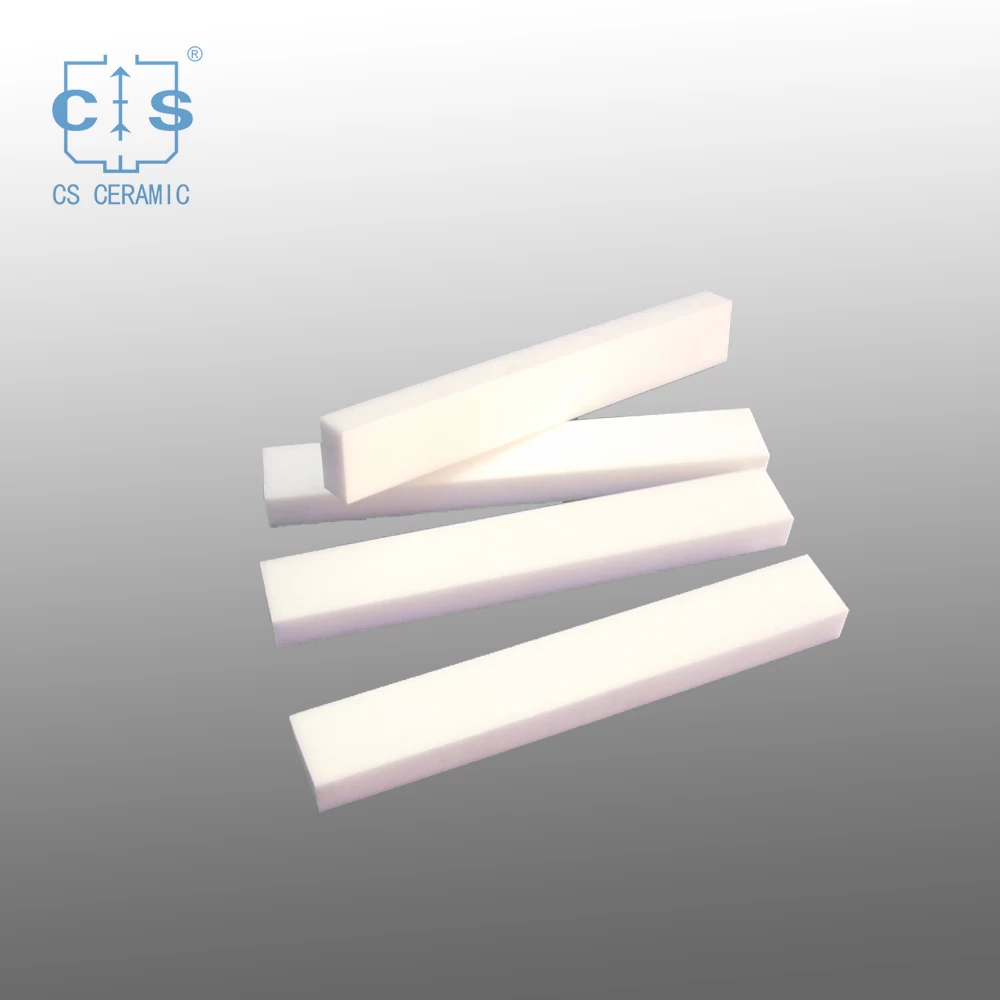

Square Alumina Ceramic Rods

Ceramic alumina ceramic insulator ceramic rod,Excellent insulation ,security , long working life.Excellent heat radiation, small size ,more environmental and energy-efficient .







  • Length1-2500mm
  • Purity Available90% 95% 99% 99.5% 99.7%
  • MaterialAlumina ceramic
  • ShapeSquare

Product Item: Square Alumina Ceramic Rods


Szie :


Square  Alumina Ceramic Rods

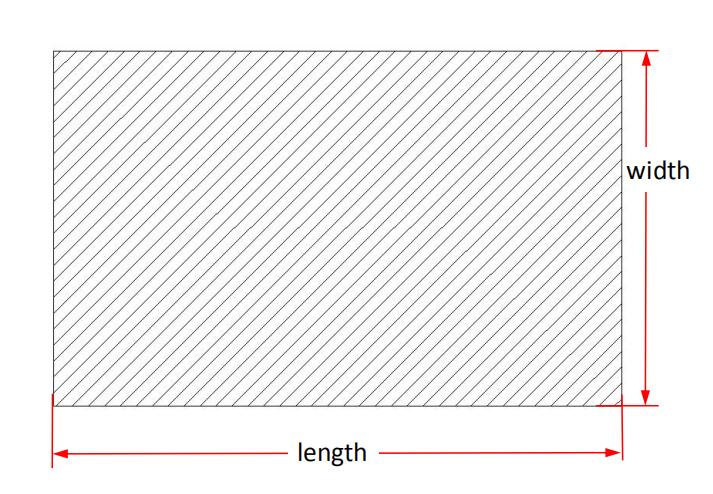

Item NO. length * width (mm) Length/Purity  Available Item NO. length * width (mm) Length/Purity  Available Item NO. length * width (mm) Length/Purity  Available
CS-AT-092 1.8*1.0 L≤2500mm Al2O3=99%   Al2O3=99.5%  CS-AT-99 8.5*8.5 L≤2500mm Al2O3=95% Al2O3=99%   Al2O3=99.5%  CS-AT-106 10.0*5.0 L≤2500mm Al2O3=95% Al2O3=99%   Al2O3=99.5%
CS-AT-093 2.4*2.4 CS-AT-100 9.0*8.2 CS-AT-107 12.0*4.5
CS-AT-094 2.5*2.5 CS-AT-101 9.5*2.8 CS-AT-108 12.0*8.0
CS-AT-095 4.0*4.0 CS-AT-102 9.6*5.5 CS-AT-109 15.0*15.0
CS-AT-096 5.0*5.0 CS-AT-103 10.0*2.0 CS-AT-110 24.0*8.0
CS-AT-097 6.35*6.35 CS-AT-104 10.0*4.0 CS-AT-111 24.0*8.0
CS-AT-098 7.5*5.0 CS-AT-105 10.0*4.5



CS CSCERAMIC Alumina Rod Features and Advantage

1.Great mechanical strength

2.Low thermal conductivity

3.High heat resistance

4.High softening temperature

5.Small thermal expansion coefficient

6.Good cold-resistance heat-resistance

7.Resistance to acid and alkali corrosion

8.Long service life




Application :

1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.

2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-rlieving, pre-heating & post heating, other resistance-heating environment

3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.

4). high-power electrical applicance and all kinds of insulation device.


Why choose CS CERAMIC

6 Steps Inspection Processes

15+ Years Oversea Market experience

30+ Years Manufacturer

300+ Members Professional Team

8000+ Kinds of Molds in Stock


If need open new mould, please send us detail specification and design drawing firstly, we'll reply you in 24 hours.  Contact email: info@csceramic.com
