Higao Tech supply best price of

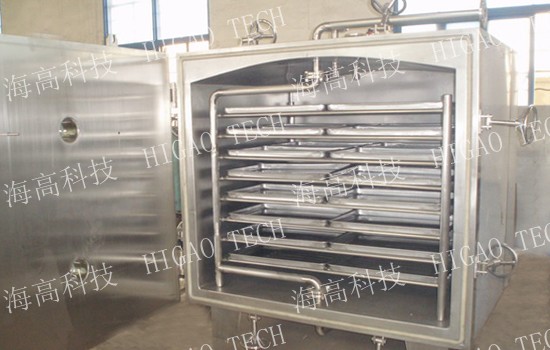

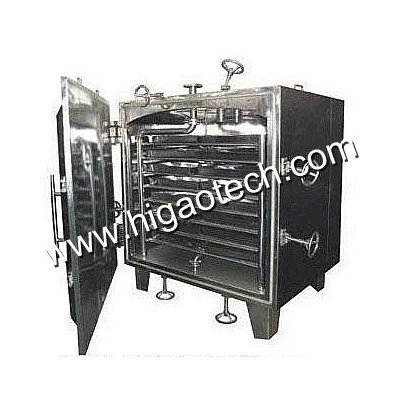

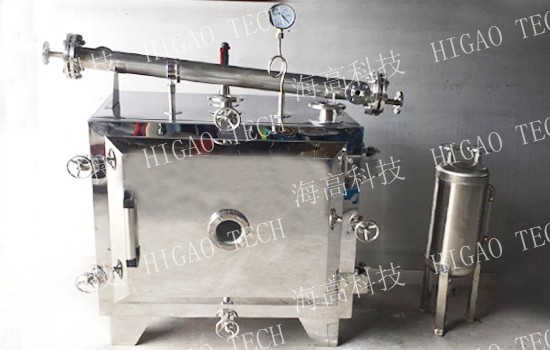

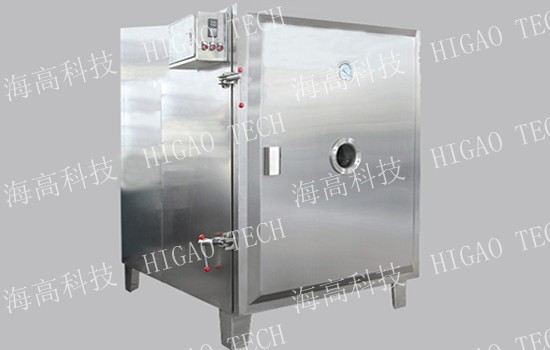

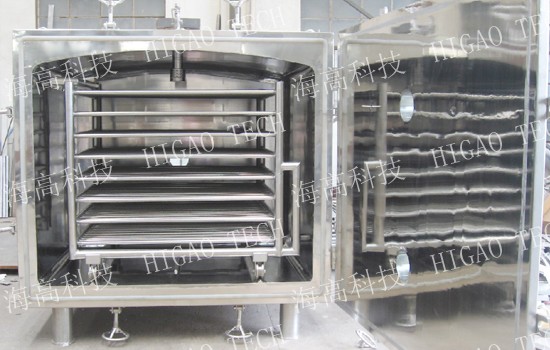

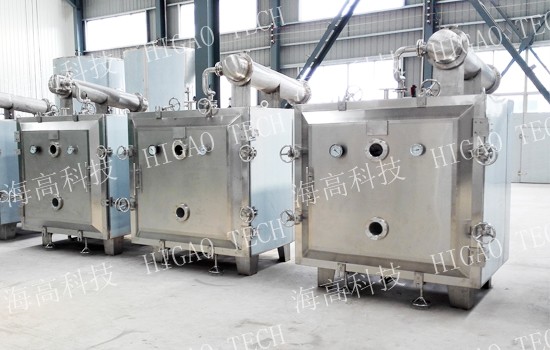

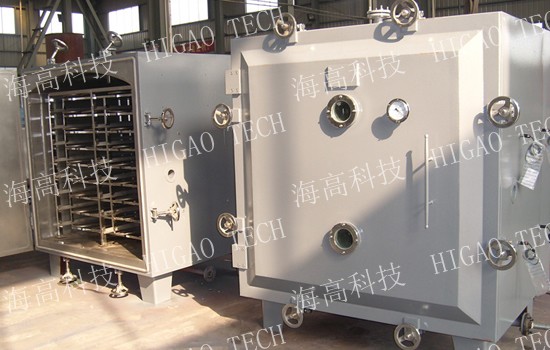

square static vacuum dryer machine in china. Square static vacuum dryer machine has the same function as round shape static vacuum tray dryer machine, The only difference is the different shape. Customers choose as per their preference.
1. Description:
Square static vacuum dryer means putting raw materials to heat and dry under the state of vacuum.
Fit for drying heat sensitive raw materials that can decompose and polymerize and metamorphose and deteriorate under high temperature in pharmaceutical, chemical, food and electronic industries.
2. Features:
(1) Under the condition of vacuum, the boiling point of raw materials will decrease and the heat conducting pushing force of evaporator will increase. Thus for a certain amount of heat radiation, the conducting area of the evaporator can be saved.
(2) The heating source for evaporation could be low pressure steam or surplus heat steam.
(3) Heating loss of the evaporator is reduced.
(4) Especially suitable for drying heat sensitive materials which are easy to dissolve, agglomerate or polymerize or denature.
(5) Customer can carry out the treatment of disinfection before drying to avoid impurities during the period of drying.
(6) It is a static dryer. No demage to the shape or structure of raw materials.
3. Notice:
(1) Before placing order, please choose suitable vacuum dryer in accordance with the physical property, primary moisture and final moisture of raw material and factors such as temperature, vacuum level, drying capacity and drying time, etc. Round static vacuum drying machine has four heating ways, steam, hot water, heat conduction oil and electricity.
(2) In order to increase the output of product, the drying layer can be increased accordingly.
(3) Choose the auxiliary parts of vacuum drying system which is indicated in operation manual and supplied and installed by us.
(4) We can also design, manufacture and install as request for some special requirements.
(5) If use vacuum pump to take out air and humidity, the drying speed will be faster.
(6) If use condenser, the solvent in raw material can be recovered. If the solvent is water, condenser might be canceled and the cost could be saved.
