Product Description
Suction cup electromagnet requirements of the object surface should be as flat as possible, and the adsorption area should not be less than the suction side of the electromagnet, otherwise it will affect the suction, the effective distance of 0.
The suction can be adjusted by adjusting the voltage within the rated voltage range, but not exceed the rated voltage.
Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc
Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.
The product is a cuboid. Two wires are drawn from the end of the cuboid. The thickness of the wires is determined by the size and power of the electromagnet. The accurate voltage is connected to the electromagnet. There are no positive and negative poles. After the product is electrified, the magnet's absorbing surface produces magnetism, which will attract the objects that will be absorbed. When the power is cut off, the magnetism of the electromagnet disappears and the objects that the electromagnet absorbs will be released. Next.
The square electromagnetic suction cup adopts the main structure of the square. The magnetic field is distributed on the suction surface of the square end face. After electrification, the suction surface is magnetic. There is no magnetism after power cut. The absorbed articles must be magnetic conductive materials. The product surface and outlet line are sealed with glue, which can be better waterproof and moisture-proof, and can also work in water.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H251208 square electromagnet
|
|
Model
|
H251208
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
2w
|
Force
|
8N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.02kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M4,8
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
L25*W12*H8(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
square holding electromagnet
1.Holding type, square shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release circular electromagnet

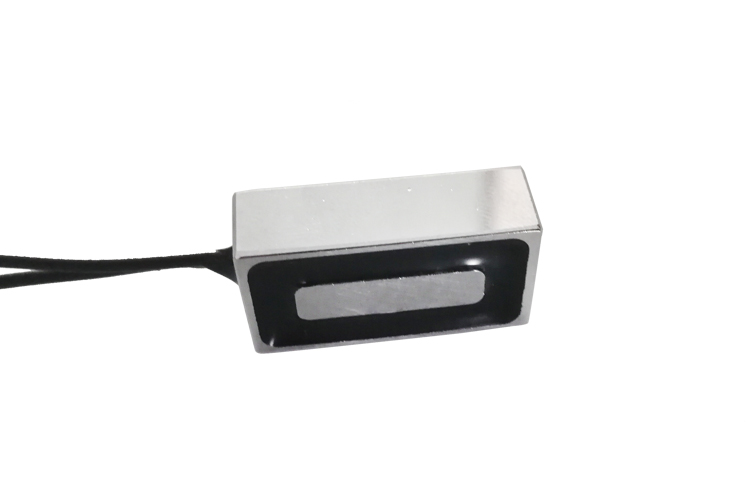

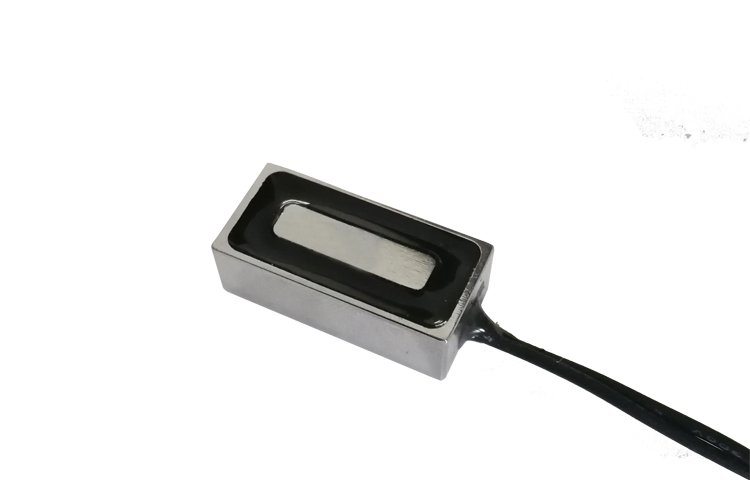

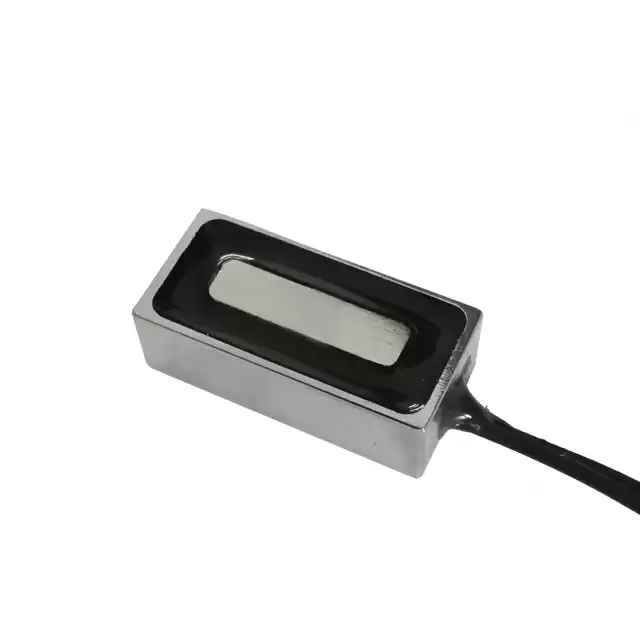

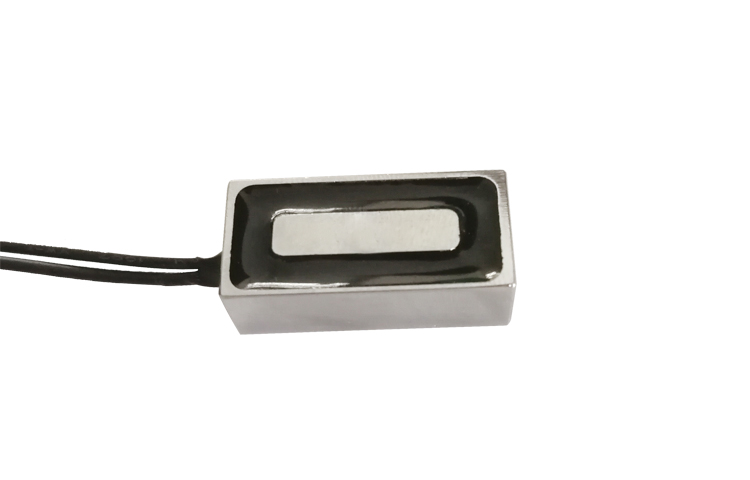

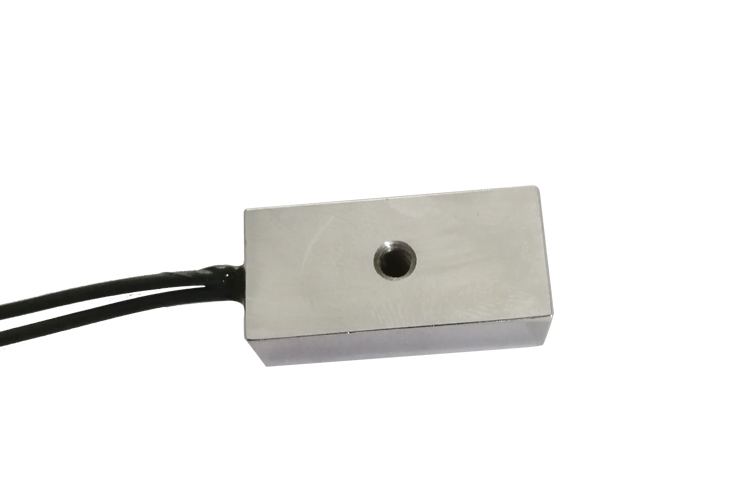

Detailed Images
