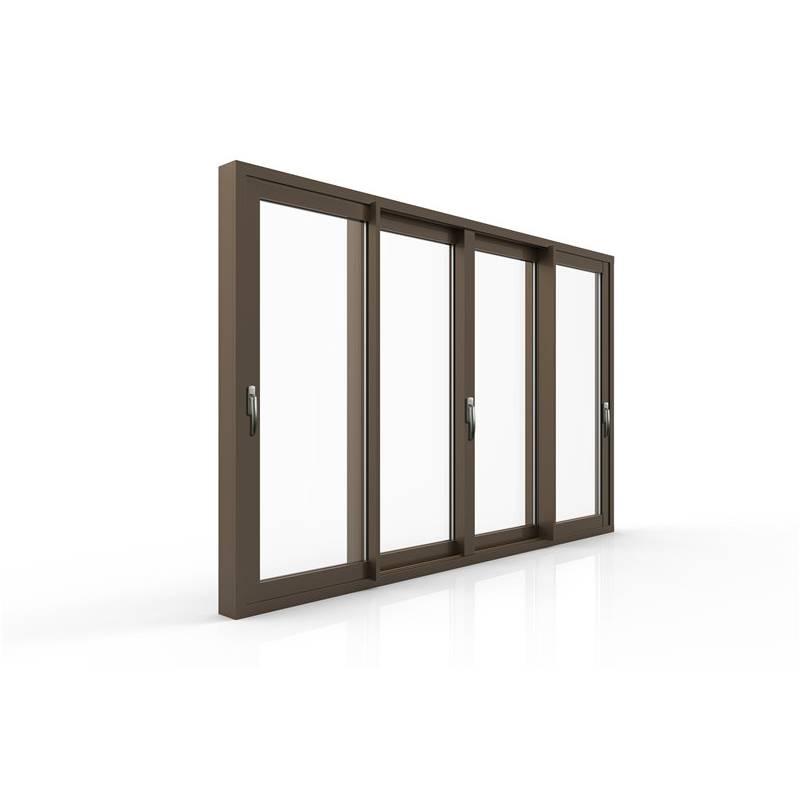

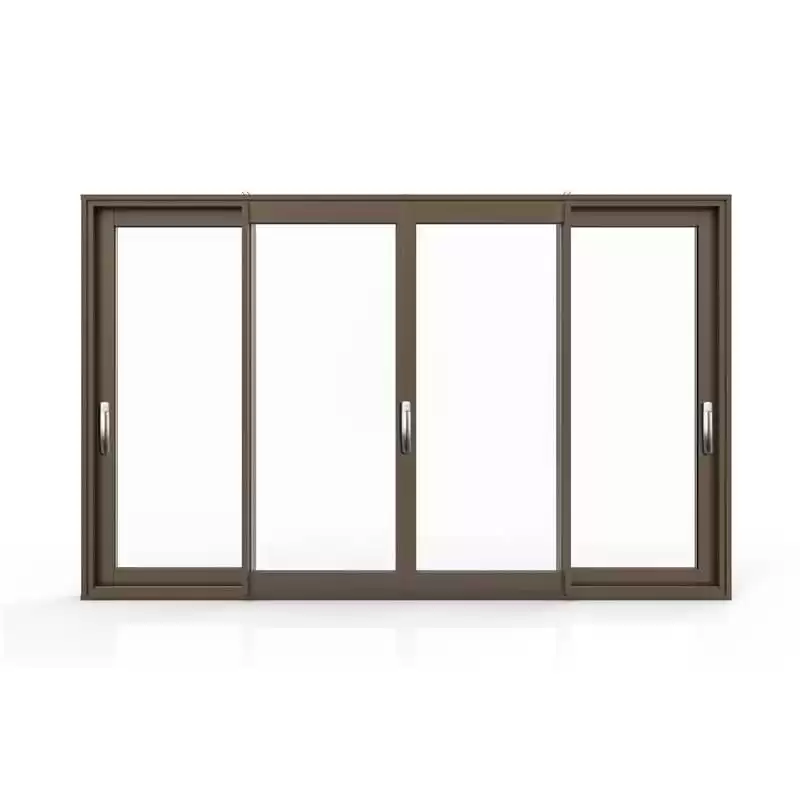

SSD104 Heavy Duty Aluminium Lift and Slide Door

SSD104 is a high-end class LIFT-SLIDE system, for huge opening with impressive and luxurious
SSD104 system has an Intelligent and smart drainage device guarantees water tightness.


  • PositionExterior
  • Surface FinishingPowder Coating/Anodized/Eletrophoresis/PVDF
  • GlassClear/Frosted/Reflective/Low-E
  • Product OriginChina
  • CustomAvailable
  • Opening PatternSliding
  • MaterialAluminum Alloy



SSD104 Heavy Duty Aluminium Lift and Slide Door



These sliding glass doors are a great, space-saving option for your backyard, patio or deck. They slide open while staying flush with your wall, so you can gain quick access to the outdoors, even in tight spaces.



FEATURES



  • SIMPLE OPERATION - Dual ball-bearing rollers, self-contained leveling adjusters, and climate-neutral performance mean easy operation, even in the toughest environments.
  • CONVENIENCE - The frame is covered with a rigid vinyl sheath for durability and minimal maintenance.
  • PEACE OF MIND - Solid, secure construction with multiple locking points offer an added level of security.
  • COMFORT - Continuous weather-stripping and interlocking design features help keep your home draft-free and provide energy saving.
  • VERSATILITY - Available in single and multi-panel configurations, as well as custom sizes.



Parameters
Sash Width/Height
(mm)
Visible Width
(mm)
Depth
(mm)
Glass Thickness(mm)

/idth   720-3300mm
/eight 1800-2700mm                Weight  300kg

Fame Width   40mm
Sash  Width  100mm
Frame Depth  130/190mm
Sash  Depth   50mm
SGU:
8-10mm
DGU:
24-35mm



Performance
Heat Insulation
W(m2.k)
Sound Insulation
(DB)
Water Tightness
(Pa)
Air Tightness
Wind Load
(KPA)
2.3-2.8
level 5
35DB
level 3
500PA
level 5
level 6
3.1KPA
level 5



WHY CHOOSE US

Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.

Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.

System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.



FAQ

Q: Are you trading company or manufacturer?

A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience.  And you are warmly welcomed to visit us.

Q: How long is your delivery time?

A: Generally it is 15-20 workdays after receiving payment.

Q: Do you provide samples for free? What's the MOQ?

A: The new die samples are free for approval and inspection. The MOQ is 8-10tons

Q: What is the payment terms?

A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
