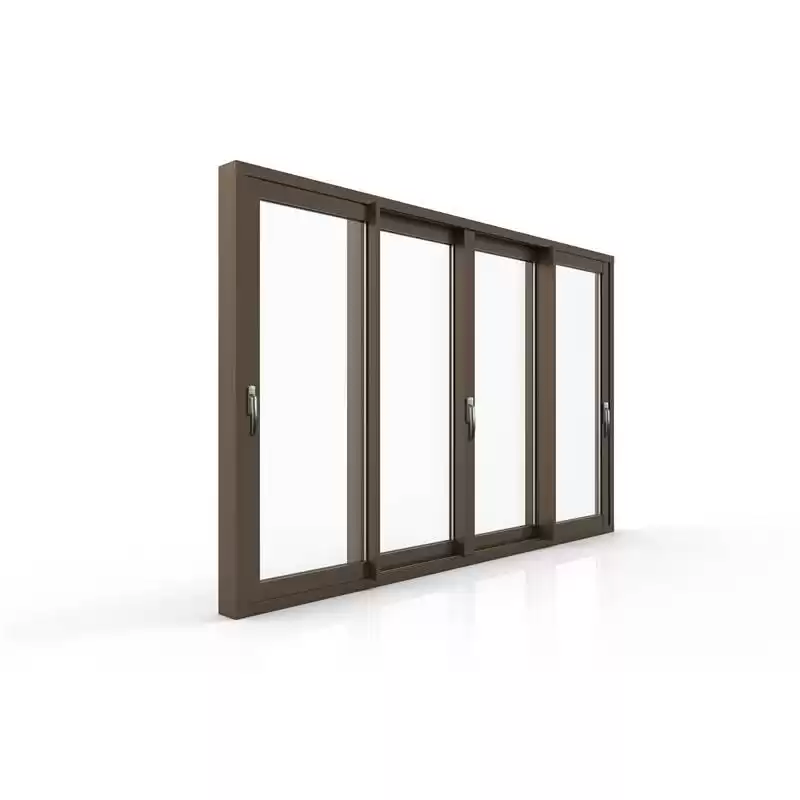

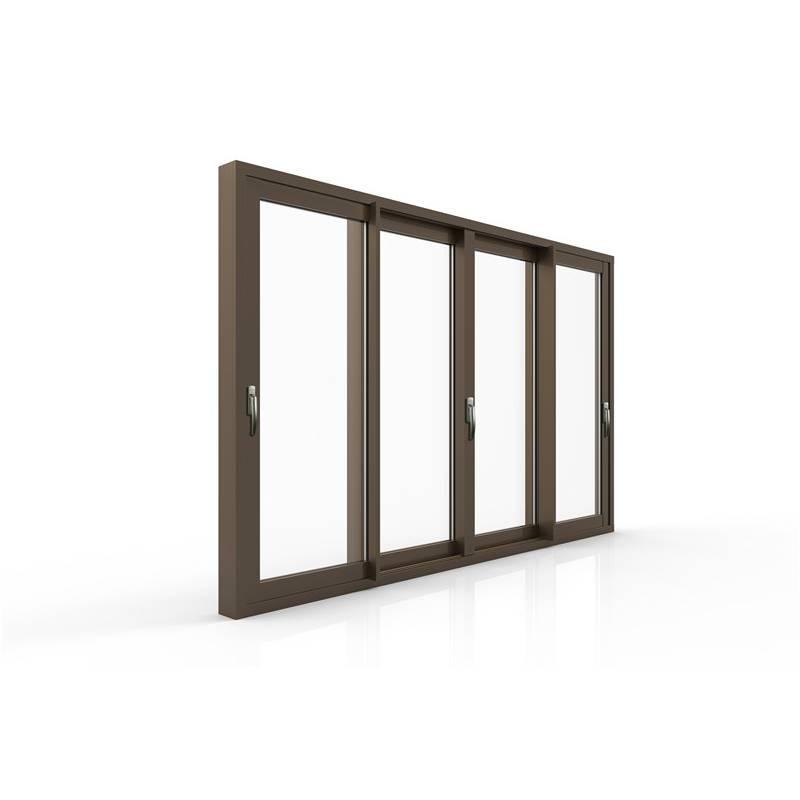

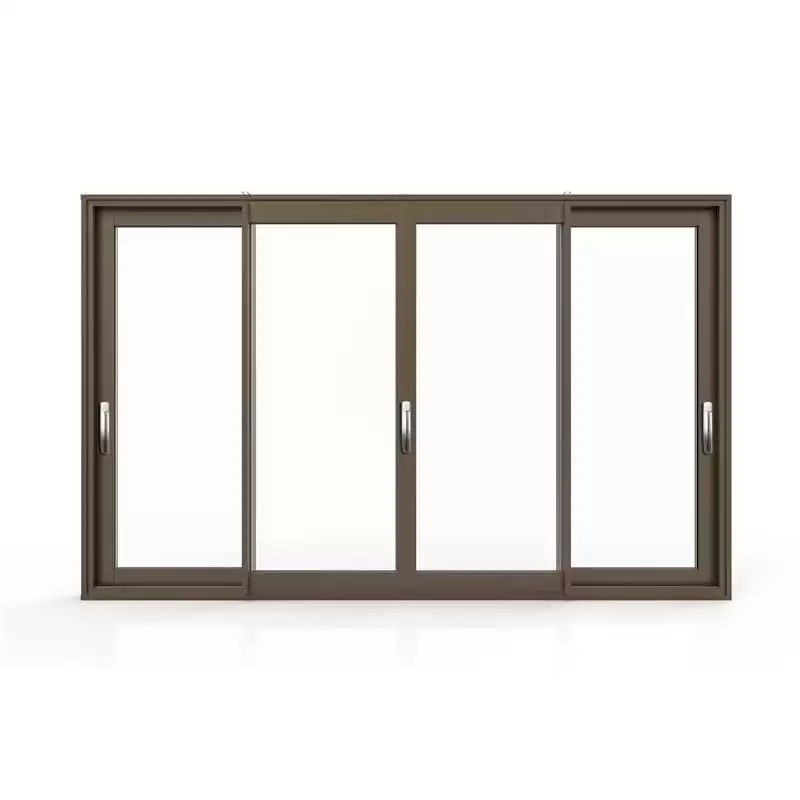

SSD104 Standard aluminum alloy slim frame sliding patio door
Sliding patio doors are a great addition to any home. They look great, offer good views of the outdoors and allow huge amounts of natural light to enter the home, which helps to cut down on energy and lighting costs.
- The aluminium fly screen windows gives you shielding from insects, damaging sun rays, and provides total privacy.
- Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buildings.
- The new drainage design guarantees the excellent water tightness.
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
|
Casement Window
-Width 300-800mm
-Height 300-1800mm
-Weight 45kg
|
HCW49
Frame Width 51mm;
Sash Width 74mm.
HCW100(with steel fly screen sash)
Frame Width 49mm;
Sash Width 74mm.
|
HW49
Frame Depth 49mm
Sash Depth 49mm
HW100(with steel fly screen sash)
Frame Depth 100mm
Sash Depth 49mm
|
SGU:
4-10mm
DGU:
14-35mm
|
| Performance |
|
Heat Preservation Performance
W(m2.k)
|
Sound Insulation Performance
(DB)
|
Watertight Performance
(Pa)
|
Airtight Performance |
Wind Load Resistance
(KPA)
|
|
6+12A+6 Low-E,2.3-2.8,
level 5/6
|
35DB
level 4
|
500PA
level 5
|
level 6 |
4.1KPA
level 7
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
