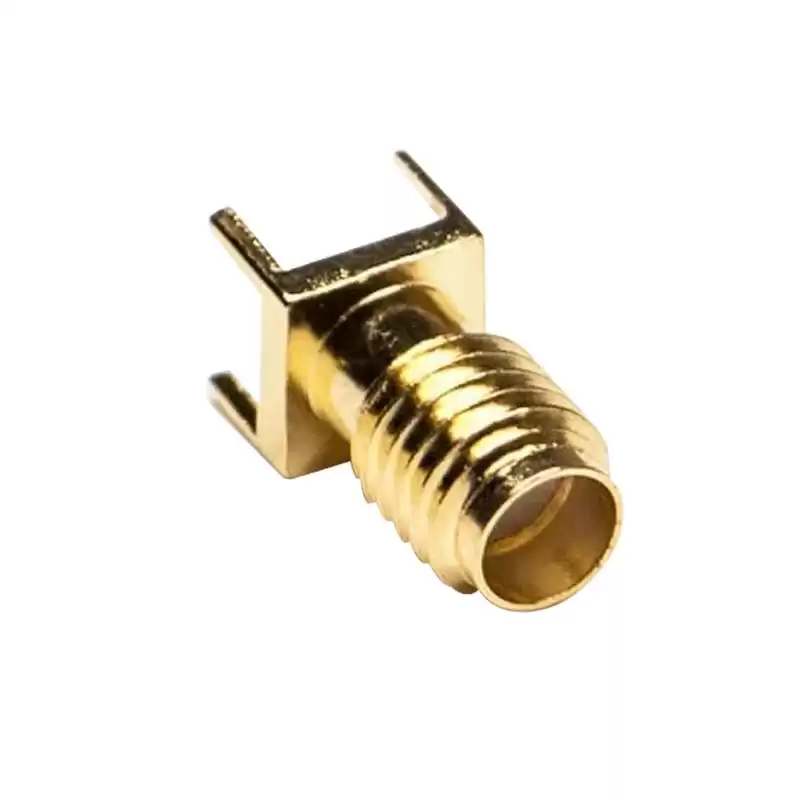

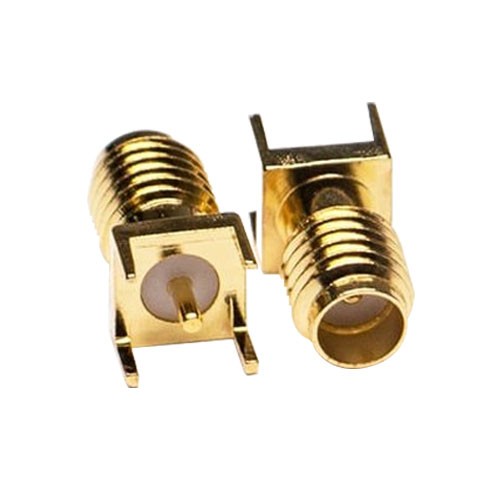

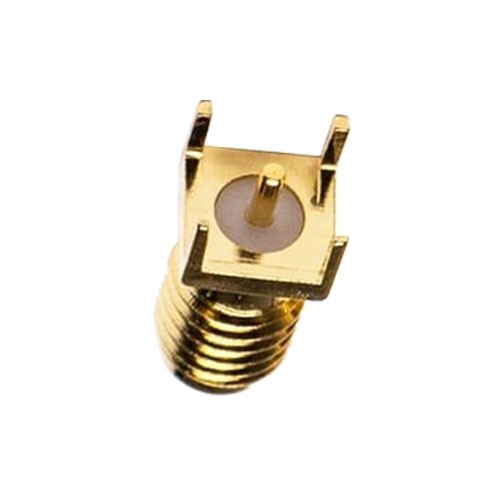

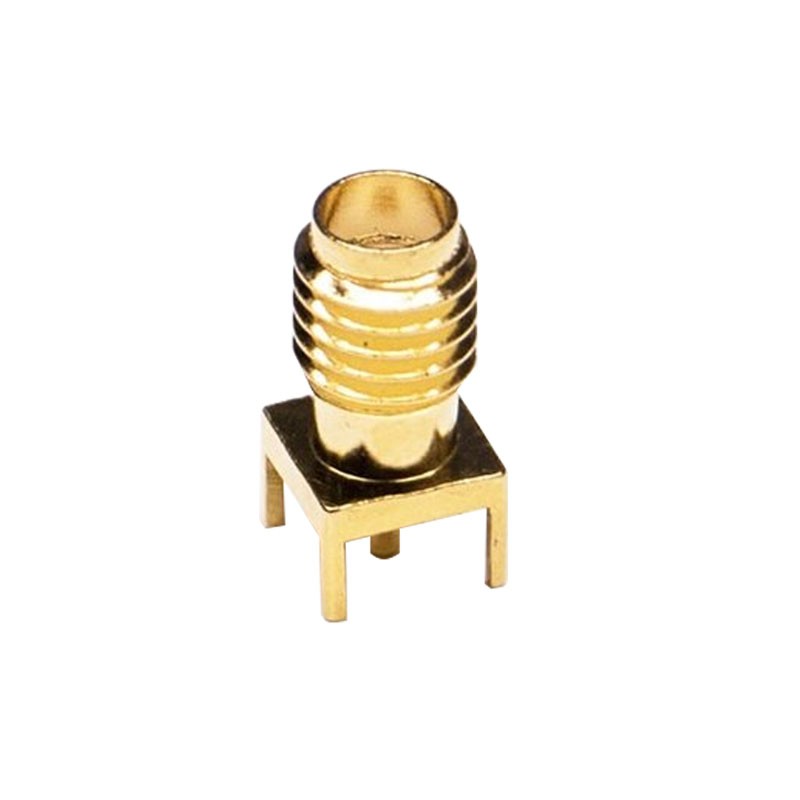

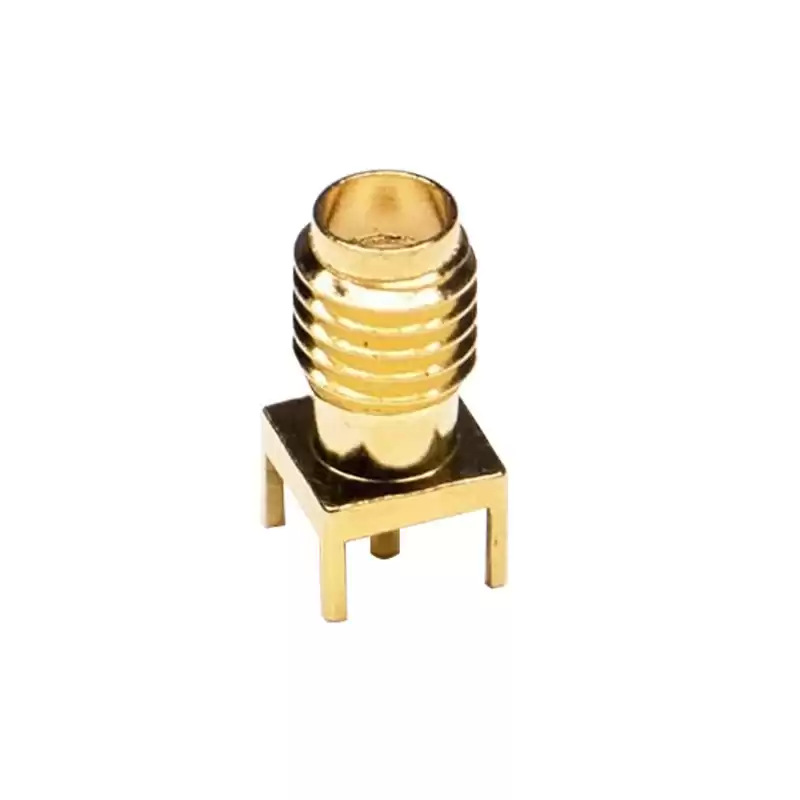

SSMA Female Straight RF Connector Through Hole For PCB
The SSMA connector utilizes a 10-36 threaded coupling and is essentially a scaled-down version of the SMA;This interface is characterized by compactness, high frequency bandwidth, and highly reliable mechanical performance. The male contact was designed to be the same size as the cable conductor so that it could be used as the mating pin for optimized VSWR.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50Ω |
| Frequency range (for connector interface) |
DC～34GHz |
| Dielectric withstanding voltage (at sea level) |
≥750-1500V,50Hz (depending on cable) |
| Working voltage (at sea level) |
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M) |
| Insulation resistance |
≥ 5000 mΩ |
| Contact resistance |
Inner conductor: ≤3mΩ |
| Outer conductor: ≤2.5mΩ |
| RF leakage(2-3GHZ) |
Flexible: ≥60dB |
| Semi-rigid cable: ≥100dB |
| MECHANICAL DATA |
|
| Coupling nut torque |
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs |
| Coupling nut retention force |
≥270N / 60.7 lbs |
| Contact captivation axial |
≥27N / 6.1 lbs |
| Durability (matings) |
≤500 |
| ENVIRONMENTAL DATA |
|
| Temperature range |
-65°C to +165°C |
| MATERIAL DATA |
|
| Bodies, outer contacts |
Beryllium copper--Au plating |
| Stainless steel--Passivation |
| Brass--Au plated / ternary alloy plating |
| Phosphor bronze --Au plating |
| Pin contacts |
Brass/Beryllium copper--Au plating |
| Socket contacts |
Beryllium copper / Phosphor bronze--Au plating |
| Crimp ferrules |
Brass--Au plating |
| Insulator |
PTFE |
| Gaskets |
Silicone rubber |
Applications
- Telecommunications
- Mil-Aero
- RFID
- Antennas
- Test & Measurement
- Radar Systems
