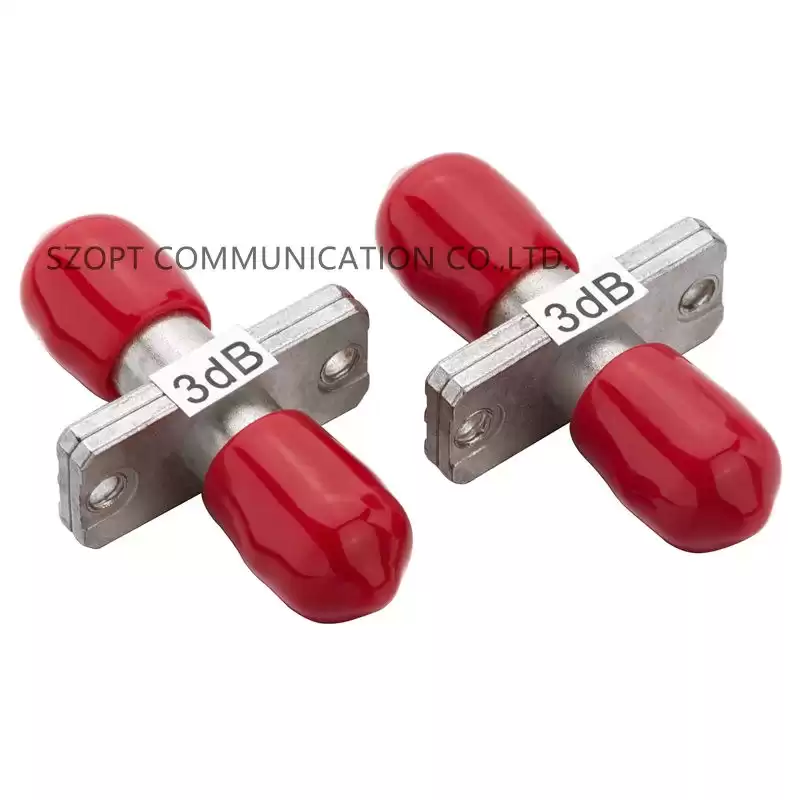

ST Adapter Type Fiber Optical Fixed Attenuator 1dB 2dB 3dB 5dB 10dB 15dB 20dB 25dB 30dB

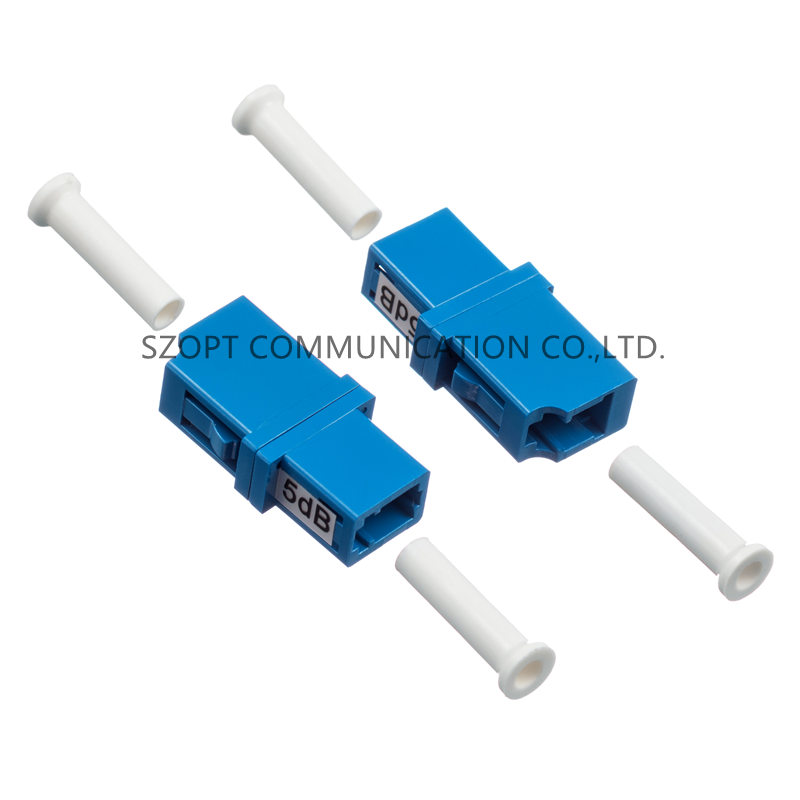

SZOPT’s fixed adapter type optical attenuators SC/LC/FC/ST feature high
power endurance and low back reflection. They feature all fiber construction
easy to install, available for the panel. Fixed adapter type optical
attenuators are widely used in ODF, fiber transmission equipment and instrument
etc.Please reach us for details.
Application:
-Fiber optical distributing frame
-Fiber optical network system
-High speed fiber optical transmission system
-CATV system
-Long distance DWDM system
Feature:
-High return loss
-Simple structure
-Max operation power(1W)
-Low wavelength relativity
-Low polarization related loss
Package:
Each in a PE bag,finally put in a carton box.
Specification:
|
Parameter
|
Specification
|
|
Type (nm)
|
1310
|
1550
|
1310/1550
|
850/1300
|
|
Wavelength (nm)
|
1310 ±50
|
1550 ±50
|
1260- 1650
|
850/1310 ±40
|
|
Attenuation Range (dB)
|
0.8-60
|
0.8 ~ 60
|
0.8〜60
|
0.8 ~ 60
|
|
Original Loss (dB)
|
≤0.8
|
≤0.8
|
≤0.8
|
≤0.8
|
|
Return Loss (dB)
|
≥50
|
≥30
|
|
Fiber Type
|
SMF-28e
|
50/125 or 62.5/125MM
|
|
PDL (dB)
|
≤0.15
|
|
Operating Temperature (°C)
|
0~+70
|
|
Storage Temperature (°C)
|
-40 ~ +85
|
Package:
Each piece in a small PE bag,then put into a bigger carton box.
