Stable HDPE Ground Reinforcement Paddock Grids

HDPE paddock grids is an ideal ground reinforcement system for house riding and other equestrian sports. Maximal load capacity 250tons/m2 ensures a high degree of safety in the ridding arena.



STABLE HDPE GROUND REINFORCEMENT PADDOCK GRIDS

HDPE paddock grids is an ideal ground reinforcement system for house riding and other equestrian sports. Maximal load capacity 250tons/m2 ensures a high degree of safety in the ridding arena.



THE ULTIMATE IN PADDOCK AND EQUESTRIAN SPORTS AREA

Stable HDPE Ground Reinforcement Paddock Grids

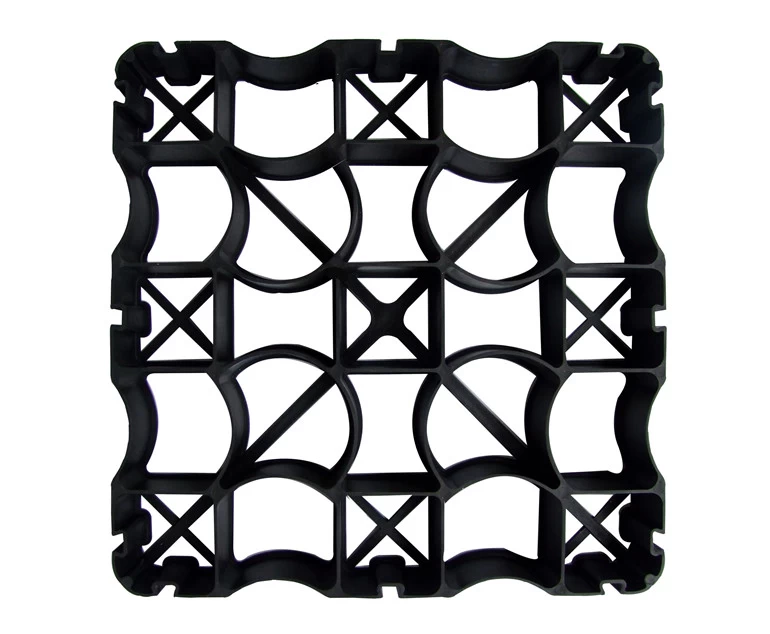

LY950 TECHNICAL DATA

 MATERIAL  HDPE(100% Recycled High Density Polyethylene)
 COLOR  Black; Dark Green
 SIZE  336*336*50mm
 CELL WALL THICKESS  2mm
 WEIGHT   0.65kg/pc; 5.85kg/m2
 OPEN CELL PERCENTAGE   92% top; 75% base
 ANTI HCL   According to GB4218-1984, 30% x 24h, no visible change
 ANTI NAOH   According to GB4218-1984, 30% x 24h, no visible change
 THERMAL AGING   According to GB/T 7141-1999, 70IC x24h, no visible change
 UV RESISTANCE   According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY  Non Toxic
 DURABILITY  At least 10 years in neutral ground of 4<pH<9

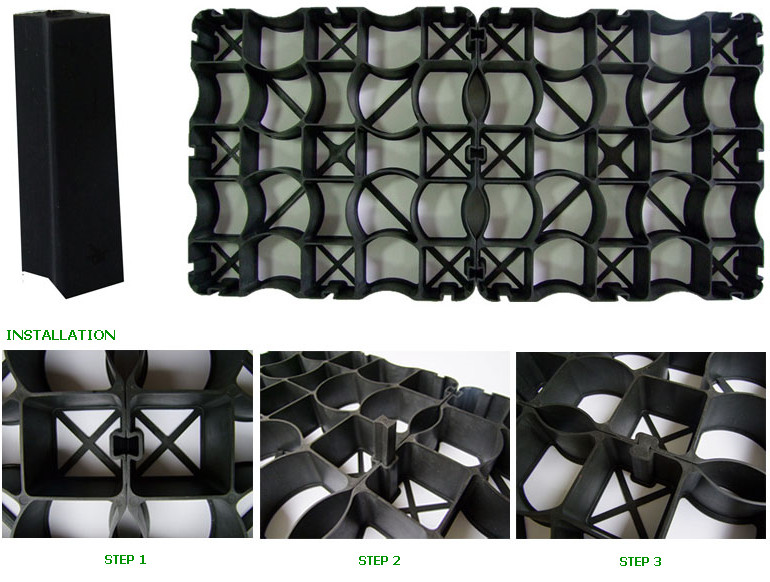

 PACKING  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m2 in one go.
 PACKING  570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC

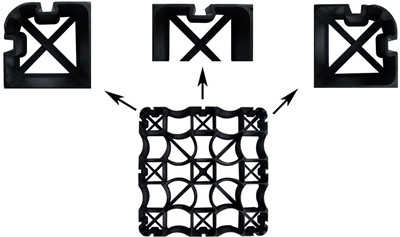

ACCESSORIES

We supply a firm interlocking connected accessories and fix edging system that offers a guide to ensure continuous levels across surfaces as well as the ability to cut patterns and curves to surfaces.

Ground Reinforcement Paddock Grids Accessories


APPLICATION

Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.



FEATURE

Paddock Grids



Non-slip

Elastic and robust

Crack-proof

Weatherproof

Environmentally friendly, 100% recyclable

High load capacity

Ammonia resistant

Withstands frost and UV light

Does not rot



Greengrassgrid

ADVANTAGES

No mud

Equal load on all joints

The tread layer remains separate from the substructure

Minimal maintenance

High degree of elasticity

Load capacity of up to 250tons/m2

Outstanding drainage

More than 200 elastic elements per m2

Quick and easy to install

Environmentally friendly

Minimal hoof impact marks

Patented safety locking system

Permanent drainage

Robust surface with good grip

All-weather areas, the ideal surface all year round

Open stables keep free from mud and puddles.
