Stainless Steel 304 316 inox Plumbing pipe bends and elbows
|

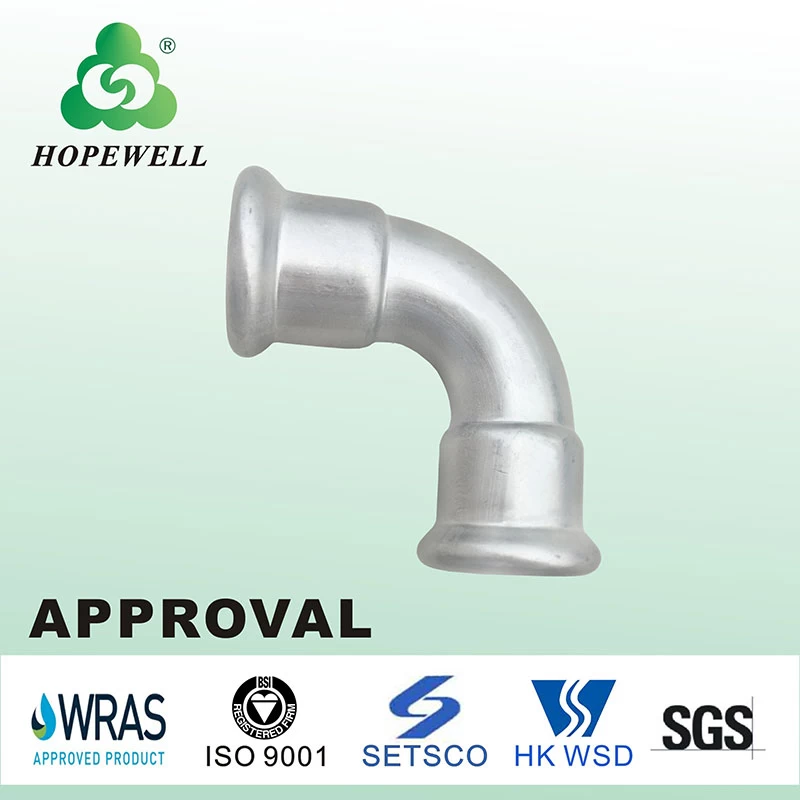

90° short equal elbow
|
HW83410
|
15
|
|
90° short equal elbow
|
HW83411
|
18
|
|
90° short equal elbow
|
HW83412
|
22
|
|
90° short equal elbow
|
HW83413
|
28
|
|
90° short equal elbow
|
HW83414
|
35
|
|
90° short equal elbow
|
HW83415
|
42
|
|
90° short equal elbow
|
HW83416
|
54
|
|

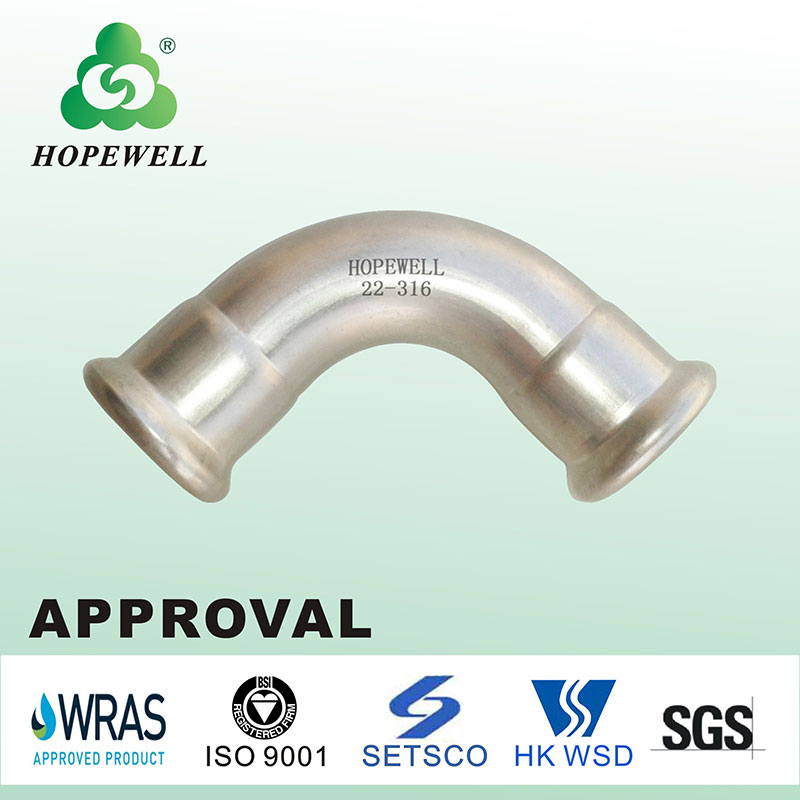

90° equal elbow
|
HW04057
|
76.1
|
|
90° equal elbow
|
HW04058
|
88.9
|
|
90° equal elbow
|
HW04059
|
108
|
Standard:
elbow pipe standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for Stainless Steel 304 316 inox Plumbing bends and elbow pipe:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
Press fitting range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for Stainless Steel 304 316 inox Plumbing bends pipe and elbow:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
Under production:
Install Effect:
Loading:
Please contact us for more details about Stainless Steel 304 316 inox Plumbing bends pipe and elbow and price list.
