Stainless Steel 304 316 plumbing pipe m profile press fit fittings
|
Item
name
|
Item number
|
Out
diameter
(mm)
|
|

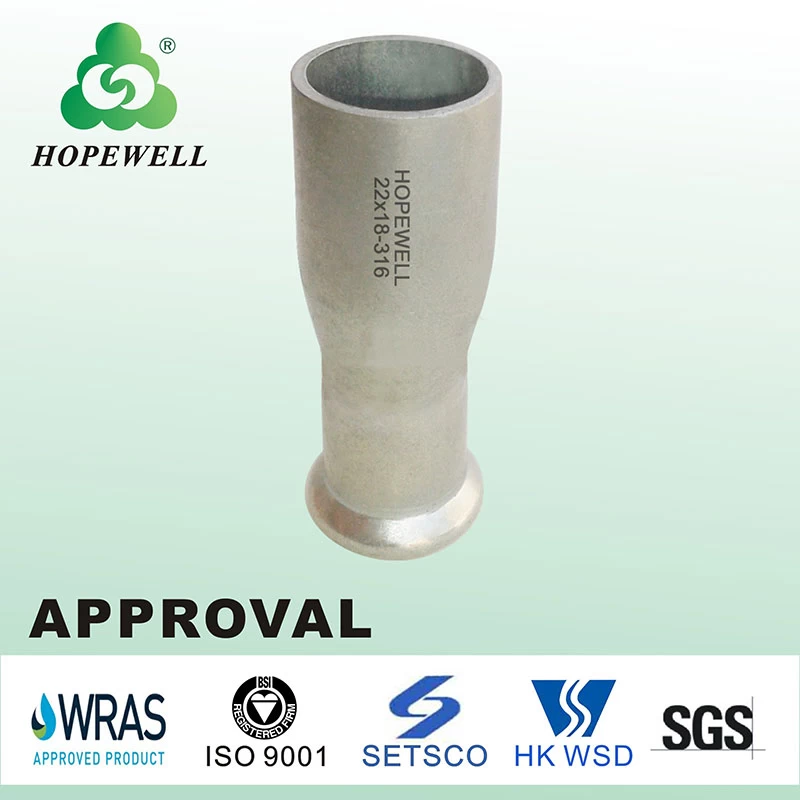

Reducer-B
|
HW52011
|
18×15
|
|
Reducer-B
|
HW52012
|
22×15
|
|
Reducer-B
|
HW52013
|
22×18
|
|
Reducer-B
|
HW52014
|
28×15
|
|
Reducer-B
|
HW52015
|
28×18
|
|
Reducer-B
|
HW32016
|
28×22
|
|
Reducer-B
|
HW52017
|
35×15
|
|
Reducer-B
|
HW52018
|
35×18
|
|
Reducer-B
|
HW52019
|
35×22
|
|
Reducer-B
|
HW52020
|
35×28
|
|
Reducer-B
|
HW52021
|
42×15
|
|
Reducer-B
|
HW52022
|
42×18
|
|
Reducer-B
|
HW52023
|
42×22
|
|
Reducer-B
|
HW52024
|
42×28
|
|
Reducer-B
|
HW52025
|
42×35
|
|
Reducer-B
|
HW52026
|
54×15
|
|
Reducer-B
|
HW52027
|
54×18
|
|
Reducer-B
|
HW52028
|
54×22
|
|
Reducer-B
|
HW52029
|
54×28
|
|
Reducer-B
|
HW52030
|
54×35
|
|
Reducer-B
|
HW52031
|
54×42
|
|
Reducer-B
|
HW52032
|
76.1×54
|
|
Reducer-B
|
HW52033
|
88.9×54
|
|
Reducer-B
|
HW52034
|
88.9×76.1
|
|
Reducer-B
|
HW52035
|
108×54
|
|
Reducer-B
|
HW52036
|
108×76.1
|
|
Reducer-B
|
HW52037
|
108×88.9
|
Standard:
press fit standard: GB/T 19228.1-2003 (including EN10312 standard and GB Ⅱ standard);
Pipe standard: GB/T 19228.2-2003
Sealing ring standard: GBT 19228.3-2003
Material for Stainless Steel 304 316 plumbing pipe m profile press fit fittings:
Stainless steel 304 and 316 available.
Sealing ring material: EPDM
press fit range:
Coupling -- Stainless steel equal pipe coupling, Reducer-A, Reducer-B, Adjustable coupling, Female coupling, Rotatable coupling, Male coupling;
Elbow -- equal elbow, plain elbow, reducing elbow, Female elbow, Based female elbow, Short female elbow, Male elbow;
Tee -- equal tee, reducing tee, Female tee, Male tee;
Pipe cap, pipe bridge and Flange.
Stainless steel pipe
Sizes range for Stainless Steel 304 316 plumbing pipe m profile press fit fittings:
The norminal diameter are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including EN10312 standard and GB Ⅱ standard.
EN10312 standard out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB Ⅱ standard out diameters are: 15.9, 22.2, 28.6, 34, 42.7, 48.6, 76.1, 88.9, 108mm.
Under production:
Install Effect:
Loading:
Please contact us for more details about Stainless Steel 304 316 plumbing pipe m profile press fit fittings and price list.
